Introduction

Welcome to the Worship Center Broadcast System (WCBS). The primary function of the WCBS is to

connect computers and video devices (VCR, Camera, DVD, Satellite, etc.) to viewing screens. The

viewing screens can be LCD projectors, CRT monitors, LCD panels, and other compatible VGA devices.

The typical installation includes the Video Genie DS1 matrix switcher that combines a video scaler

(converts Video signals to high resolution VGA signals), a video switch (instantly switches between several

VGA and Video signals), and a CAT5e based audio/video distribution system (inexpensive industry

standard cabling).

The WCBS is a hardware-based audio/video switching system that can be installed with any computer

system using VGA compatible graphics (this includes IBM compatible PC’s and Macintosh PC’s running

any operating system). The WCBS requires you to install a small Receiver Box adjacent to every viewing

screen that will be connected to the system.

Your choice of the WCBS will give you many benefits:

•Easy to use system –a simple click of the mouse performs most functions.

•Fast Switching -Eliminates the unwanted delay seen switching from Video Mode to VGA mode

•Easy Expansion –You can use WCBS to transmit the video and audio to an unlimited number of

viewing screens.

•Enhanced Functionality –The WCBS can be used for more sophisticated functions such as

Multicasting (showing different video signals to different groups)

One of the greatest strengths of the WCBS is realized because the system is entirely hardware based. You

can install your WCBS system with complete confidence that it will in no way impact your software or

system performance. This is possible because WCBS requires no software, no drivers, no memory, and no

interrupts.

WCBS Functions

The easy to use functions of the WCBS are quite sophisticated, allowing the owner to apply the most

effective audio/video distribution strategies possible.

•Darken All Screens/Projectors

•Darken Group Screens/Projectors

•Broadcast Audio/Video to All

•Broadcast Audio/Video to Group

•Independent Rear Projector Output

•Matrix output (audio/video are independent)

•Video Genie™ DS1 supports full motion

full screen video (60 fps) from 4 sources

•Support for unlimited attached devices

•Infrared Remote Control learning (DS1)

•Software based RS232 Remote Control

•All functions delivered over CAT5e cable

Page 4of 28

System Components

You dealer should have helped you order the right components to install your WCBS. If you ever need to

order replacement parts, or make additions to your system, please refer to the following chart:

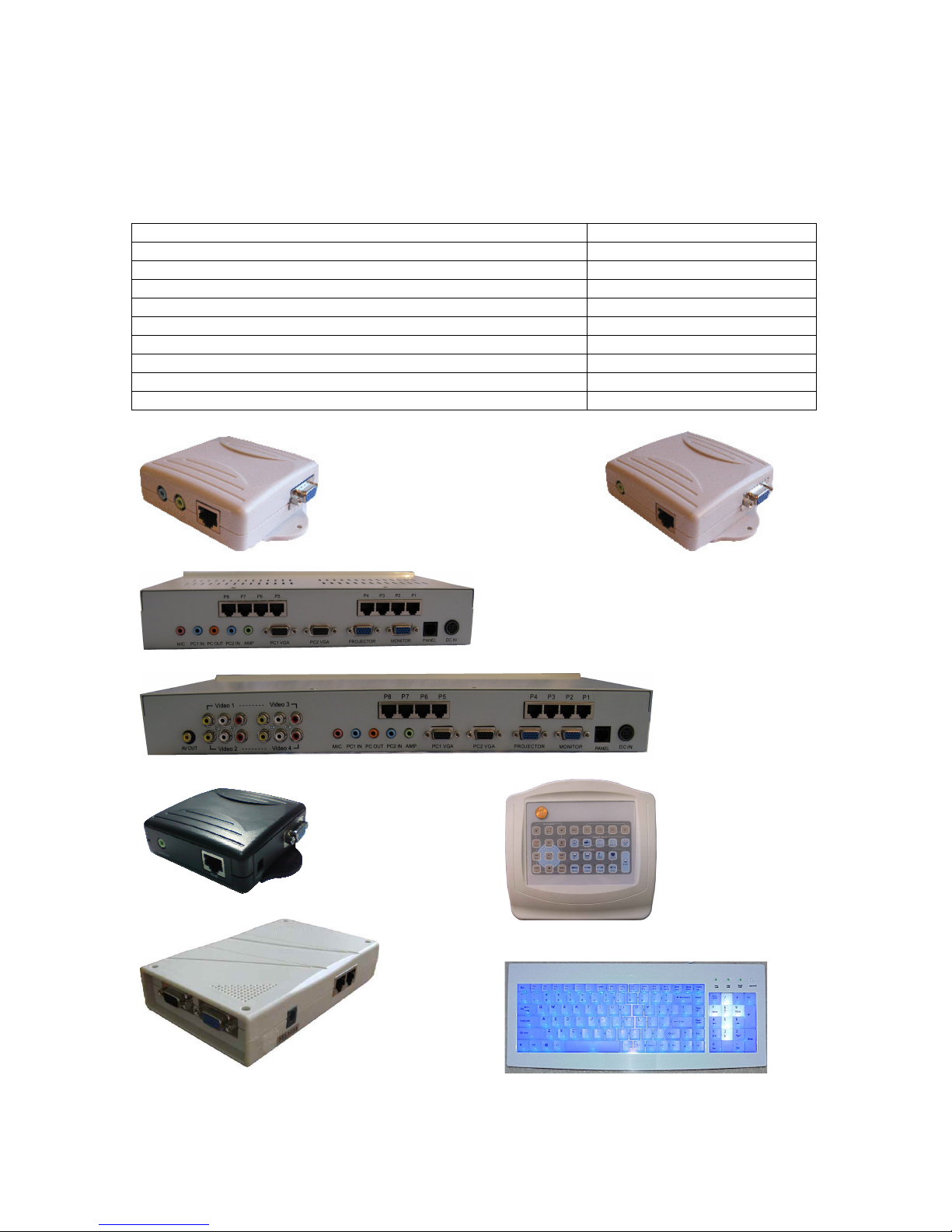

Item

Part Number

Projector Connector™ Transmitter –Type B

VBS-PTP-308B

Video Genie™ DS0 2x10 Matrix Switcher/Transmitter

VBS-ST-308AS

Video Genie™ DS1 3x10 Matrix Switcher/Scaler/Transmitter

VBS-ST-308AV

Projector Connector™ Passive Receiver (10, 20, 30, 40, 50, or 60M)

VBS-PTP-108B-xxM

Projector Connector™ Extended Receiver –200’ to 1000’ distances

VBS-PTP-300M

Projector Connector™ Dual Monitor Active Receiver

VBS-ST-1082B

UTP Terminators

VBS-TR8

Total Control Console™

VBS-ST-400A

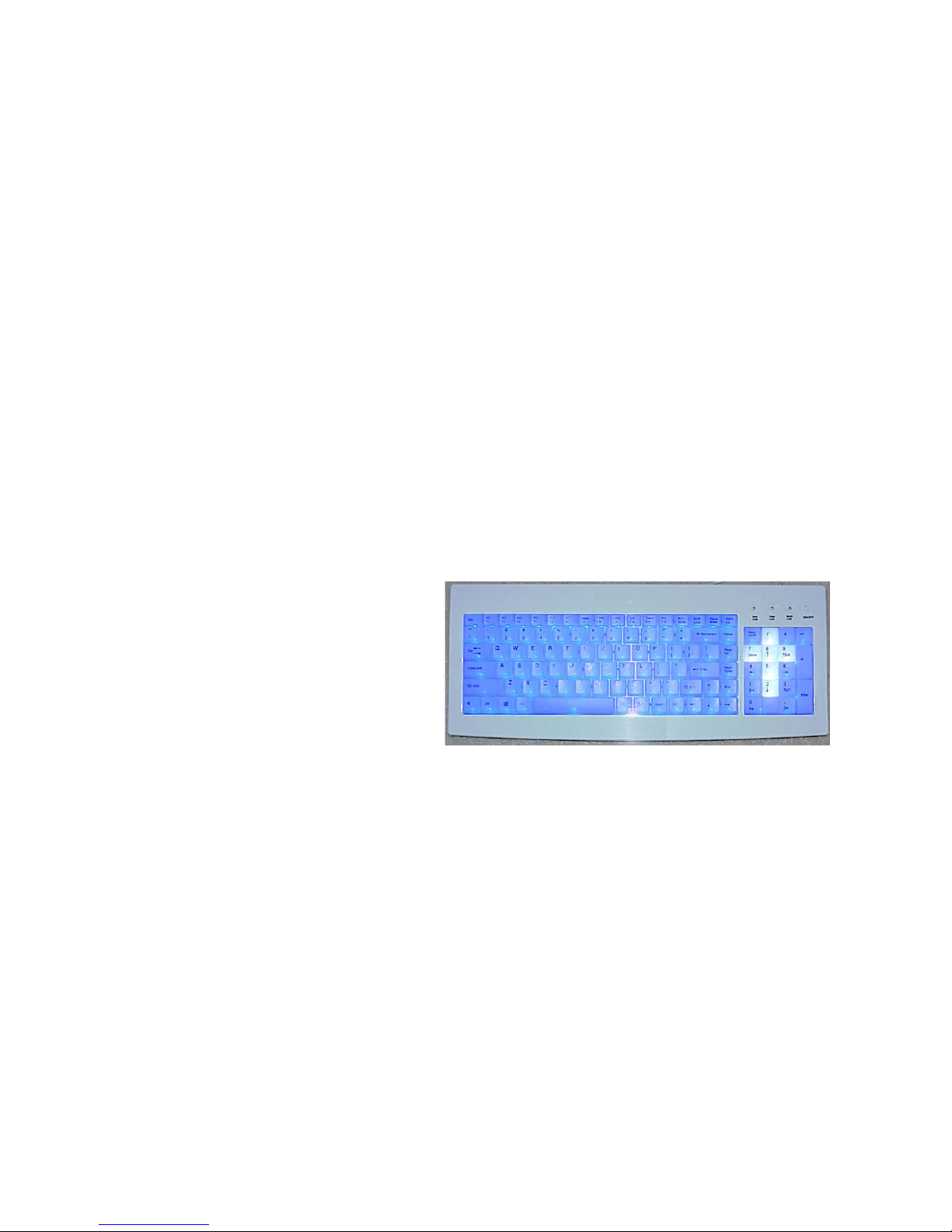

Guiding Light™ Keyboard

VBS-SLK-4502

Projector Connector™ Transmitter/Receivers

Video Genie™ DS0

Video Genie™ DS1

Projector Connector™ Extended Receiver

Projector Connector™ Dual Monitor Receiver

Total Control Console™

Guiding Light™ Keyboard

Page 5of 28

Installation Procedure

The installation of the WCBS is quite easy and can be summarized as follows:

1. Install a Receiver Box at each viewing device (page 5)

2. Connect all Receiver Boxes devices to the Video Genie Transmitter (page 6)

3. Install Video Genie™

Detailed instructions for each step are provided on the following pages.

Receiver Box Installation

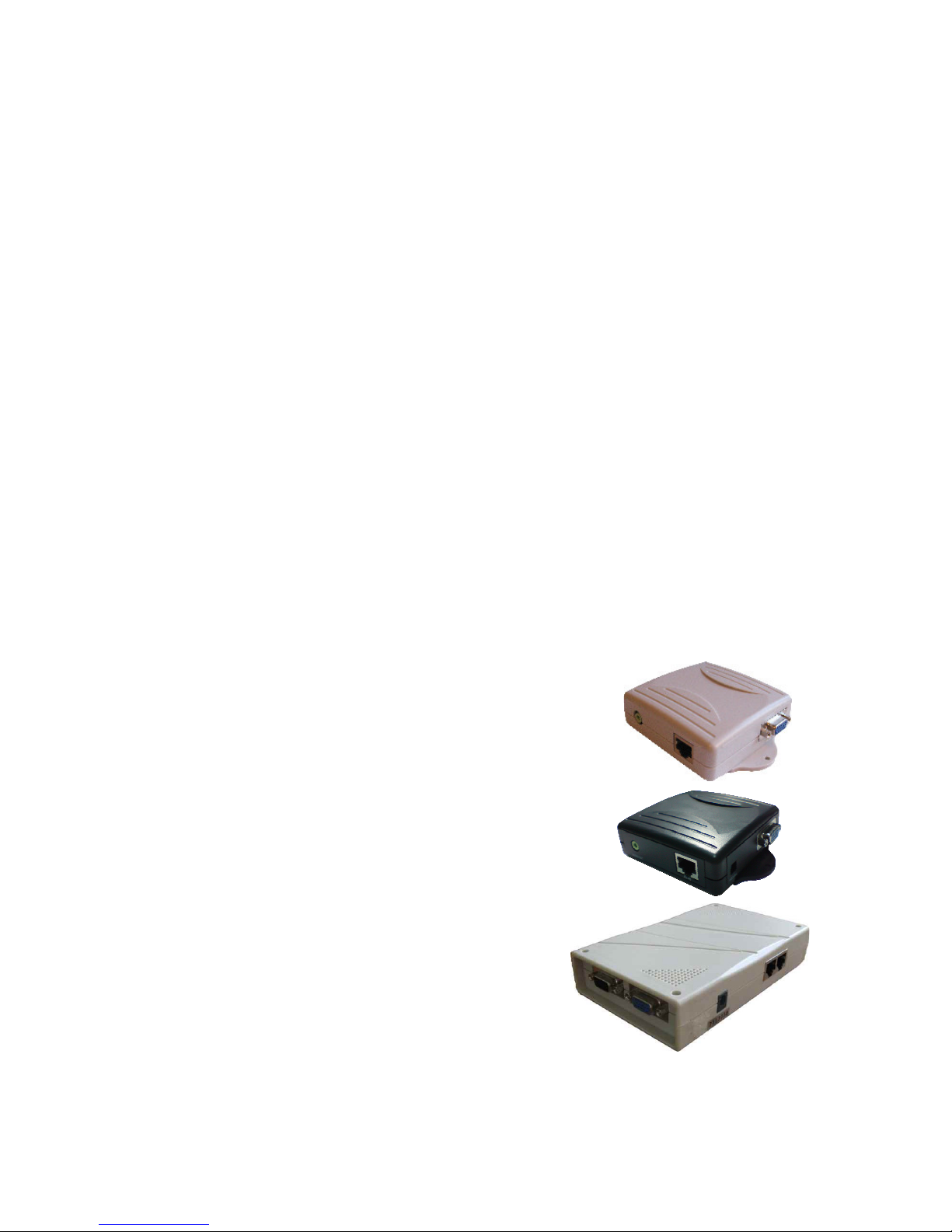

Use the VBS-PTP-108B Receiver Box for Projectors and Stand Alone Monitors installed within 60 Meters

(200’) of the Video Genie. The VBS -PTP-108B is available in 6 models, tuned with Video Gain settings

for UTP/STP cables in 10M increments. Choose the model that is closest to the installed cable distance.

Use the VBS-PTP-300M Receiver Box for cable distances between 200’ and 1,000’. The VBS -PTP-300M

has fine tuning knobs to adjust the gain/focus for optimal image outputs.

Use the VBS-ST-1082B Dual Monitor Receiver for locations with multiple monitors. This device also has

the option to display a local VGA source when the WCBS transmitter is in break mode (i.e. rolling

announcements in the Narthex or Hallway when not showing a worship service)

Installation of the VBS-PTP-108B Receiver Box should be performed as follows:

1. Turn off the power to the projector or monitor.

2. Locate the VBS-PTP-108B Receiver Box kit for the viewing device. Each VBS-PTP-108B Receiver

Box kit includes the following items:

Receiver Box

AC Adapter

1.2M VGA Cable

3. Use the VGA Cable to connect the computer monitor or projector to

the VGA port labeled monitor. Longer VGA cables can be used to

accommodate conduits and other cosmetic connections.

4. If you are going to broadcast sounds to this position, you can use a

3.5mm stereo mini-plug type cable to connect the speakers or

headphones from the display station to the green 3 audio out port on the

Receiver Box.

5. If you are installing the VBS-ST-1082B receiver you can

connect the VGA Output of the announcements PC to the port

labeled VGA. This VGA signal will be displayed on the

attached monitor/projector when the WCBS is not controlling

the output device.

Page 6of 28

Connect Receivers to the Video Genie™ Bus Ports

The Video Genie™ has 8 UTP/STP Bus Ports. You can connect one VBS-PTP receiver to each port with a

single twisted pair cable. You can attach multiple VBS-ST dual monitor receivers to each bus port in a

daisy-chain. When installing multiple receivers on a best port we suggest that you follow these guidelines

for the best quality audio/video transmissions:

•Keep the CAT5e cable length from the Video Genie™ to the first receiver box under 50 Meters.

•Keep the CAT5e cable distance between any two receiver boxes in a chain under 25 Meters.

•Do not connect more than 10 receiver stations in a single chain.

•Try to keep the total CAT5e cable length out of any booster port under 100 Meters.

•Whenever possible, use the shortest possible cable lengths.

•Install a Blue Terminator plug in the open bus port at the end of a receiver daisy-chain.

While it is certainly possible to achieve acceptable results outside of these guidelines, keep in mind

that the local environmental conditions (type of devices, amount of RFI noise, dirty power, defective

lighting ballasts, etc.) will dictate the maximum distance that can be supported.

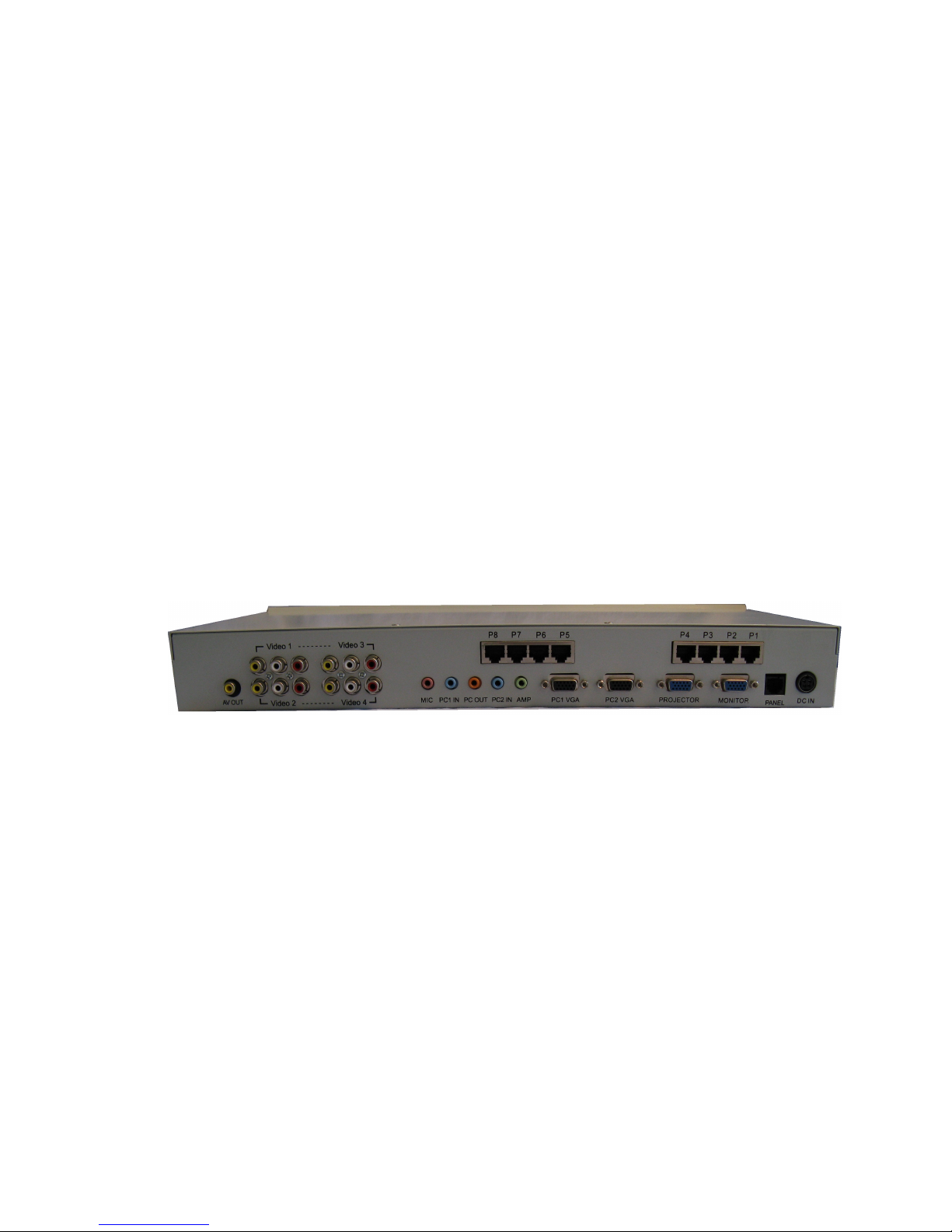

Video Genie™ DS1 Hardware Installation and Configuration

The Video Genie™ DS1 Scaler allows the WCBS Operator to connect up to 4 standard Video devices plus

2 VGA devices to the WCBS. For example, a VCR, DVD Player, Satellite Dish, and a Video Camera

could all be connected to the WCBS using one Video Genie™ Scaler.

1. Connect the Worship Center PC VGA Adapter to the PC1 VGA Port of the Video Genie™ Scaler.

2. Connect the MONITOR Port of the Video Genie™ Scaler to the VGA Monitor in the Control Booth.

3. Connect the PC1-IN Port of the Video Genie™ Scaler to the SOUND-OUT port of the Worship Center

PC Sound Card

4. If a second VGA signal is desired (i.e. PC-In-The-Pulpit), connect that device to the VGA-2 Port of the

Video Genie™.

5. Connect the PROJECTOR Port of the Video Genie™ to the “rear of house” projector. If you are not

using a rear of house projector you may want to use this for a second VGA Monitor in the Control

Booth, allowing the operator to preview multiple items at the same time.

6. Connect the PC OUT Stereo Out port of the Video Genie™ Scaler to the operators Headphones or

Speakers

7. Connect up to 4 Video Devices to the Video Genie™ Scaler using standard video cables.

8. Optional: Connect a composite video monitor to the A/V OUT port for A/V preview functions.

Page 7of 28

9. Connect the green 3.5mm stereo AMP OUT port of the Video Genie™ to the house Audio Amplifier if

desired (unbalanced signal cable). This will let you route the A/V devices sound signals back to the

house sound system using the audio matrix functions.

10. Connect the IR Blaster Extension Cables to the IR OUT ports on the front and route the transmitters to

the IR EYE location of the devices to be controlled by the Video Genie™.

11. Connect the single IR Learning Eye to the IR IN PORT on the front of the Video Genie™.

12. If you are using the Windows GUI to control the system, connect the control PC COM port to the DB9

port on the front of the Video Genie™ marked CONTROL.

13. If you are using the Total Control Console to control the system, connect the CONSOLE to the

PANEL port on the Video Genie™ with an RJ11 cable.

14. If you want the option to simultaneously use both control systems (Windows GUI and Console), you

will need to use the optional RS232 BRIDGE device (contact Just Add Power support for details).

15. Connect the twisted pair BUS ports to the Receiver Boxes. Do not turn on the Video Genie™ or

Receiver Boxes until the CAT5e Cables have been connected to all of the receivers to prevent

accidental electrical surges.

16. Install UTP Terminator plugs in any unused BUS ports. Be sure to check the Video Genie™ UTP

ports and all of the Receiver Box chains UTP ports.

17. Connect the Power Cord to an appropriate electrical outlet.

18. Optional: Plug the guiding Light Keyboard

into the control PC using a USB port, or the

PS/2 adapter.

19. Power on all devices and proceed with the

software installation for Windows GUI

control of the system.

20. Optional: Connect a microphone to the

MIC port if you want to be able to talk to the remote viewing locations with a microphone in the booth.

Page 8of 28

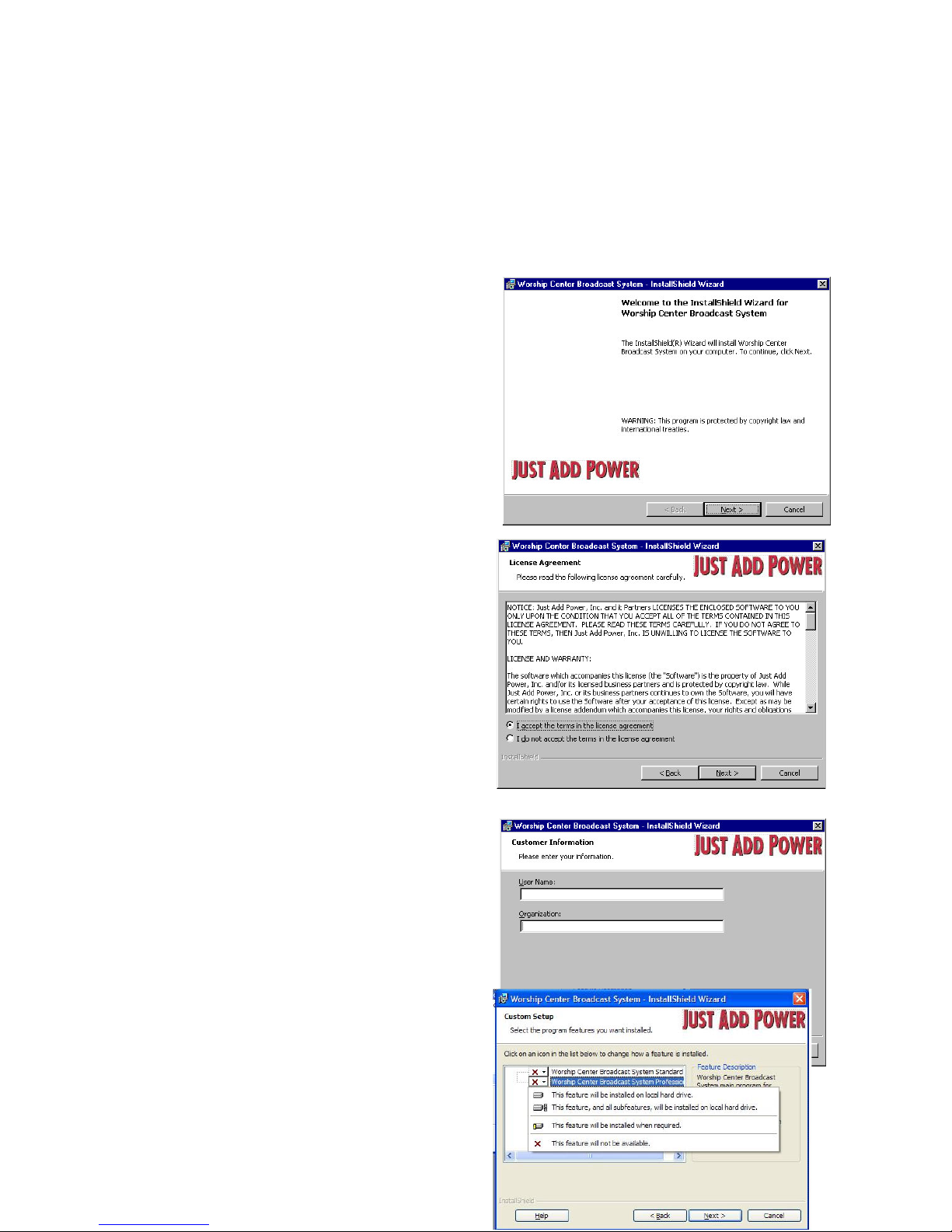

Worship Center Broadcast System Software Installation and Configuration

The software to control the Worship Center Broadcast System is distributed on a CDROM that should have

been shipped with your system. The system software is for PC’s running practically any version of the

Microsoft Windows Operating System. If you are using Windows NT, 2K, or XP, you should first log onto

the computer using an ID with full administrator privileges.

1 of 3 Install the WCBS Graphical User Interface

1. Insert the CDROM into the Supervisor PC (the one

with the RS232 interface). The CD should

autorun, if this does not happen, browse the CD

and run the SETUP.EXE program. The Welcome

screen should appear. You must click on the

“Next” button to continue.

2. The Software License Agreement screen should

appear. You must click on the option to accept

the terms in the license agreement first. Then you

should click on the “Next” button to continue.

3. The Customer Information screen should appear.

Please input your User Name and Organization,

and then click on the “Next” button to continue.

Page 9of 28

4. Simply click on the symbol next to

the feature you want to install and choose

the option to install that feature (i.e. This

feature will be installed on local hard drive).

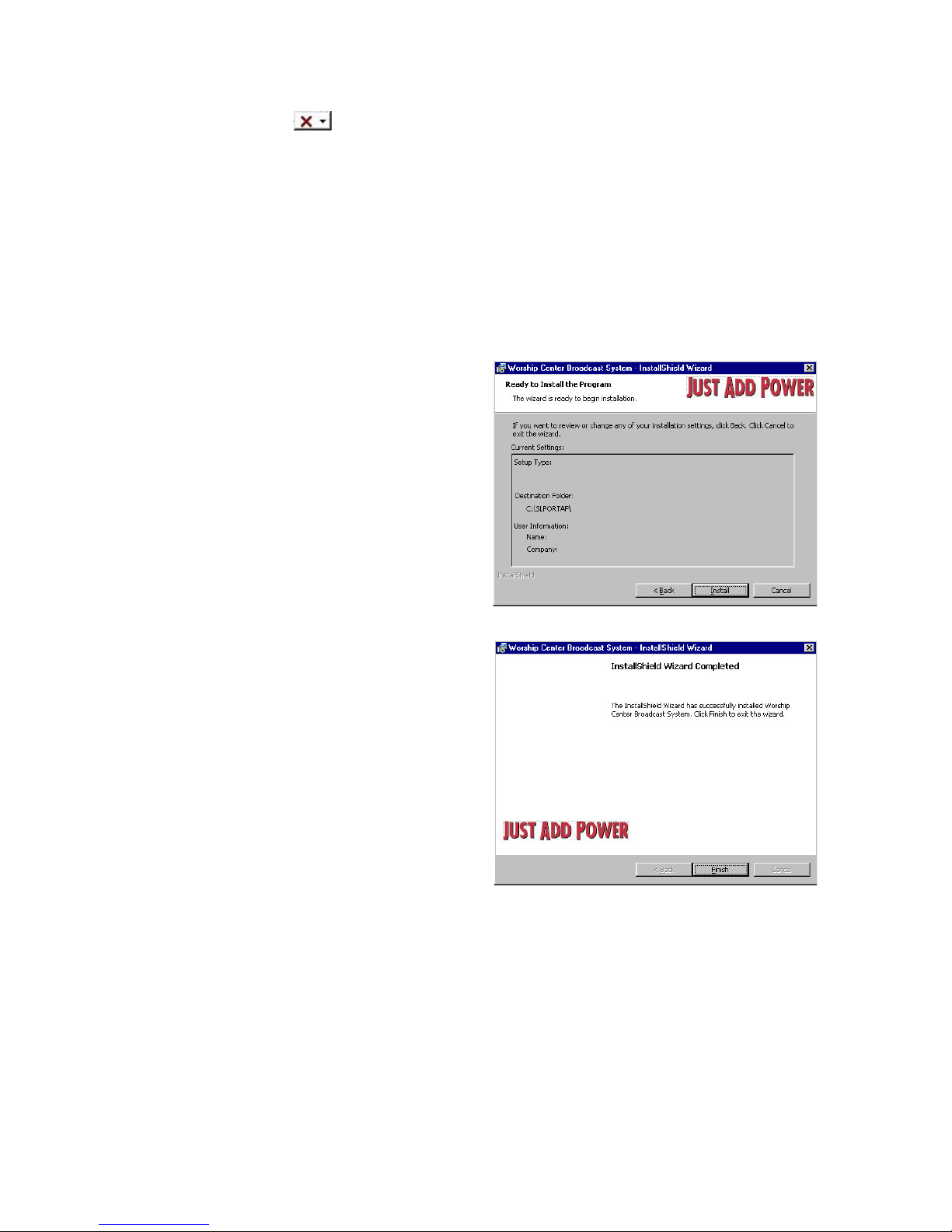

5. The Ready To Install screen should appear.

You should not need to change anything on

this screen. Simply click on the “Next”

button to continue.

6. The Installation Completed screen should

appear. Now click on the “Finish” button to

exit the installation Wizard.

Page 10 of 28

2 of 3 Install the HotKeys utility program

The HotKeys utility program is used in conjunction with the Guiding Light Keyboard to control the

Worship Center Broadcast System. The HotKeys utility is a freeware program that is provided at no cost.

The complete source code for the HotKeys program can be found in a ZIP file on the WCBS Installation

CDROM.

1. Browse the Supervisor PC and locate the HKSETUP.EXE program, which should be located in the

C:\SLPORTAP directory.

2. Run the HKSETUP program, and accept all of the default choices.

3. Reboot the Supervisor PC and the HotKeys program should start automatically.

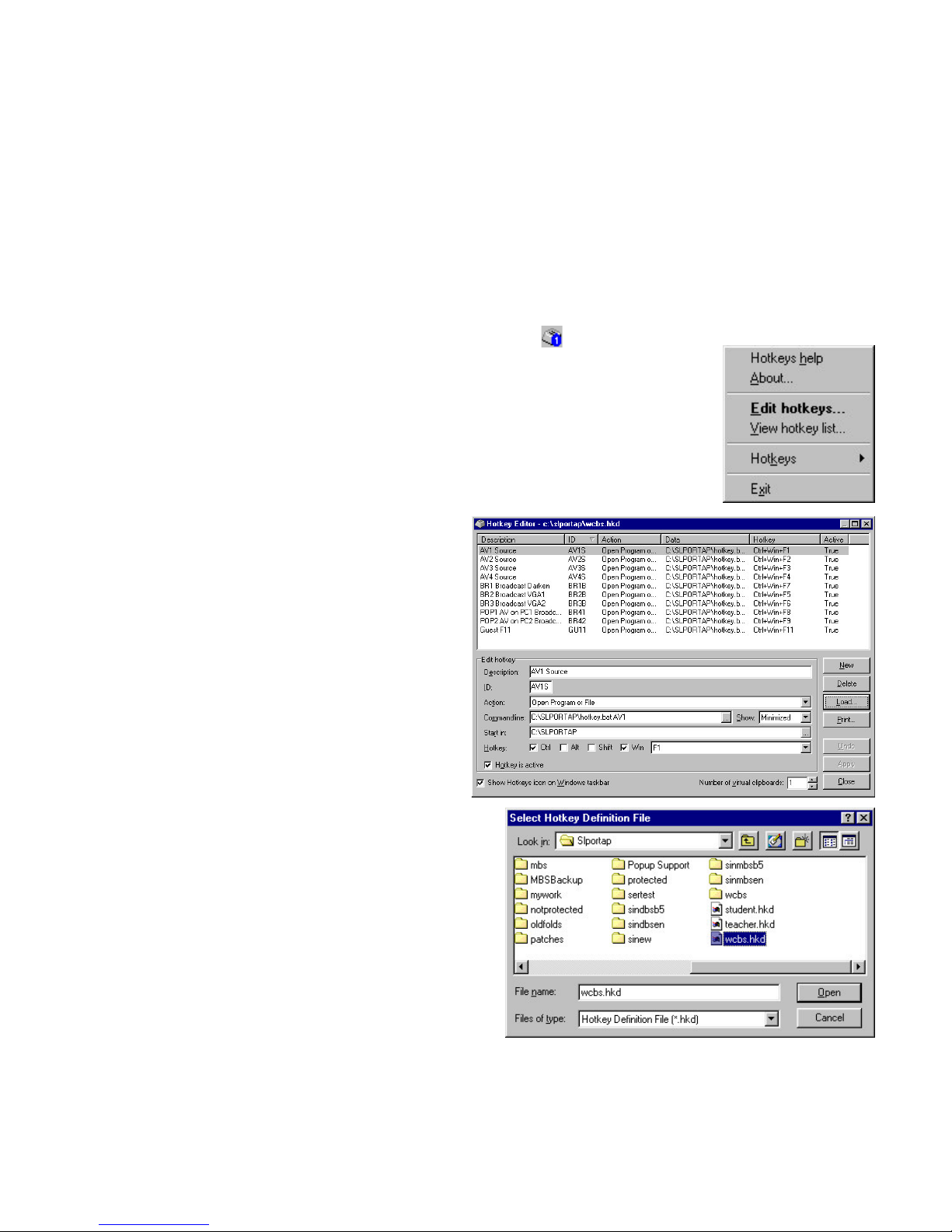

4. Right Click on the HotKeys Icon in the Windows Toolbar -

5. The HotKeys options menu should appear:

6. Click on “Edit hotkeys…” and the HotKeys

Editor screen should appear:

7. Click on the “Load” Button and the “Select Hotkey

Definition File” dialog will appear. You should

browse your PC to locate the file

C:\SLPORTAP\WCBS.HKD and load that file into

HotKeys. This will customize HotKeys to match

the functions on the Guiding Light™ keyboard.

8. After you “Load” the Definition File, you can use

the same screens to add additional HotKeys to

activate other functions on the Worship PC.

NOTE: The default setting for the HotKeys on the

Guiding Light™ Keyboard is set to have the operator

press the CTRL key and the WINDOWS key at the same time, and while holding them down, press one of

the designated F keys.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Just Add Power Cardware Empfänger Handbücher

Just Add Power Cardware

Just Add Power Cardware 2G HD over IP Montageanleitung

Beliebte Empfänger Handbücher anderer Marken

Garmin

Garmin GA 23 Bedienungsanleitung

Aiphone

Aiphone PS-12F Bedienungsanleitung

IMES

IMES TCS-01CA-PMI Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR Handbuch

AMIMON

AMIMON AMN12310 WHDI Bedienungsanleitung

Dual

Dual DMCPA79BT Betriebsanleitung

Sound Associates

Sound Associates SA652P Bedienungsanleitung

Sherwood

Sherwood NewCastle R-772 Bedienungsanleitung

Audio

Audio A10-RX Series Bedienungsanleitung

AllSee

AllSee PushShare PSRV1.1 Bedienungsanleitung

DEMAG

DEMAG DRC-DR D2 Bedienungsanleitung

Teleco

Teleco TVRCL868A02 Bedienungsanleitung

Bosch

Bosch RF3222E Bedienungsanleitung

Kramer

Kramer 631R Bedienungsanleitung

Xpress

Xpress xmc10 Bedienungsanleitung

JVC

JVC KD-MR1BTS Bedienungsanleitung

Omega Engineering

Omega Engineering UWTC-REC3 Bedienungsanleitung

e-survey

e-survey E300 Pro Bedienungsanleitung
