GGT0033-001A-H

COLOUR TELEVISION

AV-14145

AV-14148

Contents

Knowing your TV’s features ........................... 2

Remote control buttons and basic functions .3

TV buttons and functions .............................. 5

Setting up your TV ........................................ 6

Basic setting for picture ................................. 8

Advanced setting for picture .......................... 9

Basic setting for sound .................................. 9

Advanced setting for sound ......................... 10

Favorite channel and video setting .............. 10

Customized setting ...................................... 11

TV channel presetting ................................. 12

Additional preparation ................................. 14

Troubleshooting ........................................... 14

Specifications .............................................. 15

INSTRUCTIONS

GGT0033-001A-H-Cover 8/24/04, 10:0421

Safety Instructions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

1Operate only from the power source indicated on the rear of the TV.

2Avoid damaging the power cord and mains plug. When unplugging the TV, grasp the

mains plug. Do not pull on the power cord.

3Never block or cover the cabinet ventilation

openings. Never install the TV where good

ventilation is unattainable. When installing

this TV, leave spaces for ventilation around the

TV more than the minimum distances as

shown in the diagram.

4Do not allow objects or liquid into the cabinet

openings.

5In the event of a fault, unplug the unit and call a JVC service technician.

Do not attempt to repair it yourself or remove the rear cover.

6The surface of the TV screen is easily damaged. Be very careful with it when handling

the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it

forcefully. Never use any cleaner or detergent on it.

7If you are not going to use this TV for a long period of time, be sure to disconnect the

AC plug from the AC socket.

8The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on the apparatus.

15 cm

10 cm 15 cm10 cm

Knowing your TV’s functions

Main features

Function Description

Favorite CH (Channel) You can register up to four favorite channels for quick re-call with one-press.

AI Volume TV adjusts automatically the volume to the same level for all TV channels to

avoid sudden change of the volume when selecting different TV channel.

VNR You can reduce the picture noise when you viewing noisy TV programmes or

video sources.

White balance You can choose one of three tones of white to match to the video source such

as movie, sports, etc. Changing White balance affects the appearance of all other

colours on the screen.

Child lock To prevent accidental operation by your children, you can disable the control

buttons on the TV.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual

throughly before you begin.

GGT0033-001A-H-P02-15 8/24/04, 10:052

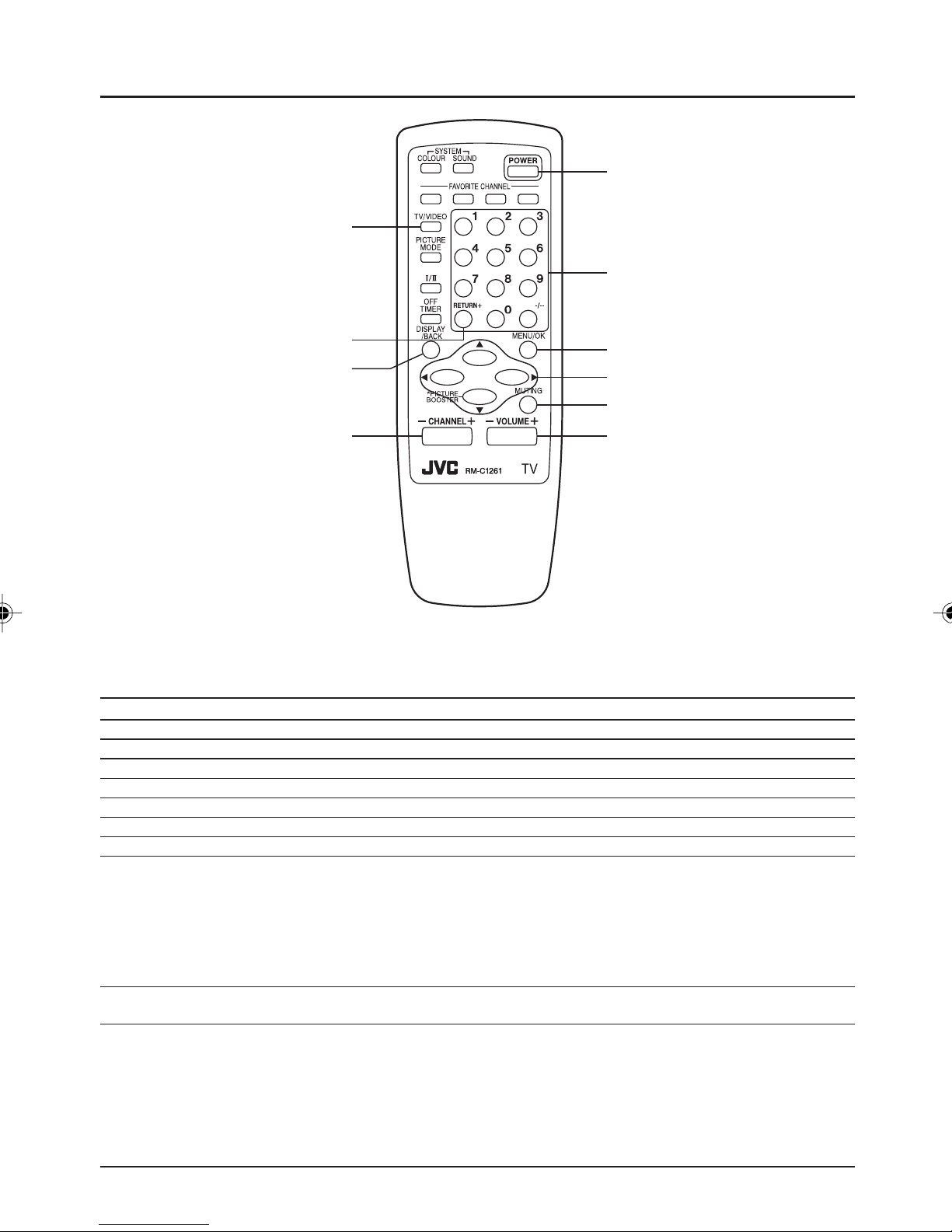

Remote control buttons and basic functions

RM-C1261

No.Press To

1POWER Turn on or off the TV from standby mode.

2MENU/OK Display menu and confirm selected function.

35/∞/2/3Select and adjust menu function.

4CHANNEL MSelect the desired channel number.

5VOLUME MAdjust the volume level.

6TV/VIDEO Select TV or VIDEO terminal input.

7MUTING Turn off the volume. Press this button again to resume the volume.

8DISPLAY Display the programme number or video terminal number and PR list (channel

/BACK list) on the screen. You can select the channel using the PR list.

1Press the DISPLAY button once to display the PR list.

2Press 5/∞/2/3button to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite

channels are indicated with coloured mark.

On the other hand, you can use this button to return to the previous menu.

90~9, -/-- Select the programme number. For two digits programme number, press -/--,

then press the number button.

0RETURN,a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN,button until “RETURN PLUS PROGRAMMED!”

appears.

To cancel, press and hold RETURN,button until “RETURN PLUS CANCELED!”

appears.

b) Return to the previously viewed channel, if you have not set or have

cancelled the Return channel as above.

GGT0033-001A-H-P02-15 8/24/04, 10:053

Remote control buttons and basic functions

How to operate menus and menu locations

TO Operation Note

Display the MENU. Press the MENU/OK button 2.To exit the MENU, press the

DISPLAY/BACK button* 8or

choose EXIT menu.

Display the top menu. Press 5/∞buttons 3to choose a menu title. Press ∞button 3to display the

Then press MENU/OK button 2.next page for more functions.

Display the 2nd menu. Press 5/∞buttons 3to choose a menu title.

Then press MENU/OK button 2.

Display the 3rd menu. Press 5/∞buttons 3to choose a menu title.

Then press MENU/OK button 2.

Return to the previous Press the DISPLAY/BACK button* 8.–

menu.

Choose the setting of Press 5/∞buttons 3to choose a function. Press the MENU/OK button 2to

a function. Then press the 2/3buttons 3to change the exit from the menu.

setting.

Adjust the effect level Press 5/∞buttons 3to choose a function.

of a function. Then press the 2/3buttons 3to adjust the

effect level.

Display the sub menu Press 5/∞buttons 3to choose a function.

of a function. Then press MENU/OK button 2to display –

the sub menu.

The following chart shows locations of functions in menus.

In this manual, location of a function is described as follows:

MENU Top menu 2nd menu

3rd menu

Note: Some functions have the 4th menus as the sub-menus.

*To exit the menu, the on screen display will show BACK indicated in blue. But it doesn’t refer to the

blue button on the remote control. Instead, it refers to the DISPLAY/BACK button on the remote control.

Top menu 2nd menu Location 3rd menu Location

MENU INPUT EXT. INPUT P.11 - -

DISPLAY P.11 - -

PICTURE PICTURE MODE P.8 - -

PICTURE SETTING P.8 - -

WHITE BALANCE P.8 - -

PICTURE FEATURES - VNR P.11

FAVORITE CH SETTING P.10

VIDEO SETTING P.10

COLOUR SYSTEM P.8

SOUND AI VOLUME P.9 - -

FEATURES OFF TIMER P.11 - -

CHILD LOCK P.11 - -

INSTALL AUTO PROGRAM P.12 - -

EDIT/MANUAL P.12 DELETE, MOVE, MANUAL, INSERT P.12

LANGUAGE P.11 LANGUAGE P.11

BLUE BACK P.9 - -

AUTO SHUTOFF P.11

EXIT - - - -

* If you want to

adjust


SETTING

menu, you must

set PICTURE

MODE menu to

USER.

GGT0033-001A-H-P02-15 8/24/04, 10:054

TV buttons and functions

The following illustrations are for AV-14145 and AV-14148

Front of the TV

AV-14145

AV-14148

Rear of the TV

No. Button/terminal Description

1I(main power) Press to turn on or turn off the TV’s main power.

2Power lamp Indicate the TV is being turned on or off.

No colour : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

3TIMER lamp Lights when the TV is in the OFF TIMER mode.

4Remote control sensor

5VOLUME MPress to adjust the volume level.

6CHANNELMPress to select the desired channel.

7MENU Press to display the menu.

8IN (VIDEO-2) Video and audio input jacks for VIDEO-2 mode.

9Headphone jack.

Aerial socket.

-OUTPUT Video and audio output jacks.

=VIDEO-1 INPUT Video and audio input jacks for VIDEO-1 mode.

How to operate the menus with the TV button

Work as same as the button on the

TV button remote control unit Note

MENU MENU/OK button To display main menu and exit

menu after finish setting.

CHANNEL M∞/5button To select menu function.

VOLUME M2/3button To adjust the desired function.

VIDEO AUDIO

IN (VIDEO-2)

9 7 4 3 2 18 6 5

VIDEO AUDIO

IN (VIDEO-2)

9 7 4 3 2 18 6 5

VIDEO

AUDIO

VIDEO-1

INPUT

OUTPUT

GGT0033-001A-H-P02-15 8/24/04, 10:055

Setting up your TV

CAUTION

• Turn off the equipment including the TV before connecting.

1Connecting the aerial

To install rod aerial

Install into the top-rear aerial holder. Once installed, it cannot be removed.

VIDEO

AUDIO

VIDEO-1

INPUT

OUTPUT

VIDEO

AUDIO

VIDEO-1

INPUT

OUTPUT

If you connect a VCR, connect the aerial output jack of your VCR and the aerial jack on the TV

with the aerial cable. Then connect the output jacks of your VCR and the VIDEO-1 input jacks of

the TV with the video cable and audio cables. For details, see the manual of your VCR.

VHF/UHF outdoor aerial

indoor aerial Rod aerial

Aerial holder

VIDEO

AUDIO

VIDEO-1

INPUT

OUTPUT

To RF

output

To audio/video

output

To aerial input

The illustration shown is just a sample. It may

not be same as your TV.

2Connecting the compatible main plug

to the AC outlet.

3Inserting batteries into the remote

control.

Insert two batteries by following the ªand

·polarities and inserting the ·end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work

properly, fit new batteries. The supplied

batteries are for testing, not regular use.

4Turn on the TV by pressing the main

power button.

JVC logo appears on the screen.

Rear of the TV

VHF/UHF outdoor aerial

Rear of the TV

VCR

GGT0033-001A-H-P02-15 8/24/04, 10:056

Setting up your TV (continued)

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by

following the steps as below :

  







 

• Press the red button to cancel the SETUP

TOUR RESTART function.

If you want to make initial settings again

when the next time you turn on the TV,

press the MENU/OK button to activate the

SETUP TOUR RESTART function.

≠

EDIT

PR CH/CC

7 CH 09

8 CH 11

9 CH 13

■

•Proceed to edit the channel list (PR list).

For details, see page 12.

LANGUAGE

ENGLISH

INDONESIA

êìëëäàâ

MELAYU

•Press 5/∞button to select your desired

language.

≠



 

 



•TV will start searching for the channels.

To stop AUTO PROGRAM, press MENU/OK

button.

•If the JVC logo does not appear, use LANGUAGE and AUTO PROGRAM functions to

make the initial settings.

Those functions are located in the INSTALL menu.

•If the JVC logo appears, although you had made the initial settings, press the TV/VIDEO

button to exit from initial settings.

GGT0033-001A-H-P02-15 8/24/04, 10:057

Basic setting for picture

COLOUR SYSTEM

You can select the appropriate colour system

when the picture is not clear or no colour

appears.

Press the COLOUR SYSTEM button to select a

setting.

In TV mode:

AUTO PAL SECAM

In VIDEO mode:

AUTO PAL SECAM

NTSC3.58NTSC4.43

To operate this function with a menu:

❇

MENU PICTURE PICTURE FEATURES

COLOUR SYSTEM

For the colour system in each country or region,

see the table below:

Area Country or Region System

Bahrain, Kuwait, Oman, Qatar,

United Arab Emirates, Yemen, etc. PAL

Indonesia, Malaysia, Singapore,

Asia, Middle Thailand, India, etc.

East China, Vietnam, etc. PAL

Hong Kong, etc. PAL

Islamic Republic of Iran, Lebanon, SECAM

Saudi Arabia, etc.

Philippines, Taiwan, Myanmar, etc. NTSC

Russia, etc. SECAM

Europe Czech Republic, Poland, etc. PAL

Germany, Holland, Belgium, etc. PAL

UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Republic of South Africa, etc. PAL

Africa Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

PICTURE MODE

You can choose the desired picture setting with

one-touch.

Press the PICTURE MODE button to select a

setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting

as you like.

Select USER and adjust following

items in the PICTURE SETTING menu.

(CONTRAST, BRIGHT, SHARP, COLOUR,

TINT*)

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

❇

MENU PICTURE PICTURE MODE

To return the USER setting to the default, press

the blue button when the PICTURE SETTING

menu appears.

Adjusting the picture - USER

You can adjust the desired picture setting when

selecting USER in PICTURE MODE.

1Select the USER in PICTURE MODE under

PICTURE menu.

❇

USER

MENU PICTURE PICTURE MODE

2Select the PICTURE SETTING in PICTURE

menu, then adjust the setting.

❇

MENU PICTURE PICTURE SETTING

CONTRAST 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

SHARP 2: Softer 3: Higher

COLOUR 2: Lighter 3: Deeper

TINT* 2: Reddish 3: Greenish

*TINT can only be adjusted in NTSC system.

WHITE BALANCE

You can change the white balance of the picture

to better match the type of video being viewed.

Select the WHITE BALANCE in the PICTURE

menu, then choose the desired setting.

❇

MENU PICTURE WHITE BALANCE

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

❇About the basic operations of the menu,

please see the “How to operate menus

and menus locations” on page 4.

GGT0033-001A-H-P02-15 8/24/04, 10:058

Advance setting for picture

BLUE BACK

You can set the TV to automatically change to a

blue screen and mute the sound if the signal is

weak or absent, or when there is no input from

an antenna.

Select the BLUE BACK in the INSTALL menu,

then choose ON or OFF.

❇

MENU INSTALL BLUE BACK

If you wish to continue viewing the poor picture,

cancel the BLUE BACK function.

Basic setting for sound

Advanced setting for sound

SOUND SYSTEM

You can select an appropriate sound system when

abnormal sound occurs even when the picture

appears normally.

Press the SOUND SYSTEM button to select a

setting.

B/G I D/K

The function is not available in video mode.

For the sound system in each country or region,

see the table below:

Area Country or Region System

Bahrain, Kuwait, Oman, Qatar,

United Arab Emirates, Yemen, etc. B/G

Indonesia, Malaysia, Singapore,

Asia, Middle Thailand, India, etc.

East China, Vietnam, etc. D/K

Hong Kong, etc. I

Islamic Republic of Iran, Lebanon, B/G

Saudi Arabia, etc.

Philippines, Taiwan, Myanmar, etc. M

Russia, etc. D/K

Europe Czech Republic, Poland, etc. D/K

Germany, Holland, Belgium, etc. B/G

UK, etc. I

Oceania Australia, New Zealand, etc. B/G

Republic of South Africa, etc. I

Africa Nigeria, etc. B/G

Egypt, Morocco, etc. B/G

AI VOLUME

You can adjust the volume of all the channels

and video inputs to the same level automatically.

Select the AI VOLUME in SOUND menu, then

choose ON or OFF.

❇

MENU SOUND AI VOLUME

❇About the basic operations of the menu,

please see the “How to operate menus

and menus locations” on page 4.

GGT0033-001A-H-P02-15 8/24/04, 10:059

Favorite channel and video setting

To register the favorite channel

You can register and recall 4 favorite channels by

using the colour buttons (red, green, yellow,

blue).

1In TV mode, select a TV channel (PR01- 99)

you desired to register.

2Press and hold a colour button for 3

seconds or more.

“FAVORITE CHANNEL 7PROGRAMMED!”

appears on the screen and current channel

is registered.

3To register other favorite channels, repeat

Step 1 to 2.

To recall the favorite channel, press the colour

button.

When the TV is in menu mode, favorite channel

function is not available.

To adjust favorite channel setting

(FAVORITE CH SETTING)

You can adjust the picture settings for the favorite

channels.

1Display the PICTURE menu and select

FAVORITE CH SETTING in PICTURE

FEATURES menu.

❇

FAVORITE CH SETTING

MENU PICTURE PICTURE FEATURES

2Select FAVORITE CHANNEL in FAVORITE

CH SETTING menu, then choose the

desired favorite channel.

❇

FAVORITE CHANNEL

FAVORITE CH SETTING

FAVORITE CHANNEL PR 01

CONTRAST

BRIGHT

SHARP

COLOUR

TINT

EFFECT ON

3Select EFFECT, then press 2/3button to

choose ON.

To cancel the settings, choose OFF.

4Select the desired item that you wish to

adjust.

CONTRAST BRIGHT SHARP

TINT COLOUR

5Press the MENU/OK button to exit the

menu.

To adjust the video setting

(VIDEO SETTING)

You can adjust the picture settings for video

inputs.

1Display the PICTURE menu and select

VIDEO SETTING in PICTURE FEATURES

menu.

❇

VIDEO SETTING

MENU PICTURE PICTURE FEATURES

2Select VIDEO STATUS in VIDEO SETTING

menu, then choose the desired video

input.

❇

VIDEO SETTING VIDEO STATUS

VIDEO SETTING

VIDEO STATUS VIDEO-1

CONTRAST

BRIGHT

SHARP

COLOUR

TINT

EFFECT ON

3Select EFFECT, then press 2/3button to

choose ON. To cancel the settings, choose

OFF.

4Select the desired item that you wish to

adjust.

CONTRAST BRIGHT SHARP

TINT COLOUR

5Press the MENU/OK button to exit the

menu.

❇About the basic operations of the menu,

please see the “How to operate menus

and menus locations” on page 4.

GGT0033-001A-H-P02-15 8/24/04, 10:0610

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC 50052496 Bedienungsanleitung

JVC

JVC LT-43VF5105 Bedienungsanleitung

JVC

JVC GGT0087-001A-H Bedienungsanleitung

JVC

JVC InteriArt LT-20A55SJ Bedienungsanleitung

JVC

JVC AV-30W475 Bedienungsanleitung

JVC

JVC AV-25PX Bedienungsanleitung

JVC

JVC AV-28GT15UF Bedienungsanleitung

JVC

JVC I Art AV-20F476 Bedienungsanleitung

JVC

JVC HV-29JH24 Bedienungsanleitung

JVC

JVC AV-14FM Bedienungsanleitung

JVC

JVC AV-14FR10 Bedienungsanleitung

JVC

JVC AV-21VP14 Bedienungsanleitung

JVC

JVC AV-21PS Administratorhandbuch

JVC

JVC AV-27F703 - 27" Real Flat TV Bedienungsanleitung

JVC

JVC AV-N29702 Kurzanleitung

JVC

JVC AV-29JS25, AV-29MS25, AV-29MX7 Bedienungsanleitung

JVC

JVC InteriArt HV-29LPZ Bedienungsanleitung

JVC

JVC AV-14FT Administratorhandbuch

JVC

JVC AV-21L91-BK Bedienungsanleitung

JVC

JVC AV-21E3 Bedienungsanleitung

JVC

JVC AV-36260 Bedienungsanleitung

JVC

JVC AV-29FH1BUG Montageanleitung

JVC

JVC SELECT LT-58EC3508 Bedienungsanleitung

JVC

JVC AV-29QH4BU Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
