Kärcher BRC 30 CUL Bedienungsanleitung

Operating Instructions (ENG)

BRC 30/15 CUL

MODELS: BRC 30/15 CUL

10080520

86298290-A

11/10/08

MACHINE DATA LOG/OVERVIEW

86317460 BRC 30/15 CUL 11/10/07

OVERVIEW

This carpet extractor is a mains powered, portable carpet extractor intended for commercial use.

The appliance sprays a cleaning solution onto the carpet, agitates the wet carpet, and then

extracts the soiled solution back into the unit’s recovery tank. The appliance can be fitted with an

accessory tool for cleaning upholstery and stairs.

Model:

Date of Purchase:

Serial Number:

Sales Representative:

Address:

Phone Number:

TABLE OF CONTENTS

86317460 BRC 30/15 CUL 11/10/07 3

Machine Data Log/Overview.........................2

Table of Contents..........................................3

HOW TO USE THIS MANUAL

How to use this Manual.................................1-1

SAFETY

Important Safety Instructions........................2-1

Hazard Intensity Level ..................................2-2

Grounding Instructions..................................2-3

Safety Label Location ...................................2-4

OPERATIONS

Chemicals.....................................................3-1

Controls & Components................................3-2

Filling The Tanks...........................................3-3

Operating The Machine ................................3-4

Operating Machine With Accessory Tools....3-4

MAINTENANCE

Protect From Freezing..................................4-1

Daily/ Regular Maintenance..........................4-1

Periodic Maintenance. ..................................4-1

Brush Assembly............................................4-2

Spray Jet ......................................................4-2

Brush Motor Removal...................................4-3

Pump Removal .............................................4-3

Vacuum Removal..........................................4-5

Vacuum Carbon Brush Replacement ...........4-4

Troubleshooting Chart ..................................4-5

PARTS LIST

Brush Deck.......................................5-1

Control Panel....................................5-3

Decal.................................................5-5

Frame & Wheels...............................5-7

Handle ..............................................5-9

Solution.............................................5-11

Tank & Dome....................................5-15

Vacuum.............................................5-17

Wiring Diagram-Control Panel..........5-19

Wiring Diagram-Vacuum, Brush Motor

& Pump.............................................5-21

Hose Diagram...................................5-23

Spare Parts.......................................5-24

Accessories ......................................5-24

HOW TO USE THIS MANUAL

86317460 BRC 30/15 CUL 11/10/07

1-1

This manual contains the following sections:

- HOW TO USE THIS MANUAL

- SAFETY

- OPERATIONS

- MAINTENANCE

- PARTS LIST

The HOW TO USE THIS MANUAL section will tell

you how to find important information for ordering

correct repair parts.

Parts may be ordered from authorized dealers.

When placing an order for parts, the machine model

and machine serial number are important. Refer to

the MACHINE DATA box which is filled out during

the installation of your machine. The MACHINE

DATA box is located on the inside of the front cover

of this manual.

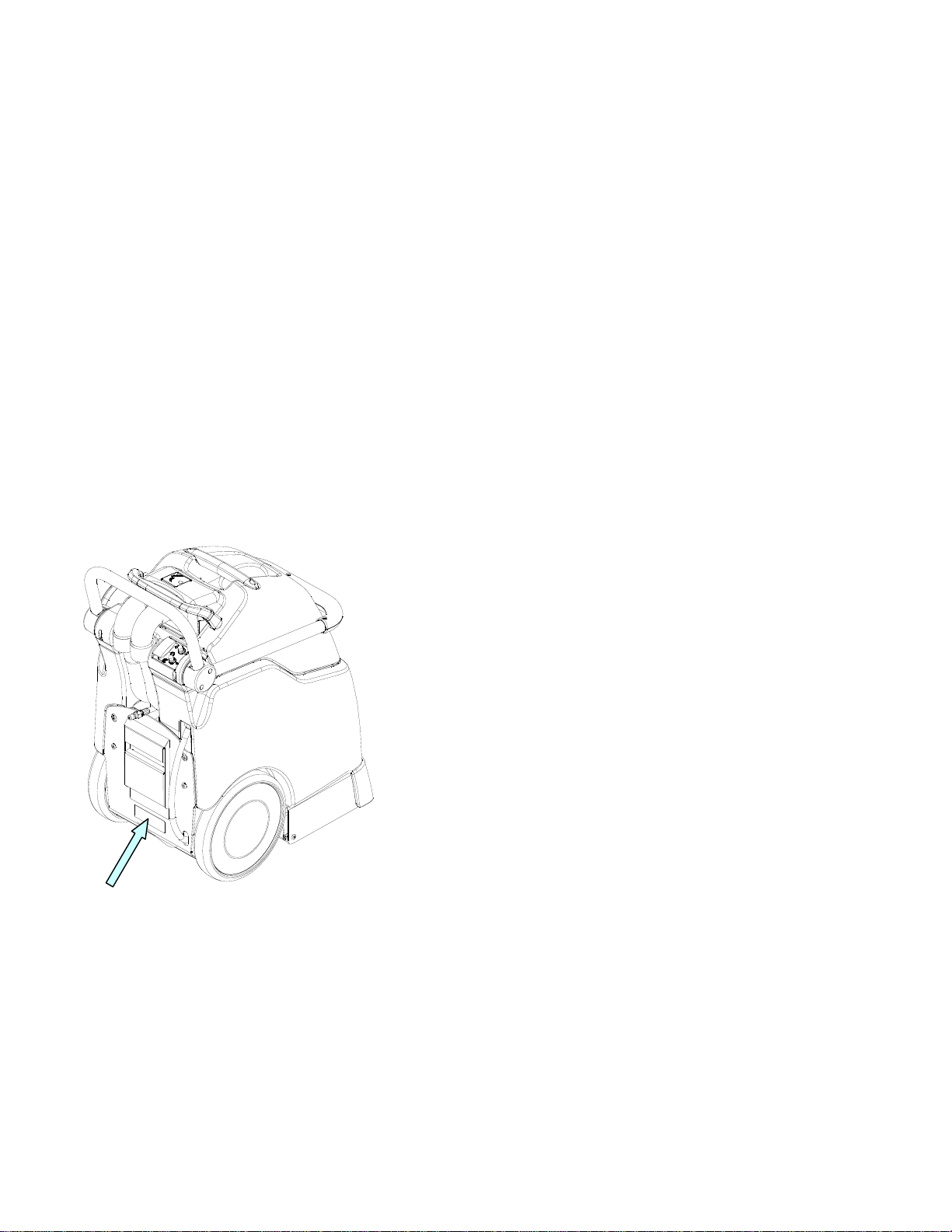

The model and serial number of your machine is

located on the lower back panel.

The SAFETY section contains important information

regarding hazardous or unsafe practices of the

machine. Levels of hazards are identified that could

result in product damage, personal injury, or severe

injury resulting in death.

The OPERATIONS section is to familiarize the

operator with the operation and function of the

machine.

The MAINTENANCE section contains preventive

maintenance to keep the machine and its

components in good working condition. They are

listed in this general order:

- Periodic

- Daily/Regular

- Troubleshooting

The PARTS LIST section contains assembled parts

illustrations and corresponding parts list. The parts

lists include a number of columns of information:

- REF – column refers to the reference

number on the parts illustration.

- PART NO. – column lists the part

number for the part.

- PRV NO. - Reference number.

- QTY – column lists the quantity of the

part used in that area of the machine.

- DESCRIPTION – column is a brief

description of the part.

- SERIAL NO. FROM – column indicates

the first machine the part number is

applicable to. When the machine design

has changed, this column will indicate

serial number of applicable machine.

The main illustration shows the most

current design of the machine. The

boxed illustrations show older designs.

If column has an asterisk (*), call

manufacturer for serial number.

- NOTES – column for information not

noted by the other columns.

NOTE: If a service or option kit is installed on your

machine, be sure to keep the KIT INSTRUCTIONS

which came with the kit. It contains replacement

parts numbers needed for ordering future parts.

NOTE: The manual part number is located on the

lower left corner of the front cover.

SAFETY

86317460 BRC 30/15 CUL 11/10/07 2-1

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

This machine is for commercial use.

To reduce the risk of fire, electric shock, or injury:

Connect to a properly grounded outlet. See Grounding Instructions.

Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or

service.

Use only indoors. Do not use outdoors or expose to rain.

Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.

Use only as described in this manual. Use only manufacturer’s recommended components and attachments.

Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the

machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into

water, return it to an authorized service center.

Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp

edges or corners.

Do not run machine over cord. Keep cord away from heated surfaces.

Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.

Do not handle the electrical plug or machine with wet hands.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.

This machine is intended for cleaning carpet only.

Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

This machine is not suitable for picking up health endangering dust.

Turn off all controls before unplugging.

Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near

flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops

and offices for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.

If foam or liquid comes out of machine, switch off immediately.

SAVE THESE INSTRUCTIONS

SAFETY

86317460 BRC 30/15 CUL 11/10/07

2-2

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR

SAFETY. The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property

damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating

condition. Following is information that signals some potentially dangerous conditions to the operator or the

equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on

the machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:

Unless Trained and Authorized.

Unless Operation Guide is Read and understood.

In Flammable or Explosive areas.

In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use

Windsor approved replacement parts.

SAFETY

86317460 BRC 30/15 CUL 11/10/07 2-3

THIS PRODUCT IS FOR COMMERCIAL USE

ONLY.

ELECTRICAL:

The amp, hertz, and voltage are listed on the data

label found on each machine. Using voltages above

or below those indicated on the data label will cause

serious damage to the motors.

EXTENSION CORDS:

If an extension cord is used, the wire size must be at

least one size larger than the power cord on the

machine, and must be limited to 50 feet (15.5m) in

length.

GROUNDING INSTRUCTIONS:

This appliance must be grounded. If it should

malfunction or break down, grounding provides a

path of least resistance for electric current to reduce

the risk of electric shock. This appliance is equipped

with a cord having an equipment-grounding

conductor and grounding plug. The plug must be

inserted into an appropriate outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

Improper connection of the equipment-

grounding conductor can result in a risk of

electric shock. Check with a qualified electrician

or service person if you are in doubt as to

whether the outlet is properly grounded. Do not

modify the plug provided with the appliance - if it

will not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAFETY

86317460 BRC 30/15 CUL 11/10/07

2-4

SAFETY LABEL LOCATION

The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings

and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality,

personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT

remove these labels.

NOTE: If at any time the labels become illegible, promptly replace them.

WARNING LABEL

P/N 86296750

OPERATION

86317460 BRC 30/15 CUL 11/10/07 3-1

To avoid electric shock

use indoors only.

To reduce risk of fire, do not use volatile substances.

Use only cleaners intended for carpet application.

INSPECTION

Carefully unpack and inspect your extractor for

shipping damage. Each unit is operated and

thoroughly inspected before shipping, and any damage

is the responsibility of the carrier, who should be

notified immediately.

To avoid possible

distortion of

polyethylene solution/recovery tanks, DO NOT USE

WATER TEMPERATURE THAT EXCEEDS 140 F

(60 C).

CHEMICALS

Use only the suitable chemicals listed below. Using

incompatible chemicals will damage the machine.

Damages of this type are not covered under

warranty. Carefully read ingredients on

manufacturer’s label before using any product in this

machine.

Suitable Incompatible

Chemicals Chemicals

Alkalis Aldehydes; Butyls

Defoaming Agents Carbon Tetrachloride

Detergents Chlorinated Bleaches

Soaps Chlorinated Hydrocarbons

Vinegar Trichlorethylene

Hydroxides Phenols; Methyls (MEK)

Perchlorethylene (perc)

Aromatic Hydrocarbons

D-Limonene

OPERATION

86317460 BRC 30/15 CUL 11/10/07

3-2

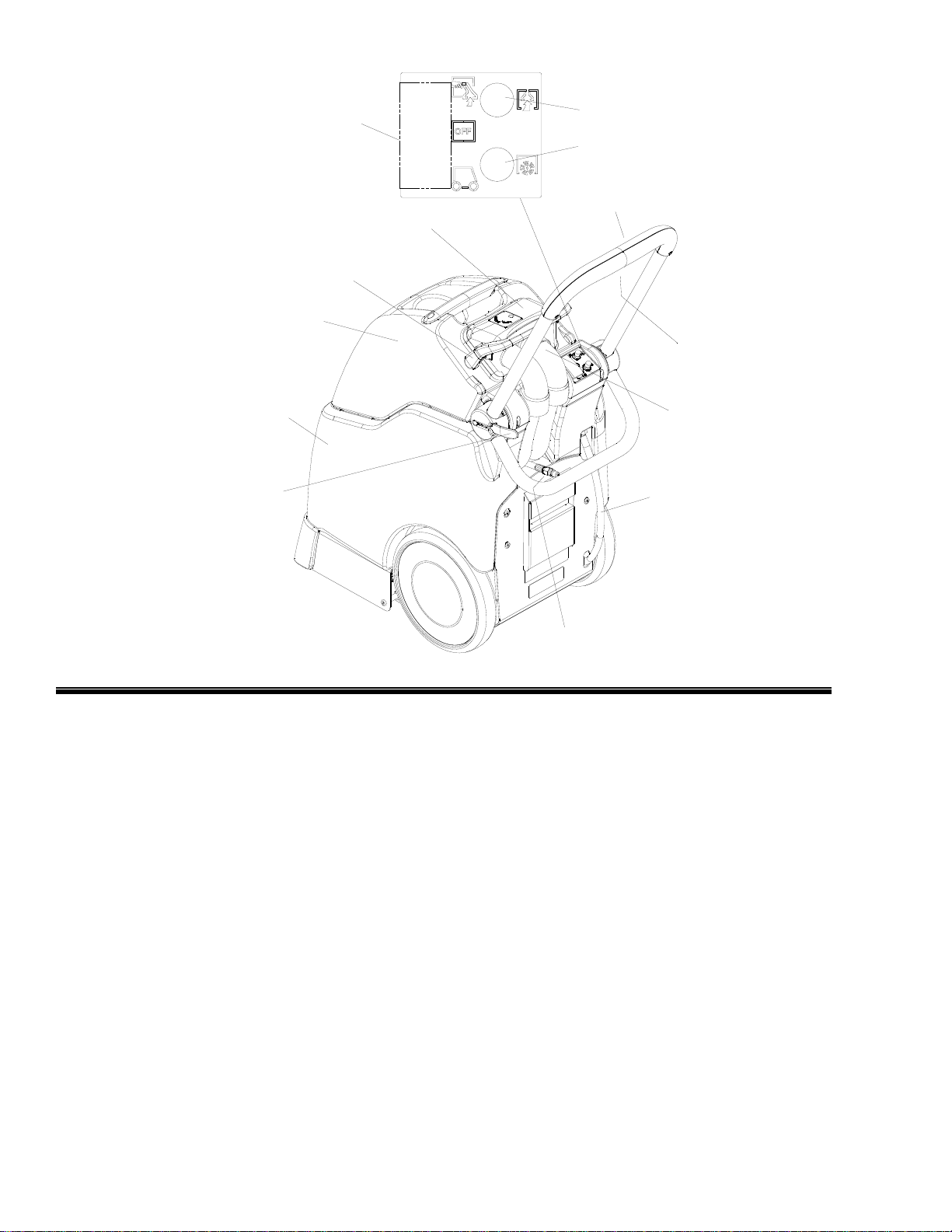

CONTROLS & COMPONENTS

1. Power and Operation Mode Switch

Turns accessory tool on or machine on.

2. Main Handle

3. Solution Button

Sprays solution on floor when pressed.

4. Brush Motor Circuit Breaker

Protects brush motor from overheating.

5. Vac Motor Circuit Breaker

Protects the vac motor from overheating

6. Handle Adjustment Lever

Adjusts handle position.

7. Solution Tank Drain Hose

8. Accessory Tool Connection

Solution connection for accessory tools.

9. Accessory Hose Connection

Hose connection for accessory tool.

10. Dome Clamp

11. Dome

12. Recovery Tank

13. Solution Tank

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kärcher Bodenreinigungsmaschine Handbücher

Kärcher

Kärcher KM 130/300 R Bp Bedienungsanleitung

Kärcher

Kärcher 1.259-005 Bedienungsanleitung

Kärcher

Kärcher BD 90 R Classic Bp Bedienungsanleitung

Kärcher

Kärcher BDP 43/400 C Bedienungsanleitung

Kärcher

Kärcher KM 70/40 W G Bedienungsanleitung

Kärcher

Kärcher BR VS 400 USA Bedienungsanleitung

Kärcher

Kärcher BR 40/25 C Bp Eco Pack Bedienungsanleitung

Kärcher

Kärcher KM 150/500 R D Classic Bedienungsanleitung

Kärcher

Kärcher BRC 30/15 C Bedienungsanleitung

Kärcher

Kärcher Windsor Chariot 3 iExtract 26 Duo Bedienungsanleitung

Kärcher

Kärcher KM 35/5 C Bedienungsanleitung

Kärcher

Kärcher B 150 R Bedienungsanleitung

Kärcher

Kärcher B 260 RI Bedienungsanleitung

Kärcher

Kärcher BD 50/50 C Bp Classic Bedienungsanleitung

Kärcher

Kärcher 2000 Series Bedienungsanleitung

Kärcher

Kärcher B 140 R Bedienungsanleitung

Kärcher

Kärcher FC 7 Cordless Bedienungsanleitung

Kärcher

Kärcher B 40 C Bp Bedienungsanleitung

Kärcher

Kärcher BDS 43/175 C Bedienungsanleitung

Kärcher

Kärcher BD 100 W Classic Bp Bedienungsanleitung

Kärcher

Kärcher 1.291-213 Bedienungsanleitung

Kärcher

Kärcher BRC 46/76 W Bedienungsanleitung

Kärcher

Kärcher BD 50/50 C Bp Pad Wet Bedienungsanleitung

Kärcher

Kärcher BD 50/50 Bp Classic Bedienungsanleitung

Beliebte Bodenreinigungsmaschine Handbücher anderer Marken

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Bedienungsanleitung

Numatic

Numatic ET 4045 Bedienungsanleitung

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Bedienungsanleitung

Mytee

Mytee 8070 Mytee-Lite Bedienungsanleitung

Kärcher

Kärcher B 140 R Bedienungsanleitung

Triple S

Triple S Ace 26T1 Bedienungsanleitung

Nilfisk-Advance

Nilfisk-Advance SW 750 Bedienungsanleitung

Tornado

Tornado Marathon 2000 98190 Handbuch

Windsor

Windsor ADMIRAL Admiral 8 Bedienungsanleitung

Numatic

Numatic TTB 1117/100 Bedienungsanleitung

Tennant

Tennant 8210D Bedienungsanleitung

Nobles

Nobles Frontier Produkthandbuch

lavina

lavina 21-X Bedienungsanleitung

KENT

KENT Edge 28B Bedienungsanleitung

Tennant

Tennant 215 Produkthandbuch

Windsor

Windsor BDP 51/2000C Bedienungsanleitung

CleanFreak

CleanFreak DURA-18HD Bedienungsanleitung

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Administratorhandbuch
