K1800PS Cube

1.106-200.0

Operator Manual

Electric Pressure Washer . . . . . . . .4

Manual D’Utilisation

Laveuse à pression électrique . . . 21

9.808-306.0-A 11/21

1. Water Inlet

2. High Pressure Outlet

3. Hose Connector

4. ON/Off Pedal

5. Nozzles

6. Turbo Nozzle

7. High Pressure Hose

8. Spray Wand

9. Spray Gun

10. Detergent Tank

11. Power Cord

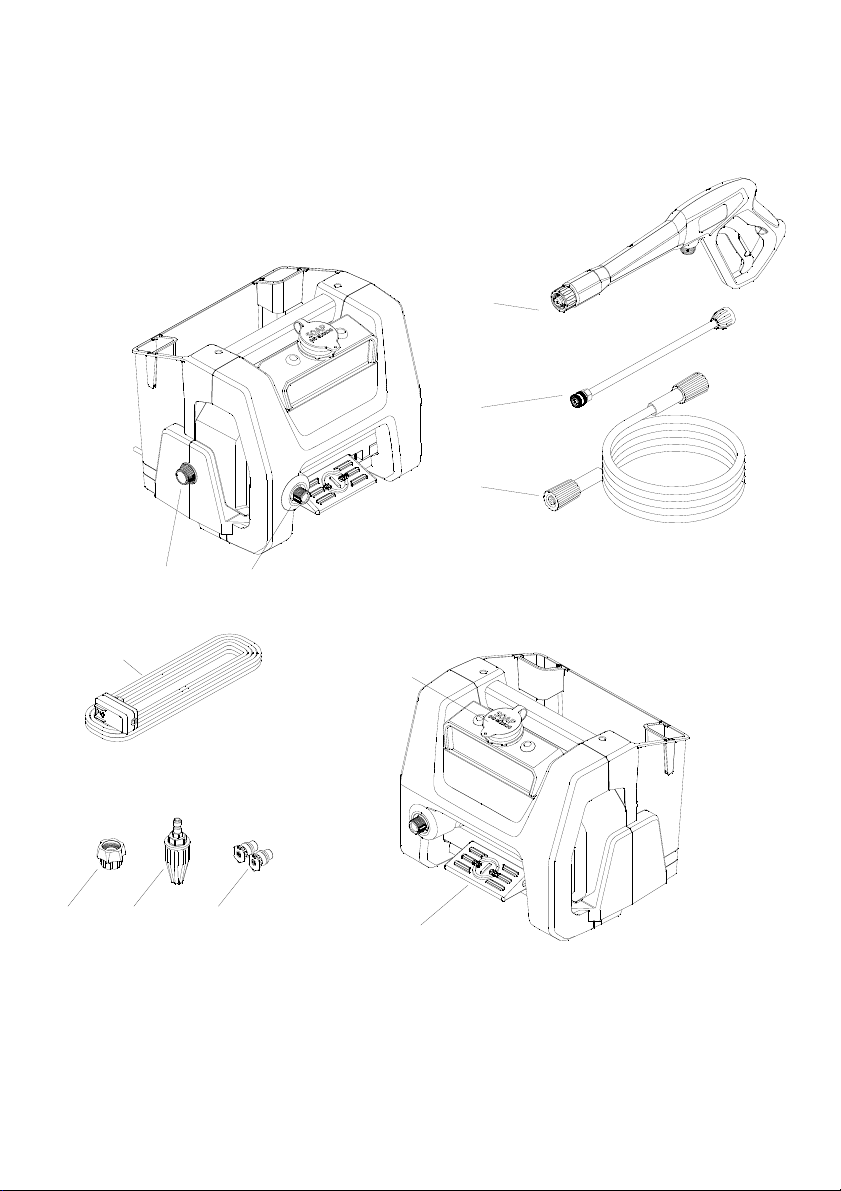

Machine Parts List

4 English

Safety Instructions . . . . . . . . . . . . . . . 5

Important Safety . . . . . . . . . . . . . . . . 5

Instructions . . . . . . . . . . . . . . . . . . . . 5

Assembly Instructions . . . . . . . . . . . . 8

Initial Start-up. . . . . . . . . . . . . . . . . . . 9

Operation Instructions . . . . . . . . . . . . 10

Using the Accessories . . . . . . . . . . . . 11

Working with Detergents . . . . . . . . . . 12

Taking a Break. . . . . . . . . . . . . . . . . . 13

Shutting Down &

Cleaning Up. . . . . . . . . . . . . . . . . . . . 13

Winterizing & Long Term Storage . . . 14

Maintenance Instructions. . . . . . . . . . 15

Cleaning Tips. . . . . . . . . . . . . . . . . . . 15

Optional Accessories. . . . . . . . . . . . . 17

Troubleshooting. . . . . . . . . . . . . . . . . 18

READ AND COMPLY WITH ALL

INSTRUCTIONS BEFORE USING THIS

MACHINE.

SAVE THESE INSTRUCTIONS

Customer Service

Registration

Your device must be registered in order to

help with any questions or issues that you

have. You can register your device at

www.karcher-register.com if located in

the U.S.A., www.karcher/ ca if located in

Canada, or www.karcher.com/mx if

located in Mexico.

Warranty

In the case of a warranty claim, you can

contact customer support. Please see the

contact information listed be-low for either

the USA, Canada, or Mexico. You MUST

provide your proof of purchase in order to

file a warranty claim either via email,

phone, or fax.

USA Customer Service

You can contact our Customer Service

department by phone at 1-800-537- 4129

or via the website at www.karch-er.com/

us.

Canada Customer Service

You can contact our Customer Service

department by phone at 1-800-465- 4980

or via the website at www.karch-er.com/

ca.

Mexico Customer Service

You can contact our Customer Service

department by phone at 01-800-024- 13-

13 or via the website at

www.karcher.com/mx.

K1800PS Cube Pressure Washer

Contents

Specifications

K1800PS Cube

Operating Pressure 1800psi

Max Water Volume 1.2GPM

Amp Draw 13 Amps

Voltage 120V

Phase 1

Frequency 60 Hz

Model Number 1.106-200.0

Serial Number

English 5

Hazard Levels

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product basic

precautions should always be

followed, including the following:

●Read all the instructions before using

the product.

●To reduce the risk of injury, close

supervision is necessary when a

product is used near children.

●Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the controls.

●Stay alert - watch what you are doing.

●Do not operate the product when

fatigued or under the influence of

alcohol or drugs.

●Keep operating area clear of all

persons.

●Do not overreach or stand on

unstable support. Keep good footing

and balance at all times.

●Follow the maintenance instructions

specified in the manual.

●This product is provided with a

Ground Fault Circuit Interrupter built

into the power cord plug. If replace-

ment of the plug or cord is needed,

use only identical replacement parts.

Risk of Injection or Injury – Do Not

Direct Discharge Stream At

Persons or Animals.

●High-pressure jets can be dangerous

if misused. The jet must not be

directed at persons, animals,

electrical devices, or the unit itself.

●Wear safety goggles and ear

protection.

Risk Of Fire/Explosion – Do not

spray flammable liquids.

●Do not use acids, alkaline, solvents,

or any flammable material in this

product. These products can cause

physical injuries to the operator and

irreversible damage to the machine.

Risk of Electrocution

●Inspect cord before using - Do not

use if cord is damaged.

Safety Instructions

Important Safety

Instructions

6 English

●Keep all connections dry and off the

ground.

●Do not touch plug with wet hands.

●Do not use extension cord with this

product.

●Connect to individual branch circuit

only.

Risk of Eye Injury

●Spray can splash back or propel

objects. Always wear properly rated

eye protection such as goggles or

face shield while spraying. (Safety

Glasses do not provide full

protection)

This unit has been designed for use

with cleaning detergents

recommended by the manufacturer.

The use of other cleaning deter-

gents may affect the operation of

the machine and void the warranty.

Gun kicks back – Hold with both

hands.

●The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must

be engaged when replacing nozzles

or not in use.

●This safety feature DOES NOT lock

spray in the ON position.

●Do not spray electrical connections,

electrical outlets or fixtures.

●Do not use with flammable liquids

and toxic chemicals.

●High-pressure. Keep clear of nozzle.

●Injection hazard: Equipment can

cause serious injury if the spray

penetrates the skin. Do not point the

gun at anyone or any part of the

body. In case of penetration seek

medical aid immediately.

●This system is capable of producing

1800 psi. To avoid rupture and injury,

do not operate this pump with

components rated less than 1800 psi

working pressure (including but not

limited to spray guns, hose and hose

connections).

●Before servicing, cleaning or

removing any parts, shut off power

and relieve pressure.

●If connection is made to a potable

water system, the system shall be

protected against back flow.

English 7

When connecting the water inlet to

the water supply mains, local

regulations of your water company

must be observed. In some areas

the unit must not be connected

directly to the public drinking water

supply. This is to ensure that there

is no feedback of chemicals into

the water supply. Direct connection

via a receiver tank or backflow

preventer, for example,

is permitted.

Use a water filter to avoid potential

damage from dirt in the water

supply such as Karcher part num-

ber 4.730-059.0 from www.kaer-

cher.com.

●Garden hose must be at least

5/8 inch (16 mm) in diameter.

●Flow rate of water supply must not

fall below 2 GPM/gallons per minute

(7.6 L/min).

●Flow rate can be determined by run-

ning the water for one minute into an

empty 5-gallon (18.9 liter) container.

●The water supply temperature must

not exceed 104°F/40°C.

●Never use the pressure washer to

draw in water contaminated with

solvents,

e.g. paint thinners, gasoline, oil, etc.

●Always prevent debris from being

drawn into the unit by using a clean

water source.

This electric pressure washer is

equipped with a Ground Fault Circuit

Interrupter (GFCI) built into the plug of

the power cord for your protection.

The Consumer Product Safety Com-

mission recommends that you test all

GFCI's once a month. Since the fre-

quency of pressure washer use var-

ies, we recommend that you test the

GFCI as part of your startup proce-

dure each time you use your pressure

washer. It might need to be reset

before working with the pressure

washer. To learn how to perform the

GFCI test and how to reset it, visit

http://www.karcher-help.com and

search for GFCI for further instructions.

DO NOT USE IF GFCI FAILS TEST.

NOTE: The actual appearance of the

GFCI may be different from this illus-

tration.

Water Supply

(Cold Water Only)

Ground Fault Circuit

Interrupter Protection

8 English

1. Install the hose connector to the

water inlet.

2. Attach nozzles to tank.

3. Thread one end of the high pressure

hose tightly onto the high pressure

outlet on the unit.

4. Thread the other end of the high

pressure hose onto the spray gun

inlet.

Assembly Instructions

English 9

1. Thread the garden hose onto the

water inlet connector and hand

tighten.

2. Connect the garden hose to the cold

water source and turn the water

completely on.

3. Attach the spray wand to the spray

gun by pressing the gun into the

wand and hand tightening the thread-

ing of the gun onto the wand.

4. Pull the lever on the trigger gun to

make sure that water is flowing freely

and that all air has been purged from

the device

Initial Start-up

10 English

NOTE: We recommend that you test

the GFCI as part of your startup pro-

cedure each time you use the device,

see chapter GFCI INSTRUCTIONS.

Do not use if GFCI fails test.

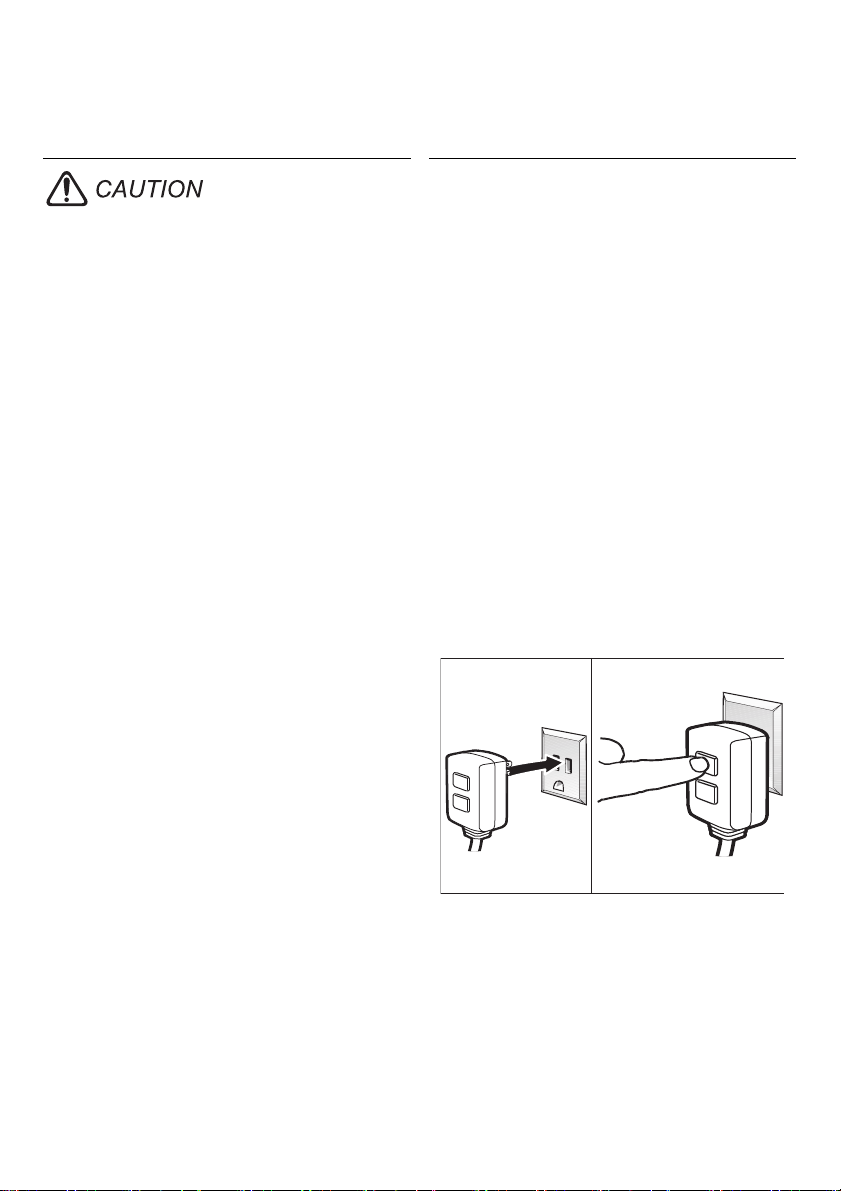

GFI Instructions

1. Plug the Ground Fault Circuit

Interrupter (GFCI) into a working outlet.

2. Press "TEST", then press "RESET" to

assure proper connection.

NOTE: Note: The actual appearance of

the GFCI may be different from this

illustration.

ATTENTION:

Pump running dry will cause

damage to the device.

If pressure does not build up in the

device after 2 minutes, then switch the

device off and proceed according to

the instruction in chapter, Trouble-

shooting guide.

High Pressure Operation

NOTE: Maintain a spraying distance

of at least 12 inches (30 cm) when

cleaning painted surface. Do not get

closer than 24 inches (60 cm) (0r 2

feet) when washing a vehicle.

1. Install the nozzle with the quick con-

nect on the end of the wand by pull-

ing the collar back, inserting the

nozzle, then pushing the collar back

Check to make sure that Nozzle is

secure

2. Turn on the machine by stepping

down on the foot pedal.

Operation Instructions

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kärcher Hochdruckreiniger Handbücher

Kärcher

Kärcher K 4.84 MD Bedienungsanleitung

Kärcher

Kärcher K 25 Silent Bedienungsanleitung

Kärcher

Kärcher HD 5/11 C KSH Bedienungsanleitung

Kärcher

Kärcher 1.107-370.0 Bedienungsanleitung

Kärcher

Kärcher KHP 4 Bedienungsanleitung

Kärcher

Kärcher K 7 Premium Full Control Plus Bedienungsanleitung

Kärcher

Kärcher HD 6/15 M Bedienungsanleitung

Kärcher

Kärcher SP 2 Flat Bedienungsanleitung

Kärcher

Kärcher K 2.122 Bedienungsanleitung

Kärcher

Kärcher K 4.94 M Bedienungsanleitung

Kärcher

Kärcher HDS 7/11-4 M Bedienungsanleitung

Kärcher

Kärcher HD 6/15-4 Bedienungsanleitung

Kärcher

Kärcher K 2 Basic Bedienungsanleitung

Kärcher

Kärcher K 5 Bedienungsanleitung

Kärcher

Kärcher K 7 Compact Bedienungsanleitung

Kärcher

Kärcher K 7 Premium Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

Kärcher

Kärcher K 4 Silent Bedienungsanleitung

Kärcher

Kärcher HD 1000 SEi Bedienungsanleitung

Kärcher

Kärcher HD 2.3/24 P Bedienungsanleitung

Kärcher

Kärcher K 3.95 M Bedienungsanleitung

Kärcher

Kärcher K 2 Full Control Bedienungsanleitung

Kärcher

Kärcher K 5.720 Bedienungsanleitung

Kärcher

Kärcher K 3.480 Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kärcher

Kärcher 595 - SPARE Leitfaden

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung

Hotsy

Hotsy 5645 Bedienungsanleitung

Kranzle

Kranzle B170T Bedienungsanleitung
