THANK YOU

FOR YOUR BUSINESS!

To Our Valued Customer,

K&K Systems, Inc. is excited that you have purchased our product.

Our company has been serving the trac industry since 1997. Since that

time we have risen to become a leader in the trac industry. We oer a

complete line of trac safety products that include Message Signs, Arrow

Boards, Radar Speed Monitors, Solar School Zone Systems, Wrong Way

Systems, and many other quality products that serve our industry today.

At K&K Systems, Inc., we strive to improve the quality of our products. We

are dedicated to the concept that our customers are our most valuable

resource. We strive to serve our customers as we would want to be served.

Tim Keith,

President

INTRODUCTION

The K&K Systems’Message Signs are mobile changeable message signs that are

mounted onto a service vehicle or a trailer with winch type or hydraulic lift. They

utilize energy ecient LED displays and the latest and most ecient solar panels

to display your message brightly and continuously during the day, night in any

weather condition.

All units are completely setup and ready for use. Program your message using

wireless connectivity and the K&K cloud-based CrossTalk software, Bluetooth

connected tablet with installed software, or the on-board qwerty keyboard. Super

bright LED technology with 100,000 hour rating displays alphanumeric text and

full matrix graphics with quick message selection switch.

K&K’s units are fabricated from aluminum with a at black powder coat nish to

give a smooth look and prevent rust.

The standard Vehicle Mounted Message Sign features a folding frame operated by

an actuator. The message sign folds out automatically when the unit is powered

on, and automatically folds down when the unit is powered o for when the

vehicle is moving. Maintenance of internal parts is made easy with the front door

access design. Vehicle Mounted Message Signs are available in your choice of one-

line, two-line, and three-line with mounting options and sizes to meet your needs.

Should K&K not have a system that meets your needs, we will custom design a

system to meet your specications

MESSAGE SIGN

The display housing is framed in extruded

aluminum and has a Lexan face that provides

UV protection along with glare resistance. The

message sign uses LED (light emitting diodes) to

produce text and images.

Your Trailer Mounted Message Sign provides messaging

functionality to display predened and custom messages

text. Full Matrix Message Signs can also display MUTCD

graphics and animations. To catch motorists’attention

we include an option to make the message ash.

COMPONENTS

TRAILER MOUNT POWER SOURCE

Our products incorporate a battery pack wired for 12 volt operation. The number

of batteries may vary depending on the requirements of the design. The system

comes standard with four (4) 12 volt sealed batteries, totaling 400 amps, or two

(2) 12 volt batteries, totaling 200 amps. The units come with 140 watts of solar,

standard. The battery bank is regulated and protected by a solid-state charge

controller/low voltage disconnect that is built into the CrossTalk. This prevents

gassing and over discharging of the batteries, which can result in premature failure.

VEHICLE MOUNT POWER SOURCE

The truck mounted message board comes standard with a 25ft power cable that

is to be integrated into the vehicles existing power system. The smart controller

prevents the message board from draining the vehicles battery while it is in the

OFF mode during storage. The arrow board is designed to be operated while the

vehicles engine is on, to prevent the draining of its battery, but can be operated

sparingly while the vehicle is o.

TRAILER BATTERY BOX

The ventilated battery box is steel fabricated with a top

mount lid that is sealed with hardware to protect the

batteries, charger, and hydraulic system.

CONTROL BOX AND CONTROLLERS

The control box contains the control panel, on/o switch, main processing unit,

keyboard and solar charge controller, Bluetooth tablet, and CrossTalk Controller.

The control box is constructed of heavy duty aluminum and is weatherproof to

protect its components.

Battery Box

Regular Font Style Bold Font Style Graphics/Animations

TRAILER

The trailer is fabricated from tubular steel

with a tubular steel axle. It is powder

coated with safety orange, black or white.

Custom colors are available upon request.

Adjustable jacks are mounted at each

corner of the trailer. The tongue features

a wheeled jack. The taillights are dual

combination reective lights with stop, tail,

and turn signal. Trailers come standard with

ve lug appropriately sized wheels and tires.

Keyboard Trailer Models Bluetooth Trailer Models Wireless Trailer Models Vehicle Models

PRECAUTIONS, SAFETY, AND

MAINTENANCE

The following are K&K Systems’recommendations for safe and responsible use.

Please remember that the best assurance against accidents is a careful and responsible operator.

PRECAUTIONS

Inspect your unit upon delivery. Wires and plugs may have loosened during

shipment which will cause operational issues. Even though the system arrives

ready to run, inspect all components and test before installation. Test the unit

before installation for convenient working conditions.

• Periodically inspect the trailer and/or unit. This includes but not limited to wheels,

tongue, pins, safety chains, taillights, nuts, bolts, cable clamps, etc. Tighten, repair,

or replace when and where necessary.

• O-load trac cones and barricades prior to message sign deployment.

• The trailer should always be properly setup and leveled with the jack stands

before the message sign is raised.

• Always use safety chains and properly sized hitch ball when towing the unit.

• Always tow trailer units in the down position.

BATTERIES

The batteries are sealed. Check all terminals for proper connection, tightness,

and corrosion. Check the battery condition and charge when necessary or after

storage. It is recommended that the batteries be charged every 3 to 6 months,

regardless of weather conditions. Use an apron, gloves, and safety glasses when

working on batteries. When the batteries have come to the end of their life cycle,

please dispose of them in accordance with your local laws and regulations.

BATTERY CHARGER SAFETY

The battery charger is preset in automatic position. DO NOT CHANGE THESE

SETTINGS because of possible overcharging of batteries. Plug cord into a standard

120 volt AC for charging.

SOLAR PANELS

During operation, keep the solar panel clean of excessive dirt and debris by using

only soapy water and a soft cloth or sponge. Periodically check the integrity of the

wiring connections in the junction box. Inspect for signs of damage to the solar

panel’s glass or frame.

MAINTENANCE

• K&K recommends that the user clean the solar panels every 6 months. Over time

the solar panels may build up a thin layer of dust/dirt/road grime that can

adversely aect their eciency signicantly.

• Check the battery every 6 months to ensure proper charging. If below 12.3 volts,

charge to keep power reserves high. Check solar system by cleaning the panel

and inspecting wiring for wear and secure connection.

• Check that the mounting is secure and has not shifted as the solar panel may shift

direction over time. Ensure the panel is facing South.

• Check the system a few days after installation to ensure proper charging and

operation.

Model 8249

1110

VEHICLE MOUNT MOUNTING HOLES

DATE:

DRAWN BY:

CHECKED BY:

PRORIETARY AND CONFIDENTIAL

TITLE:

K & K SYSTEMS

DWG. NO.

Oce: (888) 414-3003

www.k-ksystems.com

Scale:

Size:

Sheet:

Revision:

M-LP-A MOUNTING HOLES

32 1

3 1

8 3

3 1

**CHECK LOCAL CODES FOR ALL MEASUREMENTS**

DATE:

DRAWN BY:

CHECKED BY:

PRORIETARY AND CONFIDENTIAL

The information contained in this drawing is the sole property

of K & K Systems. Any reproduction in part or as a whole

without the written permission of K & K Systems is prohibited.

TITLE:

K & K SYSTEMS

DWG. NO.

Oce: (888) 414-3003

www.k-ksystems.com

Scale:

1:6

Size:

8.5 X 11

Sheet:

1 of 1

Revision:

Timothy P.

Frank A.

M-LP-A

MOUNTING PATTERN

11-9-20

1312

TOWING AND

LONG-TERM STORAGE

TOWING

Failure to follow these instructions exactly can cause hitch ball failure or loss of trailer

attachment resulting in a vehicle crash and/or personal injury.

Use the hitch ball only for towing trailers or vehicles connected to the ball with a socket-type

coupler. The ball diameter must match the coupler socket size. Do not exceed the gross

trailer weight shown on the ball.

Improper tightening can cause hitch ball failure or loss of trailer attachment.

• The threaded shank must protrude beyond the bottom of nut when tightened. If it does

not, the ball shank is too short for the application and loss of attachment may occur.

• Check the nut tightness every time you hook up the trailer and at the beginning of each

towing day. Tow only if the nut is tightened as specied.

• Replace any damaged or worn parts (except nish).

• Never attach a tow rope, chain, or stretch type elastic rope to the hitch ball.

• Do not fasten the trailer safety chain or any other type of attachment to or with, the ball.

• Lubricate the ball and coupler to minimize wear and friction. The coupler must not bind on

the ball.

This product complies with V.E.S.C. Regulation V-5, C.S.A. Standard D-264 and the Safety

Specications and Requirements for Connection Devices and Towing Systems.

TRAILER MOUNT LONG-TERM STORAGE

When the sign is to be stored for extended periods of time, it is recommended to store the

unit outdoors and in a sunny area to allow the unit to maintain the charge on the batteries.

If it is to be stored indoors, keep the unit plugged into the AC charger when possible. When

the sign is to begin operation again, a thorough inspection of all systems is advised before

the sign is towed to the job site. Check the battery state of charge to conrm over 12 volts.

VEHICLE MOUNT LONG-TERM STORAGE

When the sign is to be stored for extended periods of time, the POWER switch should be

turned OFF. When the sign is to begin operation again, a thorough inspection of all systems

is advised before the sign is into operation.

BEFORE BEGINNING TRAILER SETUP:

1. Check the charge on the controller/battery level.

2. Check all jacks to make sure they are properly attached.

TRAILER SETUP

1. Position the trailer in the desired location so that the unit is directed toward trac.

2. Chock the trailer wheels and remove the trailer from the vehicle.

3. Use jacks to brace and level trailer.

4. Remove tongue from trailer (if desired).

ELEVATING SIGN

1. Verify that the display is in the proper position and that the

entire unit is level.

2. Clear all unnecessary personnel from the sign area to

ensure safety.

3. Unlock the hand brake before attempting to

RAISE/LOWER the mast to prevent damage.

4. Locate the toggle switch marked RAISE/LOWER on the

controller located on the outside of the battery box.

The switch is protected by a clear plastic cover.

5. Hold the switch in the“RAISE”position until the mast raises

10-12”to check for proper alignment with trac.

6. If not properly aligned, release the hand brake and turn

the sign toward trac. Lock hand brake in the desired

direction.

7. Finish raising the display to desired height.

8. Insert the locking pin into the hole in the inner mast shaft.

(CAUTION: The locking pin can only be inserted if the mast is at its

maximum height).

LOWERING SIGN (CAUTION: The display can stick

when elevated on new units. Gently move the display back and

forth to loosen).

1. Verify that the unit is level.

2. Clear all unnecessary personnel from sign area to ensure

safety.

3. Remove the Locking Pin from the inner mast shaft.

4. Hold the switch in the“DOWN”position until the unit is

approximately 10-12”from the docking station.

5. Unlock the hand brake and turn to align with the docking station.

6. Lower the display completely into docking station.

7. Lock the hand brake.

TRAILER SETUP

Caution: Contact your dealer or manufacturer if any portion of this instruction guide is not understood.

Raise/Lower Switch located on

the side of the battery box.

Hand Brake

Remove the Locking Pin

before lowering.

1514

MESSAGE DISPLAY CAPABILITIES

Your Message Sign provides messaging functionality to display predened and custom

messages in alphanumeric text. Full Matrix Message Signs can also display MUTCD graphics

and animations. To catch motorists’attention we include an option to make the message

ash. Programming can be accomplished with an on-board keyboard, a on-board Bluetooth

tablet, or wirelessly with an internet connected device. On-board devices are conveniently

located in the locking, weather-tight control cabinet on the backside of the sign.

TERMINOLOGY

CHANGEABLE MESSAGE

A Changeable Message is one that you create for your specic need. These messages can

be input and saved for a later time or displayed immediately. You can edit changeable

messages or delete them. K&K Message Signs allow for 2, 3, and 4 lines of text with varying

number of characters per line depending on the font style. (See page 16 for font styles.)

Follow the steps on page 15 of this manual to create or edit a Changeable Message.

PERMANENT MESSAGE

Permanent Messages are predened into your system. A full list of text messages, graphics,

and animated graphics is located on pages 21-27 of this manual. Simply type the number

directly relating to the text or graphic message you want to display and activate. Permanent

Messages cannot be modied or deleted. Follow the steps on page 17 to display a

Permanent Message.

MESSAGE SEQUENCE

A Message Sequence is a message that spans multiple pages that are seen sequentially. A

Sequence can be created from Changeable or Permanent Messages or a combination of

the two. For example, page 1 might display “LEFT LANE CLOSED.” Page 2 might then display

“MERGE RIGHT.” Use the steps on pages 18-19 of this manual to create and save the Message

Sequences that you most commonly use.

QUICK SELECTION THUMB WHEEL

The Quick Selection Thumb Wheel located on the top left corner of the on-board controller

keyboard allows access to the16 most used messages without having to login. Create your

list using the steps to Create/Edit a

Changeable Message and assign a

number 1-16. Automatically display

the desired message by rolling

the Thumb Wheel to that number.

Record your Quick Message list on

page 61 of this manual for reference.

PROGRAMMING INTRODUCTION

Quick Selection Thumb Wheel for

Trailer Mount Keyboard Models

Quick Selection Thumb Wheel for

Vehicle Models

CREATE A CHANGEABLE MESSAGE

To enter and display a custom message follow the steps below.

KEYBOARD PROGRAMMING

1) Login: Enter username: KAK

*NOTE: username is case sensitive - use ALL CAPS

Press Enter

Enter Password: 123

Press Enter

2) Press #2 (CREATE/EDIT MESSAGE)

Press Enter

3) Enter the next available number

(1-99) One not already assigned to a

message on the list of changeable messages

Press Enter

4) Enter your message Example:

1. Type “ROAD” Press Enter

2. Type “WORK” Press Enter

3. Type “AHEAD”

*REMEMBER: Each line can only contain 8 characters,

including spaces and punctuation.* Press Enter to

move the next line

5) Press F9 (ACTIVATE) when nished

creating your message.

* NOTE: This will SAVE and DISPLAY your message.

If you do not want to display the message

immediately, Press F8 to SAVE only.

6) Record your message on the

corresponding line in the log on

pages 61-62 for later reference.

Tips

* Use the Fn+PgUp or PgDn keys to adjust the contrast of the LCD Screen.

* Press the ESC key at any time to go back.

* Permanent Messages cannot be deleted or modied.

* There is a list of Permanent Messages starting on page 21 of this manual.

* Graphics are only for Full Matrix Message signs.

1716

MAKE THE MESSAGE FLASH

To conserve energy and draw drivers’ attention to the message sign.

*NOTE: Only Changeable Messages can ash

SELECTING FONT STYLES

Press the F1 through F4 to select the font to display before inputting your

Changeable Message.

1) Press F5 (START FLASH).

2) Enter your Changeable Message

3) Press F6 (STOP FLASH).

4) Press F9 (ACTIVATE)

F1: Regular (3 Lines of text)

F2: Bold (3 Lines of text)

F3: Tall (2 Lines of text)

F4: Short (4 Lines of text)

Regular Font Style Bold Font Style

F3: Tall Font Style

F4: Short Font Style

DISPLAY A PERMANENT MESSAGE

Permanent Messages are predened messages already in the system.

Reference the Permanent Message Text and Graphic list on pages 21-27.

1) Login: Enter username: KAK

*NOTE: username is case sensitive - use ALL CAPS

Press Enter

Enter Password: 123

Press Enter

2) Press #1 (DISPLAY MESSAGE)

Press Enter

3) Press #1 (MESSAGE TYPE)

Press Enter

4) Press #1 (PERMANENT)

for messages preloaded on system

Press Enter

5) Press #2 (MESSAGE NUMBER)

Press Enter

6) Enter the MESSAGE NUMBER

from the list on pages 21-27

Press Enter

7) Press #4 (DISPLAY)

Press Enter

1918

1) Login: Enter username: KAK

Press Enter

Enter Password: 123

Press Enter

2) Press #2 (CREATE/EDIT MESSAGE)

Press Enter

3) Enter the Message Number to edit or

a new number for a new message

Press Enter

4) Enter the 1st Message to display

Press Enter

5) Enter the 2nd Message to display

Press Enter to add another page.

6) Press F9 (ACTIVATE) when nished

* NOTE: This will SAVE and DISPLAY your message.

If you do not want to display the message

immediately, Press F8 to SAVE only.

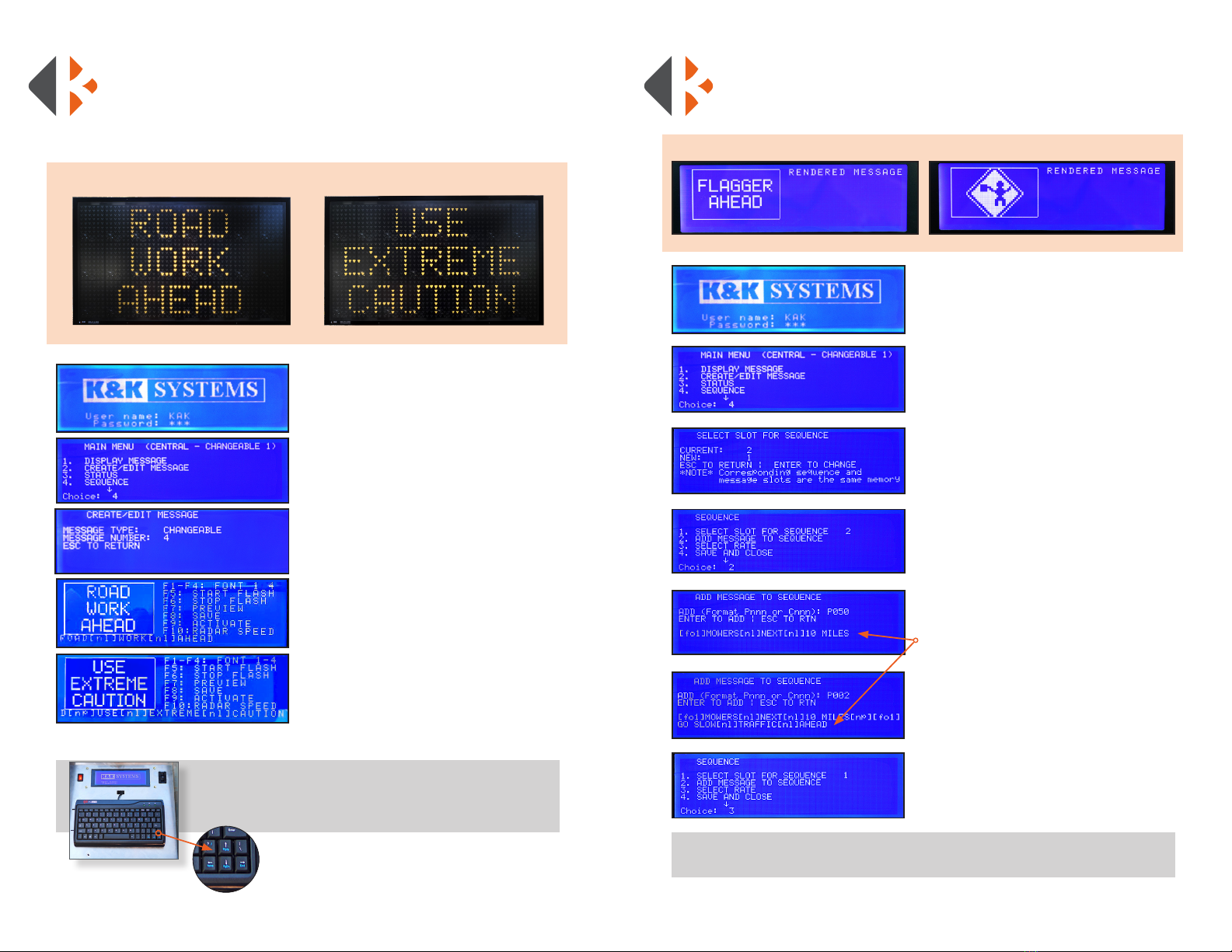

CREATE/EDIT A CHANGEABLE

MULTI-PAGE MESSAGE SEQUENCE

The following steps will show you how to create a message that spans 2 or

more pages, assign a number 1-99 to it, and save it to the Quick Selection

Thumb Wheel.

Tip

* Use the Up and Down buttons to scroll through the Main Menu options.

EXAMPLE:

CREATE A MESSAGE SEQUENCE/ MULTI-PAGE

MESSAGE WITH PERMANENT AND

CHANGEABLE MESSAGES

Tip

* Once you create your Message Sequence, you will save it as a changeable message.

1) Login: Enter username: KAK

Press Enter

Enter Password: 123

Press Enter

2) Press #4 (SEQUENCE)

Press Enter

3) Enter the next available 1-99 number

on the list of changeable messages

Press Enter

Press ESC

4) Press #2 (ADD MESSAGE TO SEQUENCE)

Press Enter

5) Enter the message number you wish to

display. **You must enterP(Permanent) or

C(Changeable) message and a 3 digit

number. (Ex: P050 = Permanent Message #50)

Press Enter

Repeat to enter another message

Press ESC

** Once you press Enter, the message you entered will

show here.

6) SAVE AND ACTIVATE saves your

message sequence to the number you

chose in step 2 and then activates the

message.

Press #4 (SAVE AND CLOSE)

Press #5 (SAVE AND DISPLAY)

EXAMPLE:

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere K&K Systems Autozubehör Handbücher

K&K Systems

K&K Systems Crosslink Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
