KanexPro EXT-HDBT70M Bedienungsanleitung

EXT-HDBT70M

HDBaseT Extender

Version: EXT-HDBT70M_2017V1.1

HDBaseT Extender

Preface

Read this user manual carefully before using this product. Pictures shown in this

manual is for reference only, different model and specifications are subject to real

product.

This manual is only for operation instruction only, not for any maintenance usage. The

functions described in this version are updated till June 2017. Any changes of functions

and parameters since then will be informed separately. Please refer to the dealers for

the latest details.

All product function is valid till 2017-6-15.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this

manual are acknowledged as the properties of the trademark owner. No part of this

publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

HDBaseT Extender

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

Unpack the equipment carefully and save the original box and packing material for

possible future shipment

Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

Using supplies or parts not meeting the products’ specifications may cause

damage, deterioration or malfunction.

Refer all servicing to qualified service personnel.

To prevent fire or shock hazard, do not expose the unit to rain, moisture or install

this product near water.

Do not put any heavy items on the extension cable in case of extrusion.

Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

Install the device in a place with fine ventilation to avoid damage caused by

overheat.

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage.

If an object or liquid falls or spills on to the housing, unplug the module immediately.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

Unplug the power cord when left unused for a long period of time.

Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

HDBaseT Extender

Table of Contents

1. Introduction..................................................................................................................1

1.1 Introduction to EXT-HDBT70M...........................................................................1

1.2 Features .............................................................................................................1

1.3 Package Contents..............................................................................................1

2. Panel Description ........................................................................................................2

2.1 Transmitter .........................................................................................................2

2.2 Receiver .............................................................................................................3

3. System Connection .....................................................................................................4

3.1 Usage Precautions.............................................................................................4

3.2 System Diagram.................................................................................................4

3.3 Connection Procedure .......................................................................................4

3.4 Application..........................................................................................................5

3.5 Twisted Pair Cable Connection ..........................................................................5

4. Specification ................................................................................................................6

5. Panel Drawing .............................................................................................................8

6. Troubleshooting & Maintenance ..................................................................................9

7. After-sales Service.....................................................................................................10

8. Warranty ....................................................................................................................11

HDBaseT Extender

1 | Page

1. Introduction

1.1 Introduction to EXT-HDBT70M

The KanexPro EXT-HDBT70M is a compact sized extender set consisting of a

transmitter and receiver. It uses HDBaseT™ technology to transmit uncompressed,

high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a

cable at a distance of up to 70/40m. Moreover, EXT-HDBT70M supports CEC, bi-

directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.

1.2 Features

▪Support Full HD: Delivers high resolution image (1080p@60Hz@48

b/pixels/3D/4Kx2K).

▪Maximum transmission distance is 70m for 1080p and 40m for 4Kx2K over single

CAT5e/CAT6a cable

▪High Bandwidth: 10.2Gps.

▪HDTV Compatible, use HDMI 1.4 and HDCP2.2 compliant.

▪Support CEC/IR/RS232 pass-through.

▪Supports Bi-directional PoH function.

▪Bi-directional RS232/IR control.

▪UseS HDBaseT technology to transmit & extend over CATx

▪LED indicators show work status.

1.3 Package Contents

Transmitter

Receiver

▪2 x Transmitter Mounting Ears

▪4 x Mounting Screws

▪4 x Plastic Cushions

▪1 x RS232 Cable

▪1 x IR Emitter

▪1 x Power Adaptor(24V, 1.25A)

▪1 x User manual

▪2 x Receiver Mounting Ears

▪4 x Mounting Screws

▪4 x Plastic cushions

▪1 x RS232 Cable

▪1 x IR Receiver

▪1 x User manual

Note:Please confirm if the product and the accessories are all included, if not, please

contact with the dealers.

HDBaseT Extender

2 | Page

2. Panel Description

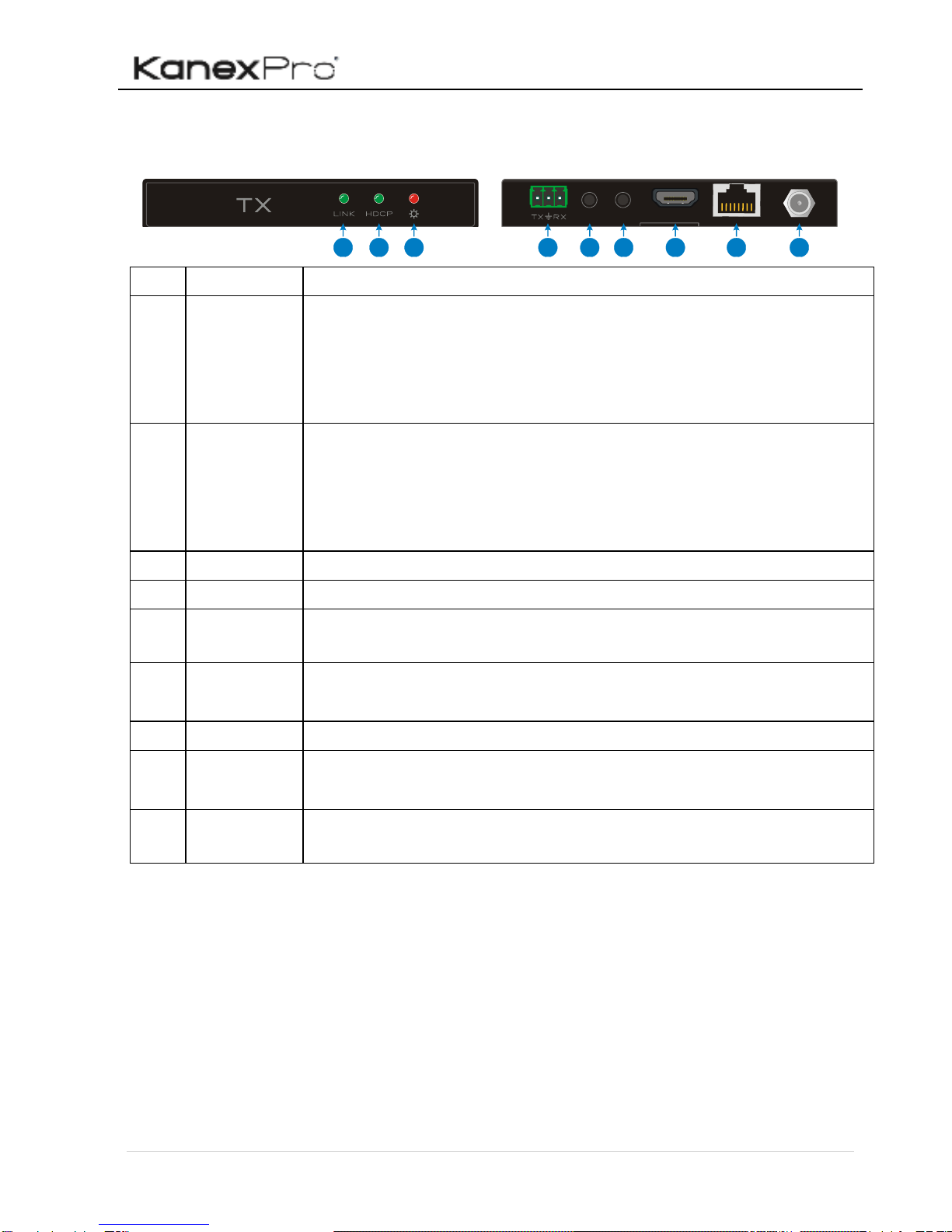

2.1 Transmitter

No.

Name

Description

①

LINK

HDBT Link status indicator:

▪OFF: No Link

▪GREEN:Link Successful

▪Blinking GREEN: Link abnormal

②

HDCP

HDCP compliant indicator

▪OFF: No HDMI traffic (no picture)

▪GREEN: Traffic with HDCP.

▪Blinking GREEN: Traffic without HDCP

③

Power

OFF: No power; RED: DC power present.

④

RS232

RS232 connector.

⑤

IR IN

Connect with 5V IR receiver (with carrier) to collect infrared signal,

work with far-end IR OUT port

⑥

IR OUT

Connect with 5V IR emitter to send infrared signal, work with far-

end IR IN port

⑦

HDMI IN

Connect with HDMI source

⑧

HDBT OUT

Connect to the HDBT IN socket on the Receiver via CAT5e/ CAT6a

cable, support bi-directional PoH function.

⑨

DC 24V

Connect with power supply (Not necessary if receiver connects with

power adaptor).

Pictures shown in this manual are only for reference.

123456789

HDBaseT Extender

3 | Page

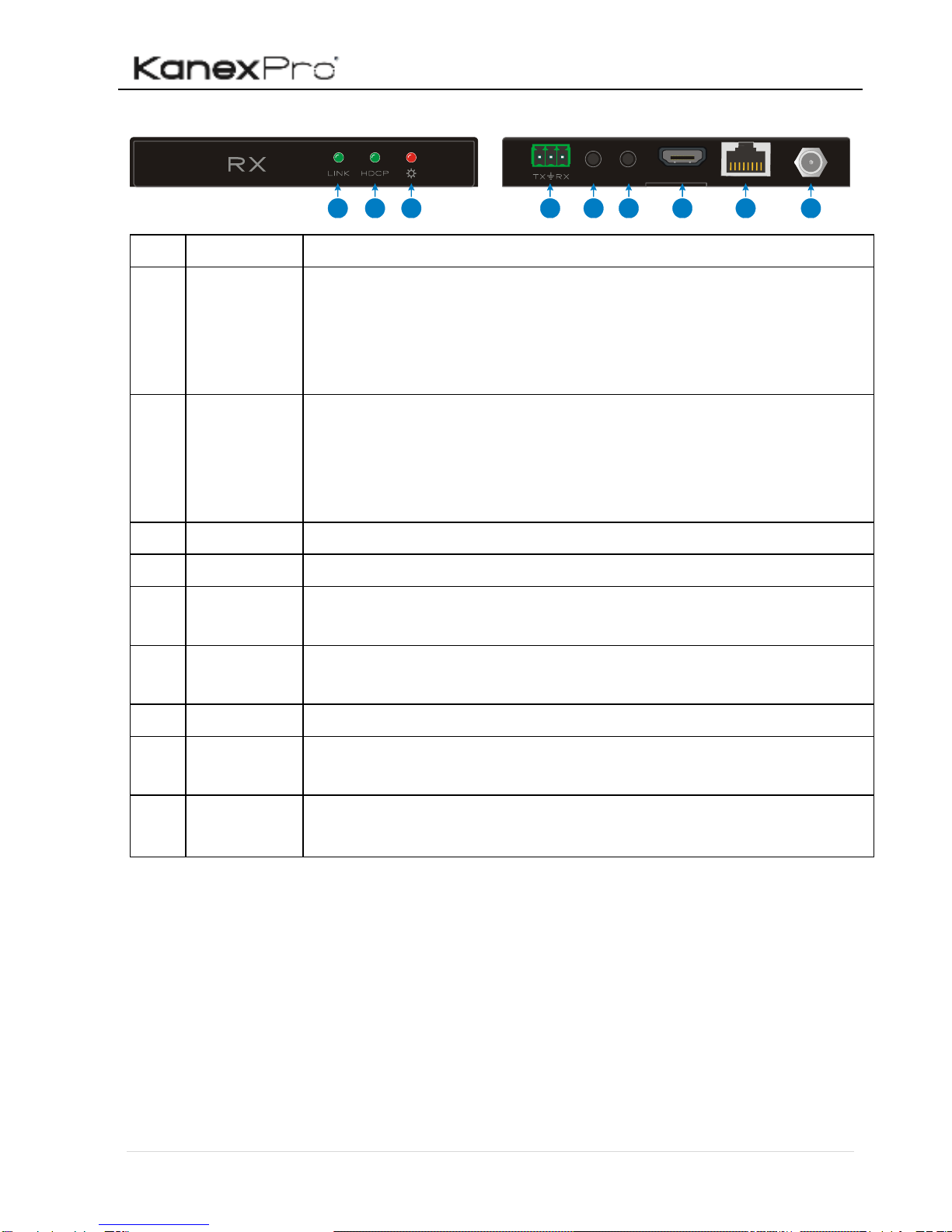

2.2 Receiver

No.

Name

Description

①

LINK

HDBT Link status indicator:

▪OFF: No Link

▪GREEN:Link Successful

▪Blinking GREEN: Link abnormal

②

HDCP

HDCP compliant indicator

▪OFF: No HDMI traffic (no picture)

▪GREEN: Traffic with HDCP.

▪Blinking GREEN: Traffic without HDCP

③

Power

OFF: No power; RED: DC power present.

④

RS232

RS232 connector.

⑤

IR IN

Connect with 5V IR receiver (with carrier) to collect infrared signal,

work with far-end IR OUT port

⑥

IR OUT

Connect with 5V IR emitter to send infrared signal, work with far-

end IR IN port

⑦

HDMI OUT

Connect with HDMI display

⑧

HDBT IN

Connect to the HDBT OUT socket on the transmitter via CAT5e/

CAT6a cable.

⑨

DC 24V

Connect with power supply (Not necessary if transmitter connects

with power adaptor).

Pictures shown in this manual are only for reference.

123456789

HDBaseT Extender

4 | Page

3. System Connection

3.1 Usage Precautions

▪System should be installed in a clean environment and has a prop temperature and

humidity.

▪All of the power switches, plugs, sockets and power cords should be insulated and

safety.

▪All devices should be connected before power on.

▪Use shielded straight-thru CAT5e/CAT6a cable with TIA/EIA T568B terminations for

good transmission effect.

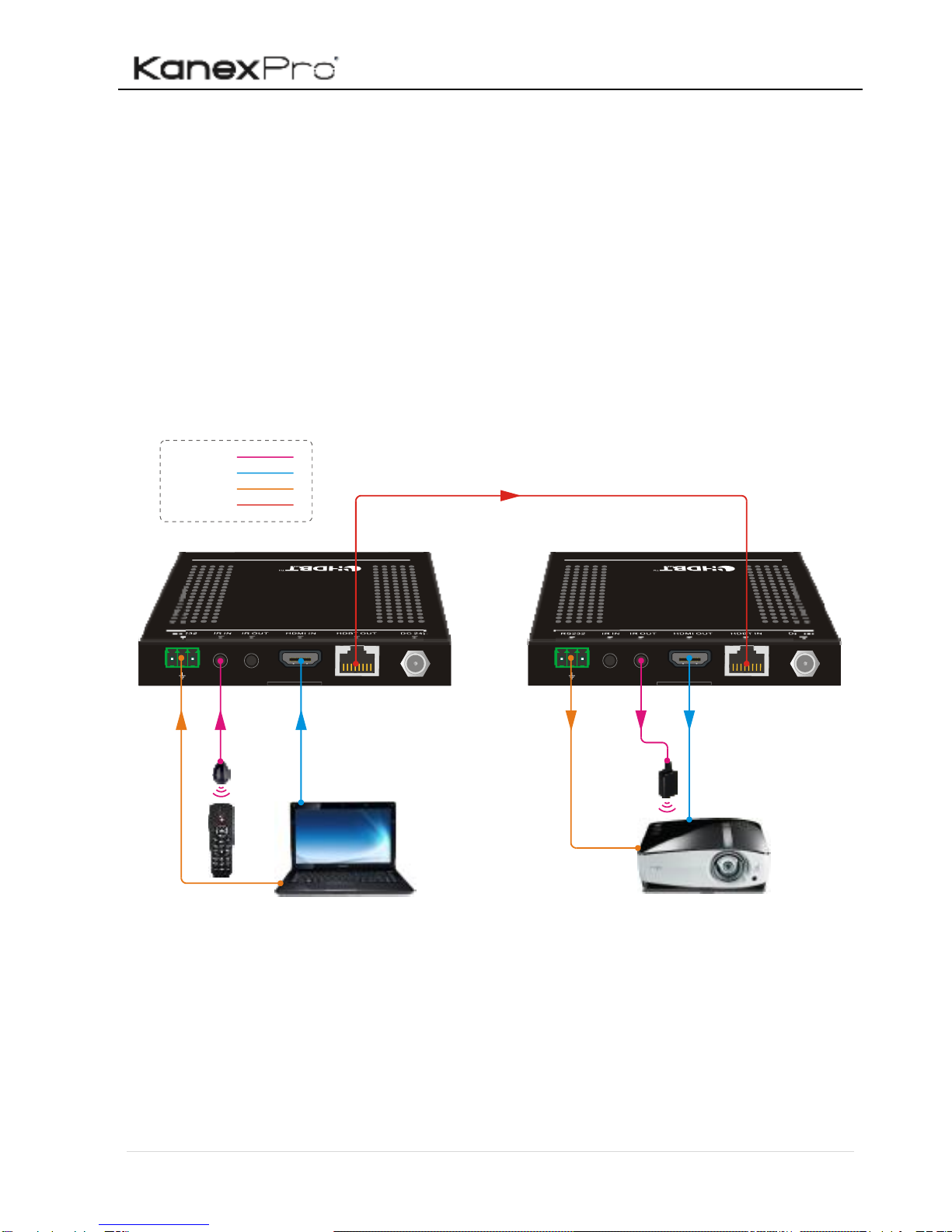

3.2 System Diagram

3.3 Connection Procedure

Step1.Connect HDMI source (such as Laptop) to HDMI IN port of transmitter with

HDMI cable.

Step2.Connect HDBT OUT port of transmitter and HDBT IN port of receiver, with single

CAT5e/CAT6a cable.

Step3.Connect HDMI displayer (such as HDTV) to HDMI OUT port of receiver with

HDMI cable.

RXTX RXTX

Transmitter Receiver

4K 40m

1080P 70m

Laptop

IR Receiver

Projector

Remote

Projector

IR Emitter

HDMI:

RS232:

IR:

HDBaseT:

HDBaseT Extender

5 | Page

Step4.Both transmitter and receiver have IR IN and OUT. When one end is used as an

IR receiver, the signal sent from the end can only be transmitted via the other

end.

For example: When “IR IN” of transmitter connects with an IR receiver, the IR

emitter must connect to IR OUT of Receiver.

Step5.Connect the RS232 port of the devices to be controlled and the receiver or the

transmitter.

Step6.Connect with DC24V power adaptor(s) One is enough if Transmitter or Receiver

is connected with adapter as its PoH function).

3.4 Applications

Ideal for use in digital signage applications, healthcare AV, control rooms, educational

facilities, airports, commanding centers and residential - home theater.

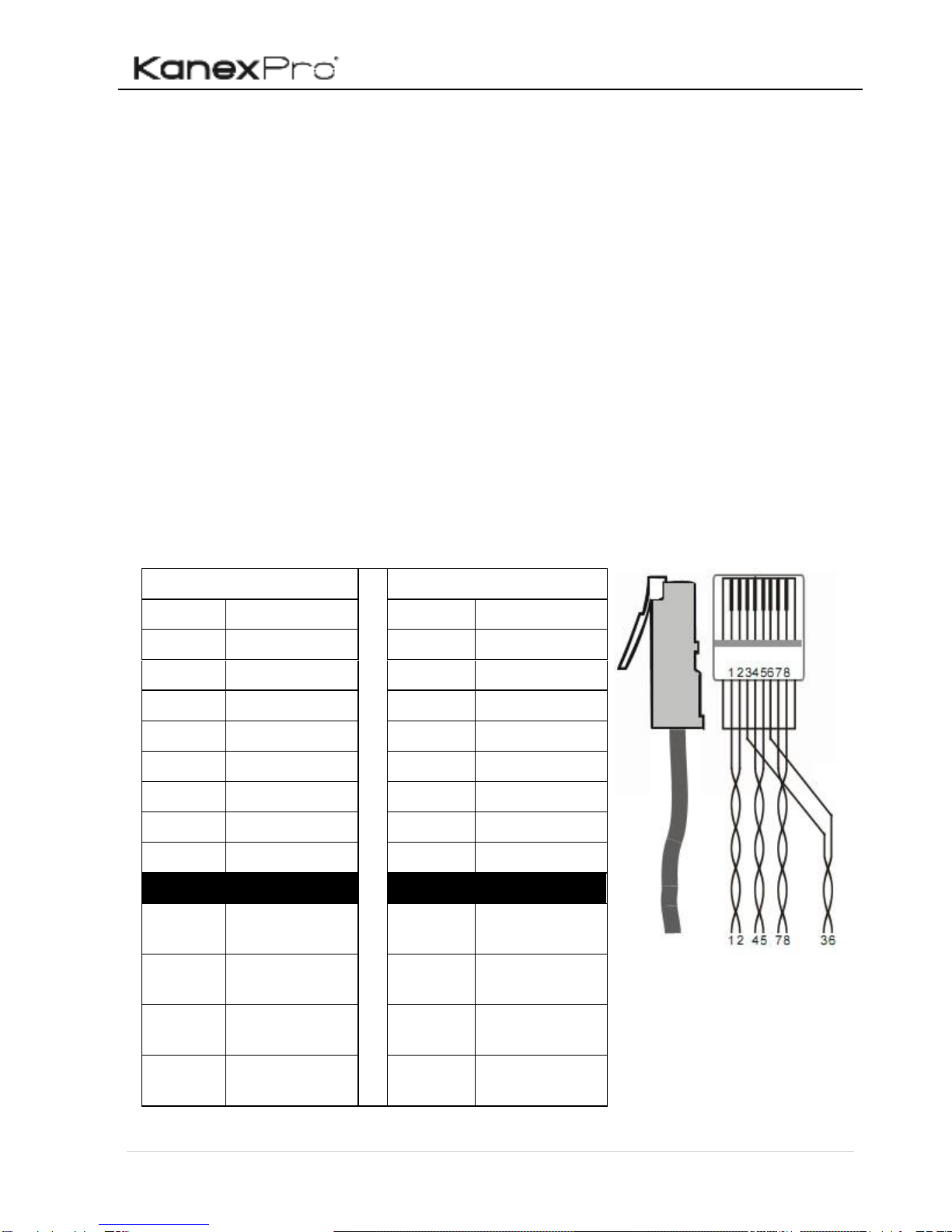

3.5 Twisted Pair Cable Connection

The twisted pair used in this extender MUST be a straight-through cable.

Notice: Cable connectors

MUST be metal one, the

shielded layer of cable

MUST be connected to the

connector’s metal shell, to

make a better

transmission.

TIA/EIA T568A

TIA/EIA T568B

Cable color

green white

orange white

green

orange

orange white

green white

blue

blue white

orange

green

brown white

brown

1st

Ground

4--5

1st

Ground

4--5

2nd

Ground

3--6

2nd

Ground

1--2

3rd

Group

1--2

3rd

Group

3--6

4th

Group

7--8

4th

Group

7--8

HDBaseT Extender

6 | Page

4. Specification

Transmitter

Input Signal

(1) HDMI, (1) IR; (1) RS232

Input Connector

(1) HDMI female; (1) 3.5mm mini jack;

(1) 3p captive screw connector

Output

(1) RJ-45, (1) IR, (1) RS232

Output Connector

(1) RJ-45; (1) 3.5mm mini jack;

(1) 3-pin captive screw connector

Audio

(1) Digital audio,transmit through HDMI audio

Receiver

Input Signal

(1) IR; (1) RJ-45; (1) RS232

Input Connector

(1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw

connector

Output

(1) HDMI, (1) IR, (1) RS232

Output Connector

(1) HDMI female; (1)3.5mm mini jack; (1)3p captive

screw connector

General

Resolution Range

640x480@60Hz~4K×2K@30Hz

Transmission Mode

HDBaseT

Transmission Distance

1080p ≤ 70m; 4Kx2K ≤ 40m

Bandwidth

10.2Gbps

HDMI Standard

Support HDMI1.4 and HDCP2.2

Impedance

75Ω

Temperature

0~ 50℃

Humidity

10% ~ 90%

External Power Supply

Input: 100VAC~240VAC, 50/60Hz;

Output: DC 24V, 1.25A

Power Consumption

14w (max)

Dimension (W*H*D)

115mmx16.2mm x109mm

Net Weight

Transmitter: 193g; Receiver: 196g

Note: All nominal levels are at ±10%.

Inhaltsverzeichnis

Andere KanexPro Extender Handbücher

KanexPro

KanexPro EXT-50M18G Bedienungsanleitung

KanexPro

KanexPro MPTP-T70S-H2 Bedienungsanleitung

KanexPro

KanexPro EXT-HDBT150M Bedienungsanleitung

KanexPro

KanexPro EXT-HD60M Bedienungsanleitung

KanexPro

KanexPro EXT-HDMIKVM70M Bedienungsanleitung

KanexPro

KanexPro HDBASE70POE Bedienungsanleitung

KanexPro

KanexPro EXT-4KFIBERPRO Bedienungsanleitung

KanexPro

KanexPro HDBase100M Bedienungsanleitung

KanexPro

KanexPro VGAEXTX2 Bedienungsanleitung

KanexPro

KanexPro HDEXT50M Bedienungsanleitung

KanexPro

KanexPro HDBASE100ME Bedienungsanleitung

KanexPro

KanexPro HDBASE100POEL Bedienungsanleitung

KanexPro

KanexPro HDBASE70POE Bedienungsanleitung

KanexPro

KanexPro VGAEXTX1 Bedienungsanleitung

KanexPro

KanexPro EXT-18GHDMIWL Bedienungsanleitung

KanexPro

KanexPro EXT-NETAVTX Bedienungsanleitung

KanexPro

KanexPro EXT-HDBASE70E Bedienungsanleitung

KanexPro

KanexPro VGAEXTX8 Bedienungsanleitung

KanexPro

KanexPro HDBASE70POE Bedienungsanleitung

KanexPro

KanexPro EXT-70SL18G Bedienungsanleitung

KanexPro

KanexPro WP-EDUKIT4K Bedienungsanleitung

KanexPro

KanexPro EXT-USB2100M Bedienungsanleitung

KanexPro

KanexPro WP-2X1HDUSBC Bedienungsanleitung

KanexPro

KanexPro EXT-HDBASE70E Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
