KanexPro HDBASE70POE Bedienungsanleitung

PDF provided by Conference Room AV

KanexPro HDBASE70POE HDBaseT 4K HDMI Transmitter and Receiver Kit with PoE - 230'

HDBASE70POE

USER MANUAL

HDMI Twisted Pair PoC Extender

Version: HDBASE70POE_2016V1.0

70M 4K HDMI Extender over HDBaseT™ with POC

Preface

Read this user manual carefully before using this product. Pictures shown in this manual

is for reference only, different model and specifications are subject to real product.

This manual is only for operation instruction only, not for any maintenance usage. The

functions described in this version are updated till August 2016. In the constant effort to

improve our product, we reserve the right to make functions or parameters changes

without notice or obligation. Please refer to the dealers for the latest details.

All product function is valid till 2016-8-22.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this

manual are acknowledged as the properties of the trademark owner. No part of this

publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

70M 4K HDMI Extender over HDBaseT™ with POC

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

lUnpack the equipment carefully and save the original box and packing material for

possible future shipment

lFollow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

lDo not dismantle the housing or modify the module. It may result in electrical shock

or burn.

lUsing supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction.

lRefer all servicing to qualified service personnel.

lTo prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

lDo not put any heavy items on the extension cable in case of extrusion.

lDo not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

lInstall the device in a place with fine ventilation to avoid damage caused by

overheat.

lKeep the module away from liquids.

lSpillage into the housing may result in fire, electrical shock, or equipment damage. If

an object or liquid falls or spills on to the housing, unplug the module immediately.

lDo not twist or pull by force ends of the optical cable. It can cause malfunction.

lDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

lUnplug the power cord when left unused for a long period of time.

lInformation on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

HDMI/IR/RS232 Twisted Pair PoC

Extender

Table of Contents

1. Introduction..................................................................................................................1!

1.1 Introduction to HDBASE70POE .........................................................................1!

1.2 Features .............................................................................................................1!

1.3 Package Contents..............................................................................................1!

2. Product Appearance....................................................................................................2!

2.1 HDBASE70POET...............................................................................................2!

2.2 HDBASE70POER ..............................................................................................3!

3. System Connection .....................................................................................................4!

3.1 Usage Precautions.............................................................................................4!

3.2 System Diagram.................................................................................................4!

3.3 Connection Procedure .......................................................................................4!

3.4 Application..........................................................................................................5!

3.5 Twisted Pair Cable Connection..........................................................................5!

3.6 Collocation Products ..........................................................................................5!

4. Specification ................................................................................................................7!

5. Panel Drawing .............................................................................................................8!

6. Troubleshooting & Maintenance..................................................................................9!

7. After-sales Service ....................................................................................................10!

8. Warranty ....................................................................................................................11!

HDMI/IR/RS232 Twisted Pair PoC

Extender

1 | Page

1. Introduction

1.1 Introduction to HDBASE70POE

HDBASE70POE is an HDMI/IR/RS232 twisted pair including transmitter and receiver.

HDBASE70POE uses HDBaseT technology to deliver HDMI signal, max transmission

distance up to 70 meters with CAT5e/CAT6 cable. CEC, bi-directional RS232&IR

control, and PoC are supported by HDBASE70POE.

1.2 Features

lSupport Full HD: Delivers resolutions including 800x600@60Hz, 1024x768@Hz,

1280x720@60Hz, 1280x1024@60Hz, 1366x768@60Hz, 1600x1200@60Hz,

1920x1080@60Hz, 1920x1200@60Hz, 3D, 4K×2K

lMax transmission distance is up to 70 meters over single CAT5e/CAT6 cable.

lHigh Bandwidth: 10.2Gps.

lHDTV Compatible, use HDMI 1.4 and HDCP compliant.

lSupport POC & CEC.

lConnect with a displayer to transmit EDID and HPD signals constantly by using a

CAT5e cable.

lUse HDBaseT technology.

lBi-directional RS232/IR controls.

lLED indicators show work status.

lWall/table-mountable aluminum enclosure, PT case design.

Note: Please use a CAT5e cable with low impedance (Shielded twisted pair will be

better and should be well grounded)for good transmission effect.

1.3 Package Contents

l1 x Transmitter (HDBASE70POET)

l1 x Receiver (HDBASE70POER)

l4 x Mounting brackets

l8 x Plastic cushions

l2 x RS232 cables

l8 x Screws

l2 x Power adapters (DC 24V)

l1 x User manual

Notes: Please confirm if the product and the accessories are all included, if not, please

contact with the dealers.

HDMI/IR/RS232 Twisted Pair PoC

Extender

2 | Page

2. Product Appearance

2.1 HDBASE70POET

Figure 2-1 HDBASE70POET

1) ON: Working status indicator of this device. When the device works fine, this

green LED will keep blinking. And it will get off when the device stops work.

2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when

connection is successful.

3) IN: When connected with devices support HDCP and work normally this LED will

keep on. If devices not support HDCP, this green LED will blink.

4) POWER LED: LED indicator of power. When connect with power, red LED will

keep on.

5) HDBT OUT: Connect to the HDBT IN port of HDBASE70POER with a CAT5e

cable.

6) HDMI IN: Connect to HDMI source.

7) IR IN: Connect with IR receiver, the IR signal received from this port can only

send out in HDBASE70POER.

8) IR OUT: Connect with IR sender, the sending IR signal are received from

HDBASE70POER.

9) RS232: RS232 connector.

10) DC 24V: Connect with power supply (Not necessary if HDBASE70POER

connects with power).

Note: Pictures shown on this manual are for reference only; different model and

specifications are subject to real product.

HDMI/IR/RS232 Twisted Pair PoC

Extender

3 | Page

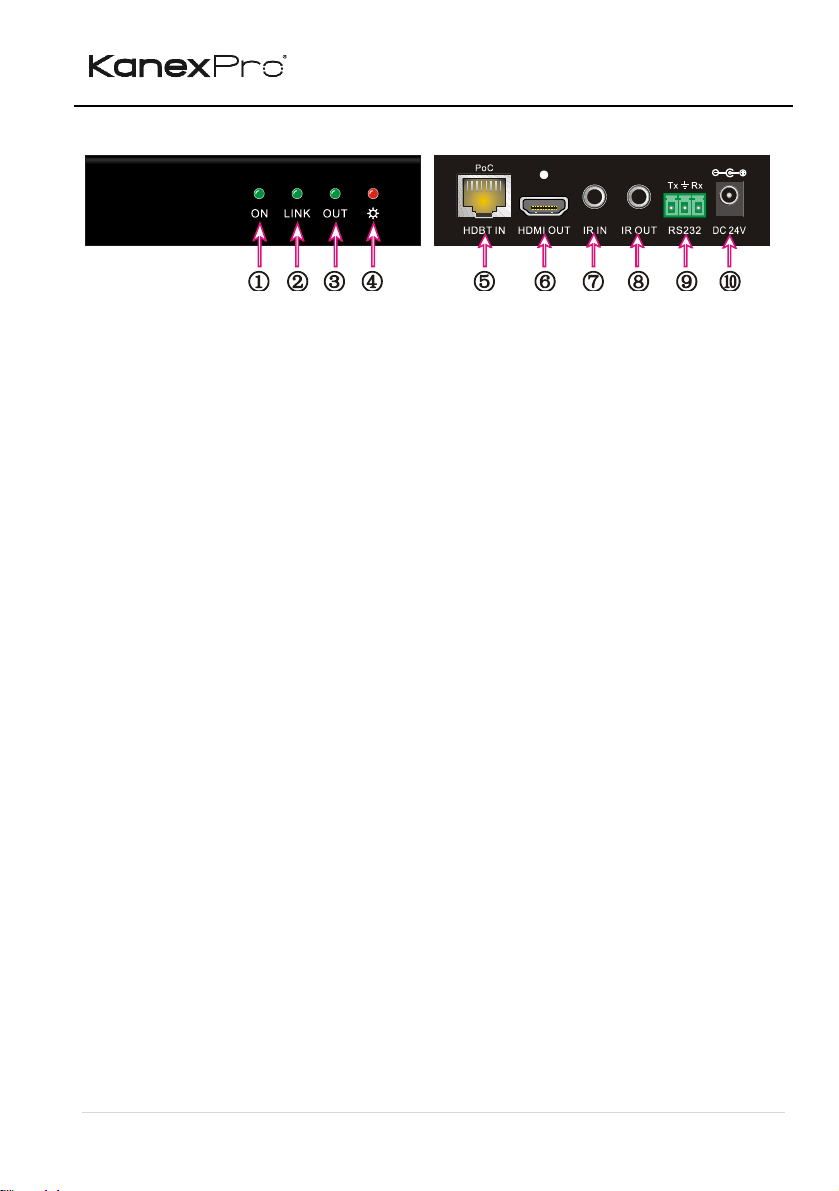

2.2 HDBASE70POER

Figure 2-2 HDBASE70POER

1) ON: Working status indicator of this device. When the device works fine, this

green LED will keep blinking. And it will get off when the device stops work.

2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when

connection is successful.

3) OUT: When connected with devices support HDCP and work normally this LED

will keep on. If devices not support HDCP, this green LED will blink.

4) POWER LED: When connect with power, red LED will keep on.

5) HDBT IN: Connect to the HDBT OUT port of HDBASE70POET with a CAT5e

cable.

6) HDMI IN: Connect to HDMI display device.

7) IR IN: Connect with IR receiver, the IR signal received from this port can only

send out in HDBASE70POET.

8) IR OUT: Connect with IR emitter, the sending IR signal are received from

HDBASE70POET.

9) RS232: RS232 connector.

10) DC 24V: Connect with power supply (Not necessary if HDBASE70POET

connects with power).

Note: Pictures shown on this manual are for reference only, different model and

specifications are subject to real product.

HDMI/IR/RS232 Twisted Pair PoC

Extender

4 | Page

3. System Connection

3.1 Usage Precautions

1) System should be installed in a clean environment and has a prop temperature and

humidity.

2) All of the power switches, plugs, sockets and power cords should be insulated and

safety.

3) All devices should be connected before power on.

3.2 System Diagram

Figure 3-1 System Connection Diagram

3.3 Connection Procedure

Step1. Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of transmitter

HDBASE70POET with HDMI cable.

Step2. Connect HDBT OUT port of HDBASE70POET and HDBT IN port of

HDBASE70POER, with single CAT5e/CAT6 cable.

Step3. Connect HDMI displayer (such as HDTV) to HDMI OUT port of

HDBASE70POER with HDMI cable.

Step4. Both HDBASE70POET and HDBASE70POER have IR IN and OUT. When one

end is used as an IR receiver, the signal sent from the end can only be

transmitted via the other end.

For example: When “IR IN” of HDBASE70POET connects with an IR receiver,

the IR transmitter must connect to IR OUT of HDBASE70POER.

Step5. Connect the RS232 port of the devices to be controlled and the receiver or the

transmitter.

Step6. Connect with DC24V power adaptor(s) (One is enough if any end of

HDBASE70POET and HDBASE70POER is connected with adapter as its PoC

DVD

HDMI

CAT5e

INPUT

MP-WP B-8

Projector

IR Remote

HDBASE70POET

HDBASE70POER

HDMI/IR/RS232 Twisted Pair PoC

Extender

5 | Page

function).

3.4 Application

HDBASE70POE has a good application in various occasions, such as computer realm,

monitoring, big screen displaying, meeting room, education and bank & securities

institution etc.

3.5 Twisted Pair Cable Connection

The twisted pair used in this extender MUST be a straight-through cable.

Notice: Cable connectors

MUST be metal one, the

shielded layer of cable

MUST be connected to the

connector’s metal shell, to

make a better transmission.

3.6 Collocation Products

HDBASE70POE usually work together with other devices to extend the transmission

distance of HDMI/IR/RS232 signal. Here are the most common collocation products.

TIA/EIA T568A

TIA/EIA T568B

Cable color

green white

orange white

green

orange

orange white

green white

blue

blue white

orange

green

brown white

brown

1st

Ground

4--5

1st

Ground

4--5

2nd

Ground

3--6

2nd

Ground

1--2

3rd

Group

1--2

3rd

Group

3--6

4th

Group

7--8

4th

Group

7--8

Andere Handbücher für HDBASE70POE

Inhaltsverzeichnis

Andere KanexPro Extender Handbücher

KanexPro

KanexPro EXT-4KFIBERPRO Bedienungsanleitung

KanexPro

KanexPro EXT-HDBASE70E Bedienungsanleitung

KanexPro

KanexPro EXT-USB2100M Bedienungsanleitung

KanexPro

KanexPro HDBASE100ME Bedienungsanleitung

KanexPro

KanexPro EXT-NETAVTX Bedienungsanleitung

KanexPro

KanexPro EXT-100SL18G Bedienungsanleitung

KanexPro

KanexPro WP-EDUKIT4K Bedienungsanleitung

KanexPro

KanexPro EXT-HDBT70C Bedienungsanleitung

KanexPro

KanexPro HDEXT50M Bedienungsanleitung

KanexPro

KanexPro EXT-HDBASE70E Bedienungsanleitung

KanexPro

KanexPro VGAEXTX2 Bedienungsanleitung

KanexPro

KanexPro HDBASE70POE Bedienungsanleitung

KanexPro

KanexPro EXT-HD60M Bedienungsanleitung

KanexPro

KanexPro EXT-70SL18G Bedienungsanleitung

KanexPro

KanexPro VGAEXTX1 Bedienungsanleitung

KanexPro

KanexPro EXT-50M18G Bedienungsanleitung

KanexPro

KanexPro EXT-HDMIKVM70M Bedienungsanleitung

KanexPro

KanexPro VGAEXTX8 Bedienungsanleitung

KanexPro

KanexPro MPTP-T70S-H2 Bedienungsanleitung

KanexPro

KanexPro EXT-18GHDMIWL Bedienungsanleitung

KanexPro

KanexPro EXT-HDBT70M Bedienungsanleitung

KanexPro

KanexPro HDBASE100POEL Bedienungsanleitung

KanexPro

KanexPro HDEXT50M Bedienungsanleitung

KanexPro

KanexPro WP-2X1HDUSBC Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
