KANSAI SPECIAL BX Series Bedienungsanleitung
INSTRUCTION
INSTRUCTIONINSTRUCTION
INSTRUCTION
Industrial
IndustrialIndustrial
Industrial
Sewing
SewingSewing
Sewing
Machines
MachinesMachines
Machines
First published : November1997
No. 970112
BX1425P,PSM,PTV
BX1433P,PSM,PTV
BX1025P,PSM
BX1033P,PSM
INTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
Thank you for your purchasing Kansai Special's BX Series.
Read and study this instruction manual carefully before beginning any of the
procedures and save it for later use.
1. This instruction manual describes adjustments and maintenance procedures on this
machine.
2. Before starting the machine, check to make sure the pulley cover, safety cover, etc.
are secured.
3. Before adjusting, cleaning, threading the machine or replacing the needle, be sure
to turn off the power.
4. Never start the machine with no oil in the reservoir.
5. Refer to the parts list as well as this instruction manual before performing
preventive maintenance.
6. The contents described in this instruction manual are subject to change without
notice.
CONTENTS
CONTENTSCONTENTS
CONTENTS
1. SPECIFICATIONS
1-1 Stitch type ･･･････････････････････････････ 1
1-2 Model ･･･････････････････････････････････ 1
2. NEEDLES & THREADING THE MACHINE
2-1 Needles ･･････････････････････････････････ 1
2-2 Replacing the needle ･･････････････････････ 1
2-3 To thread the machine ････････････････････ 2
3. MACHINE SPEED
3-1 Machine speed & direction in which the machine
pulley runs ･･････････････････････････････ 9
3-2 Motor & belt ･････････････････････････････ 9
4. LUBRICATION
4-1 Oil ･････････････････････････････････････ 10
4-2 To fill the machine with oil ･･･････････････ 10
4-3 Replacing the oil and the filter element ････ 10
5. SEWING MACHINE INSTALLATION
5-1 Cutting the machine table ････････････････ 11
5-2 How to install the machine ･･･････････････ 12
6.
TIMING OF THE LOOPER TO THE
NEEDLES
6-1 Angle for installing the looper and position of the
looper holder bracket･････････････････････ 12
6-2 Looper left-to-right movement ････････････ 13
6-3 Looper setting distance ･･････････････････ 13
6-4 Needle height ･･･････････････････････････ 14
7.
ADJUSTING THE TIMING OF THE RETAINER
LOOPER
7-1 Position of the retainer looper ････････････ 14
7-2 Timing of the retainer looper to the needle ･15
8. ADJUSTING THE NEEDLE GUARD
8-1 Position of the needle guard ･･････････････ 15
9.
ADJUSTING THE FEED DOG & STITCH
LENGTH
9-1 Feed dog height & tilt ････････････････････ 15
9-2 Stitch length ････････････････････････････ 16
10. ADJUSTING THE PRESSER FOOT
10-1 Presser foot pressure ･･･････････････････ 16
10-2 Position of the presser foot ･･････････････ 16
11. ADJUSTING THE REAR PULLER DEVICE
11-1 Manual lever ･･････････････････････････ 17
11-2 To adjust the puller pressure ････････････ 17
11-3 Adjusting the feeding amount of the rear
puller ･････････････････････････････････ 17
12. ADJUSTING THE STITCH FORMATION
12-1 Thread tension adjustment ･･････････････ 17
12-2 Position of the needle thread eyelets ･････ 17
12-3 Adjusting the needle thread guard ･･･････ 18
12-4 Position and timing of the looper thread
eyelet ･････････････････････････････････ 18
13. PSM MECHANISM
13-1 Types of cams ･･････････････････････････ 18
13-2 Producing decorative stitches ････････････ 19
13-3 Replacing the cams ････････････････････ 21
13-4 Timing of spreaders ････････････････････ 21
13-5 Adjusting the spreaders ････････････････ 22
14. PTV MECHANISM
14-1
Disassembling and reassembling the binder
22
14-2 Adjusting the binder up and down ･･･････ 23
14-3 Position of the upper and lower fingers of the
binder ････････････････････････････････ 23
15. CLEANING THE MACHINE ･･･････････ 23
1
【1】SPECIFICATIONS
1
11
1-
--
-1 Stitch type
1 Stitch type1 Stitch type
1 Stitch type
JIS401 double chainstitch machines
1
11
1-
--
-2 Model
2 Model2 Model
2 Model
Model BX1433
BX1033
(single chainstitch)
No. of needles 33 (Maximum)
33 needle threads (Maximum)
No. of threads 33 looper threads
Type of tension set Separate type
Puller width 165mm
Minimum gauge width 4.76mm (3/16 inch)
Maximum gauge width 152.4mm (6 inch)
【2】NEEDLES & THREADING THE MACHINE
2
22
2-
--
-1 Needles
1 Needles1 Needles
1 Needles
UO113GS of Schmetz or Organ
Select the proper needle for the fabric and thread.
< Needles and needle size >
Schmetz
Nm75 Nm80 Nm90 Nm100 Nm130
Organ
# 11 # 12 # 14 # 16 # 21
2
22
2-
--
-2 Replacing the needle
2 Replacing the needle2 Replacing the needle
2 Replacing the needle
When replacing the needle, check the needle carefully
to see that the scarf is turned to the left of the machine
(see the illustration).
Organ
Schmetz
1433P UO
×
113 UY
×
113
1033P DV-K25
PSM DV
×
57 DV
×
57
PTV DV
×
57 DV
×
57
< Note >
When replacing the needle, be sure to turn off the
machine. A clutch motor continues running for a while
after the machine is turned off.
Therefore keep on pressing the pedal until the machine
stops.
2
2
22
2-
--
-3 To thread the machine
3 To thread the machine3 To thread the machine
3 To thread the machine
Thread the machine correctly by referring to pages 3 to 8.
Incorrect threading may cause skip stitching, thread breakage and/or uneven stitch
formation. When threading the looper, tilt the looper holder toward the front of the
machine using the looper drawing bar.
■
To tilt the looper toward the front
1. Bring needle bar A to the top of its stroke.
2. Pay out the needle thread from the spool by pressing a finger down on needle threads
B.
3. Pull looper drawing bar knob C out to the left so that the looper holder is tilted
toward the front of the machine.
4. After the machine is threaded, replace the looper by pressing looper holder D into the
machine until it clicks.
< Note >
The looper pops out of the machine as soon as knob C is pulled, so do not bring your
fingers close to the looper.
3
■

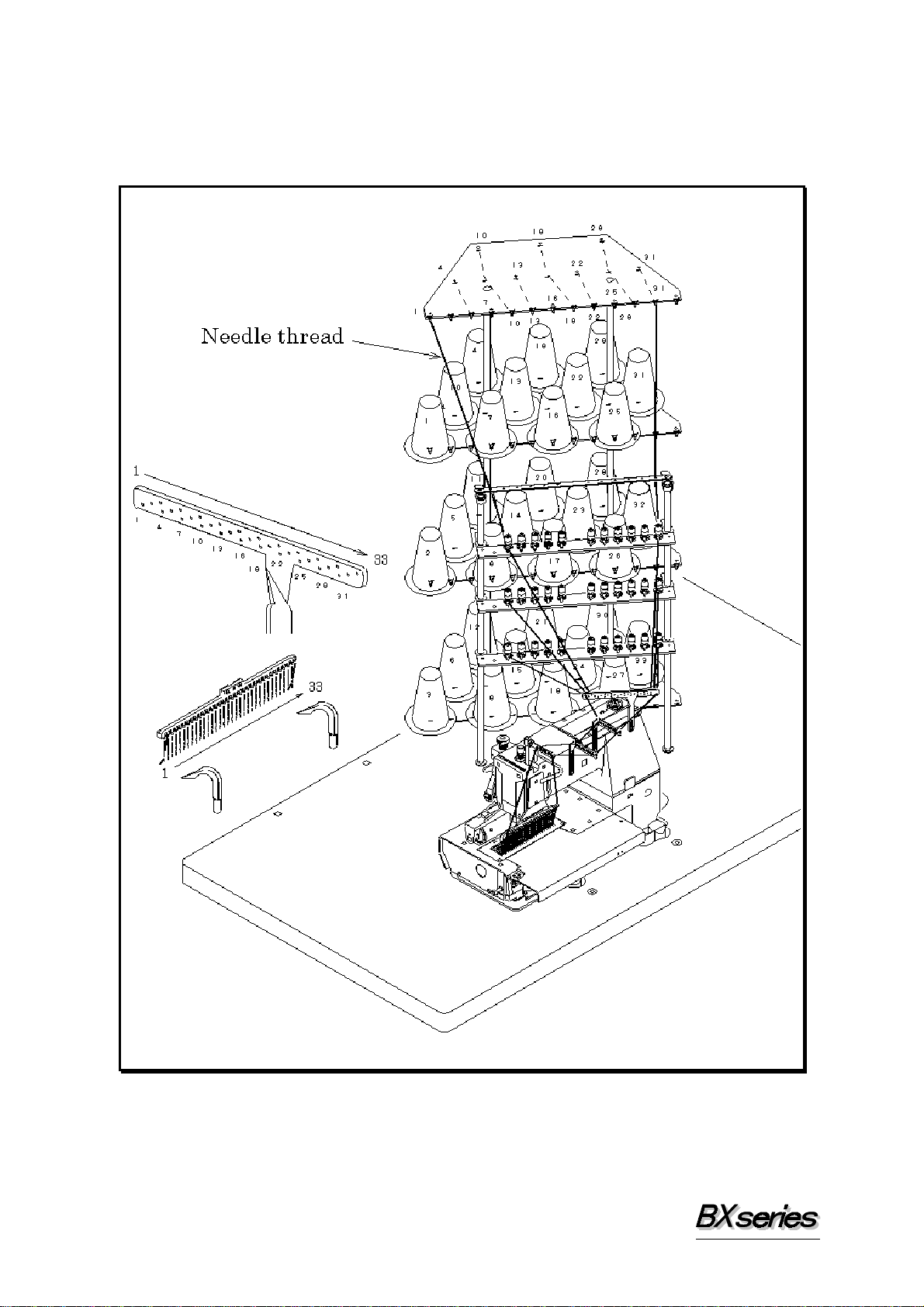

Threading diagram for BX1425P
4
■
Threading diagram for BX1433P
5
■
Threading diagram for BX1025
6
■
Threading diagram for BX1033
7
■
Threading diagram for BX1425PSM
