DN1628-0609

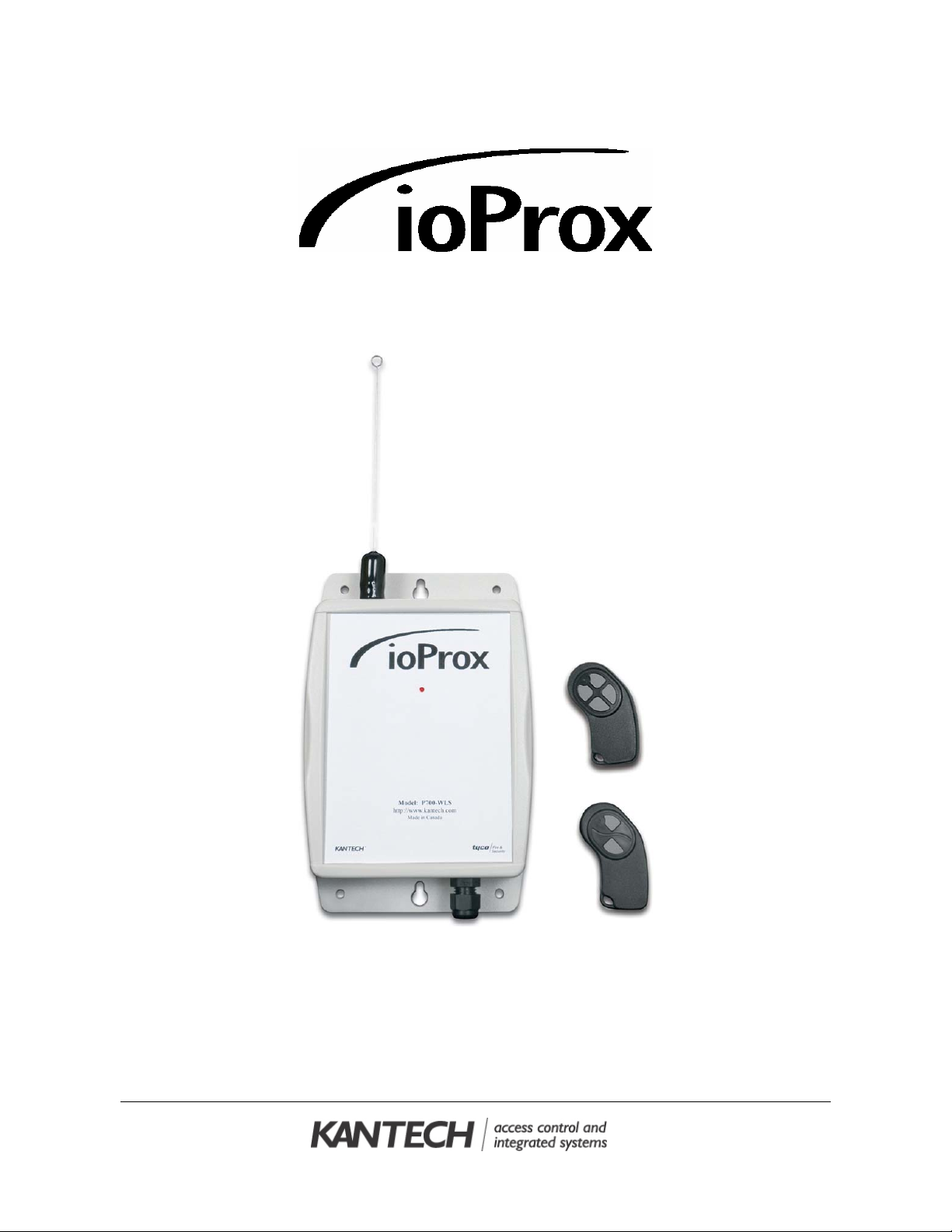

P700WLS IoProx Receiver

Installation Manual

DN1628-0609

Warning! This manual contains information on limitations regarding product use and function and

information on the limitations as to liability of the manufacturer. The entire manual should be carefully

read.

Kantech Systems

Tel.: 1 (450) 444-2030

Toll Free (US & Canada): 1 888 222-1560

Fax: 1 (450) 444-2029

Web Site: www.kantech.com

without notice.

Installation Manual P700WLS IoProx Receiver

DN1628-0609

Table of Contents

System Overview .......................................................................................................1

Inventory ........................................................................................................................... 1

Technical Specifications ...........................................................................................2

Installing the P700WLS IoProx Receiver .................................................................3

Global Coverage ....................................................................................................................... 3

Power Supply and Grounding.................................................................................................. 3

Recommended Wiring Distance at 12 Vdc.............................................................................. 3

Data Path Selector Settings .....................................................................................................4

Receiver Terminal Block Location........................................................................................... 4

S1 Receiver Configuration .......................................................................................................5

Receiver Wiring Diagrams........................................................................................................6

Testing the Receivers............................................................................................................... 7

PCB LED Indicators............................................................................................................................................7

Receiver Relay .................................................................................................................................................... 8

Receiver Mounting Location .................................................................................................... 8

Testing the Transmitters ...........................................................................................9

Operating Instructions.............................................................................................................. 9

Troubleshooting.........................................................................................................9

Replacing the Transmitter Battery........................................................................................... 9

Installation Manual P700WLS IoProx Receiver

DN1628-0609

System Overview

The P700WLS IoProx receiver unit is designed to interface with an access control panel card reader

port using the Wiegand protocol or the Kantech eXtended Secure Format (XSF). The Ioprox receiver

can read from a distance of up to 45.72 m. (150 ft.) with a power dipole antenna or 30.48 m. (100 ft.)

with a standard antenna.

Ioprox transmitters come in two versions: with 2 or 4 buttons. And each can come with or without an

integrated IoProx key tag. The receiver unit receives the ID credentials from transmitters which consist

of a site code and ID number. For increased security, the Ioprox transmitter uses incremental packet

transmission so that a different transmission code is created every time the button is pressed,

Transmitters with integrated Ioprox key tag also permit access to users when both Ioprox receivers

and card readers are installed in different areas of the same building.

The receiver jumpers can be configured to determine which button on the key tag transmitter will

activate the receiver. The same transmitter can be programmed to operate up to four different

receivers (one per button) located within close proximity to each other (and to operate more receivers

that are located farther apart.) The transmitter ID will only be sent to the access controller when a valid

button is pressed.

Inventory

The P700WLS Ioprox receiver unit provides a reliable long-range wireless access control from a gate

or an overhead door. Each unit is packed with:

1 P-WLS-A1 whip antenna

4 enclosure fastening screws

Mounting hardware is not provided.

Installation Manual P700WLS IoProx Receiver

DN1628-0609

Technical Specifications

P700WLS IoProx Receiver P72WLS/P74WLS Transmitters

Power: 12-24 VDC Power:

CR2032 3V lithium battery,

included (3 year average

lifetime)

Current:

50mA (stand-by) 100mA

(peak) Operating temperature: 0°C to 70°C (32°F to 158°F)

Output:

XSF or 26-bit Wiegand

selectable Dimensions (HWD) cm: 7.30 x 3.81 x 1.59

Operating temperature:

-30°C to 68°C

(-22°F to 155°F) Dimensions (HWD) in: 2.88 x 1.50 x 0.63

Dimensions (HWD) cm: 19.21 x 13.02 x 4.14 Certification: FCC

Dimensions (HWD) in: 7.56 x 5.13 x 1.63

P-WLS-A1 Standard Whip Antenna

Enclosure material:

Polycarbonate (HB) with UV

stabilizer, weather-resistant,

IP56, NEMA 4X rated Read range: Up to 12.20 m. (40 ft.)

Frequency: 433.92 MHz Note: Antenna P-WLS-A1 may be remotely installed using

coaxial cable up to 4.5 m. (15 ft.)

Cable type:

3 twisted pairs, unshielded

cable P-WLS-A2 Power Dipole Antenna

Read range: Up to 25 m. (80 ft.)

Maximum distance from

controller at 12 VDC:

152 m (500 ft) with 18 AWG

112 m (369 ft) with 20 AWG

76 m (248 ft) with 22 AWG

Note: Antenna P-WLS-A2 MUST be installed using coaxial

cable up to 4.5 m. (15 ft.), RG1 1/U (Belden ref#8213)

coaxial cable is recommended. Optional

Certification: FCC

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause undesired operation.

Installation Manual P700WLS IoProx Receiver

DN1628-0609

Installing the P700WLS IoProx Receiver

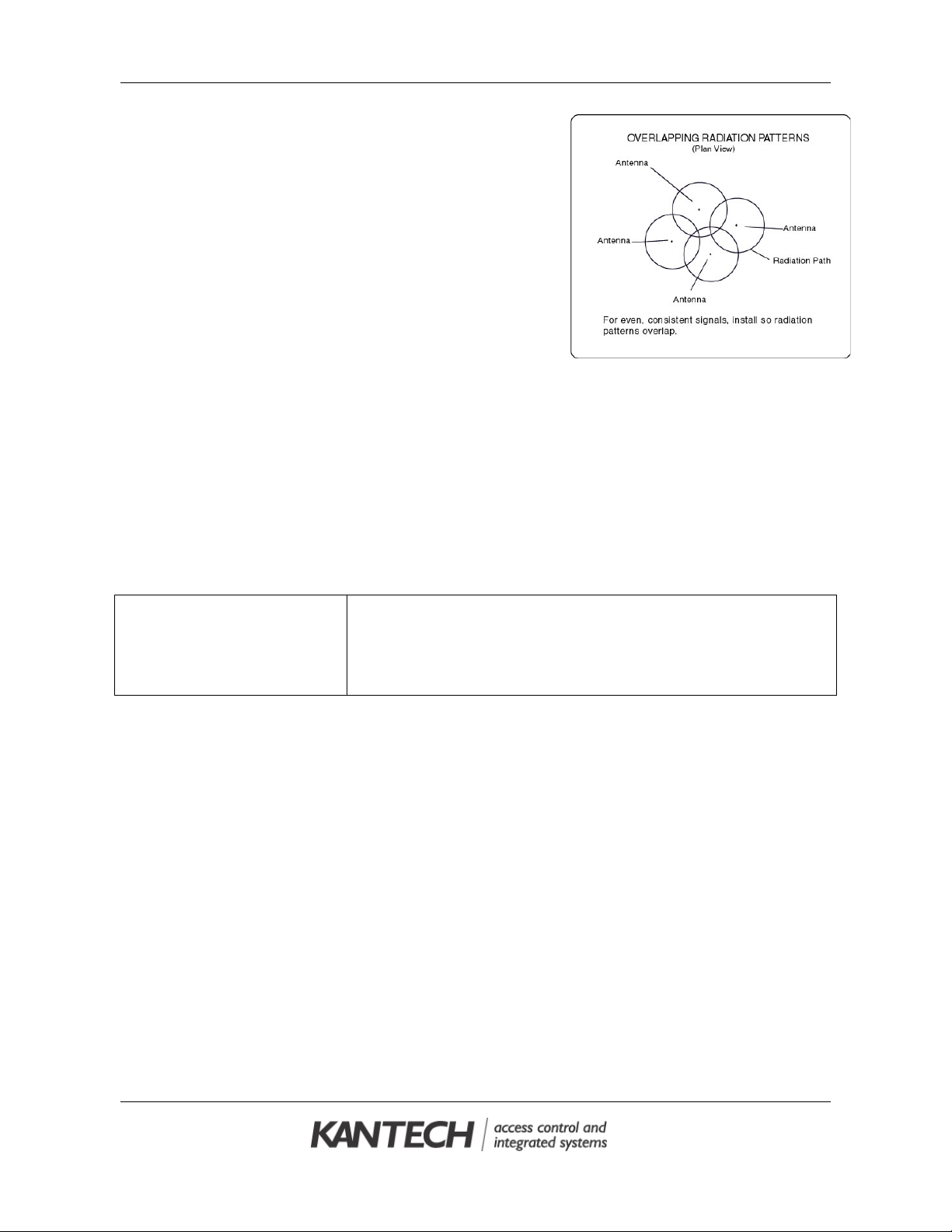

Global Coverage

When global coverage of a large area is required, there should

be a sufficient number of receivers to give overlapping

coverage of receiving patterns.

Use the SW terminals if the receiver antennas are less than

30.5 m (100 ft) apart. The SW terminal connection prevents

data clash at the control panel. (See Figure 2, Note 5 on page

6.)

Power Supply and Grounding

Power requirements: 12-24 VDC, 50mA (stand-by), 100mA (peak). A linear type power supply is

recommended if a separate power supply is used. Proper grounding gives an electrical charge, like an

electrical static discharge or a near lightning strike, a path from which to dissipate its energy safely into

the earth. It is strongly recommended to connect an earth ground wire to each receiver unit. (See

Figure 2, Note 2 and Note 4 on page 6.)

Recommended Wiring Distance at 12 Vdc

P700WLS receiver: 3 twisted pairs, unshielded cables

With #18 AWG: 152 m (500 ft)

With #20 AWG: 112 m (369 ft)

With #22 AWG: 76 m (248 ft)

Installation Manual P700WLS IoProx Receiver

DN1628-0609

Data Path Selector Settings

The receiver unit provides for field selectable pins JP2 located near the center of the board (Figure 1)

Receiver Terminal Block Location

The receiver terminal block is removable. (Refer Figure 1) It can be mounted vertically or horizontally.

Connect 22 to 14 AWG wires to the blue terminal block.

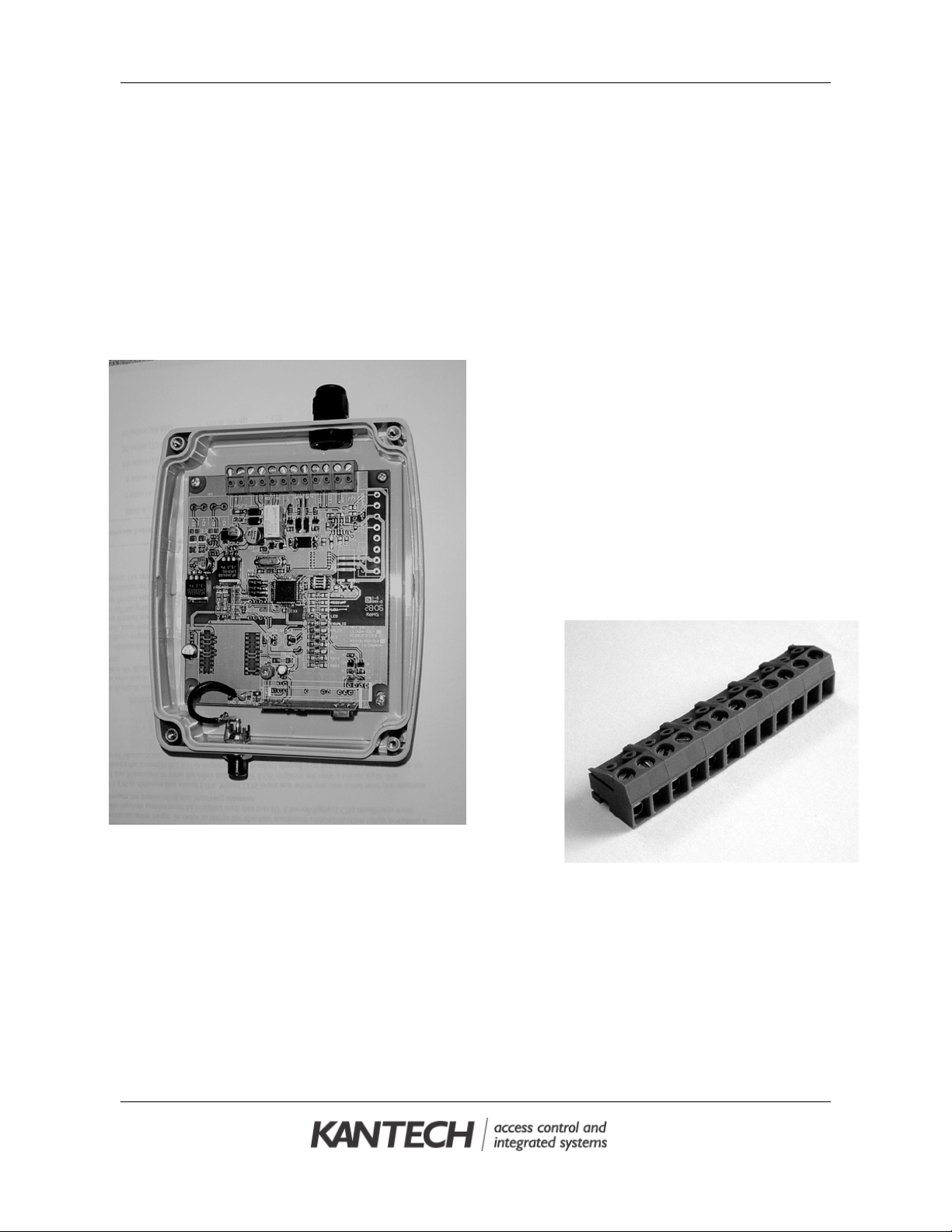

Figure 1 Terminal Block Location

Installation Manual P700WLS IoProx Receiver

DN1628-0609

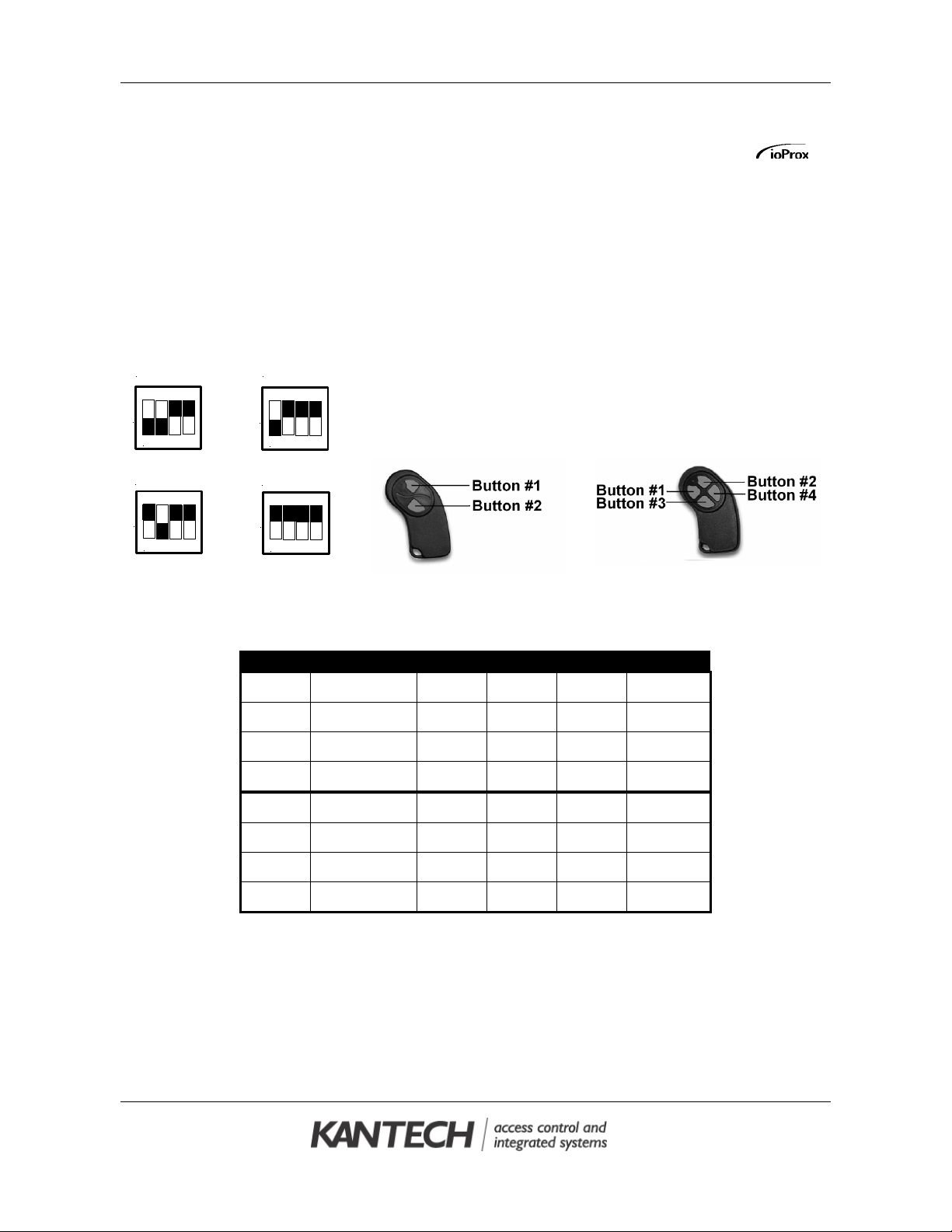

S1 Receiver Configuration

Placing the DIP switches in the ON or OFF position determines which specific button on the

multi-button transmitter will activate the receiver and Wiegand format to be transmitted to the control

panel. (See Table 1 below)

Data Path Selector Settings:

Kantech XSF (default): Position 4 (ON).

26-bit Wiegand: Position 4 (OFF).

The selectors for position 1 and 2 select which of the four buttons will

activate the receiver.

Format Button 1 2 3 4

XSF Button 1 OFF OFF ON ON

Button 2 OFF ON ON ON

Button 3 ON OFF ON ON

Button 4 ON ON ON ON

26W Button 1 OFF OFF ON OFF

Button 2 OFF ON ON OFF

Button 3 ON OFF ON OFF

Button 4 ON ON ON OFF

Table 1 Data Path Selector Settings

1 2 3 4

Button 1 Button 3

Button 2 Button 4

1 2 3 4

Installation Manual P700WLS IoProx Receiver

DN1628-0609

Receiver Wiring Diagrams

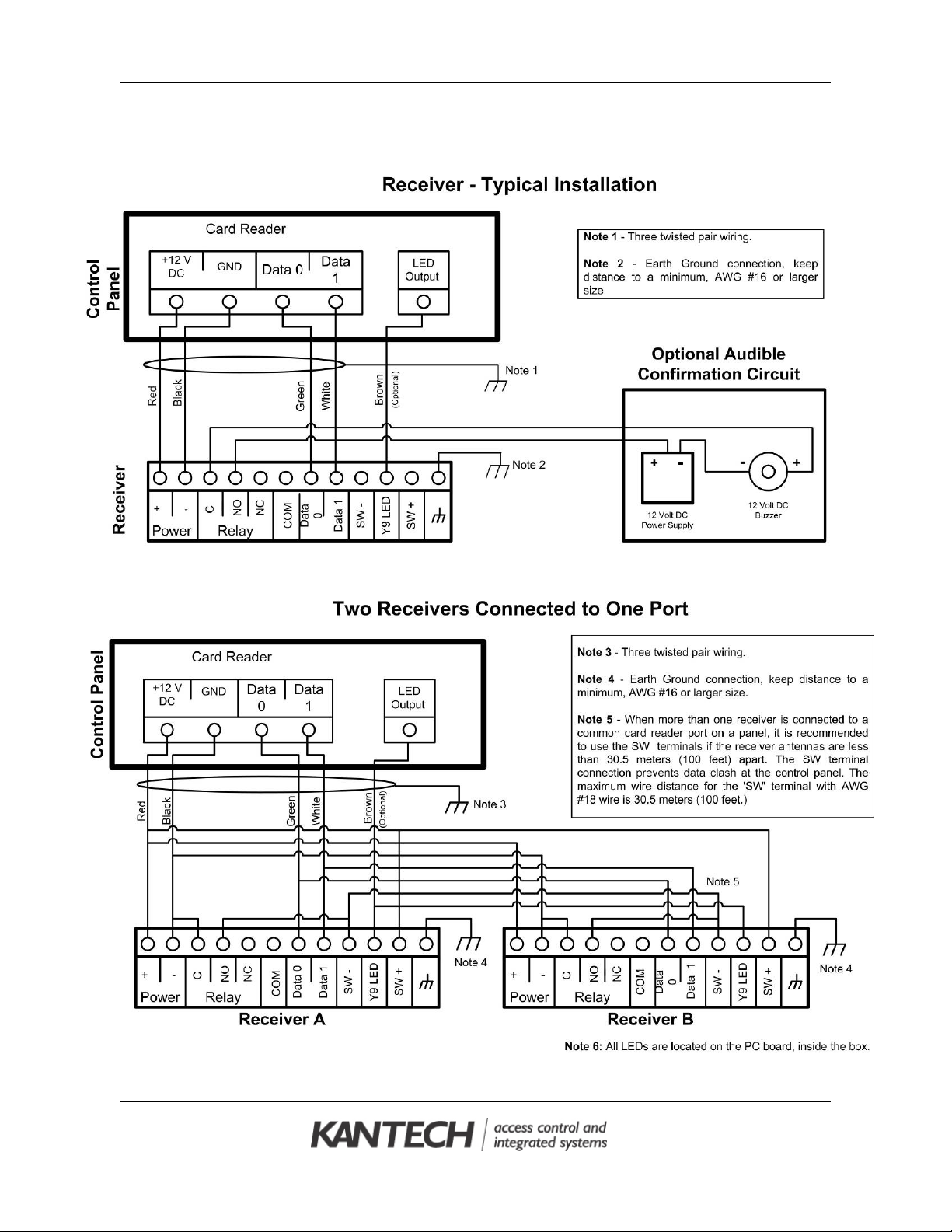

Figure 2 Typical Installation and Two Receivers Connected to One Port Installations

Installation Manual P700WLS IoProx Receiver

DN1628-0609

Testing the Receivers

PCB LED Indicators

All LEDs are located on the PC board, inside the box.

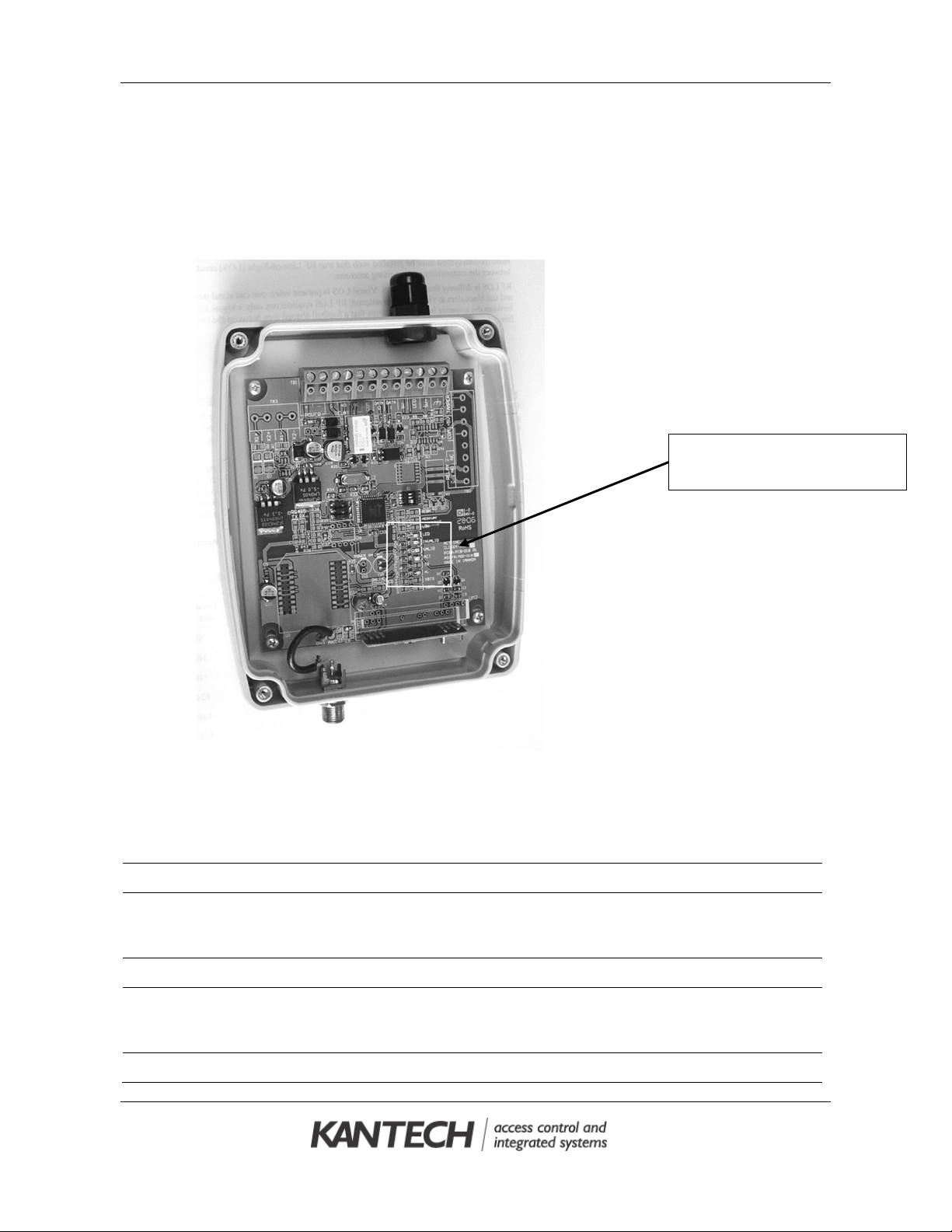

Figure 3 LEDs Location

Y4: Flashes if the transmitter encryption code does not match the receiver configuration, and

will not operate the receiver. Check that the transmitters are programmed to operate with

this receiver.

Y5: Flashes when the transmitter code is valid.

Y6: RF activity indicator. The LED will flicker to indicate the receiver has power. If the LED

remains on steady, there is a continuous 433 MHz signal that will prevent the unit from

operating reliably.

Y8: Flashes when the Wiegand information is sent.

Y9: Controlled externally by the access control panel. Typically this is controlled by the access

control panels LED confirmation output (Brown wire). The Y9 LED is located on the PC

board, inside the box.

Y10 Power indicator.

LED Location
