KAP CDR3.0 TD Bedienungsanleitung
D A T E .
www.kaptrade.com
Korea Auto Parts
MODEL.
Instruction Manual
2019.07.05
CDR3.0 TD –CARPLAY
VIDEO INTERFACE
CDR-31-190521
PORSCHE INTERFACE

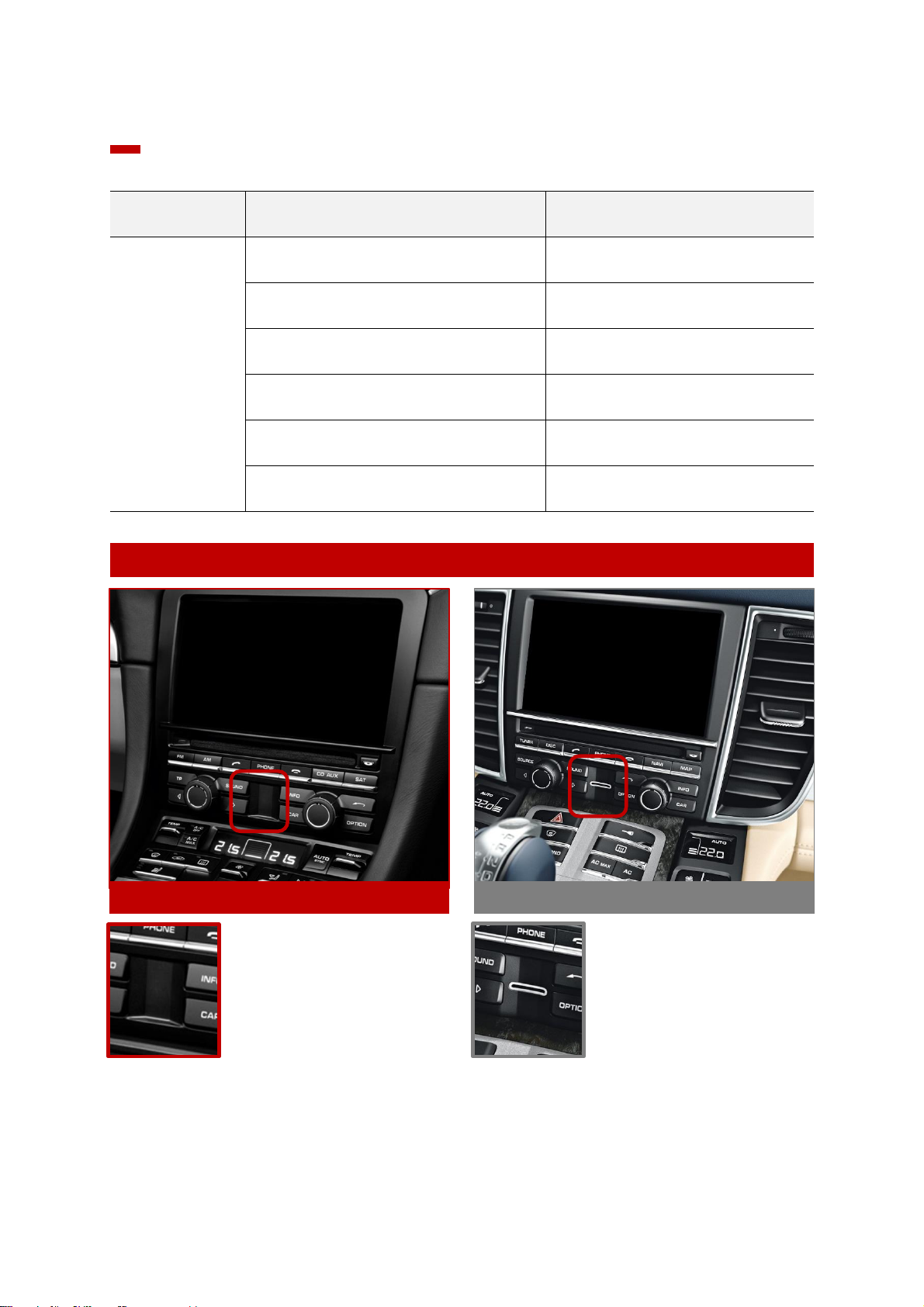

Car Compatibility Sheet
CDR3.1 and PCM3.1
BRAND MODEL YEAR
PORSCHE
Boxter 2012 -
Cayenne 2010 -
Cayman 2013 -
911 Carrera 2011 -
Macan 2014 -
Panamera 2009 -
Check slot in center
CDR3.1 - Support PCM3.1 - not support
CDR3.0 TD
Spec
1. Input Spec. (MULTI VIDEO INTERFACE)
•Interface
•1 x Digital RGB Input (Navigation System source)
•1 x Analog RGB Input (Navigation System output)
•1 x CVBS(REAR CAMERA) Input. (Rear camera source)
•1 x CVBS(Front CAMERA) Input. (Front camera source)
•2 x A/V Input (External video source)
CarPlay
•1 x USB Input
•1 x Microphone Input
•1 x Real Analog Touch Input
2. Output Spec.
•Interface
•2 x CVBS Output (Video out for Installing Headrest Monitor)
•1 x Audio L/R Output.
•1 x LCD Output (LCD Operation)
•1 x Virtual Analog Touch (Navigation System source)
•1 x UART Digital Touch (Navigation System source)
CarPlay
•1 x LVDS(HDMI Connector) Output
•1 x Audio L/R (3.5Ф Stereo Jack) Output
3. Power Spec.
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
4. Switch Input Mode
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN
CDR3.0 TD
External Appearance
Interface
PROGRAM
DIP S/W
LED
POWER
/CAN
R
Touch
DIGITAL
RGB
RGB
OUT
LVDS
OUT
ANALOG
RGB
REAR A/V
IN/OUT

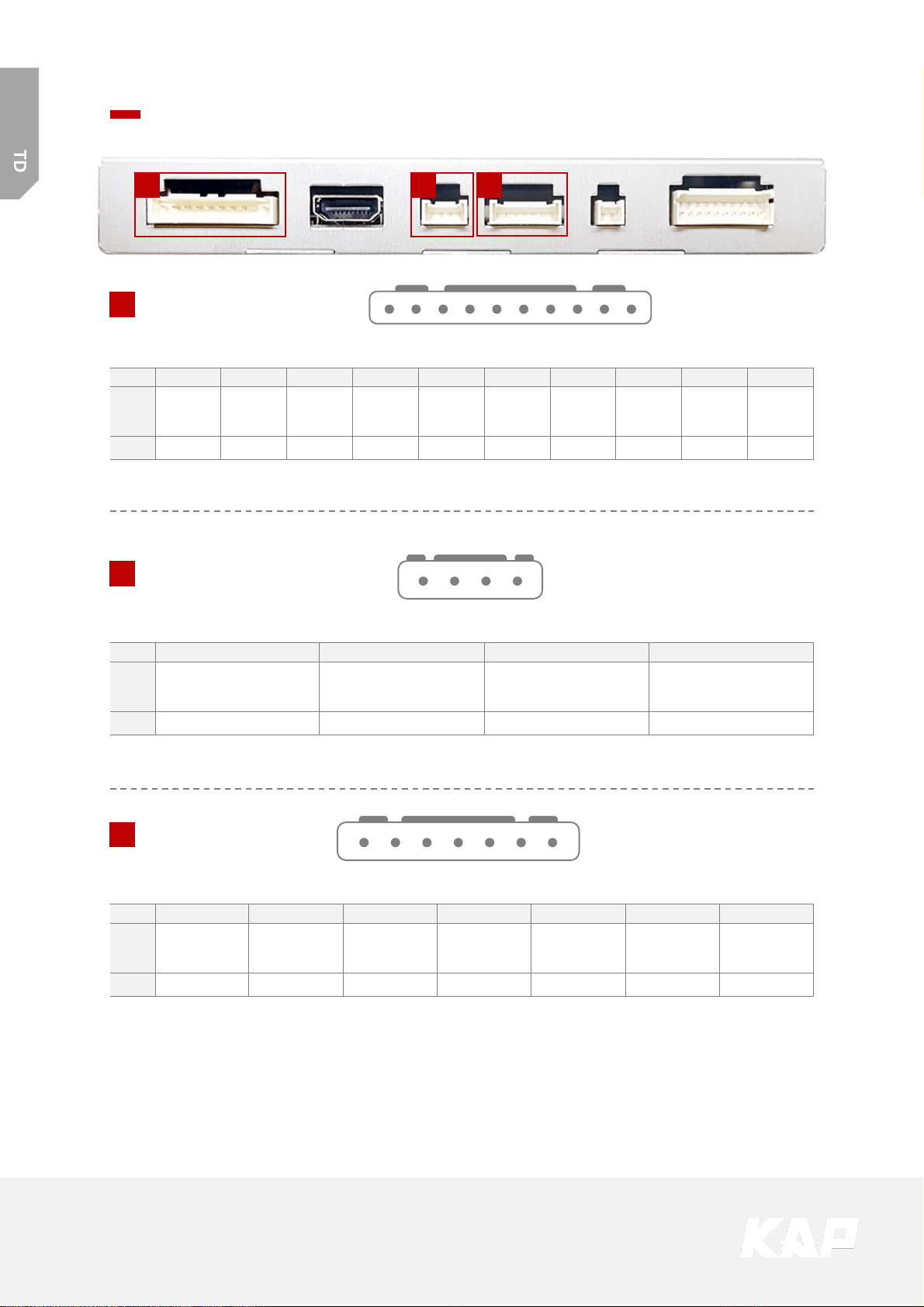

CDR3.0 TD
Connector Pin Assignment
1POWER Connect (10Pin)
12345678910
■■■■■■
RED BLACK RED BROEN BLUE RED
ACC GND N.C N.C REAR VCC N.C REAR DET N.C
FRONT DET
FRONT VCC
No
Color
Connect
1234
2TOUCH Connect (4Pin)
1 2 3 4
■■■■
RED GREEN BLUE WHITE
Y- X- Y+ X+
No
Color
Connect
1234567
3NAVI Connect (7Pin)
1 2 3 4 5 6 7
■■■■■■■
RED GREEN BLUE WHITE BLACK GREEN ORANGE
R DATA G DATA B DATA SYNC GND DVB-T IR DVD IR
No
Color
Connect
1 2 3
123456789
10
CDR3.0 TD

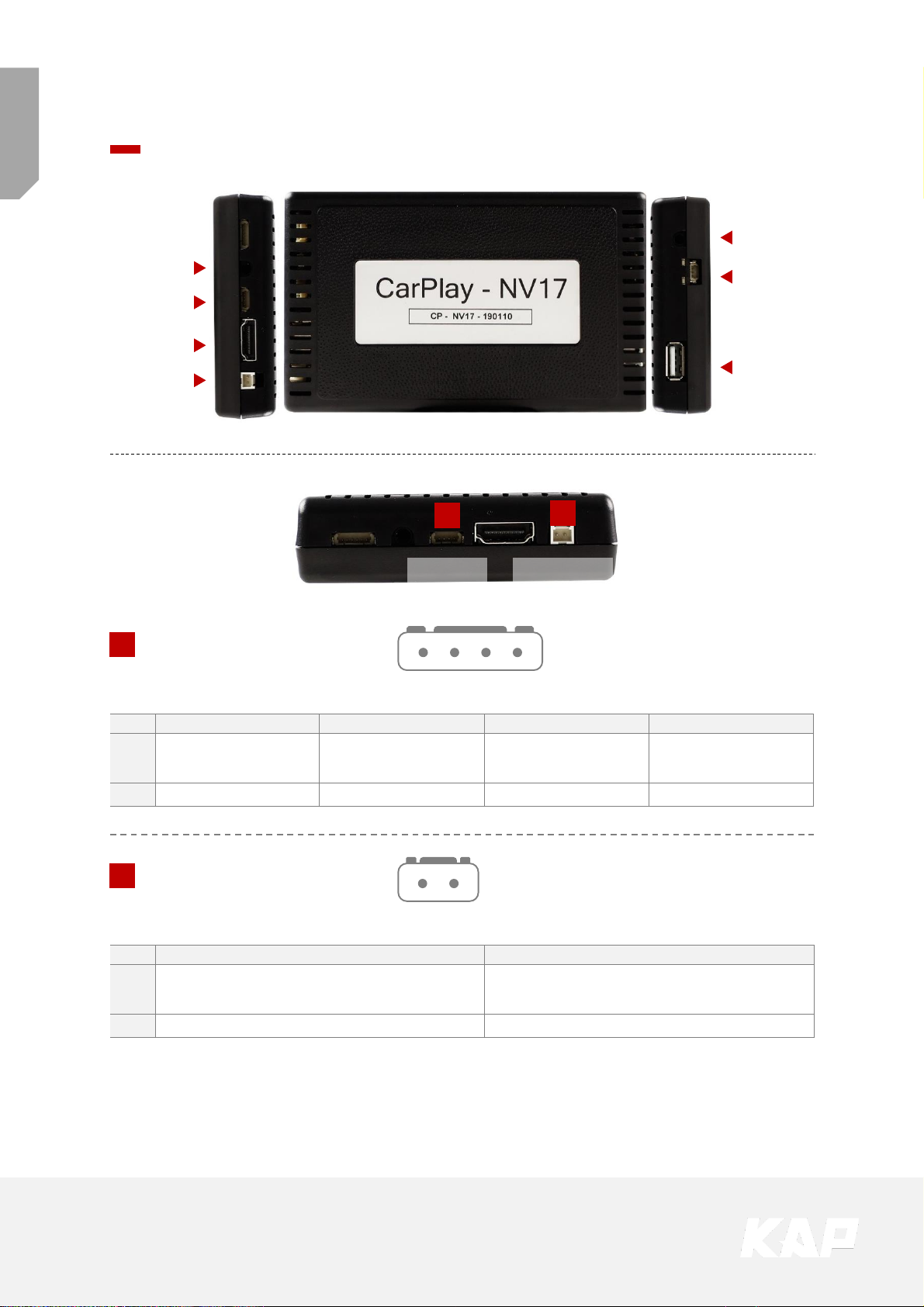

External Appearance / Connector Pin Assignment
CARPLAY
Smartphone
Connection
Mode Switch
To Enter Setting
Microphone In
AUX
Touch
LVDS&UART OUT
POWER/CAN
1234
1R-TOUCH Connect (4Pin)
1 2 3 4
■■■■
RED GREEN BLUE WHITE
Y- X- Y+ X+
No
Color
Connect
1 2
2POWER/CAN Connect (2Pin)
1 2
■■
RED BLACK
ACC GND
No
Color
Connect
12
R-TOUCH POWER/CAN
CDR3.0 TD

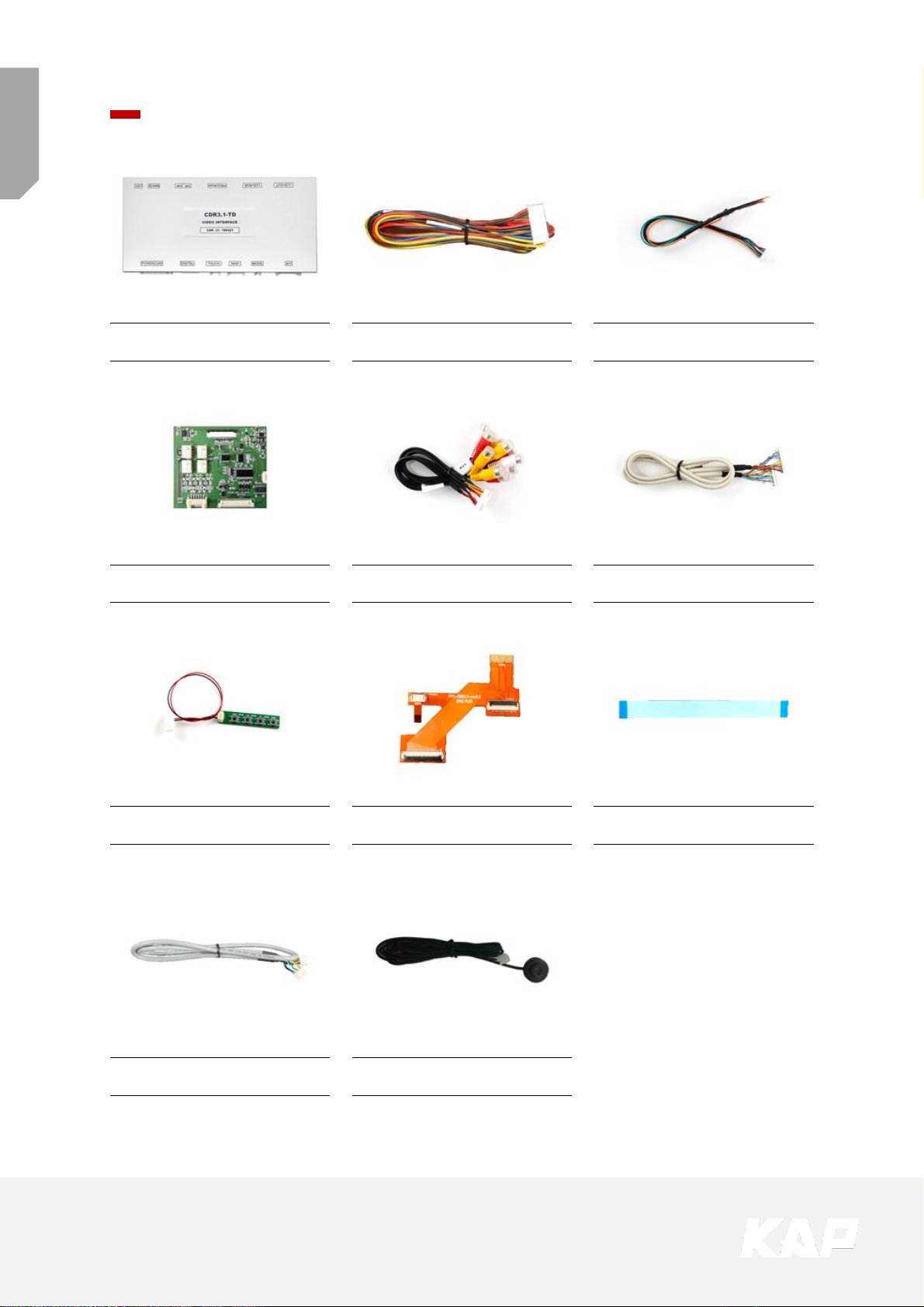

Product Composition
FFC Cable
Board Power Cable RGB NAVI Cable
RGB SUB Cable Mode Switch
OSD Board FPC Cable
LVDS CableSUB Board A/V Cable
CDR3.0 TD

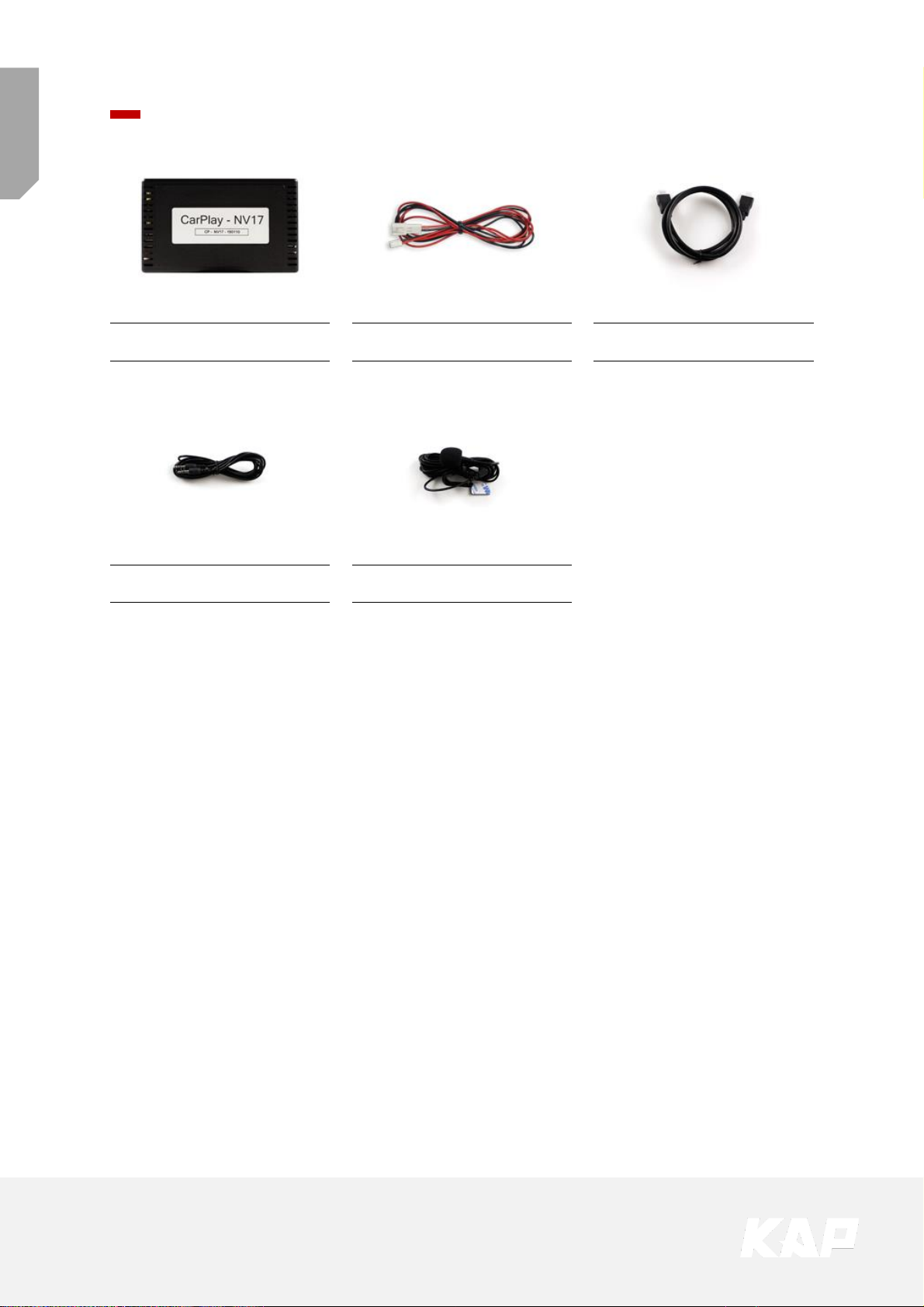

Product Composition
CarPlay Power Cable (800mm) HDMI Cable
AUX Cable Microphone
CDR3.0 TD
Car Type Select
Dip Switch Setting
PIN FUNCTION DIP S/W Selection
1NAVI ON : Not Used
OFF : Used
2DVB-T(AV1) ON : Not Used
OFF : Used
3DVD(AV2) ON : Not Used
OFF : Used
4 N.C
5 N.C
6
CAR type SEL Bottom Picture7
8
OFF : ▲UP
ON : ▼DOWN
CDR3.1
CDR3.0 TD

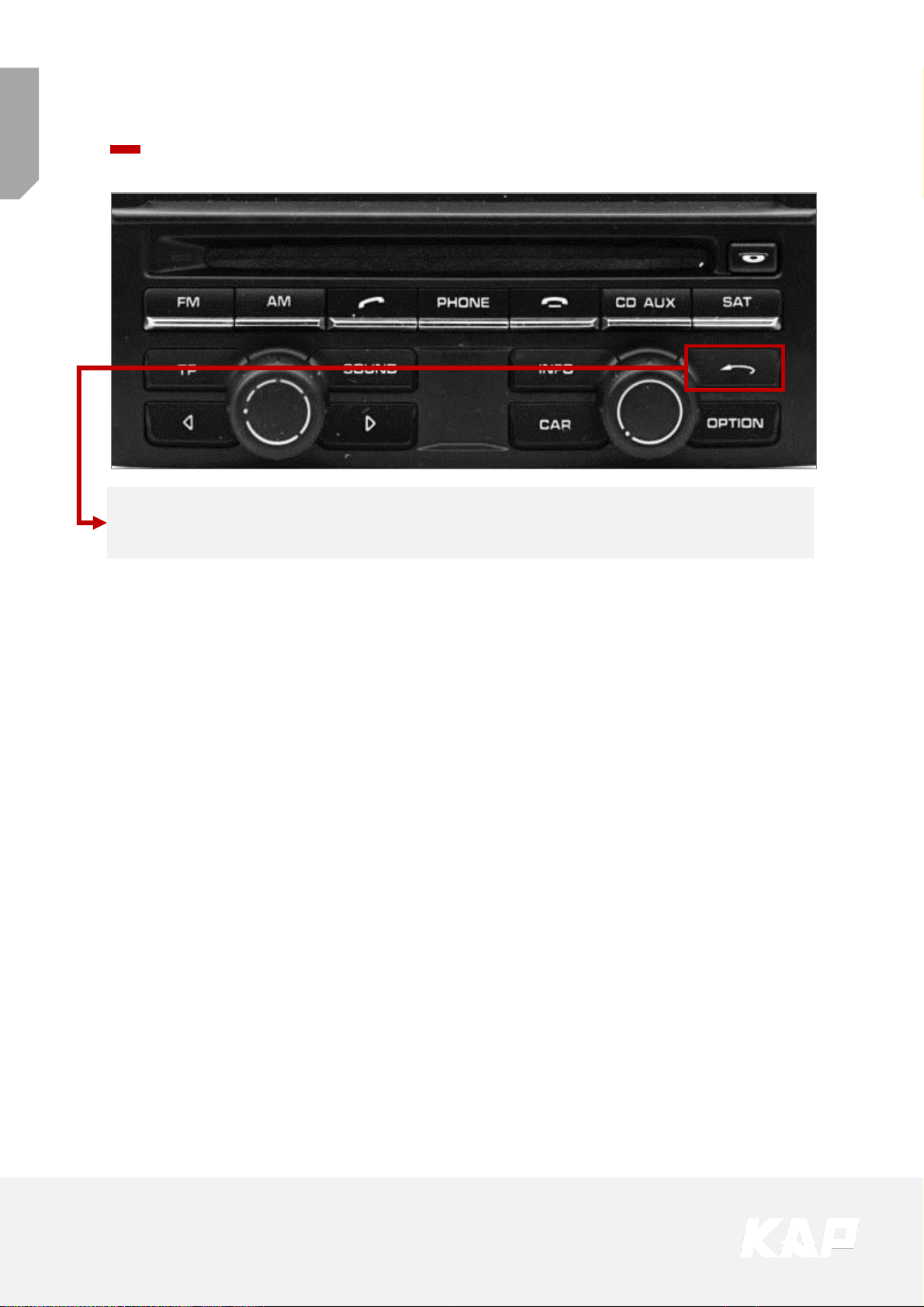

Mode Change
OEM Button Usage
Mode Change Button
BACK Button
•Other buttons are changed to OEM SCREEN
