THANK YOU FOR PURCHASING A KARCHER

PRESSURE WASHER

PLEASE READ THIS LEAFLET CAREFULLY

BEFORE OPERATING YOUR MACHINE.

WHATIS APRESSURE WASHER?

A Pressure Washer is essentially a powerful electric motor driving a set

of pistons that force water through a small nozzle, thus creating a

pressurised jet of water. This provides the cleaning power behind the

Karcher Pressure Washer.

AKarcherPressureWashercanbeusedforanendlesslistofapplications

around the home and garden. It provides an efficient, economical and

labour saving way of cleaning with excellent results.

All Karcher domestic pressure washers are designed to run from a

suitablecoldwatersupplyalthoughsomemodelswillacceptawaterinlet

temperature of between 40 °C and 60 °C.

Environmental Comment - Save water with high pressure.

The Karcher Pressure Washer is environmentally friendly enabling you

to reduce your water consumption compared to a normal garden hose.

A definite advantage with a metered water supply

with the added benefit of suction mode, water can be drawn from an

open container such as a water butt.

INDEX

1. APPLICATIONS

2. SAFETY INSTRUCTIONS

3. GETTING STARTED

3.1 Contents

3.2 Water Connection

3.3 Electrical Connection

3.4 Suction Mode

3.5 Detergent

4. OPERATING YOUR PRESSURE WASHER

4.1 High Pressure Operation

4.2 Low Pressure Operation Without Brush

4.3 Low Pressure Operation With Brush

4.4 End Of Operation

5. IMPORTANT – CARE AND MAINTENANCE

6. ACCESSORIES / SPARE PARTS

7. PROBLEM CHECKLIST / TROUBLESHOOTING

8. AFTER SALES SERVICE

9. TECHNICAL DATA

10. ASSEMBLY

1. APPLICATIONS

The main applications for this product are DOMESTIC

cleaning tasks:

• Cars, motorbikes, caravans, boats and bicycles

• Patio’s, fences, garden walls, pathways, driveways and house

facades – particularly useful for cleaning block driveways

• Removal of algae and moss from roofs, brickwork and

guttering

• Garden tools and machinery, furniture and barbecues

• Hygienic cleaning of animal pens and their surroundings

With the addition of Karcher accessories, the list

continues .............

• Clearing blocked drains and pipes

• Removal of old paint and rust from garden furniture and gates

• Spraying insecticide onto trees, plants and lawns

2. SAFETY INSTRUCTIONS

BEFORE STARTING UP YOUR PRESSURE WASHER PLEASE

CHECK YOU HAVE THE FOLLOWING:

We recommend you purchase these items from a reputable store

• RCD plug and socket that will interrupt electrical supply in an

emergency

• A typical garden hose (minimum length 7.5 metres) with suitable

hoseconnection(Hoselock/Gardena type)tomatch thecoupling

on the machine (hose and connector not supplied).

•The mains voltage and supply indicated on the Rating Plate of the

machine corresponds with that of the power source

•The insulation of the supply cable is not damaged

•Only earthed sockets should be used

•If you are using an extension cable it must be completely unwound

from the cable drum and be the correct diameter:

10 meter length of cable should have a cross section of 1.5 mm²

30 meter length of cable should have a cross section of 2.5 mm²

Safety Assurance

As an added precaution, your pressure washer is fitted with a safety

locking device on the Spray Gun.

AFTER USE, ALWAYS REMOVE THE PLUG FROM THE SOCKET

BEFORE CLEANING YOUR PRESSURE WASHER.

3. GETTING STARTED

3.1 Contents

Upon opening the carton, if you do not have all the items as detailed

please contact the Customer Helpline on 01295 752200.

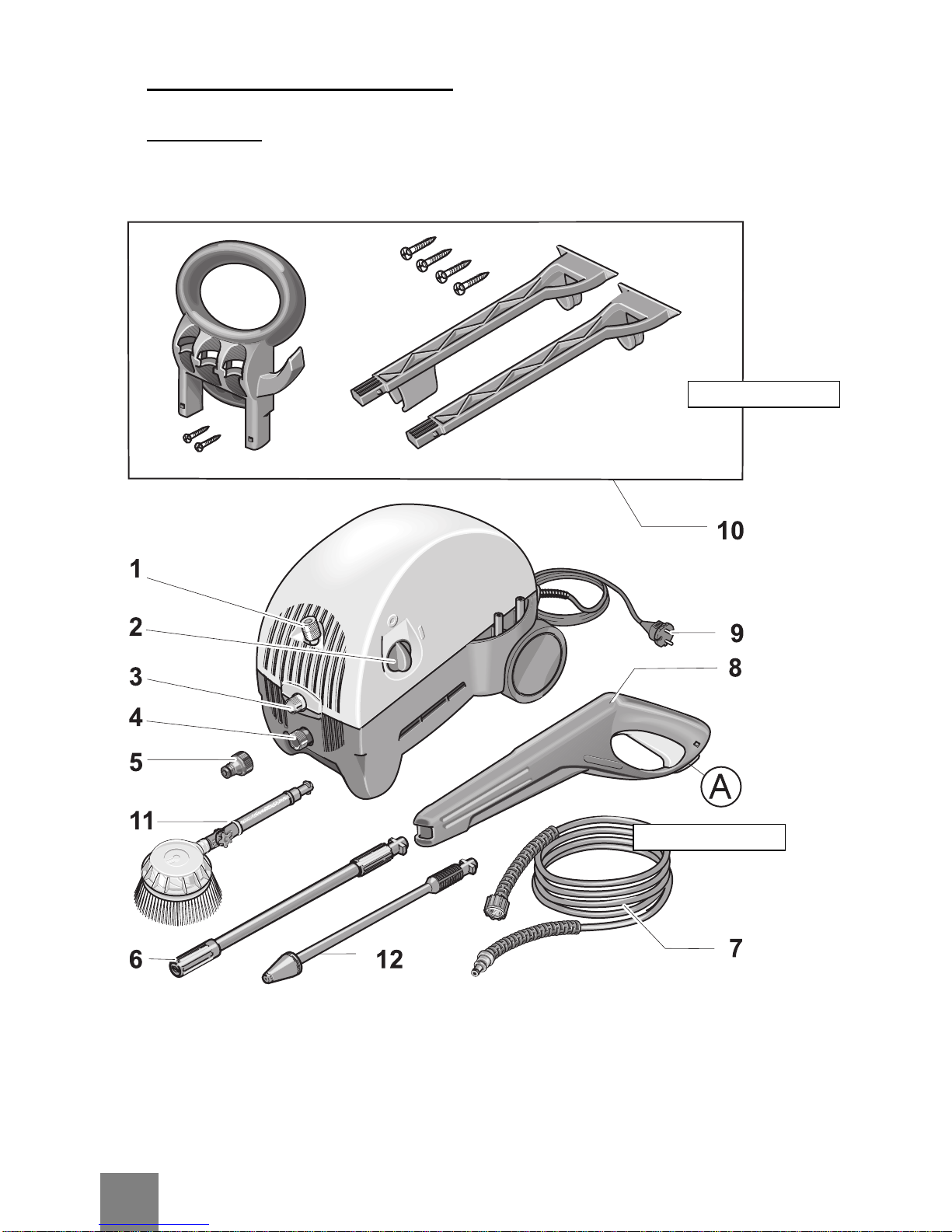

AssemblyseePage19

1Detergentsuctionhose

2Power switch (ON/OFF)

3High-pressureoutlet

4Waterconnectionwithfil-

ter

5Coupling

6Spraylance withdouble

nozzle

7High-pressurehose

8Spray gun with safety rat-

chet (A)

9Connectionlead

10 Drawingbar

11 Rotatingwashbrush

12 Dirtblaster

AssemblyseePage19

Please follow these instructions carefully for

troublefree cleaning

Use the diagram on Page 6 for reference purposes

3.2 Water Connection

• The minimum length of supply hosepipe advised for maximum user

convenience is 7.5 metres with a diameter of 12.5 mm (1/2") to avoid

backpressure and any associated potential damage to your machine.

• Attach your supply hosepipe with its connector to the coupling on the

machine (No. 5) and the other end should be connected to a suitable

water supply

3.3 Electrical Connection

• Ensure the Power Switch (No.2) is in the “OFF” position before

connecting the factory fitted Plug attached to the Mains Electric Lead

(No.9) into an earthed socket.

If using an Extension Cable make sure it is completely unwound

from the cable drum and is the correct diameter.

3.4 Detergent

Only cleaning agents recommended by Karcher (UK) Ltd.

should be used. Unsuitable detergents could damage your

Pressure Washer and the object being cleaned.

Recommended Detergents

1. The following cleaning agent may be used undiluted:

Universal Cleaner.............................. Profi RM 555 ASF

2. The following cleaning agents are available as concentrate

and must be diluted with 9 parts of water (1 : 9) before use:

Universal Cleaner.............................. Profi RM 555 ULTRA

Automotive Cleaner........................... Profi RM 565 ULTRA

House & Garden Cleaner .................. Profi RM 570 ULTRA

Boat Cleaner ..................................... Profi RM 575 ULTRA

3. Detergent tablets are also available from some stores

Karcher Clean Tabs (10 tablets per box)

10 Tablets dissolved in clean water provide 5 litres of cleaning

detergent.

DETAILS OF THE FULL RANGE OF DETERGENTS AND

CHEMICALS ARE AVAILABLE BY CALLING THE KARCHER

CUSTOMER HELPLINE ON 01295 752200

4. OPERATING YOUR PRESSURE WASHER

If you have followed all the instructions so far, you are

now ready to have fun cleaning the KARCHER way!!!

• Turn on the supply water and press the Spray Gun lever (No.8) until

the water flows freely and removes all air locks from the hoses

• You may now attach the Spray Lance (No. 6) or required accessory to

the Spray Gun

All accessories are bayonet fit, simply push in and twist

until they click into position !

•Once water is flowing through the machine, you may now switch

on your Karcher Pressure Washer using the Power Switch (No.3)

• You can choose between two modes of operation on the Spray Lance

(No. 6) by rotating the nozzle end.

High Pressure setting .................. A 25° high pressure flat jet

Low Pressure setting ................... A low pressure jet, for operation

with detergent

ONLY ROTATE THE DOUBLE NOZZLE WHEN THE

TRIGGER GUN IS CLOSED

WHEN USING YOUR KARCHER PRESSURE WASHER ON

THE HIGH PRESSURE SETTING, THE RECOMMENDED

WORKING DISTANCE BETWEEN THE NOZZLE AND THE

OBJECT OR SURFACE TO BE CLEANED IS 30 CM.

ITCANBECLOSERIFREQUIREDFORPATIOSORMASONERY

It is your responsibility to check the suitability of the surface to be cleaned.

Karcher (UK) Ltd. cannot be held responsible for any damaged caused.

4.1 High Pressure Operation

• EnsuretheSprayLancewiththeDoubleNozzle(No.6)ortheDirtBlaster

(No.12)areattached securelytotheSprayGun(No.8), also the double

nozzle is set to the required jet.

• Aim the lance towards the object to be cleaned making sure the

recommended working distance is used for reference (See Page 9).

Release the safety ratchet on the Spray Gun and squeeze the trigger.

• Switch on the pressure washer (No.2)

The pressurised water jet alone is capable of fulfilling most

cleaning tasks around the garden or on building work but

detergent and wash brush are advantageous when cleaning

vehicles or other paint finishes.

4.2 Low Pressure Operation

• Dilute the detergent in a suitable container to the required concentra-

tion before using. (The correct dilution is dependent on the degree of

soiling of surface and is best determined by experience).

• Hang the Detergent Suction Tube (No.1) in the Detergent container.

• Set the nozzle to the Low Pressure Setting. Note that the Dirt Blaster

is not for use in Low pressure Operation.

Always ensure the Spray Gun is closed before changing

the nozzle setting

• Aim the nozzle towards the object to be cleaned, release the Safety

Locking Device on the Spray Gun and squeeze the trigger to apply the

detergent to the working area.

• Switch on the pressure washer (No.2)

• To rinse the detergent away, close the trigger, increase the nozzle set-

ting towards High Pressure setting. No detergent can be drawn in

with a high working pressure. Spray with the required jet spray set-

ting until no trace of detergent can be found.
