Kärcher DE-201007D Bedienungsanleitung

MODEL ORDER # MODEL

HD 2.0/10 Ed 1.575-250.0 DE-201007D

HD 1.9/15 Ed 1.575-251.0 DE-201507D

HD 2.8/10 Ed 1.575-252.0 DE-301007D

HD 3.5/20 Ea 1.575-253.0 DE-352007A

9.800-085.0

OPERATOR’S MANUAL

To locate your local Kärcher Commercial Pressure Washer Dealer nearest you

visit www.karchercommercial.us

#9.800-085.0 • Rev. 11/08

OPERATOR’S MANUAL PRESSURE WASHER

MOTOROVERLOAD

PUSHTORESET

DEP

OSI

TIv

EPO

SIC

ION

OFF

MOTOROVERLOAD

PUSHTORESET

DEP

OSI

TIv

ERE

POS

ICI

OFF

INTENDEDFORINDOORUSE

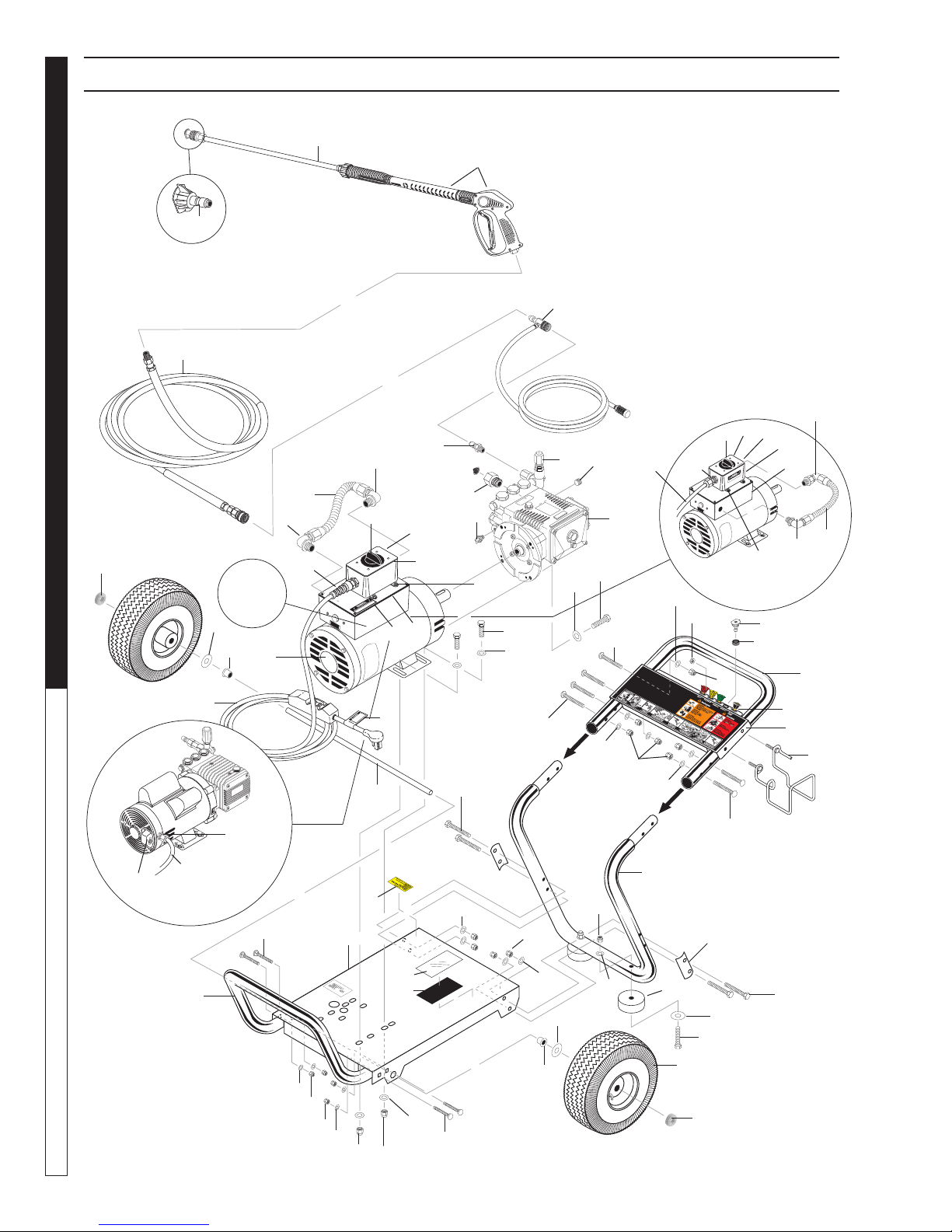

EXPLODED VIEW

39 33

48 47

6, 7

15 16

Model 253.0

18, 19

15 16 17

14, 28

34 1

14, 28

48 63

Models

251.0,

252.0

Model 250.0

#9.800-085.0 • Rev. 11/08

PRESSURE WASHER OPERATOR’S MANUAL

ITEM PART NO. DESCRIPTION QTY

1 9.804-624.0 Nozzle, 150375, Yellow (251.0) 1

9.804-625.0 Nozzle, 250375, Green (251.0) 1

9.804-626.0 Nozzle, 400375, White (251.0) 1

9.804-627.0 Nozzle, 000375, Red (251.0) 1

9.802-296.0 Nozzle, 1504, Yellow (250.0) 1

9.802-297.0 Nozzle, 2504, Green (250.0) 1

9.802-298.0 Nozzle, 4004, White (250.0) 1

9.802-295.0 Nozzle, 0004, Red (250.0) 1

9.802-300.0 Nozzle, 1505, Yellow (253.0) 1

9.802-301.0 Nozzle, 2505, Green (253.0) 1

9.802-302.0 Nozzle, 4005, White (253.0) 1

9.802-299.0 Nozzle, 0005, Red (253.0) 1

9.802-304.0 Nozzle, 1555, Yellow (252.0) 1

9.802-305.0 Nozzle, 2555, Green (252.0) 1

9.802-306.0 Nozzle, 4055, White (252.0) 1

9.802-303.0 Nozzle, 0055, Red (252.0) 1

9.802-311.0 Nozzle, Compl. QCME 6540, Brass, All 1

2 9.802-220.0 Wand, 18" M22 x 1/4" QC 1

3 9.802-223.0 Spray Gun, SK@, 3/8" Inlet 1

4 Hose, See Speciﬁcations Page

5 9.802-517.0 Connector, 1/2" L/T, 90°, Black (251.0, 252.0) 2

6 9.802-427.0 Cord, Service, SOWA 12/3, Coleman (251.0, 252.0) 21"

7 9.802-448.0 Conduit, Watertight, Flex, 1/2" (251.0, 252.0) 8"

8 9.802-773.0 Nut, 1/4" ESNA, NC 6

9 9.802-225.0 Injector, Detergent, Assy, 3-5 GPM 1

10 9.803-831.0 Connector, 3/4" L/T, 90°, Black (253.0) 2

11 9.802-518.0 Strain Relief, 3/4" (253.0) 1

9.802-523.0 ▲Locknut, 3/4" (253.0) 1

12 9.802-810.0 Washer, 5/8" Flat 2

13 9.802-776.0 Nut, 5/16" ESNA 4

14 9.802-759.0 Screw, 10/32" x 1/2" BHSOC, Black (251.0, 252.0, 253.0) 4

15 9.802-450.0 Switch, 2 Pos. 120V-600V, 1-3 PH Bremas (251.0, 252.0, 253.0) 1

16 9.802-478.0 Lid, Plastic, Carlon E9801 Box (251.0, 252.0, 253.0) 1

17 9.802-477.0 Box, Plastic, Carlon E9801, w/o Lid (251.0, 252.0, 253.0) 1

18 9.802-436.0 Cord, Service, 10/3 (253.0) 21"

19 9.803-832.0 Conduit, Water Tite, Flex 3/4" (253.0) 8"

20 9.802-430.0 GFCI, 240V1Ph30A, 36' 10-3 Cord (253.0) 1

9.802-431.0 GFCI, 120V 20A, w/36' 12-3 Cord (251.0, 252.0) 1

9.802-432.0 GFCI, 120V 15A, w/36' 12-3 Cord (250.0) 1

21 9.800-016.0 Label, Disconnect Power Supply 1

EXPLODED VIEW PARTS LIST

#9.800-085.0 • Rev. 11/08

OPERATOR’S MANUAL PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

22 9.803-833.0 Cover, Motor (251.0, 252.0, 253.0) 1

23 9.802-171.0 Nipple 3/8" x 3/8" NPT Male 1

24 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF, w/Strainer 1

25 9.802-182.0 Protector, Pump 1/2" 140° 1

26 Unloader, See Speciﬁcations Page

27 Pump, See Speciﬁcations Page

28 9.802-695.0 Nut, 10/32" Keps (251.0, 252.0, 253.0) 4

29 9.802-514.0 Strain Relief (250.0) 1

9.802-525.0 ▲ Locknut, 1/2" (250.0) 1

30 9.802-695.0 ▲Nut, 10/32" Keps (251.0, 252.0, 253.0) 3

9.802-699.0 ▲ Screw, 10/32" x 3/4" Slot Pan, MS, SS (251.0, 252.0, 253.0) 1

9.800-040.0 ▲Label, Ground (251.0, 252.0, 253.0) 2

(250.0) 1

31 9.802-804.0 Washer, 5/16" Flat 8

32 Motor, See Speciﬁcations Page

33 9.802-064.0 Grommet, Rubber, Nozzle Holder 5

34 9.802-778.0 Nut, 5/16" Flange, Whiz Loc 2

35 9.803-122.0 Handle, Grab, Chrome 1

36 9.800-062.0 Label 1

37 9.803-120.0 Plate, Warning/Instr. Black 1

38 9.803-098.0 Hanger, Hose/Wand 1

39 9.802-706.0 Bolt, Carriage, 1/4"-20 x 1-3/4" 6

40 9.802-802.0 Washer, 1/4" Flat 6

41 9.802-776.0 Nut, 5/16" ESNA, NC 4

42 9.803-119.0 Handle, Lower Grab, Chrome 1

43 9.803-114.0 Retainer Bracket, Handle, Black 2

44 9.802-728.0 Bolt, 3/8" x 2" 4

45 9.802-729.0 Bolt, 3/8" x 2-1/4" 2

46 9.802-817.0 Washer, 3/8" x 1" 2

47 9.802-066.0 Pad, Soft Rubber, 50 Duro 2

48 9.802-807.0 Washer, 3/8" SAE, Flat 10

49 9.802-779.0 Nut, 3/8" ESNA, NC 6

50 9.802-783.0 Axle Hub Black 2

51 9.802-270.0 Wheel & Tire Assy., 4" Steel Rim w/Tube 2

52 9.802-103.0 Bushing, Snap, 5/8" 2

53 9.802-712.0 Bolt, Carriage 5/16" x 1-3/4" 4

54 9.803-097.0 Axle, 5/8" x 19.625" Long 1

55 9.802-804.0 Washer, 5/16" Flat, SAE 4

56 9.803-123.0 Handle, Bumper, Chrome 1

57 9.803-125.0 Base, CW Direct, Black 1

58 9.800-013.0 Label, Intended For Indoor Use 1

59 9.800-034.0 Label, Clear Lexan, 2-1/4” x 4-1/2" 1

EXPLODED VIEW PARTS LIST

#9.800-085.0 • Rev. 11/08

PRESSURE WASHER OPERATOR’S MANUAL

EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

60 9.802-454.0 Switch Assembly (250.0) 1

61 9.800-015.0 Label, Warning, Service Cord 1

62 9.802-516.0 Strain Relief, Flex 90°, Plastic (251.0, 252.0) 1

9.803-834.0 ▲Washer, 3/4" x 1/2" Reducing (251.0, 252.0) 1

63 9.802-272.0 Bolt, 3/8" x 1" NC HH 4

64 9.802-709.0 Bolt, 5/16" x 3/4" NC, Grade 5 4

65 9.800-049.0 Label, Manufacturer's Cleaning Solution 1

66 9.803-051.0 Plug, 1/8" Counter Sunk 1

▲ Not Shown

#9.800-085.0 • Rev. 11/08

OPERATOR’S MANUAL PRESSURE WASHER

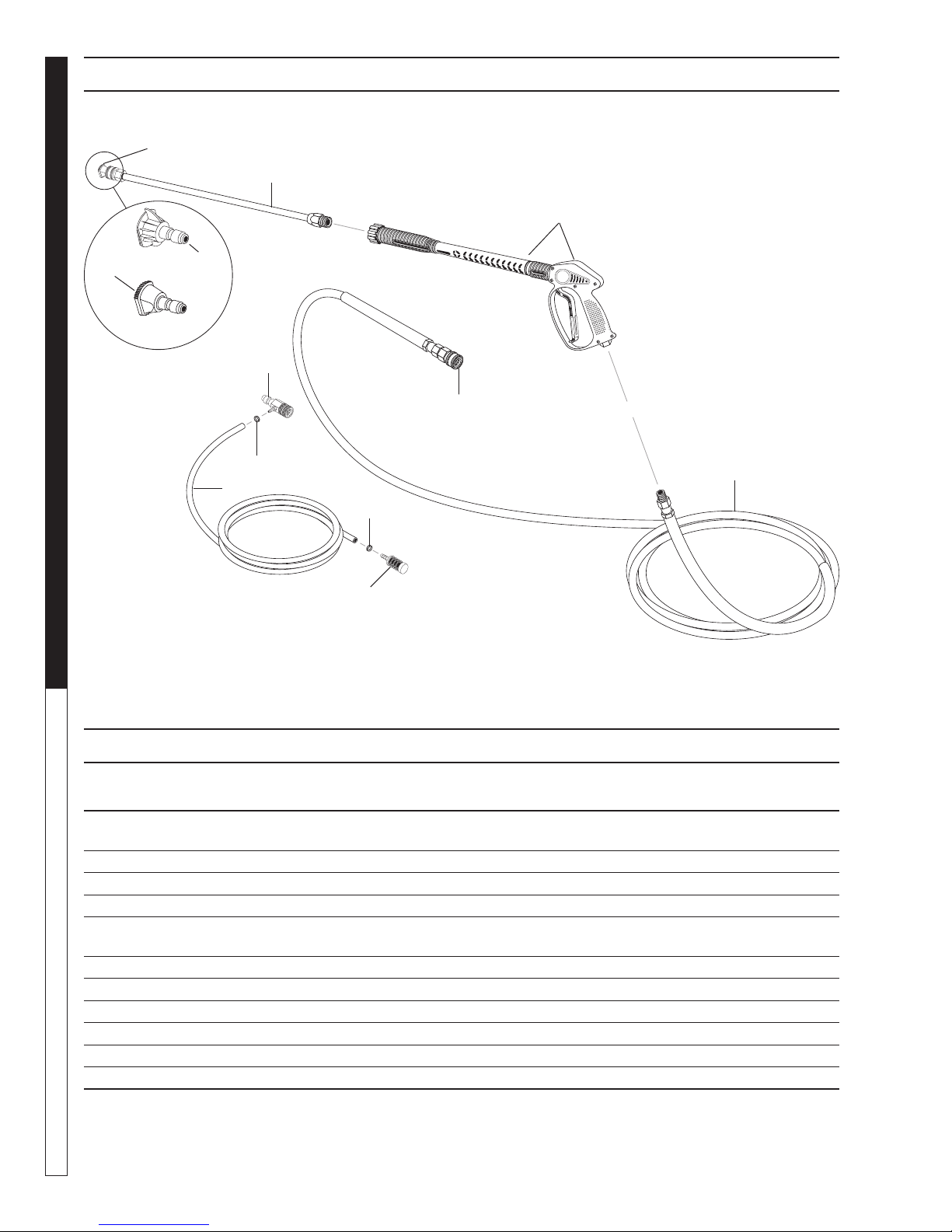

HOSE AND SPRAY GUN ASSEMBLY

HOSE AND SPRAY GUN ASSEMBLY PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 9.802-166.0 Coupler, 3/8" Female 1

9.802-100.0 Quick Coupler O-Ring 1

2 8.739-125.0 Hose, 3/8" x 50', 1 Wire, Tuff-Flex 1

3 9.802-223.0 Spray Gun, Shut-Off 1

4 9.802-220.0 Wand, Straight 1

5 9.802-164.0 Coupler, 1/4" Female 1

9.802-096.0 Quick Coupler O-Ring 1

6 Nozzle, See Page 13 For Size

7 9.802-311.0 Nozzle, Brass Soap 1

8 9.802-216.0 Injector, Chemical, Non-Adjust, 3-5GPM, .083 1

9 9.802-210.0 Clamp, Hose, .46 - .54 ST 2

10 9.802-251.0 Tube, 1/2" x 1/2" Clear Vinyl 6 ft.

11 9.802-160.0 Strainer, 1/4" Hose Barb, Plastic 1

▲Not Shown

#9.800-085.0 • Rev. 11/08

PRESSURE WASHER Speciﬁcations

VBA35 UNLOADER EXPLODED VIEW PARTS LIST

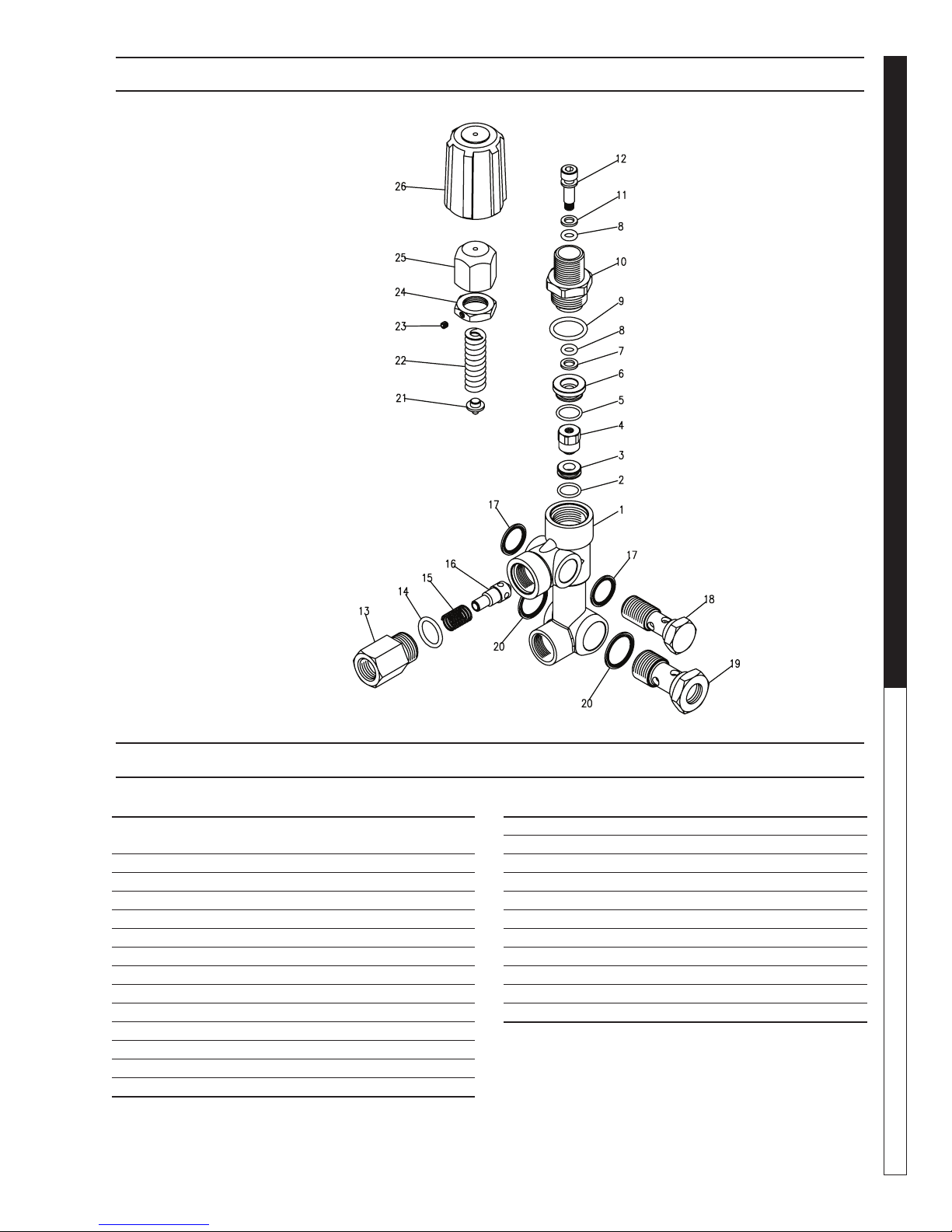

VBA35 UNLOADER EXPLODED VIEW

ITEM PART # DESCRIPTION KIT QTY

1 9.803-901.0 Body Valve (KM) 1

9.803-902.0 Body Valve (KD) 1

2 9.803-903.0 O-Ring A, C 1

3 9.803-904.0 Seat C 1

4 9.803-905.0 Ball, Sub-assy C 1

5 9.803-906.0 O-Ring A 1

6 9.803-907.0 Guide Bushing 1

7 9.803-908.0 Teﬂon Ring A 1

8 9.803-909.0 O-Ring A 2

9 9.803-910.0 O-Ring A 1

10 9.803-911.0 Connector 1

11 9.803-912.0 Teﬂon Ring A 1

12 9.803-913.0 Stem C 1

13 9.803-914.0 Connector, Female 1

14 9.803-191.0 O-Ring A, B 1

ITEM PART # DESCRIPTION KIT QTY

15 9.803-916.0 Spring B 1

16 9.803-917.0 Poppet B 1

17 9.802-893.0 Seal Washer 3/8 2

18 9.803-920.0 Banjo Bolt, 3/8 w/ 1/8 Pilot 1

19 9.803-915.0 Banjo Bolt 1/2 1

20 9.803-921.0 Seal Washer 1/2 2

21 9.803-922.0 Plate C 1

22 9.803-923.0 Spring C 1

23 9.803-924.0 Set Screw 1

24 9.803-925.0 Nut 1

25 9.803-926.0 Brass Handle 1

Kit A 9.803-927.0 O-Ring Repair Kit

Kit B 9.803-928.0 Outlet Kit

Kit C 9.803-929.0 Stem Repair Kit

8.715-463.0 KD 25 LPM @ 240 BAR

9.803-900.0 KM 25 LPM @ 240 BAR

#9.800-085.0 • Rev. 11/08

OPERATOR’S MANUAL PRESSURE WASHER

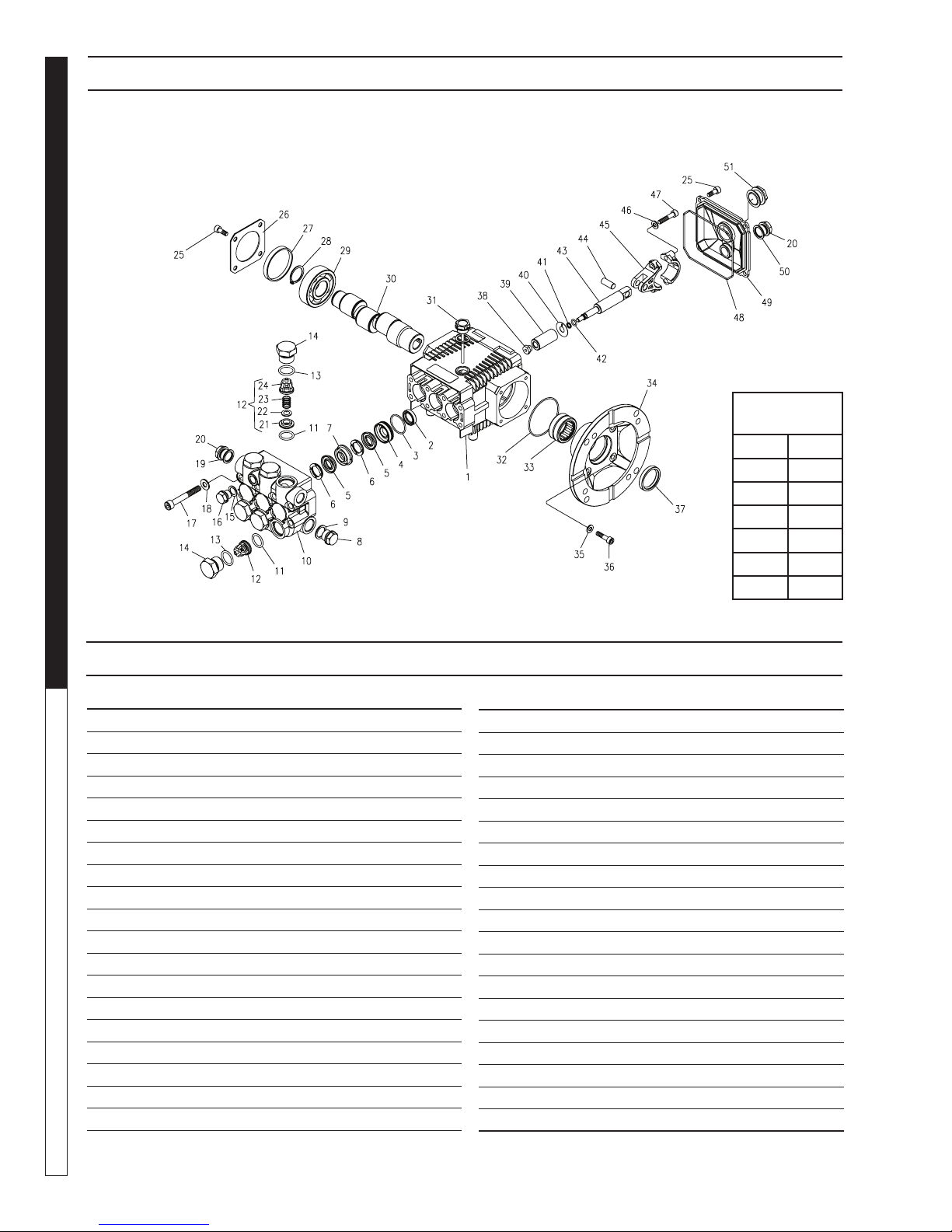

KE SERIES PUMP EXPLODED VIEW

9.803-814.0 KE 2020F

9.803-815.0 KE 2020S

9.803-816.0 KE 2825F

9.803-817.0 KE 2825S

9.803-818.0 KE 3525F

ITEM PART NO. DESCRIPTION QTY

1 9.803-938.0 Crankcase 1

2* 9.804-586.0 Plunger Oil Seal 3

3* 9.803-939.0 O-Ring Ø 1.78 x 28.30 3

4* 9.804-552.0 Pressure Ring 15mm 3

9.803-941.0 Pressure Ring 18mm 3

5* 8.717-030.0 “V” Seal, dia 15mm 6

9.804-575.0 “V” Seal, dia 18mm 6

6* 9.803-942.0 Support Ring 15mm 6

9.803-943.0 Support Ring 18mm 6

7* 9.803-944.0 Intermed Ring 15mm 3

9.803-945.0 Intermed Ring 18mm 3

8* 9.802-926.0 Brass Plug G1/2 1

9 9.803-199.0 Copper Washer 1/2” 1

10 9.803-946.0 Manifold Housing 1

11 9.803-947.0 O-Ring Ø1.78 x 15.54 6

12* See Kit Below Valve Assembly 6

13* 9.803-948.0 O-Ring Ø2.62 x 18.77 6

14 9.803-949.0 Valve Plug 6

15 9.803-950.0 Copper Washer 1/4 1

ITEM PART NO. DESCRIPTION QTY

16 9.803-951.0 Brass Plug G1/4 1

17 9.803-952.0 Manifold Stud Bolt 8

18 9.802-884.0 Washer 8

19 9.803-198.0 Copper Washer 3/8 1

20 9.802-925.0 Brass Plug G3/8 2

25 9.802-939.0 Screw 12

26 9.803-953.0 Bearing Cover 2

27 9.803-954.0 Bearing Seal 1

28 9.802-914.0 Snap Ring 1

29 9.803-955.0 Ball Bearing 2

30 9.804-576.0 Crankshaft (2020F) 1

9.804-577.0 Crankshaft (2020S) 1

9.804-578.0 Crankshaft (2825F) 1

9.804-579.0 Crankshaft (2825S) 1

9.804-580.0 Crankshaft (3525F) 1

31 9.803-957.0 Oil Dipstick 1

32 9.804-581.0 O-Ring Ø3.53 x 55.56 1

33 9.804-582.0 Needle Bearing 1

34 9.804-583.0 Motor Flange 56C 1

TORQUE

SPECS

Item # Ft.-lbs

14 65

17 22

25 8

36 8

38 9

47 13

KE SERIES PUMP EXPLODED VIEW PARTS LIST

#9.800-085.0 • Rev. 11/08

PRESSURE WASHER OPERATOR’S MANUAL

ITEM PART NO. DESCRIPTION QTY

35 9.803-210.0 Washer 4

36 9.804-584.0 Flange Screw 4

37 9.804-585.0 Crankshaft Seal 1

38* 9.803-959.0 Plunger Nut 3

39* 9.803-960.0 Plunger 15mm (2020F,

2825F, 3525F) 3

9.803-961.0 Plunger 18mm

(2020S, 2825S) 3

40* 9.803-962.0 Copper Spacer 3

41* 9.802-928.0 O-Ring Ø1.78 x 5.28 3

42* 9.803-156.0 Teﬂon Ring 3

43 9.803-964.0 Plunger Rod 3

44 9.803-965.0 Connecting Rod Pin 3

45 9.803-966.0 Connecting Rod 3

46 9.803-218.0 Spring Washer 6

47 8.933-020.0 Connecting Rod Screw 6

48 9.803-969.0 O-Ring Ø2.62 x 107.62 1

49 9.803-968.0 Crankcase Cover 1

50 9.803-197.0 Gasket 1

51 9.803-202.0 Sight Glass 1

KE SERIES PUMP EXPLODED VIEW PARTS LIST

Repair Kit

Number 9.803-930.0 9.803-931.0 9.803-932.0 9.803-933.0 9.803-934.0 9.803-935.0 9.803-936.0 9.803-937.0

Kit

Description

Plunger Seal

KE 2020F

KE 2825F

KE 3525F

Plunger

Seal 18mm

KE 2020S

KE 2825S

Complete Seal

Packing 15mm

KE 2020F

KE 2825F

KE 3525F

Complete

Seal Packing

18 mm

KE 2020S

KE 2825S

Plunger

15mm

KE 2020F

KE 2825F

KE 3525F

Plunger

18mm

KE 2020S

KE 2825S

Complete

Valve

Plunger

Oil Seals

Item Numbers

Included

3, 5, 6 3, 5, 6 2, 3, 4, 5,

6, 7

3, 4, 5, 6,

7, 8

38, 39, 40,

41, 42

38, 39, 40,

41, 42

11, 12, 13 2

Number Of

Cylinders Kit

Will Service

3 3 1 1 1 1 6 3

#9.800-085.0 • Rev. 11/08

OPERATOR’S MANUAL PRESSURE WASHER

Machine Pessure Nozzle Pump Pump Unloader Motor Motor

Model GPM (PSI) Size Hose p/n Part # Model Part # Hp Part #

1.575-250.0 2.0 1000 3.75 9.802-233.0 9.803-814.0 KE2020F 8.715-463.0 1-1/2 9.802-338.0

1.575-251.0 1.9 1500 3.0 9.802-233.0 9.803-814.0 KE2020F 8.715-463.0 2 9.802-339.0

1.575-252.0 2.8 1000 5.5 9.802-233.0 9.803-816.0 KE-2825-F 8.715-463.0 2 9.802-339.0

1.575-253.0 3.5 2000 5.0 9.802-233.0 9.803-818.0 KE-3525-F 8.715-463.0 5 9.802-341.0

SPECIFICATIONS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kärcher Hochdruckreiniger Handbücher

Kärcher

Kärcher DG-232437 Bedienungsanleitung

Kärcher

Kärcher K 3.67 M Bedienungsanleitung

Kärcher

Kärcher HD 3.1 / 31 P Bedienungsanleitung

Kärcher

Kärcher G2600XH Bedienungsanleitung

Kärcher

Kärcher K 5.86 M Bedienungsanleitung

Kärcher

Kärcher 1.103-843.0 Bedienungsanleitung

Kärcher

Kärcher HDS 2000 SUPER Bedienungsanleitung

Kärcher

Kärcher K 6.50 MB Bedienungsanleitung

Kärcher

Kärcher K 2 Premium Bedienungsanleitung

Kärcher

Kärcher K 7000 G Bedienungsanleitung

Kärcher

Kärcher HDS-E 8/16-4M 24kW Bedienungsanleitung

Kärcher

Kärcher K 3.67 M Bedienungsanleitung

Kärcher

Kärcher K 2.19 Bedienungsanleitung

Kärcher

Kärcher IVC 60/12-1 Ec H Z22 Bedienungsanleitung

Kärcher

Kärcher K 5.86 M Bedienungsanleitung

Kärcher

Kärcher K 5 Full Control Bedienungsanleitung

Kärcher

Kärcher Puzzi 400 K Bedienungsanleitung

Kärcher

Kärcher HD 5/15 C Bedienungsanleitung

Kärcher

Kärcher K 3.67 M Bedienungsanleitung

Kärcher

Kärcher K 205 M Plus Bedienungsanleitung

Kärcher

Kärcher K 2.110 M Bedienungsanleitung

Kärcher

Kärcher HDS3.5/20 Bedienungsanleitung

Kärcher

Kärcher K 3.450 Bedienungsanleitung

Kärcher

Kärcher K 4.650 Jubilee Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Kärcher

Kärcher K 4 Pure Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung

Hotsy

Hotsy 5645 Bedienungsanleitung
