English Operating Instructions

Contents

Environmental protection 24

Unit illustration 25

Operating controls 25

Reference to operating

instructions 26

Commissioning 26

Operation 28

After every operation 31

Decommissioning 32

Maintenance 32

Maintenance tasks 32

Faults 33

Warranty 35

General notes 36

EC conformity declaration 37

Technical data 38

Parts list 405

Danger: Steam!

Danger of scalding! Steam escapes here.

Warning!

Prior to initial operation it is mandatory to

read the operating instructions and the

notes on safety no. 5.951-949!

Inform retailer immediately of any

transportation damage.

Environmental protection

Please dispose of packaging

environmentally responsibly

The packaging materials are recyclable.

Please do not throw the packaging in with

household rubbish but take it to a recycling

centre.

Please dispose of scrapped units

environmentally-responsibly

Scrapped units consist of valuable

recyclable materials that should be taken to

a recycling centre. Batteries, oil and similar

products must not be allowed to

contaminate the environment. Therefore,

please dispose of scrapped units via

appropriate disposal systems.

Please ensure engine oil, fuel oil, diesel

and petrol

to contaminate the environment. Please

protect the ground and dispose of used oil

ecologically.

Operating Instructions English

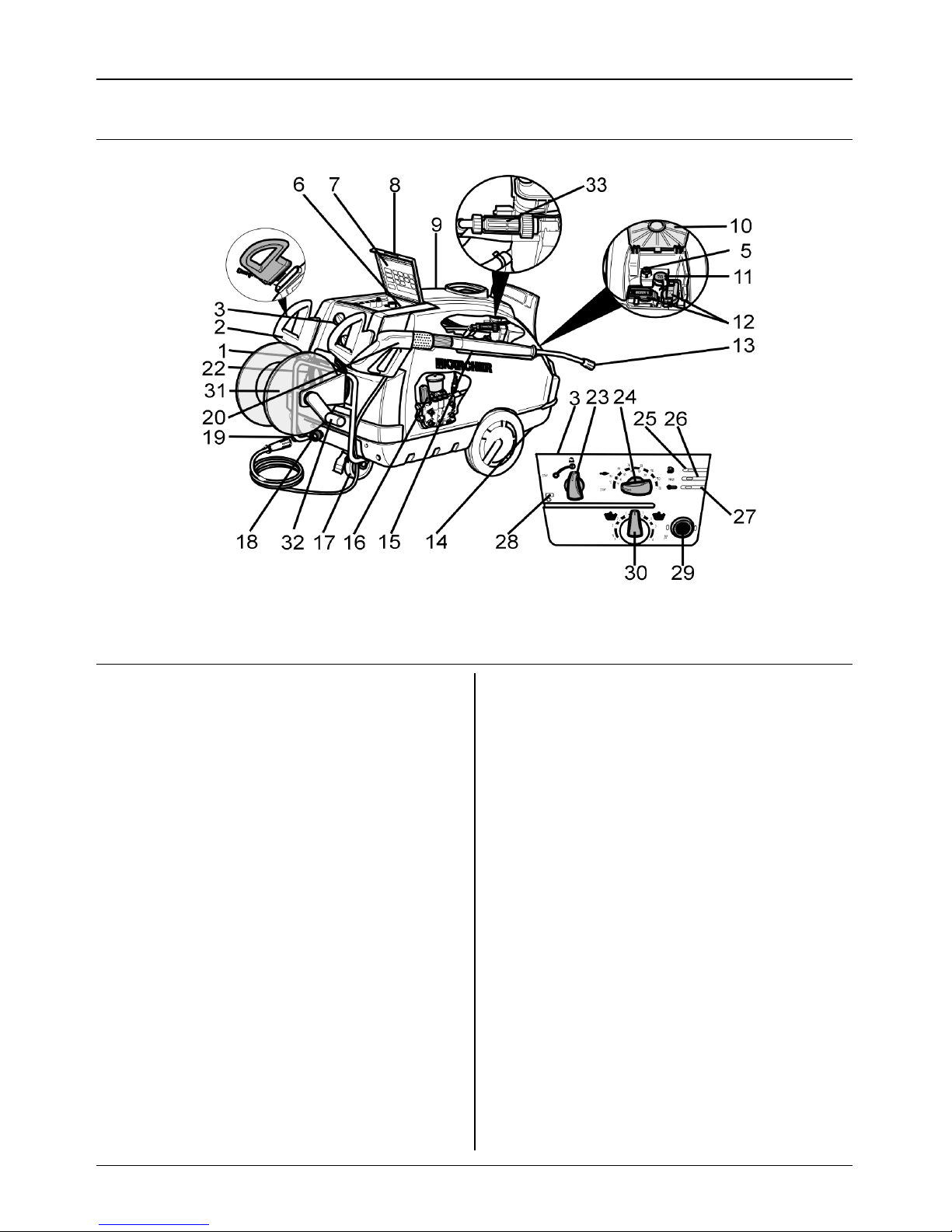

Unit illustration

Operating controls

1 Fuel tank inlet

2 Handle

3 Instrument panel

5 Cover latch

6 Compartment für accessories

7 Short operating instructions

8 Cover for compartment

9 Unit cover

10 Cover for tank inlet

11 Tank inlet für scale inhibitor

12 tank inlet for cleaning agent

13 High-pressure nozzle

14 Handle grips in the chassis

15 Steel pipe

16 Pressure and flow control

17 Swivel caster with parking brake

18 Water connection with strainer

19 High-pressure connection

20 Handgun with high-pressure hose

22 Electric power cord

23 Unit switch

24 Temperature regulator

25 Fuel indicator lamp

26 Scale inhibitor indicator lamp

27 Motor indicator lamp (not applicablt to

HDS Super M Eco/HDS Super MX Eco)

28 Ready for working indicator lamp

29 Pressure gauge

30 Metering valve for cleaning agent

31 Hose reel (applies only to MX / SX Eco)

32 Crank (applies only to MX / SX Eco)

33 Fine filter

English Operating Instructions

Reference to operating

instructions

All of the item numbers described below in

the operating instructions are referenced in

the illustration of the unit.

Commissioning

Warning!

Unit, piping, high-pressure hose and

connections must be in perfect working

order!

!Lock the hand brake.

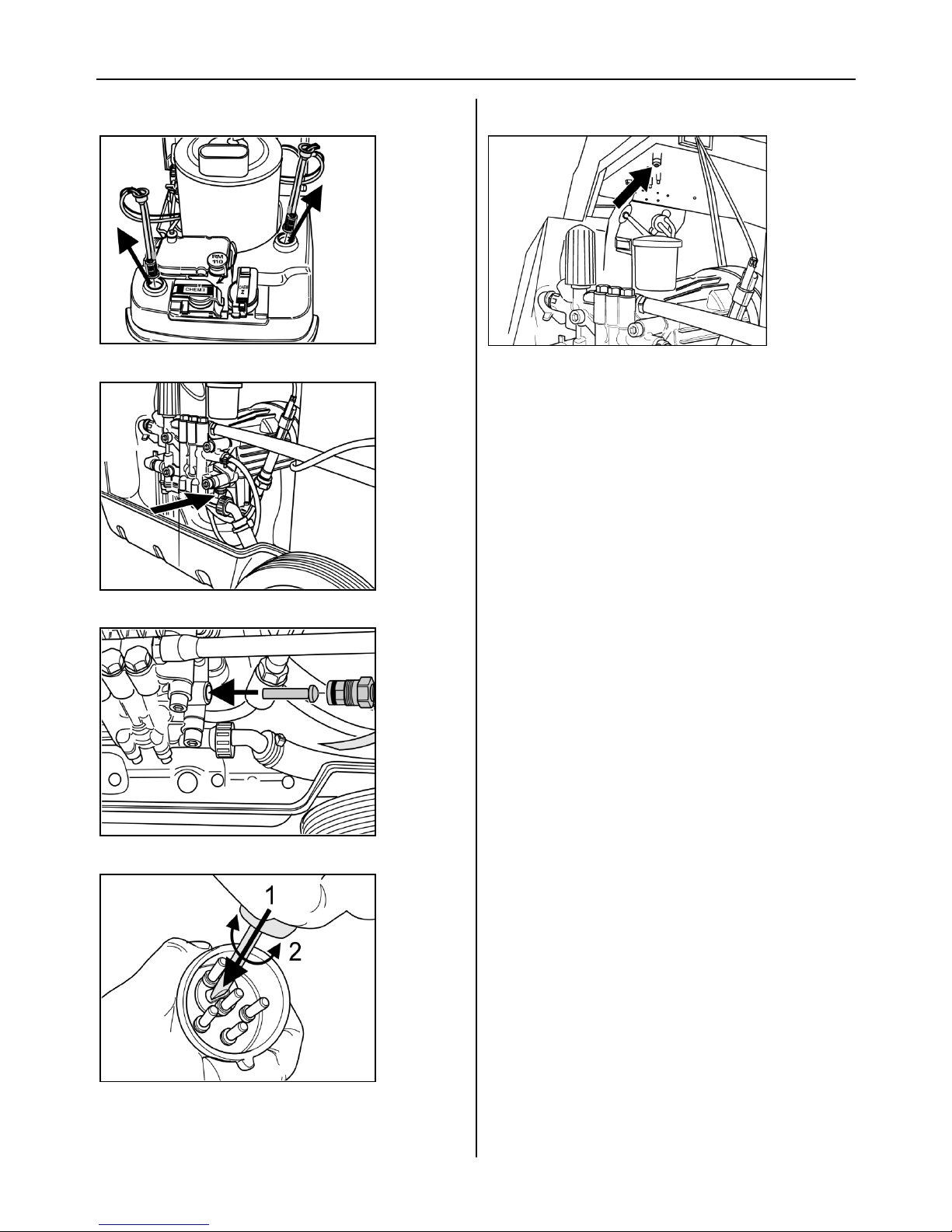

Checking oil level

Fig. 1

Warning!

Immediately consult the Kärcher service

station when oil turns milky!

!If oil level is approaching MIN mark, fill

up with oil as far as MAX mark.

!Seal oil filler inlet.

Refer to technical data for oil grade.

Filling with scale inhibitor

Fig. 2

(sample pack included with scope of

delivery)

Scale inhibitor stops heating coil becoming

calcified when using hard tap water. Is is

metered in at the inlet in the water reservoir

one drop at a time.

By the manufacturer metering is set to a

mean water hardness.

!For other water hardnesses request

services of a Kärcher service station and

have it adapted to local conditions.

Filling with fuel

Warning!

Never operate unit with fuel tank empty!

Fuel pump would otherwise be destroyed!

Warning!

Fig. 3

Only fill with diesel fuel or light fuel oil.

It is forbidden to use unsuitable fuels,

e.g. benzine (explosion hazard, damage to

unit).

!Close tank cap

!Wipe off excess fuel

Fill with cleaning agent

—Use only Kärcher products.

—Never pour in solvent (petrol, acetone,

thinner etc.)!

—Avoid contact with eyes and skin

—Pay attention to cleaning-agent

manufacturer's instructions on safety

and handling

Kärcher offers a customised cleaning

and care agent range.

Your dealer will be pleased to advise you.

Fig. 4

Fill with cleaning agent

Operating Instructions English

Installing the handgun (units

without hose reel)

!Connect steel pipe (item 15) with

handgun (item 20)

!Insert high-pressure nozzle in union nut

!Mount and tighten unit nut

!Install the high-pressure hose to high-

pressure connection of unit. (Figure 6a)

Installing the handgun and the

hose reel (units with hose reel)

!Connect steel pipe (item 15) with

handgun (item 20)

!Insert high-pressure nozzle in union nut

!Mount and tighten unit nut

!Install the hose reel (item31) with the

provided Allen screws, washers and

nuts (4 of each). (Figure 5)

!Install the high-pressure hose at the

high-pressure connection of hose reel

and unit. (Figure 6b)

!Connect high-pressure hose of handgun

to hose reel

!Wind high-pressure hose onto hose reel

with the smallest possible bends

(direction of turns – clockwise -)

Mounting of spare high-pressure

hose

Fig. 7

Mounting handle

Fig. 8

Water connection

!See Technical Data for connected loads.

!Install supply hose at water connection

(item18) of unit.

(supply hose is not part of scope of

delivery)

Drawing in water from tank

When you suction water out of an open

container you should

!remove water connection at pump head.

!screw off the top supply hose with the

fine filter to the water tank and connect

to pump head.

!Use a water suction hose with a suction

filter and a diameter of at least 3/4".

Until the pump sucks up water you should:

!Turn the pressure and flow control to

"MAX".

!close the metering valve for the cleaning

agent.

Warning!

Never suction up water out of a potable

water tank.

Never suction up solvent-bearing liquids

such as paint thinner, benzine, oil or

unfiltered water. The seals in the unit are

not resistant to solvents. The mist of

solvents is highly inflammable, explosive

and poisonous!
