Kärcher T 350 Bedienungsanleitung
T 350
T-Racer
5.961521.0 (05/05)
12" Hard Surface Cleaner
Designed for gasoline pressure washers
with screw-on trigger guns up to 2650 PSI.
12" Nettoyeur de surface dure
Adaptable aux netto eurs haute pression avec
moteur à essence d´une puissance a 2650 lb/po2.
12" Lavador de superficies duras
Para lavadoras de presión a gasolina a 2650 PSI.
2.641005.0
English ................. 2
Español ................ 8
Français ............. 14
2
T 350 OVERVIEW
Item Description
1 Nozzle height adjustment
2 Hand grip
3 Air flow control (hovering effect)
Item Description
4 Housing
5 Handle (2 piece)
6 Adaptor
Kärcher Support USA
Call: 1-800-537-4129 for help
or visit our website: .karcher-usa.com/home
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help
or visit our website: .karcher.ca
Kärcher Support Mexico
Call: 01-800-024-13-13 for help
or visit our website: .karcher.com.mx
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING When using this
product basic precautions should
alwa s be followed, including the
following:
Read all the instructions before
using the product.
Please observe the safet instruc-
tions of our pressure washer.
The T-Racer must not be used b
children.
Onl trigger the gun of the pressure
washer if the T-Racer is located on
the surface to be cleaned.
Keep all persons/animals clear of
the immediate vicinit of the
cleaning head.
Keep hands awa from moving
parts.
Turn off the pressure washer when
examining or changing the T-Racer
and after the completion of the
cleaning operation.
Maximum water temperature
allowed is 140 °F/ 60 °C. Please
follow the instructions for our
pressure washer.
SAVE THESE INSTRUCTIONS
CAUTION!
Do not use on windows.
The T-Racer is not suited for
scouring or scrubbing!
Do not run over freestanding
corners!
For the optimum setting, test the
TRacer in an inconspicuous area.
Never operate in the same area
for more than 2 seconds, damage
ma occur.
Intended Use
The T 350 T-Racer can be used with
all Kärcher gasoline pressure wash-
ers with 2400 to 2650 PSI and most
other gasoline pressure washers with
screw-on trigger guns up to 2650 PSI
(with included adaptor).
Use on horizontal surfaces like drive-
wa s, patios, side walks, etc.
Use on vertical surfaces like brick
walls, hardiplank, stucco and other
siding. (Alwa s test in inconspicuous
area first.)
The T350 has not been designed for
commercial use. Commercial users
should consider Kärcher`s FR 30 Hard
Surface Cleaner
4
ASSEMBLY INSTRUCTIONS
Step 1
Insert upper handle into the lower
handle b twisting together.
Step 2
Insert lower handle into main
housing.
Turn collar clockwise until tight.
Step 3
For Kärcher ith male scre -on
trigger gun.
Insert male screw-on trigger gun
into upper handle.
Turn collar clockwise until tight.
Step 3
For female scre -on trigger gun.
Screw adaptor on female screw-on
trigger gun.
Insert trigger gun with adaptor into
upper handle.
Turn collar clockwise until tight.
Cleaning vertical surfaces
Connect the T-Racer directl with the trigger gun.
5
OPERATION CONTROLS
Spray Po er
Adjust height of propeller spra head.
For sensitive surfaces
Turn nozzle height adjustment
clockwise.
For hard surfaces
Turn nozzle height adjustment
counterclockwise.
Air Flo Control
Adjust the hovercraft effect of the
T-Racer b pushing the Air Flow Con-
trol into one of the positions from No
hovercraft effect to Full hovercraft
effect.
No hovercraft effect
(Air flow vents closed)
Push counterclockwise to the stop.
Full hovercraft effect
(Air flow vents opened)
Push clockwise to the stop.
Please Note:
For optimum setting test the T-Racer in an inconspicuous area first.
Never operate in the same area for more than 2 seconds, damage
ma occur.
Do not use on windows.
6
Suggested Settings for T pical Applications
Horizontal Wood and Decks
Adjust height of the spra
head clockwise.
Open the air flow vents.
Vertical Wood, Siding and Facades
Connect the T-Racer directl
with the trigger gun.
Adjust height of the spra
head clockwise.
Close the air flow vents.
Do not use on indo s.
Horizontal Tile, Concrete and Stone
Adjust height of the spra
head counterclockwise.
Open the air flow vents.
Vertical Tile, Concrete and Stone
Connect the T-Racer directl
with the trigger gun.
Adjust height of the spra
head counterclockwise.
Close the air flow vents.
APPLICATION DIRECTIONS
Cleaning of vertical surfaces:
Alwa s hold Trigger Gun and T-Racer with both hands.
Do not reach under the edge of the T-Racer while the device is in operation.
7
REPLACEMENT OF THE NOZZLES
Kärcher Support USA
Call: 1-800-537-4129 for help
or visit our website: .karcher-usa.com/home
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help
or visit our website: .karcher.ca
Kärcher Support Mexico
Call: 01-800-024-13-13 for help
or visit our website: .karcher.com.mx
Note: The nozzles must be
removed for cleaning or for the
exchange of the nozzles.
1. Remove the clamp.
2. Pull out the old nozzle.
3. Insert the new nozzle.
4. Secure nozzle with clamp.
8

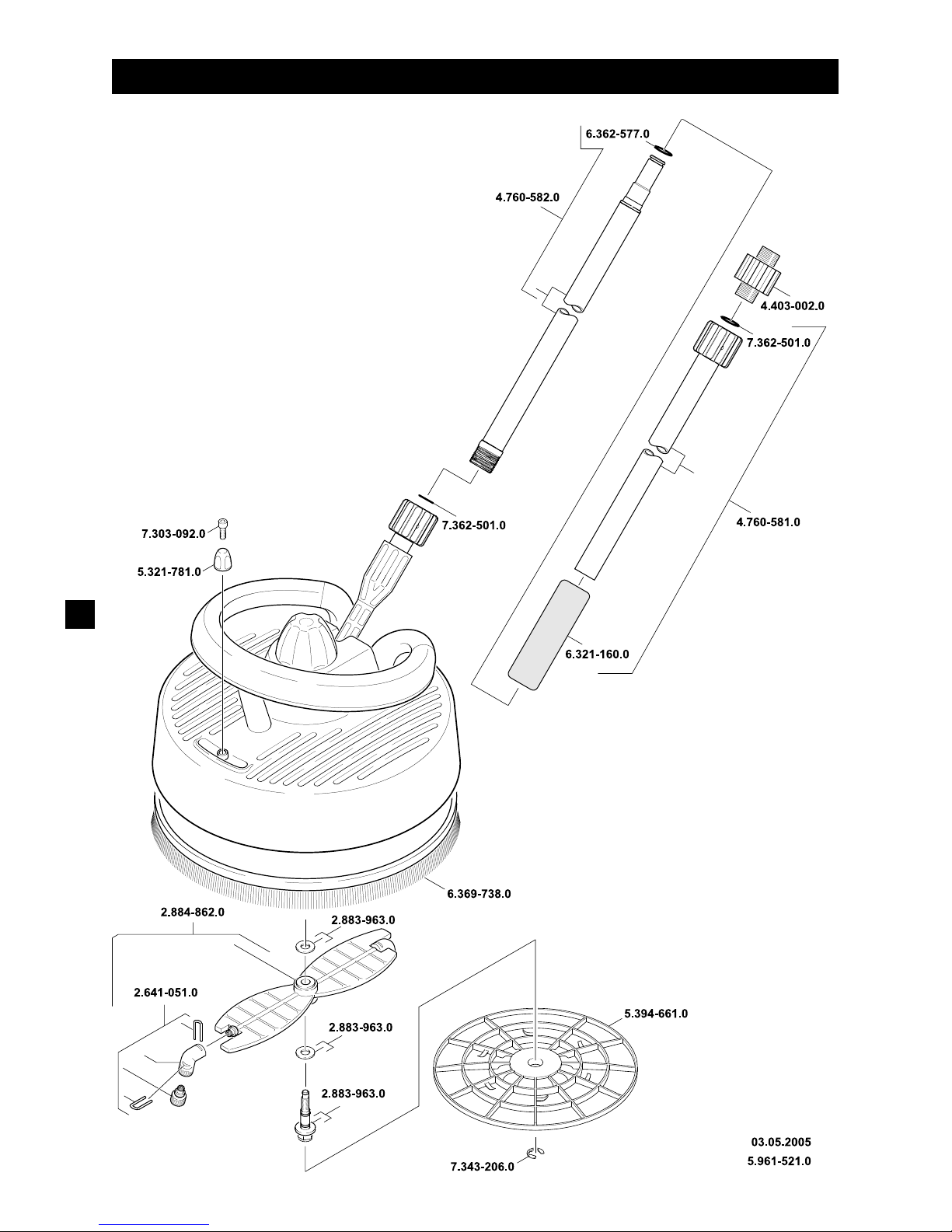

PARTS LIST
