Kargo Master 4832L Handbuch

Instruction Guide

4832L-Rev 1

Kargo Master

Rancho Cordova, CA 95742

800-343-7486

CustomerService@KargoMaster.com

20190928R1

DATE: ______________

Instructions –4A82L

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,

INSTALLING, AND USING THIS PRODUCT*

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

Tools Needed

Phillips Driver

Table of Contents

Parts List ...................................................................................................................................... 2

Hardware List .............................................................................................................................. 2

Step 1 Find shelf locations ........................................................................................................... 3

Step 2 Attach other shelf side ..................................................................................................... 4

Step 3 Attach back panels ........................................................................................................... 5

Before You Begin

•Read all instructions.

•ENSURE SAFETY PRIOR TO DRILLING.

•When installing, LIFT, DO NOT DRAG shelf into position.

Instructions –4A82L

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3

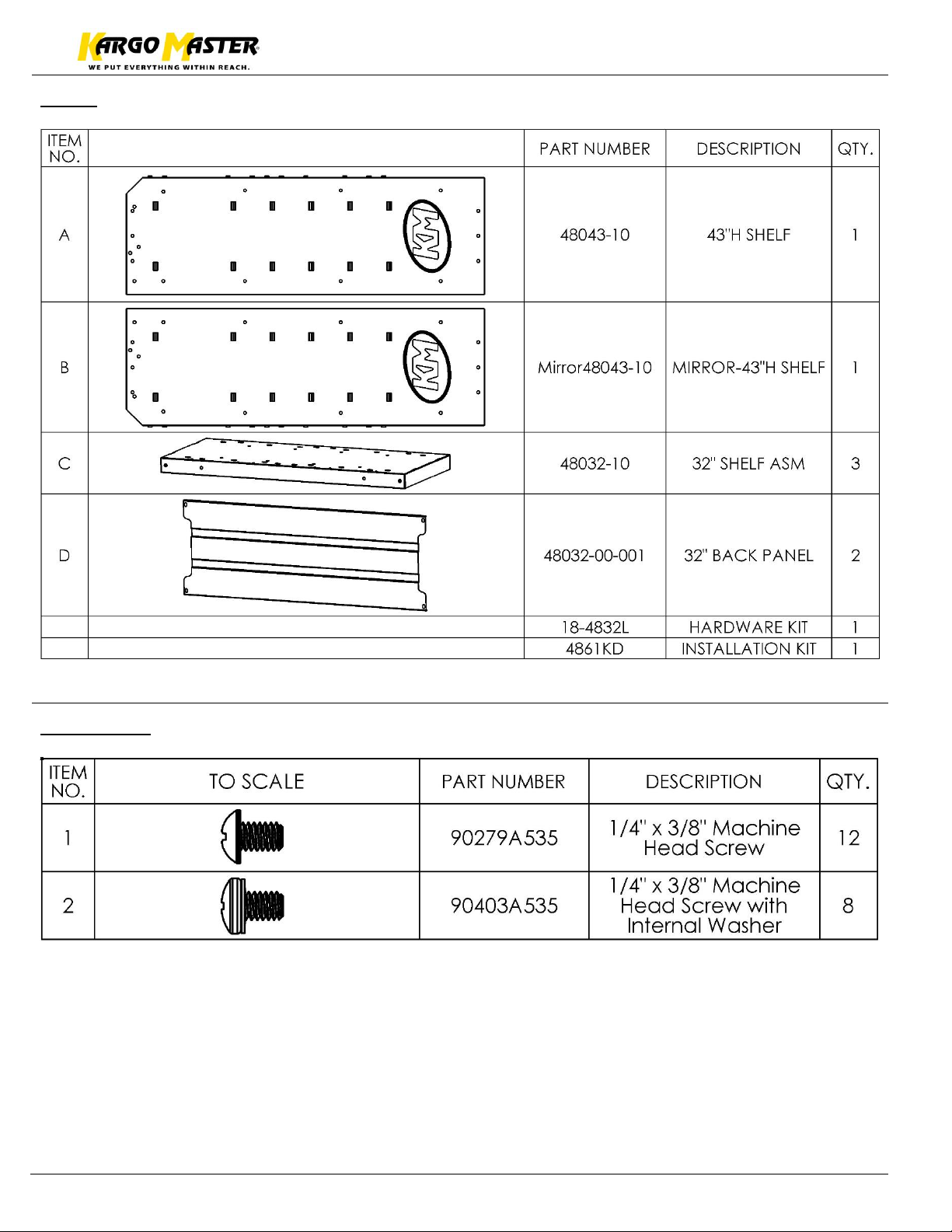

Parts

Hardware

Instructions –4A82L

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

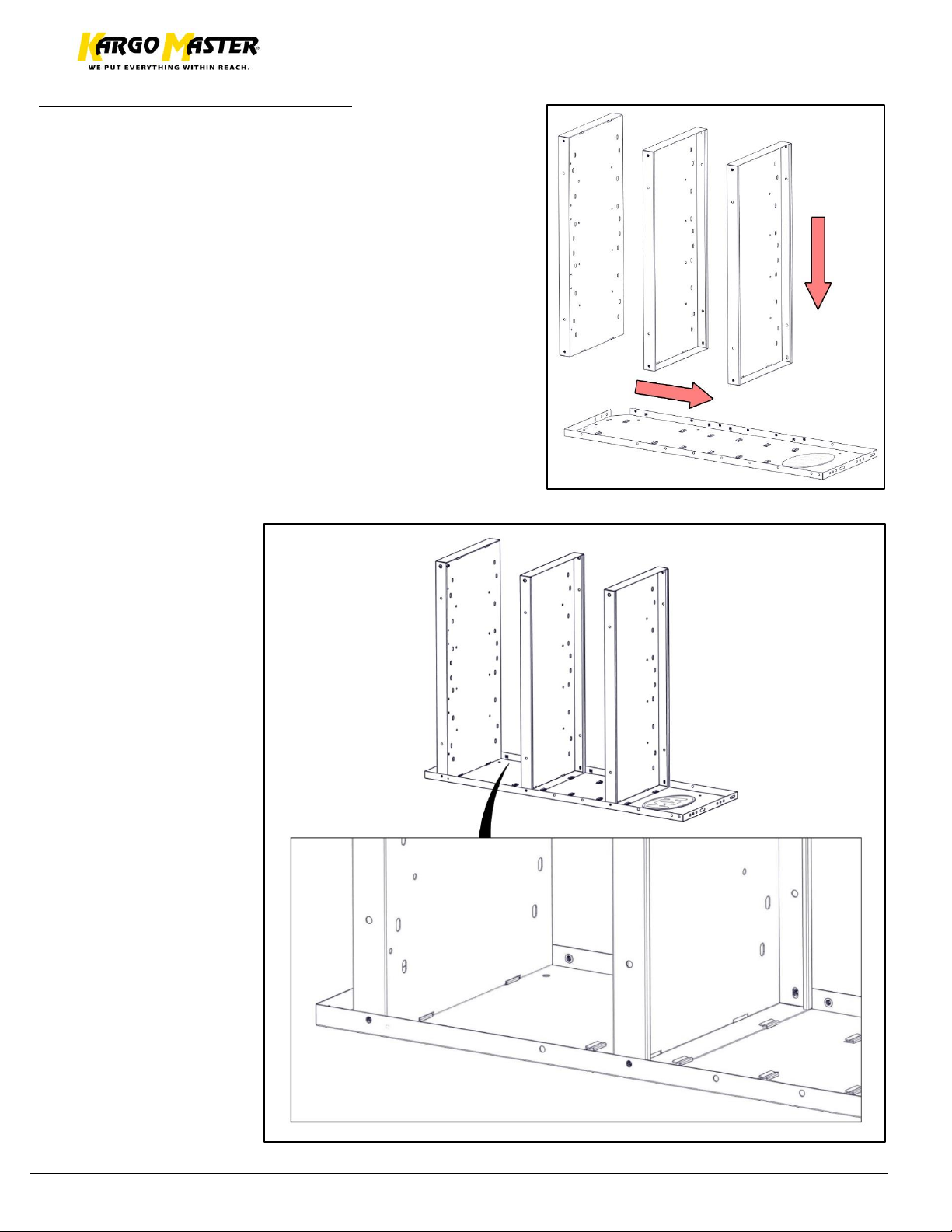

Step 1 –Find shelf locations

•Find desired locations for all three shelves.

*Keep in mind if installing shelf accessories, or

additional shelves, as distances between shelves

becomes important*

•Place on shelf side in orientation shown on floor or

work bench.

•Find tabs where the shelf is to be installed.

•Place the shelf into the shelf side, slide shelf so it

catches the tabs on the shelf side.

•Typically, the top shelf if installed in the orientation

shown. This makes the shelf lip upwards. This gives

the top shelf the ability to contain items. If installing

any accessories, be attentive to which orentation of

the shelf is needed.

•Be sure the shelf is firmly pressed against the tab.

Instructions –4A82L

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

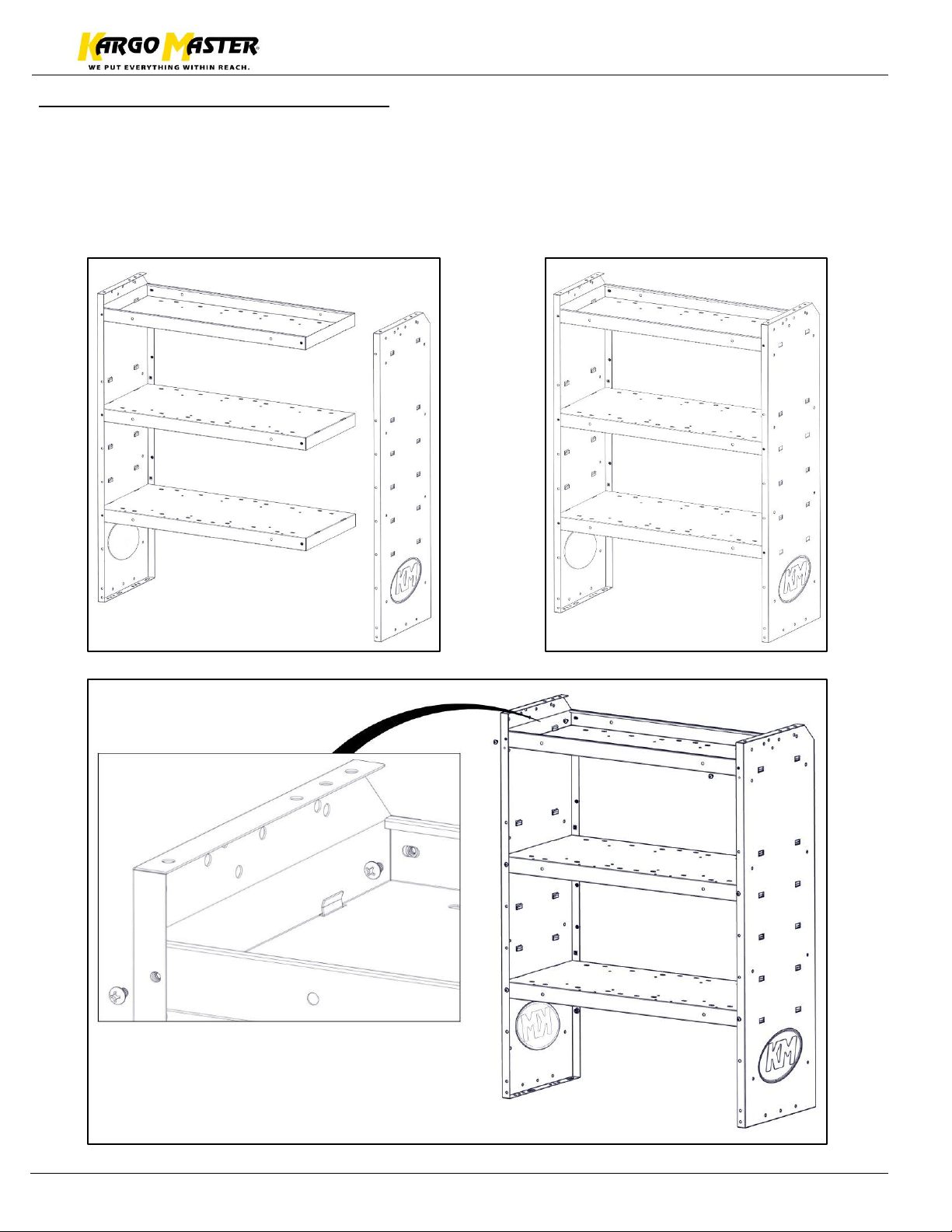

Step 2 –Attach other shelf side

•Place other shelf side in orientation shown. These are the typical shelf locations.

•Be sure the shelf catches the shelf tab on the shelf side.

•On the front and at the rear of each shelf, fasten shelf into place using twelve 1/4" x 3/8”

round head screws as shown.

•TIGHTEN

Instructions –4A82L

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6

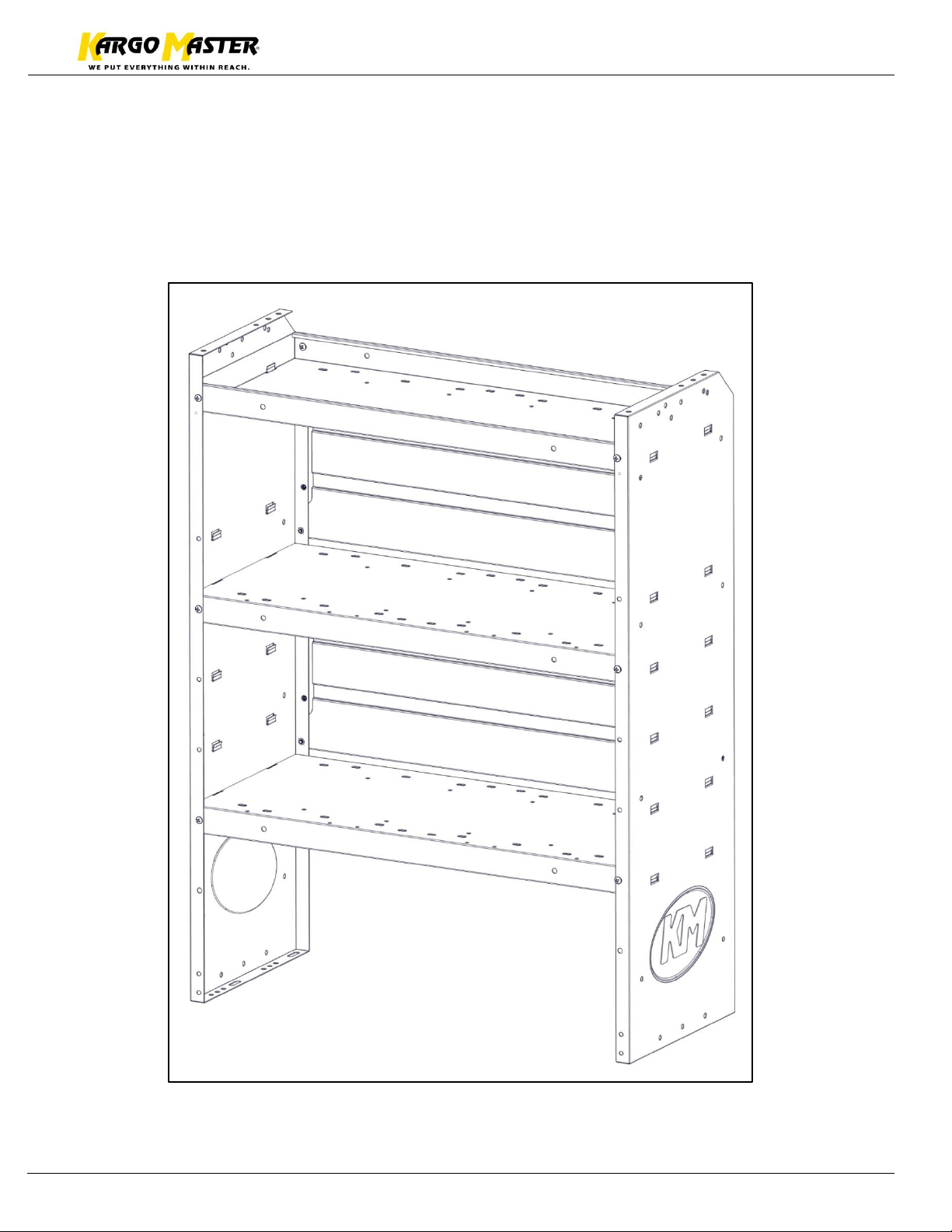

Step 3 –Attach back panels

•At the backside of shelf assembly, place back panels as shown.

•Attach back panels using eight 1/4" x 3/8” round head screws with washer.

•TIGHTEN

Instructions –4A82L

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 7

Ensure all bolts are tight. Your Installation is now complete.
