KATEK TeleAlarm LE80 Bedienungsanleitung

LE80 Radio Receiver

LE80_UM_EN_V1.1_2021.12_Final

en User Manual

LE80 Radio Receiver Table of Contents | en 3

TeleAlarm User Manual LE80_UM_EN_V1.1_2021.12

Table of Contents

1 Safety instructions 5

1.1 General safety instructions 5

1.2 Environmental conditions 5

1.3 Electrostatic Discharge (ESD) 5

2 Product information 6

2.1 General description 6

2.2 Compatible transmitters 6

2.3 Main applications 7

2.4 Description of the different modes 8

3 Installation 11

3.1 Unpacking 11

3.2 Wall installation 11

3.3 Connecting the power supply 12

3.3.1 Power supply with the RJ12 power socket 12

3.3.2 Power supply connected to a wired installation 12

4 Connection compartment 13

4.1 Connecting ports 13

4.2 Mode selection 13

5 Programming 15

5.1 Enter programming mode 15

5.4 Program a transmitter in modes 1, 2, 5, 8 or 9 16

5.5 Delete a transmitter 17

5.6 Delete all transmitters 18

5.7 Program a door address in modes 3 or 4 19

5.7.1 Programming in modes 6 or 7 19

6 Operation 20

6.1 Standby mode 20

4en | Table of Contents LE80 Radio Receiver

LE80_UM_EN_V1.1_2021.12 User Manual TeleAlarm

6.1.1 Standby with no transmitter programmed 20

6.1.2 Standby with at least one transmitter programmed 20

6.2 Normal mode (modes 1 and 2) 20

6.2.1 Activation of a transmitter in normal mode 20

6.3 Dementia (mode 3) 21

6.3.1 Activation of a S37L Wristband Transmitter 21

6.3.2 Detection of a S37E Wristband Transmitter alone 22

6.3.3 Detection of a S37L Wristband Transmitter with a S37E

Wristband Transmitter nearby 22

6.4 Dementia with Accompany (mode 4) 23

6.4.1 Activation of a S37L Wristband Transmitter 23

6.5 Remote control (mode 5) 23

6.5.1 Activation of a programmed transmitter 23

6.5.2 Activation of a programmed transmitter with a battery-low

message or with a new battery 24

6.6 Open receiver (modes 6 and 7) 24

6.6.1 Activation of a transmitter in the reception range 24

6.7 Daily messages in modes 1, 2 or 5 25

6.7.1 Daily message with battery-low signal 25

6.7.2 Reset of a battery-low indication with button T1 25

6.8 Extended N46 (mode 8 from SW 1.10 on) 25

6.9 Dual channel receiver (mode 9 from SW 1.10 on) 26

7 Maintenance 28

7.1 Cleaning 28

7.2 Storage 28

7.2.1 Short term storage conditions 28

7.2.2 Long term storage conditions 28

7.3 Disposal 28

8 Technical data 29

LE80 Radio Receiver Safety instructions | en 5

TeleAlarm User Manual LE80_UM_EN_V1.1_2021.12

1 Safety instructions

1.1 General safety instructions

Installation and initial operation should only be carried out

by trained service personnel.

1.2 Environmental conditions

The LE80 Radio Receiver must not be located near a water

tap or any other source of water. The electrical safety of the

LE80 Radio Receiver is only guaranteed if the electrical

installation is in accordance with the national regulations

and if this installation works properly. The LE80 Radio

Receiver may not be used in buildings prone to fire and

explosion hazards.

The LE80 Radio Receiver may not be used under exposure

to direct sunlight, to heat, to dust or to an excessive humidity

(only use the equipment in a clean environment).

Connect the power adapter in a power outlet near the unit.

Make sure that it remains easily accessible.

1.3 Electrostatic Discharge (ESD)

WARNING!

The LE80 Radio Receiver contains highly sensitive electronic

components. It should be opened only in an ESD protected

environment with respect to the following precautions.

Discharge yourself from electrostatic loads by touching a

grounded conductive surface before opening the unit. Avoid

touching conductive parts inside the LE80 Radio Receiver if

not absolutely necessary.

6 en | Product information LE80 Radio Receiver

LE80_UM_EN_V1.1_2021.12 User Manual TeleAlarm

2 Product information

2.1 General description

The LE80 Radio Receiver is designed to receive radio signals

from different TeleAlarm radio transmitters at the frequency

of 868.8 MHz. After receiving radio signals from either

programmed or not programmed wireless transmitters, the

LE80 Radio Receiver reacts by switching relay outputs of

two relays and by activating its two multi-colors LEDs. The

radio network works bidirectionaly, improving radio

transmission reliability.

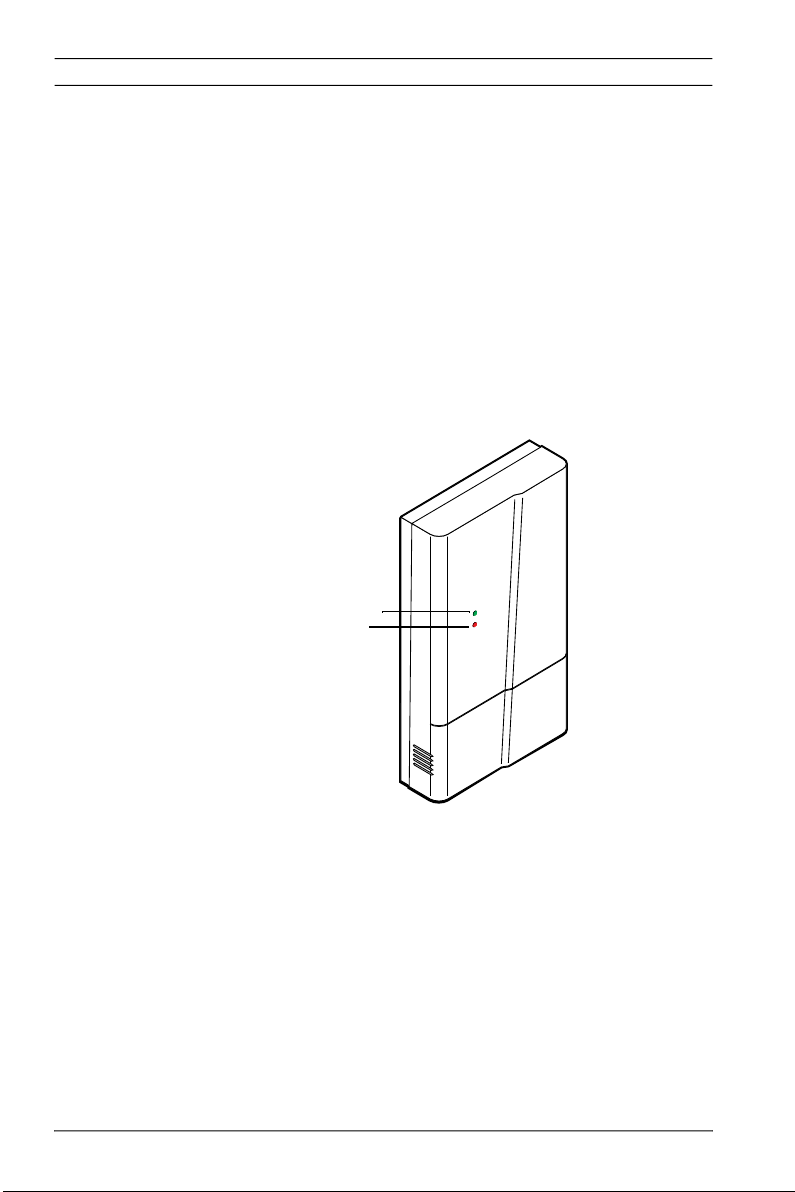

Figure 2.1 Front view of the LE80 Radio Receiver

2.2 Compatible transmitters

All of the following TeleAlarm wireless transmitters are

compatible with the LE80 Radio Receiver:

– S87 Wristband Transmitters

– S87L Wristband Transmitters with Locating function

– B80A Wristband Transmitters with Accompany

function

– S85 Pendant Transmitters

LED 1 (green)

LED 2 (red)

LE80 Radio Receiver Product information | en 7

TeleAlarm User Manual LE80_UM_EN_V1.1_2021.12

– RAC80 Wireless Contact

– UPCBA80 Universal Transmitter

– N86 Wall Transmitters

– All TA 868.8 MHz peripherals, like smoke detector and

other accessories

2.3 Main applications

2.3.1 LE80 Radio Receiver as a small stand-alone call

system

After receiving a radio signal from a programmed radio

transmitter, the relay output switches can be used to switch

a siren or a lamp to indicate locally a wireless call.

2.3.2 LE80 Radio Receiver connected to a nurse call

system via relay contact

After receiving a radio signal from a programmed radio

transmitter, the relay will be switched. This relay output is

connected to a wired nurse call system by wire and hereby a

call will be generated or forwarded.

2.3.3 LE80 Radio Receiver as part of a NurseCall

dementia system

After receiving a signal from a S87L transmitter, the relay

will be activated to close a monitored door or passage, or to

generate a call on a wired system.

8 en | Product information LE80 Radio Receiver

LE80_UM_EN_V1.1_2021.12 User Manual TeleAlarm

2.4 Description of the different modes

Mode Name Description

1 Normal (default

mode)

20 wireless transmitters can be

programmed. Calls are indicated by LED 2

and Relay 1. A battery-low signal is

indicated by LED 2 and Relay 2.

Additionally, the custom output provides

predefined voltages for four different

predefined calls.

2 LED 2 deactivated

at battery-low

indication

The same functions as in mode 1 are

available, except for the battery-low signal

which is not indicated by LED 2, but only by

Relay 2. Additionally, the custom output

provides predefined voltages for four

different predefined calls.

3 Dementia S87L and B80A wireless transmitters are

detected. Relay 1 can be used to lock a

monitored door. Relay 2 can be used to

interrupt a monitoring device.

4 Dementia with

Accompany

This mode allows the LE80 Radio Receiver

to be connected to a wired NurseCall

system, in which the Accompany function

can be implemented. It will wait 10 seconds

after receiving a signal from a S87L

transmitter. If it detects an B80A

transmitter in this lapse of time, then no

alarm is generated. If not, then Relay 1 is

activated for 2 seconds.

5 Remote control 20 wireless transmitters can be

programmed. Per sequence, only the same

transmitter can switch on and off the Relay1.

A battery-low signal is indicated by LED 2

and Relay 2.

LE80 Radio Receiver Product information | en 9

TeleAlarm User Manual LE80_UM_EN_V1.1_2021.12

6 Open receiver No wireless transmitter needs to be

programmed. Any transmitter within

reception range of the LE80 Radio Receiver

can activate the device.

7 Open receiver with

door number

Same functions as in mode 6, but with door

position transmission. Any transmitter

within reception range of the LE80 Radio

Receiver will activate the device, but only if

the LE80 receives a datagram (at the

exception of a dementia) which contains the

door number.

8 Unique N86

transmitter

behavior

Behavior is similar to normal mode 1, with

certain differences according to the

transmitter or call type that is activated.

Triggering an alarm on a programmed N86

transmitters will activate the Relay 1 for

max. 20 min. The 20 min. cycle can be

interrupted by the acknowledgment

function of the same N86.

The Call type "Assistance" from a

programmed transmitter in repetition mode

will produce the same effect as a programed

N86. Also in this case the 20 min. cycle can

be interrupted by the acknowledgment

function of the same transmitter.

9 Dual channel

receiver

All TeleAlarm wireless transmitters can be

programmed. Calls are indicated by Relay 1

or Relay 2, according to the slot in which the

wireless transmitter is programmed. A

battery-low signal is indicated by the red

LED.

Mode Name Description

10 en | Product information LE80 Radio Receiver

LE80_UM_EN_V1.1_2021.12 User Manual TeleAlarm

NOTICE!

Factory setting is normal mode 8, in which 20 wireless

transmitters can be programmed. Calls are indicated by the

LED 2 and Relay 1. A battery-low signal is indicated by the

LED 2 and Relay 2.
