Kd frames Studio Bifold Queen 7721 Bedienungsanleitung

PARTS

Instructions for

Studio Bifold

Queen #7721

Use a small hammer to tap

Wood Dowels (H-11) all the

way into holes as shown.

Manufactured by:

(2) K-62 SEAT SLAT- 76”

(2) K-2 SEAT RAIL- 37”

(7) K-64 MIDDLE SLAT - 72”

K-6L BACK LEG (Left) (1) K-6R BACK LEG (Right) (1)

K-2 SEAT RAIL (2)

K-65

K-4

H-19

(2) K-15 SEAT SLAT CAP - 20”

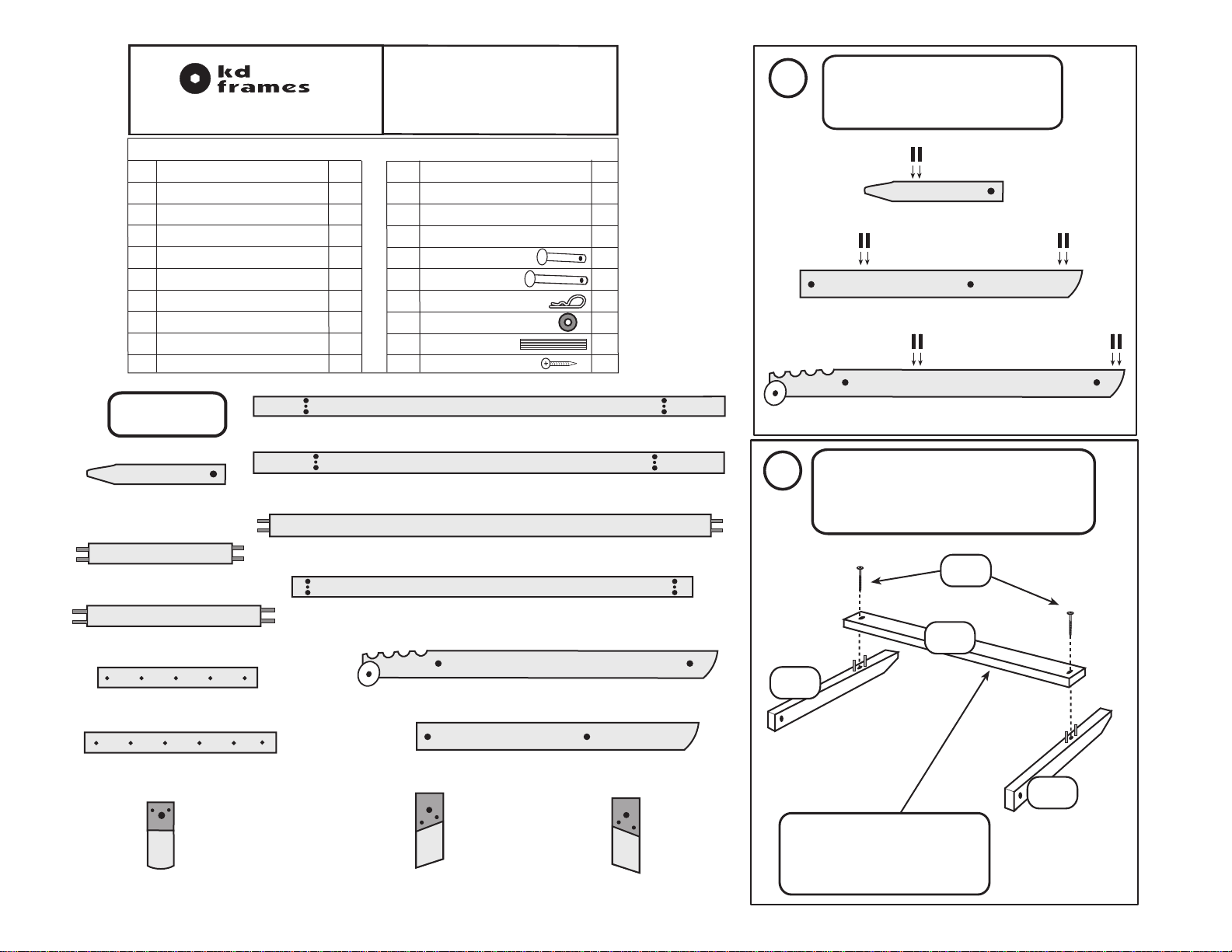

PARTS LIST

BACK RAIL

K-41 2

K-2 2

SEAT RAIL

PROP

K-4

K-65 1

PROP CONNECTOR

H-6

WASHER

K-64

MIDDLE SLATS

H-11

WOOD DOWEL

H-19

1-1/2” SCREW

K-6

BACK LEG (Left and Right)

K-7

SEAT LEG

K-62

SEAT SLATS

K-15

20” SEAT SLAT CAPS

K-61

BACK SLATS

(2) K-7 SEAT LEG - 9”

(2) K-61 BACK SLAT - 76”

(1) K-65 PROP CONNECTOR - 60”

K-4 PROP (2)

K-41 BACK RAIL (2)

(2) K-4 PROP - 15”

(2) K-41 BACK RAIL- 34”

Press the Prop Connector (K-65)

onto the Wood Dowels on the

Props (K-4) and attach with

1-1/2” Screws (H-19).

K-10

SEAT SLAT SUPPORTS

(1) K-10 SEAT SLAT SUPPORT - 24”

K-4

NOTE:

The Prop Connector (K-65)

shown above is shortened

to save space.

K-18

BACK SLAT SUPPORTS

(1) K-18 BACK SLAT SUPPORT - 29”

(2) K-18 BACK SLAT CAP- 25”

K-18

25” BACK SLAT CAPS

H-8 2-1/4” CLEVIS PIN

H-5 HAIR PIN

H-12 3” CLEVIS PIN

394 Dairy Pak Rd. •Athens, GA 30607

kdframes.com • [email protected]

v. 309

K-6L

K-6R

H-12

H-8

Be sure that the Prop

Connector goes below

the Back Rails.

H-6

K-41H-5

Be sure that the Props

are on the inside of the

Back Rails.

Be sure that the Prop

Connector

is below the

Back Rails.

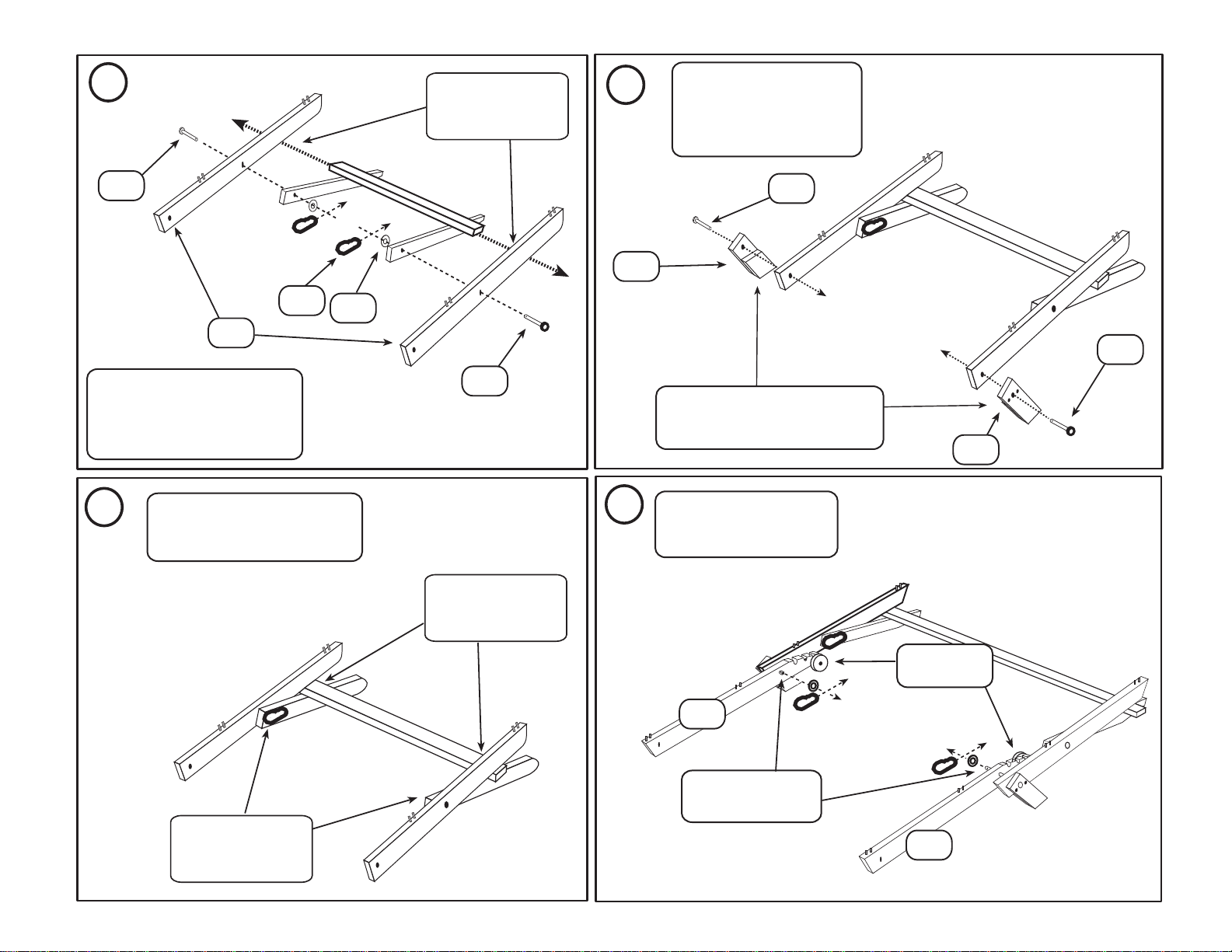

Attach the Left and Right

Back Legs (K-6) to the

outside of the Back Rails using

the 3” Cevis Pins (H-12).

Do not put on the Washers

and Hair Pins at this time.

Place the Seat Rails (K-2)

onto the 3” Clevis Pins and

secure with Washers (H-6)

and Hair Pins (H-5).

Attach the Back Rails (K-41) to the

outside of the PropAssembly.

Let the PropAssembly swing down

so that the Prop Connector can go

below the Back Rails.

Please double-check your work at

this time. Any error in this assembly

will cause serious problems later.

K-2

Make sure that the cut-away part of

the Back Legs face in so that they

will support the Back Rails.

K-2

Now put the Washers

and Hair Pins on the

3” Clevis Pins.

H-8

Wheels must

face toward

the inside.

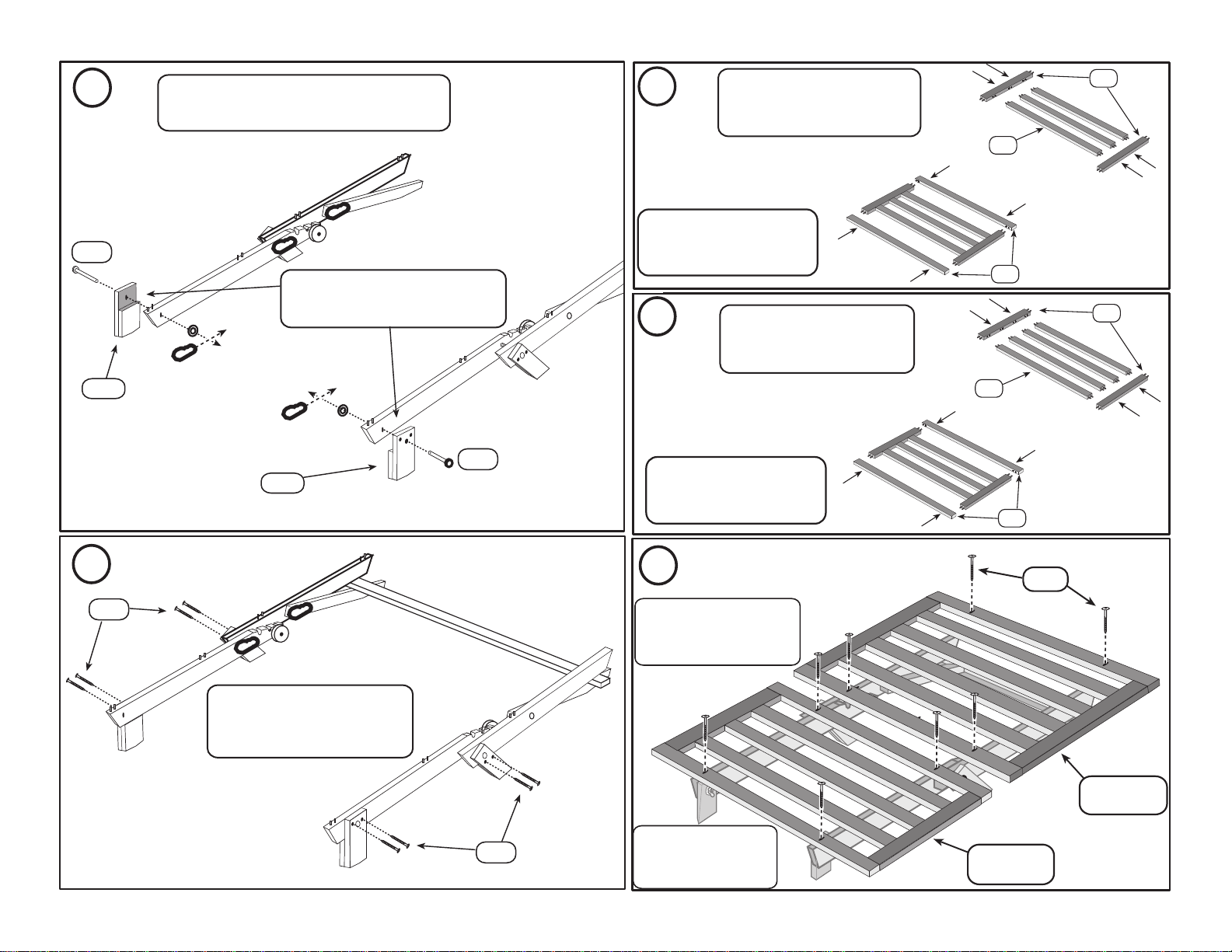

Using (4) Middle Slats (K-64)

push the Wood Dowels

into the edge holes on

(2) Back Slat Caps (K-18).

Findthe(2)BackSlats(K-61)

andpushthemontothe

WoodDowelsontheSlatCaps.

K-61

Back

Slat Deck

Seat

Slat Deck

Push the Slat Decks

down onto the Wood

Dowels and attach with

Wood Screws (H-19).

H-19

K-18

K-64

Note:

Wood Screws are

self-tapping and do

not need pilot holes.

Using (3) Middle Slats (K-64)

push the Wood Dowels

into the edge holes on

(2) Seat Slat Caps (K-15).

K-62

K-15

K-64

Secure Seat and Back Legs

with Wood Screws (H-19).

(Thesescrewsareself-tapping

and do not need pilot holes.)

H-8

K-7

Make sure that the cut-away part of

theSeatLegs (K-7)face insothat they

will support the Seat Rails.

Attach the Seat Legs (K-7) to the

Seat Rails using 2-1/4” Clevis Pins (H-8).

Secure with Washers (H-6) and Hair Pins (H-5).

H-19

Findthe(2)SeatSlats(K-62)

andpushthemontothe

WoodDowelsontheSlatCaps.

Knockdown Frameworks, Inc. warrants all of its products for five years against any defects that are due to faulty

materials or workmanship. We will promptly correct such defects by repair or replacement, at our option, without

charge. This warranty covers product defects only and will expire five years after date of purchase by the original

consumer purchaser, with proof of purchase required.

This warranty does not apply to damage caused by and resulting from misuse, neglect, accident, or improper

operation,maintenance,storage,transportation,orhandlingoftheproduct. Thiswarrantyisfortheoriginalconsumer

purchaser for residential use only and does not apply if the product is used in any commercial application (such

as rental property). This warranty does not cover any incidental or consequential damages. If you feel that you have

a claim under this warranty, please contact the store from which it was purchased. If this is not possible, call 800-

543-3393 for advice on handling your claim.

This futon frame is made with Tulip Poplar. Any green tint in the wood will change to light brown in a few weeks.

This will happen in 20 to 30 minutes if placed in direct sunlight. Tulip Poplar can be left unfinished, clear finished,

stained, or painted. I prefer the lighter stains over the darker ones because the wood is fairly porous. My favorite

is a clear finish with no stain. Satin polyurethane (oil or water based) works well.

Painting: It is best to start with an interior primer and lightly sand before painting.

Staining: Lightly sand before staining. Wipe stain on with a rag until you get the desired color. If you are going to

use a top coat (such as polyurethane), do not sand again until after the first coat, and then be careful not to sand

away the stain.

Finishing: All finishes work well with Tulip Poplar. A simple wax finish over stain (Minwax for example) is easy.

An oil finish such as Danish oil can be used. Or a clear top coat such as polyurethane works well to seal the wood.

With polyurethanes, the first coat acts as a sanding sealer. So you should lighty sand (180 - 220 grit sandpaper)

after the first coat, wipe the wood clean, and then build up coats for the desired effect.

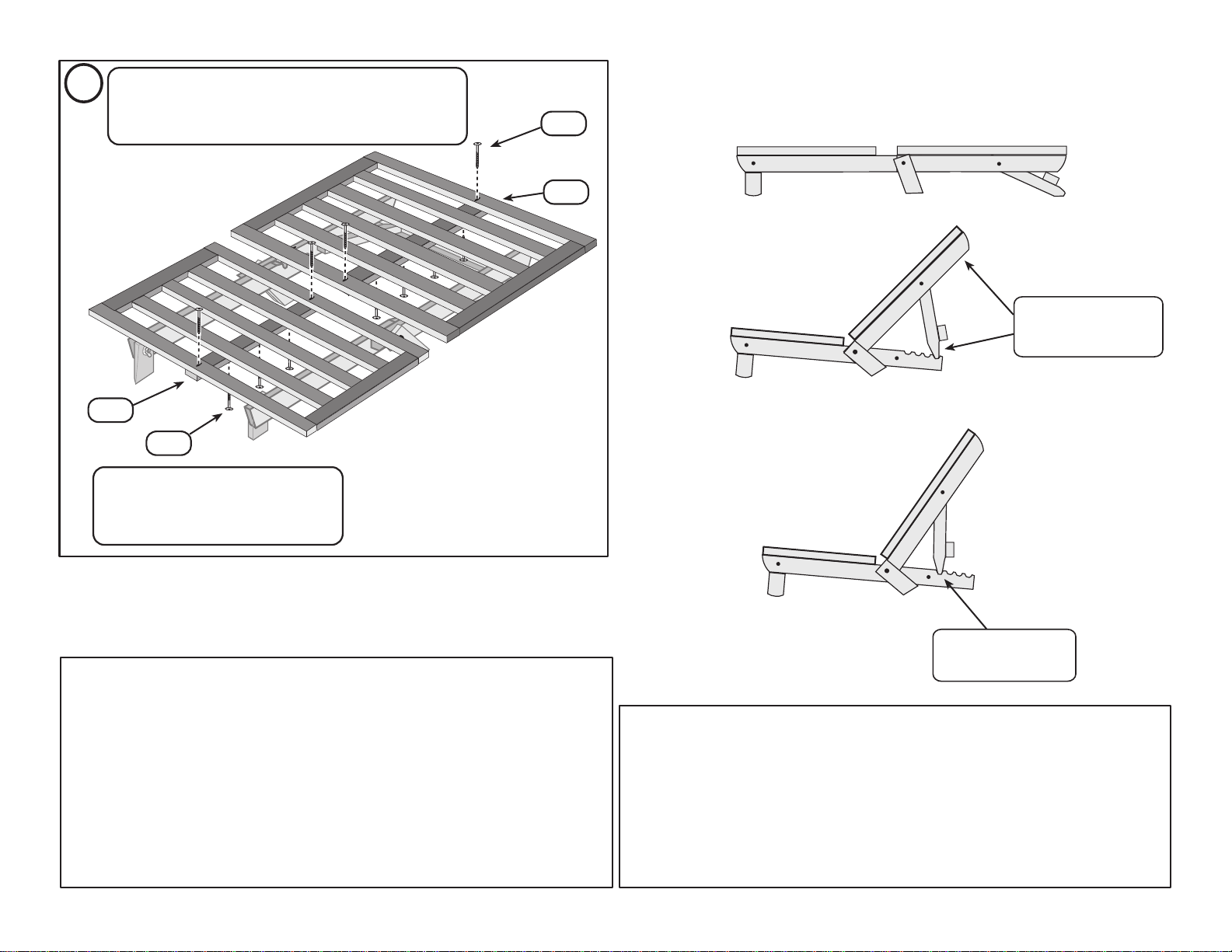

Operation:

Bed position:

Sofa position:

Lift up Back and swing

down Prop onto

notches on Seat Rail.

Adjust Back to a

comfortable position.

Sofa position:

Attach the Seat Slat Support (K-10) under the Seat Deck

and the Back Slat Support (K-18) under the Back Deck by

screwing (4) Wood Screws (H-19) down through the Slats

and into holes provided in the Slat Supports.

H-19

Then turn frame over and screw

(7) Wood Screws (H-19) through the

Slat Supports and into the Middle Slats.

(These are self-tapping screws so

no pilot holes are needed.)

H-19

K-18

K-10
