Kendal Lighting AC-23960 Bedienungsanleitung

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

CETL LISTED MODEL: BF840

Weight of Fan: 6.6 Kgs

Kendal Lighting (BC) Inc.

#110, 6780 Dennett Place

Delta, BC V4G 1N4

Canada

Tel: (604) 952-5510

Fax: (604) 952-5513

Model: AC-23960

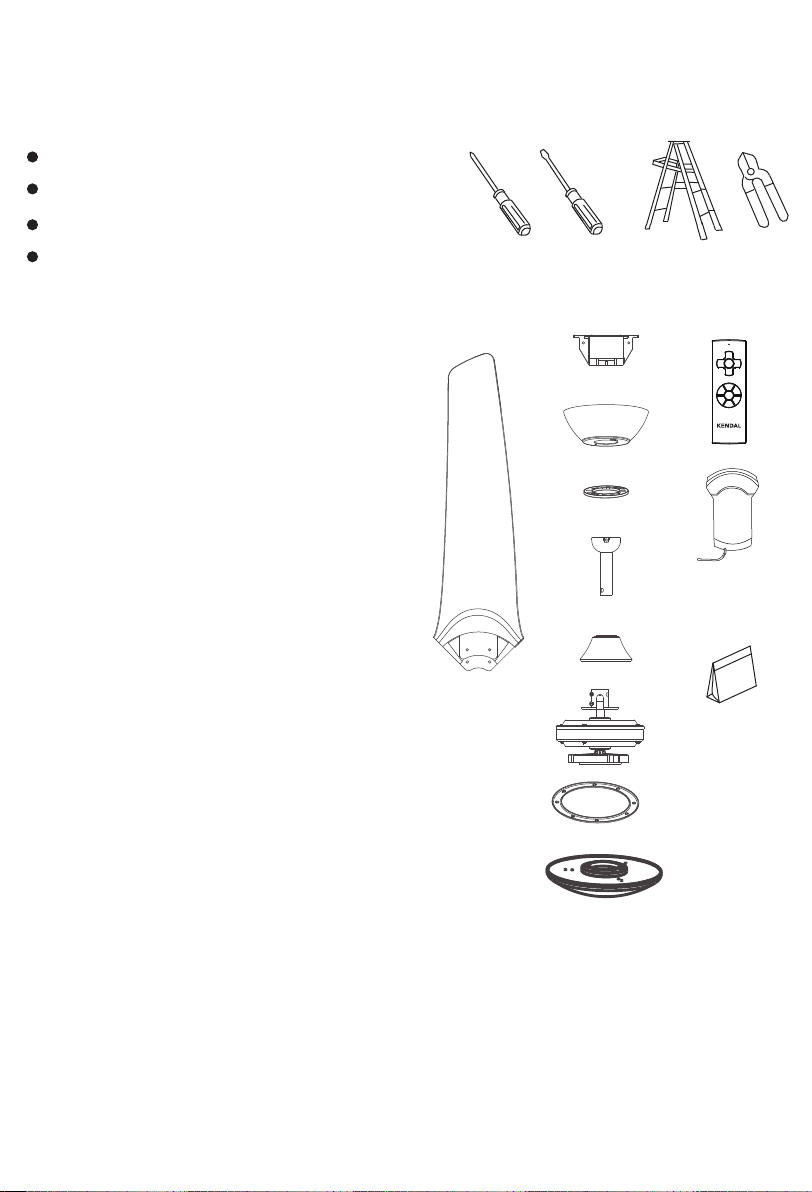

2. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Blade set (4)

b. Hanger bracket

c. Canopy

d. Canopy cover

e. Downrod assembly

f. Coupling cover

g. Fan motor assembly

h. Flywheel

i. LED light kit

j. Transmitter assembly

k. Receiver

l. Package hardware

Mounting hardware:

- 2 Wood screws

- 2 Lock washers

- 2 Washers

- 1 Blade screw (extra)

- 1 Flywheel screw (extra)

Philips screw driver

Blade screw driver

Step ladder

Wire cutters

1. TOOLS AND MATERIALS

REQUIRED

3. SAFETY RULES

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of shock,

this fan must be installed with an isolating

wall control/switch.

4. WARNING: To reduce the risk of fire,

electric shock, or other personal injury,

mount fan only on an outlet box or

supporting system marked acceptable for

fan support of 35 lbs (15.9 kg) or less and

use mounting screws provided with the

outlet box. Most outlet boxes commonly

used for the support of lighting fixtures are

not acceptable for fan support and may

need to be replaced. Consult a qualified

electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. For fans with manual reverse, do not

operate reversing switch while fan blades

are in motion. Fan must be turned off and

blades stopped before reversing blade

direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the grounded conductor and

the equipment-grounding conductor on

one side of the outlet box.

12. Electrical diagrams are reference only.

Light kit that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS

If there isn't an existing CUL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

Outlet box

Provide strong

support

Recessed

outlet box

Ceiling

mounting

plate

Outlet box

Figure 1

Figure 3

Figure 4

Outlet box

Figure 2

Angled ceiling

maximum

20 angle

Figure 7

Slot

5. HANGING THE FAN

Figure 5

Figure 6

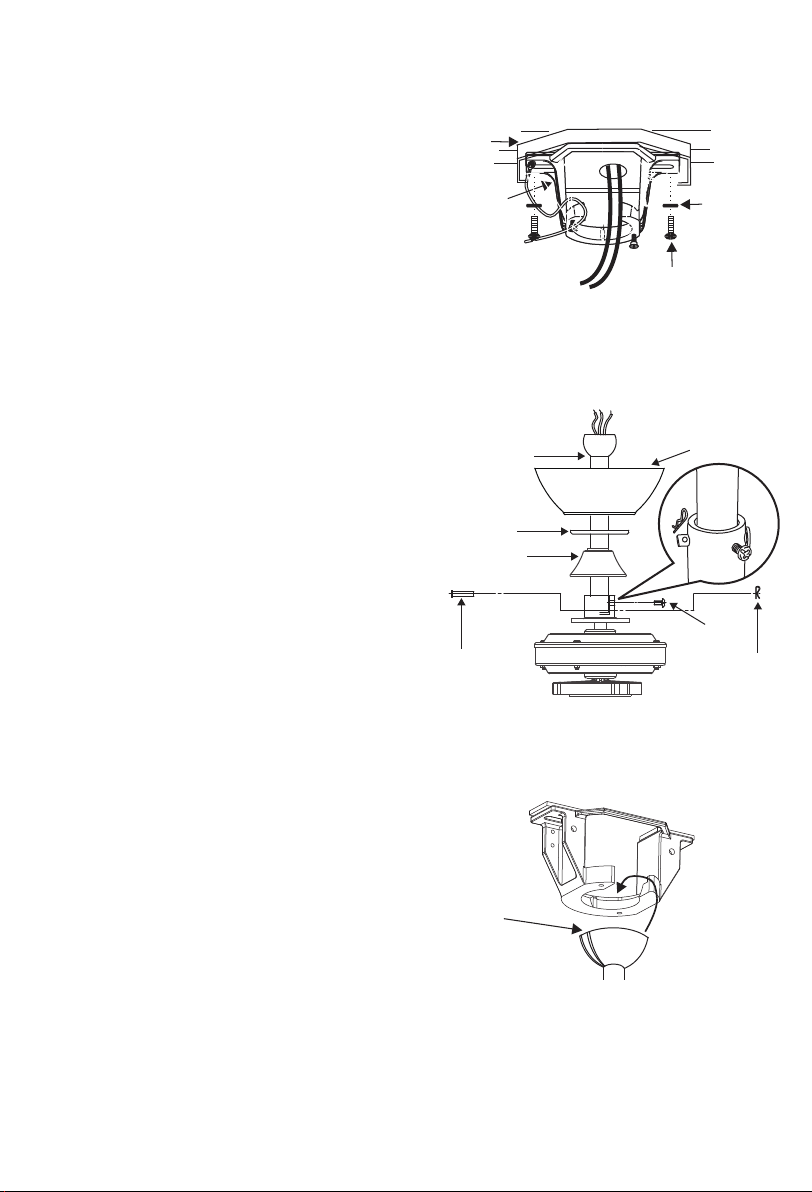

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Pass the 120-volt supply wires through

the center hole in the ceiling hanger bracket as

shown in Fig. 5.

Step 2. Secure the hanger bracket to the

ceiling outlet box with the screws and washers

provided.

Step 3. Remove the hanger pin, locking pin

from the downrod assembly, and remove the

set screws from the top of the motor. (Fig. 6) Step 4. Route wires exiting from the top of the

fan motor through the couping cover, canopy

cover and canopy, then through the ball/

downrod. (Fig. 6)

Step 5. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig. 6). Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin against

the wiring inside the downrod. Insert the

locking pin through the hole near the end of

the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

Step 6. Tighten two set screws against the

downrod on top of the fan motor firmly.

(Fig. 6)

Step 7. Place the downrod ball into the hanger

bracket socket. (Fig. 7) And rotate fan and

downrod assembly until tab on bracket lines

up with slot on ball.

Downrod

Canopy

Set screws

Locking

Hanger pin

Coupling cover

Canopy cover

Mounting screws

Hanger

bracket

CUL Listed

electrial

box

120V Wires

Washers

6. MAKE THE ELECTRIC

CONNECTIONS

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

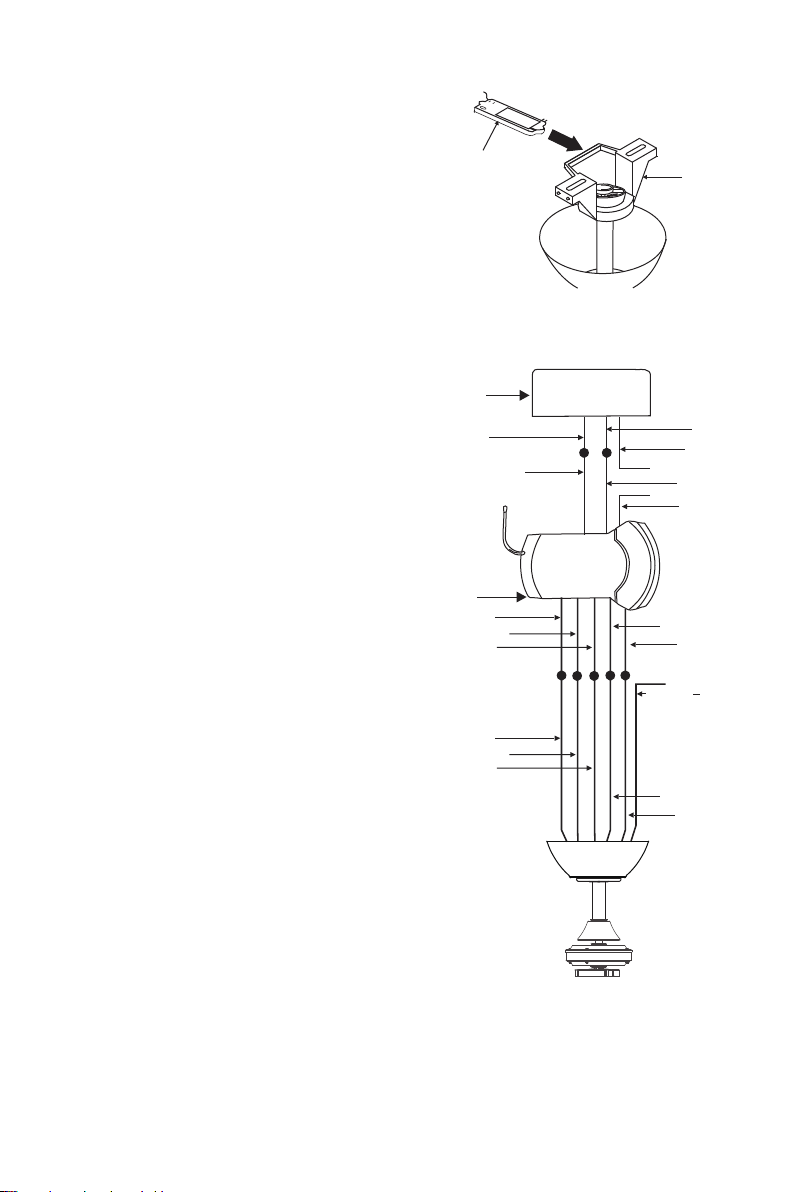

Step 1. (Fig. 8) Insert the receiver into the

hanger bracket with the flat side of the receiver

facing the ceiling.

Figure 9

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Blue ("For Light")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Red

Yellow

Gray

Receiver

Red

Yellow

Gray

White ("For Light")

Blue ("For Light")

White ("For Light")

Ground

(green)

Figure 8

Receiver

Hanger

bracket

Step 2. (Fig. 9) Motor to Receiver Electrical

Connections: Connect the Red wire from the

fan to Red wire from the receiver. Connect

the Yellow wire from the fan to the Yellow

wire from the receiver. Connect the Gray

wire from the fan to the Gray wire from the

receiver. Connect the Blue wire from the fan

to the Blue wire marked "For Light" from the

receiver. Connect the White wire from the

fan to the White wire marked "For Light" from

the receiver. Secure wire connections with

the plastic wire nuts provided.

Step 3. (Fig. 9) Receiver to House Supply

Wires Electrical Connections: Connect the

Black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white (neutral) wire from the

ceiling to the white wire marked "AC in N"

from the Receiver. Secure the wire connec-

tions with the plastic wire nuts provided.

Step 4. (Figure 9) If your outlet box has a

ground wire (green or bare copper) connect

it to the fan ground wires and the receiver

ground wire; otherwise connect the hanging

bracket ground wire to the fan and the

receiver ground wire. Secure the wire

connection with a plastic nut provided. After

connecting the wires, spread them apart so

that the green and white wires are on one

side of the outlet box and other wires are on

the other side. Carefully tuck the wire

connections up into the outlet box.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit

for proper signal transmission between the

transmitting unit and the fan's receiving unit.

7. INSTALLATION OF

SAFETY SUPPORT

8. FINISHING THE

INSTALLATION

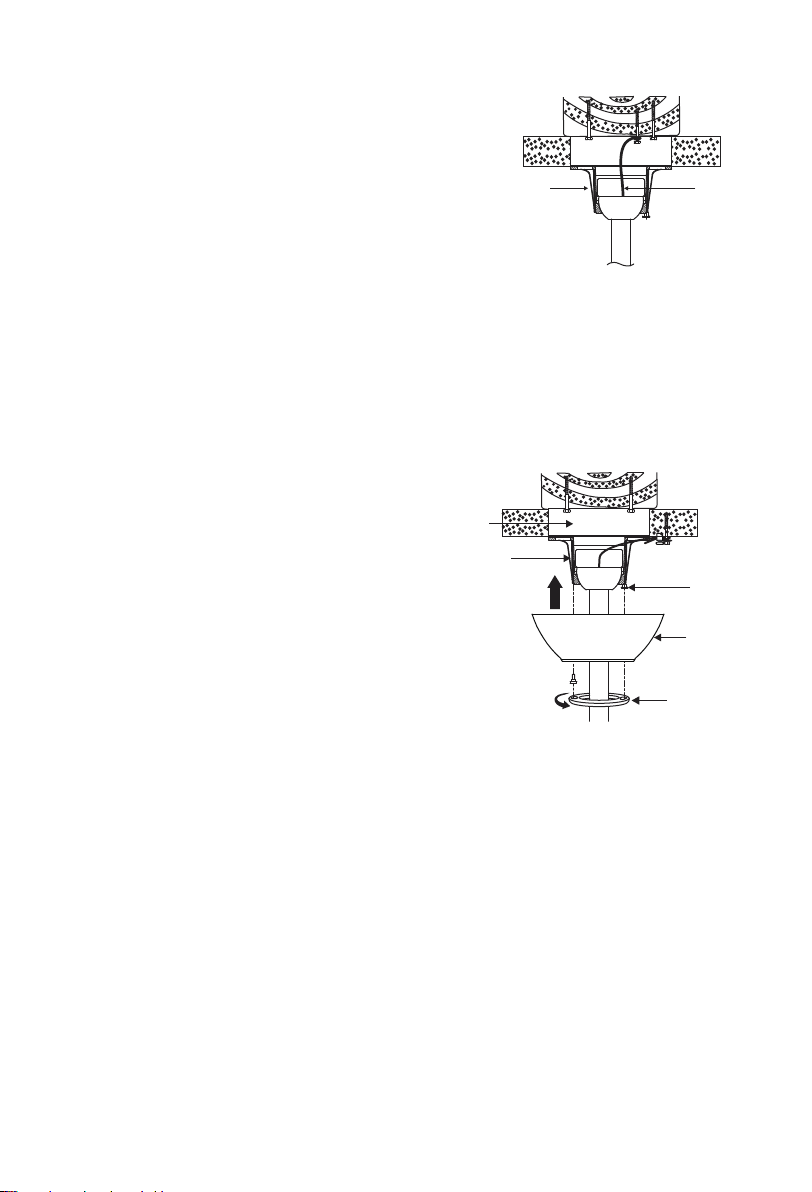

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to hanger bracket

and place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until

it locks in place at the narrow section of the

key holes. (Fig.11)

Step 3. Align the circular hole on canopy with

the remaining hole on the hanger bracket,

secure by tightening the two screws.

Note: Adjust the canopy screws as necessary

until the canopy and canopy cover are snug.

WARNING: Make sure tab at bottom of

hanger bracket is properly seated in groove of

hanger ball before attaching canopy to

bracket. Failure to properly seat tab in groove

could cause damage to electrical wiring.

Figure 10

Figure 11

Outlet box

Hanger

bracket

Canopy

Canopy cover

Screws

Hanger bracket Safety cable

An additional safety cable is provided to prevent

the fan from falling. Secure the safety cable to

the ceiling joist with screw and washer, as

illustrated in Figure 10.

9. ATTACHING THE FAN

BLADES

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Blade screws

Blade

screws

Blade

Flywheel screws

Flywheel

Fan motor

assembly

Fan motor

assembly

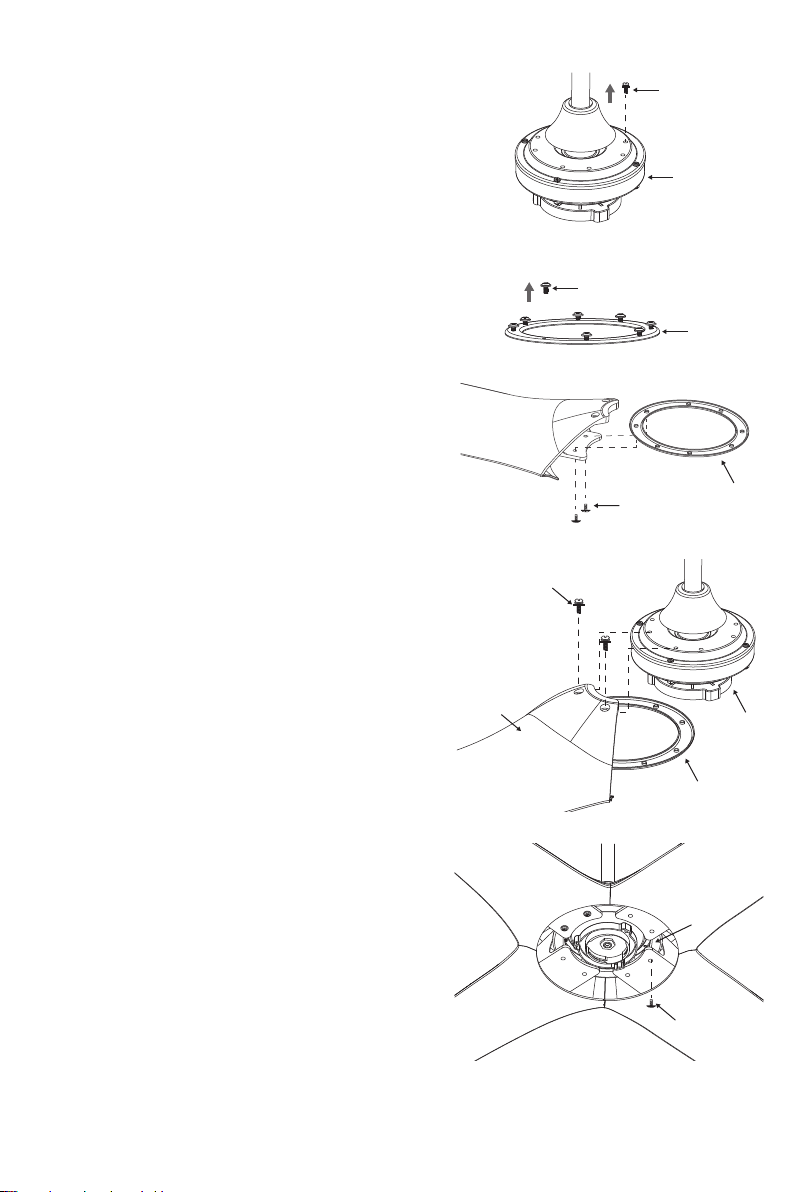

Step 1. Remove the eight blade screws from

the fan motor assembly. (Fig. 12)

Step 2. Remove the eight flywheel screws

from the flywheel. (Fig. 13)

Step 3. Attach the flywheel to one of the four

blades using two flywheel screws. (Fig. 14)

Step 4. Attach the blade with the flywheel to

the fan motor assembly using two blade

screws. Attach the other blades to the fan

motor assembly. (Fig. 15)

Step 5. Reinstall the six flywheel screws to the

flywheel. (Fig. 16)

10. ATTACHING THE LED

LIGHT KIT

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

Figure 17

Wire connectors Switch box

LED light kit

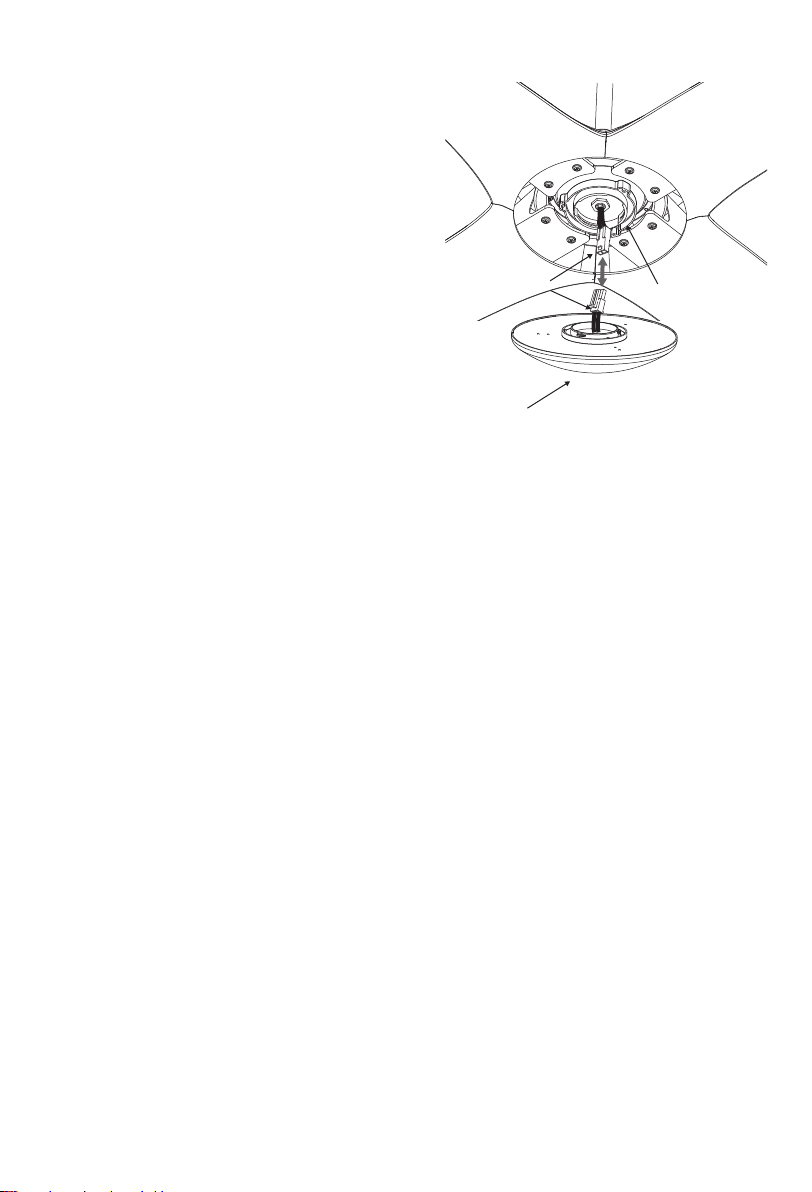

Step 1. While holding the LED light kit under your

fan, firmly snap the wire connection plugs

together.

Step 2. Attach the LED light kit to the switch box

by twisting left tightly.

Note: This is an integrated LED light kit assembly

and should not be disassembled to prevent

electric shock.

Figure 18

Figure 19

Figure 20

11. INSTALLING THE

BATTERY

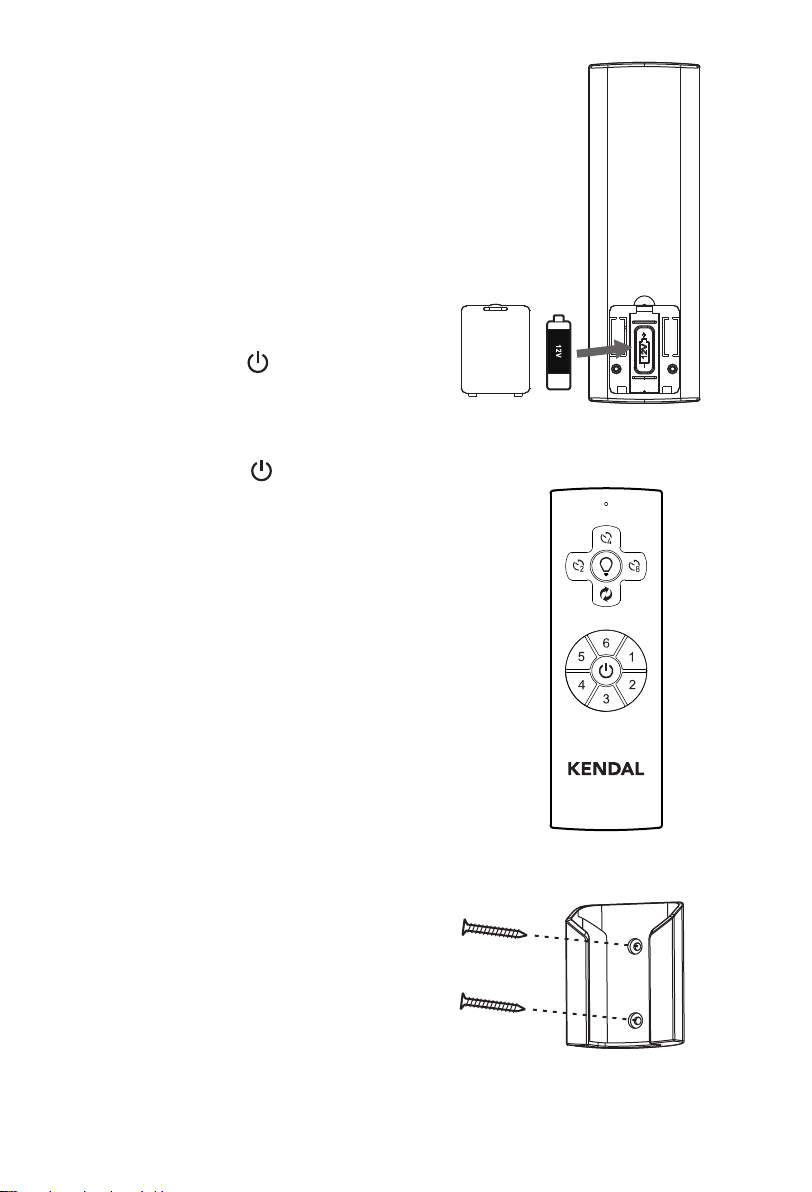

Remove the back cover on the transmitter and

install a 12V battery included with the remote

control. (Fig. 18)

Turn main power to the fan off and repeat

learning process above using the new remote.

13. INSTALLING THE

TRANSMITTER HOLDER

12. LEARNING PROCESS

12a. ADDING EXTRA REMOTE

(OPTIONAL)

NOTE: After turning the AC power back on, do

not press any other button on the remote

control before pressing the button. Doing

so will cause the learning procedure to fail

and the power to the fan will have to be turned

off again to start over.

Turn main power to fan back on and within 30

seconds press and hold the button on the

remote for 5 seconds to sync the transmitter to

the fan.

Once the fan has detected the remote, the

light on the fan will blink twice to indicate your

fan is now ready to use.

Fans without light-kits have no indicator but

will be ready to use after holding the button for

the 5 seconds.

Attach the remote control holder with the two

remote control holder mounting screws.

(Fig.20)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kendal Lighting Lüfter Handbücher

Kendal Lighting

Kendal Lighting AC-21454 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-22452 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-19544 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-20644 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-21852 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-21560 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-30552 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-21750 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-22160 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-19752 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-30952 Bedienungsanleitung

Kendal Lighting

Kendal Lighting Lopro KENAC21352SN Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-20152 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-20070 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-20244 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-30052 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-22552 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-24246 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-30152 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC11152P-ORB/WN Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-24144 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-23856 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-22656 Bedienungsanleitung

Kendal Lighting

Kendal Lighting AC-19242 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
