Kenmore 596.76502500 Bedienungsanleitung

Botto_ Freezer Refrigerator

"'trio

596.76502500

596.76512500

596.76503500

596.76513500

596.76504500

596.76514500

596.76509500

596.76519500

Part No, 12828130 Sears, Roebuck and Co, Hoffman Estates, ]L 60179 U.S,A_ wt_w,sears_com

Form No A/02/05 Seals Canada, h_c_ Toronto Ontario, Canada M5B 2B8 Au Canada, www.sears,ca

Litho U.S.A

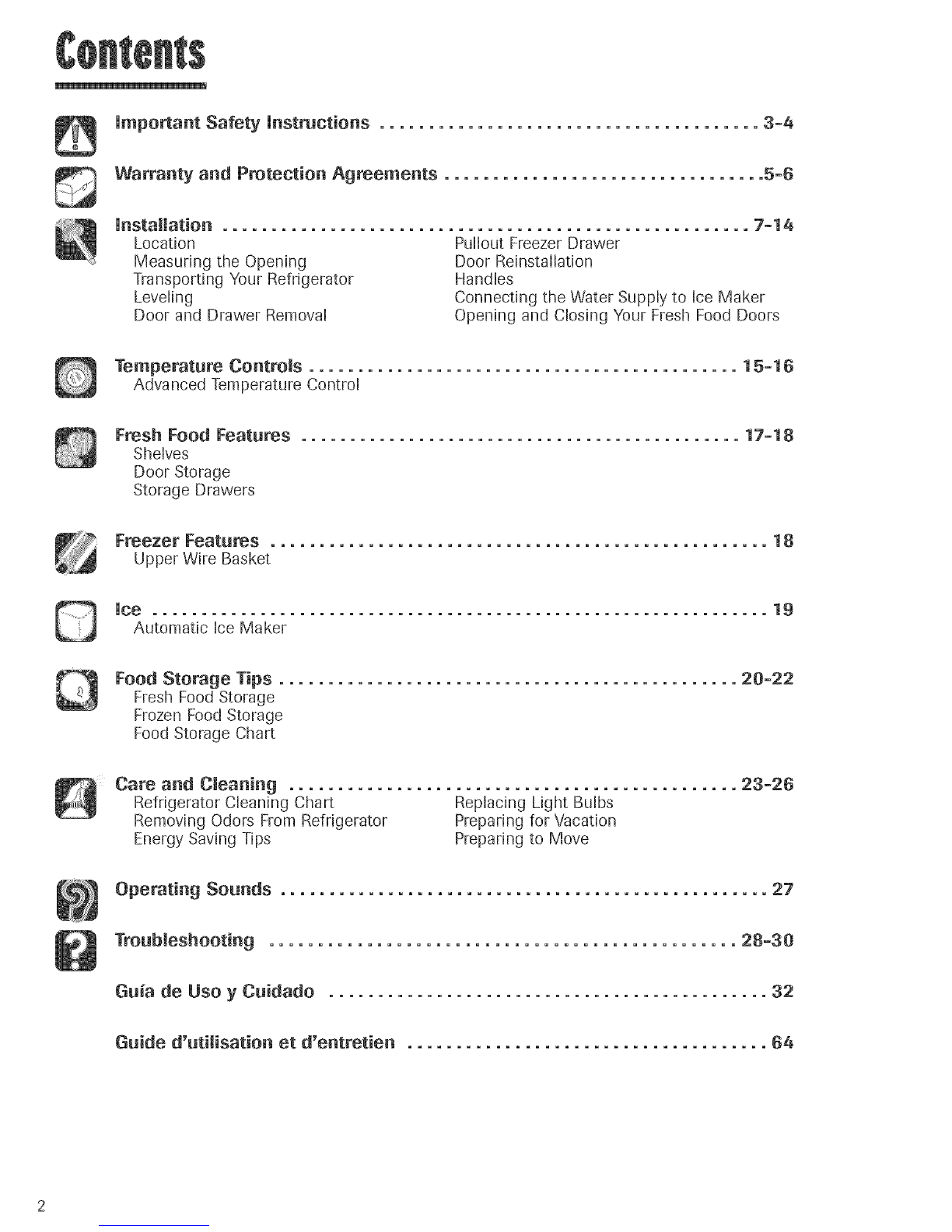

installation ...................................................... 7-14

Location Pullout Freezer Drawer

Measuring the Opening Door ReinstaJJation

Transporting Your Refrigerator Handles

Leveling Connecting the Water Supply to Ice Maker

Door and Drawer Removal Opening and Closing Your Fresh Food Doors

Temperature Controms ............................................ 15-16

Advanced Temperature Control

Fresh Food Features

Shelves

Door Storage

Storage Drawers

............................................. 17-18

Ice ............................................................... 19

Automatic Ice Maker

Food Storage Tips ............................................... 20-22

Fresh Food Storage

Frozen Food Storage

Food Storage Chart

Care and CJeaning .............................................. 23-26

Refrigerator Cleaning Chart Replacing Light Bulbs

Removing Odors From Refrigerator Preparing for Vacation

Energy Saving Tips Preparing to Move

Unstaller: Please leave this guide with this appliance.

Consumer: Please read and keep this Use & Care

Guide for future reference, it provides the proper use

and maintenance information.

In our continuing effort to improve the quality and

performance of our appliances, it may be necessary

to make changes to the appliance without revising

this guide.

What You Need to Know About

Safety instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact your manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbeis, Words,

Labels

DANGER _Immediate hazards which WH.[. result

in severe personal inuL_Z or death.

WARNUNG - Hazards or unsafe practices which

COULD result in severe #ersonal inujuryor death.

To reduce risk of injury or death, follow basic

precautions, including the following:

UMPORTANT: Child entrapment and suffocation

are not problems of the past. Junked or abandoned

refrigerators are still dangerous - even if they sit out

for "just a few days." If you are getting rid of your old

refrigerator, please follow the instructions below to

help prevent accidents.

Before you throw away your old

refrigerator or freezer:

Take off the doors.

Leave the shelves in place in

the refrigerator so children

may not easily climb inside.

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground} prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

CA[MON - Hazards or unsafe practices which COULD

result in minor personal injury or property damage.

Grounding type

wall receptacle

To reduce risk of fire, electric shock, serious 13.

injury or death when using your refrigerator,

follow these basic precautions:

1. Read all instructions before using the refrigerator. 14.

2. Observe all local codes and ordinances.

3. Be sure to follow grounding instructions.

4. Check with a qualified electrician if you are not

sure this appliance is properly grounded. 15.

5. Do not ground to a gas line.

6. Do not ground to a cold-water pipe.

7. Refrigerator is designed to operate on a separate

115 volt, 15 amp., 60 cycle line. 16.

8. Do not modify plug on power cord. If plug does 1Z

not fit electrical outlet, have proper outlet installed

by a qualified electrician.

9. Do not use a two-prong adapter, extension cord 18.

or power strip.

10. Do not remove warning tag from power cord. 19.

11. Do not tamper with refrigerator controls.

12. Do not service or replace any part of refrigerator 20.

unless specifically recommended in Use & Care

Guide or published user-repair instructions. Do

not attempt service if instructions are not under-

stood or if they are beyond personal skill level.

Always disconnect refrigerator from electrical

supply before attempting any service. Disconnect

power cord by grasping the plug, not the cord.

Install refrigerator according to Installation

Instructions. All connections for water, electrical

power and grounding must comply with local

codes and be made by licensed personnel when

required.

Keep your refrigerator in good condition. Bumping

or dropping refrigerator can damage refrigerator

or cause refrigerator to malfunction or leak. If

damage occurs, have refrigerator checked by

qualified service technician.

Replace worn power cords and/or loose plugs.

Always read and follow manufacturer's storage

and ideal environment instructions for items being

stored in refrigerator.

Your refrigerator should not be operated in the

presence of explosive fumes.

Children should not climb, hang or stand on any

part of the refrigerator.

Clean up spills or water leakage associated with

water installation.

SAVE TH ESE l NSTRUCTIONS

One Year Full Warranty on Refrigerator

For one year from the date of purchase, when this

refrigerator is operated and maintained according to

the instructions supplied with it, Sears will repair this

refrigerator, free of charge, if defective in material or

workmanship. This one year time period does not

include the refrigerator water filter cartridge

(if equipped}, whbh is an expendable part warranted

for only 30 days (see below}.

Five Year Full Warranty on Sea_ed

Refrigeration System

For five years from the date of purchase, when this

refrigerator is operated and maintained according to

instructions supplied with it, Sears will repair the

sealed system (consisting of refrigerant, connecting

tubing and compresso0 free of charge, if defective in

material or workmanship.

30 Day Full Warranty on Water FHter

Cartridge (if equipped}

For thirty days from the date of purchase, Sears will

replace the refrigerator water filter cartridge if it is

defective in material or workmanship.

All above warranty coverage applies only to

refrigerators which are used for storage of food for

private household purposes.

Warranty service is available in the United States or

Canada by contacting Sears at

1-800-a-MY-HOME _ (1-800-a69-a663}.

This warranty applies only while this product is in use

in the United States or Canada.

This warranty gives you specific legal rights, You may

also have other rights, which vary from state to state or

province to province.

Sears, Roebuck and Co.

Dept. 817WA

Hoffman Estates, IL 60179

Sears Canada, Inc.,

Toronto, Ontario

Canada M5B 2B8

Reverse Osmosis Water Systems

Some Reverse Osmosis home water systems cause

low water pressure. Low water pressure can affect

the water and ice dispensing system by causing

small or hollow ice cubes and slow water flow

from the dispenser. Service problems related to the

home's Reverse Osmosis water system are not

covered by the warranty.

Product Record

In the space below record the model and serial

numbers and purchase date of your refrigerator. You

will find the model and serial number sticker inside the

refrigerator section on the left wall.

Model Number: 596.

Serial Number:

Purchase Date:

Keep this booklet and your Sears sales receipt in

a safe place for future reference°

in the U.S°A°

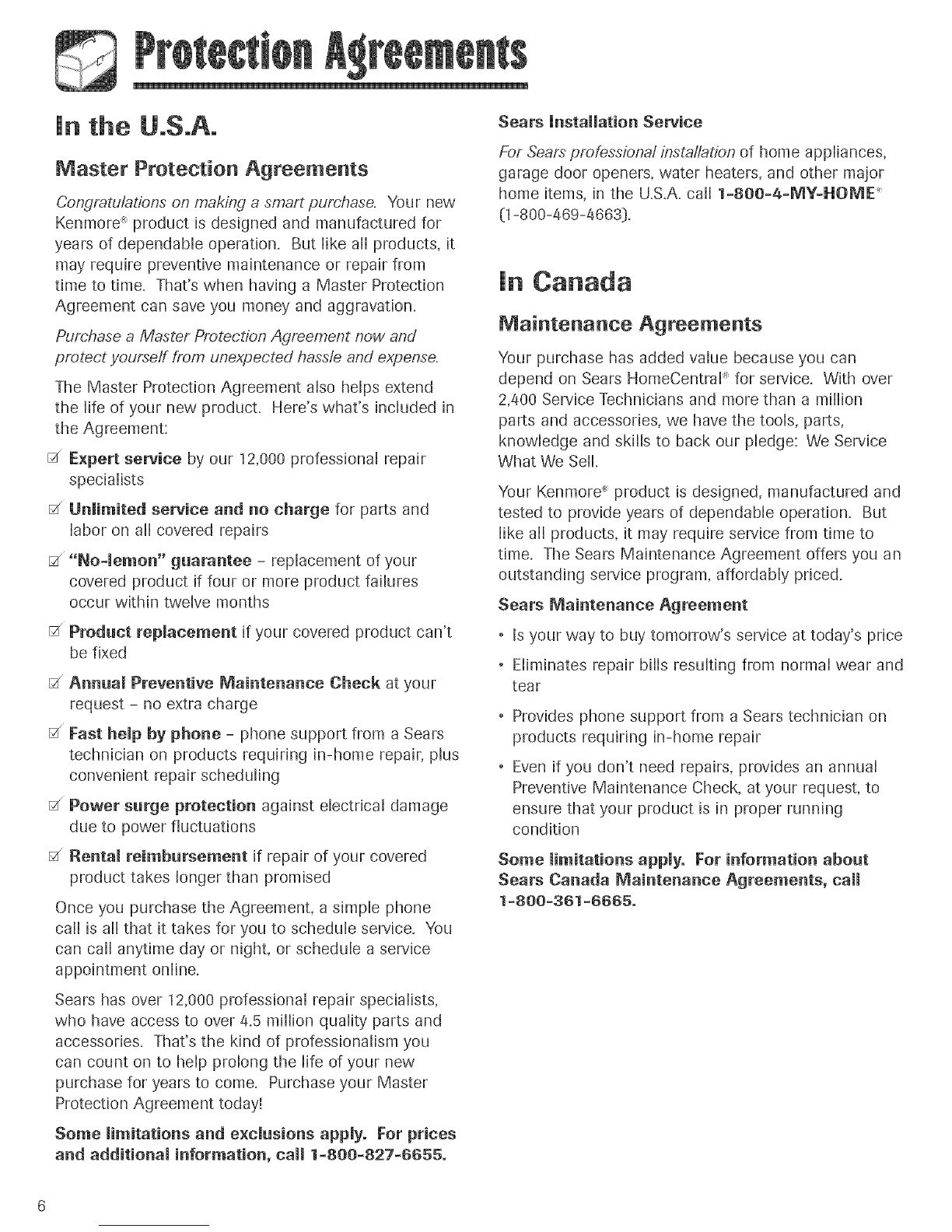

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore :_product is designed and manufactured for

years of dependable operation. But like a[[ products, it

may require preventive maintenance or repair from

time to time. That's when having a Master Protection

Agreement can save you money and aggravation.

Purchase a ,Master Protection Agreement now and

protect yourseff from unexpected hassle and expense.

The Master Protection Agreement also helps extend

the life of your new product. Here's what's included in

the Agreement:

Expert service by our 12,000 professional repair

specialists

Unlimited service and no charge for parts and

labor on all covered repairs

"No-lemon" guarantee - replacement of your

covered product if four or more product failures

occur within twelve months

Product replacement if your covered product can't

be fixed

dAnnual Preventive Maintenance Check at your

request - no extra charge

Fast hemp by phone - phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

Power surge protection against electrical damage

due to power fluctuations

Rentam reimbursement if repair of your covered

product takes longer than promised

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service. You

can call anytime day or night, or schedule a service

appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you

can count on to help prolong the life of your new

purchase for years to come. Purchase your Master

Protection Agreement today!

Some limitations and e×clusions apply, For prices

and additional information, call 1-800-827-6655o

Sears Unstallation Service

For ,Searsprofessiona/ Lostailation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME _

(1-800-469-4663}.

In Canada

Maintenance Agreements

Your purchase has added value because you can

depend on Sears HomeCentraP for service. With over

2,400 Service Technicians and more than a million

parts and accessories, we have the tools, parts,

knowledge and skills to back our pledge: We Service

What We Sell.

Your Kenmore :_product is designed, manufactured and

tested to provide years of dependable operation. But

like all products, it may require service from time to

time. The Sears Maintenance Agreement offers you an

outstanding service program, affordably priced.

Sears Maintenance Agreement

Is your way to buy tomorrow's service at today's price

,Eliminates repair bills resulting from normal wear and

tear

,Provides phone support from a Sears technician on

products requiring in-home repair

,Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your product is in proper running

condition

Some limitations applyo For information about

Sears Canada Maintenance Agreements, call

1-800-361-6665o

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

,Do not install refrigerator near oven, radiator or other

heat source. Wfnot possible, shield refrigerator with

cabinet material.

Do not install where temperature falls below 55° F

(13° C} or rises above 110° F (43° C}. Malfunction may

occur at this temperature.

Refrigerator is designed for indoor househomd

application onlyo

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow K" space at top and Y/' space behind the machine

compartment cover (located in the rea0 for proper air

circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs} may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling, pg. 8.

Umportant: if refrigerator is to be installed into a recess

where the top of the refrigerator is completely covered,

use distance from floor to top of hinge cap to verify

proper clearance.

Transporting Your Refrigerator

,NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

,Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

To protect property and refrigerator from

damage, observe the following:

, Protect vinyl or other flooring with cardboard, rugs,

or other protective material

Do not use power tools when performing leveling

procedure.

To enhance the appearance and maintain performance

the refrigerator should be level

Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed:

,X," hex head driver

,Carpenter's level

1. Remove toe grille.

,Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s].

Place the eraser end of a pencil or similar blunt

tool in the cover notch.

3. Using hex head driver, turn the front adjustment

screws (A} on each side to raise or lower the front

of the refrigerator.

C C

Using the hex head driver, turn each of these

adjustment screws (B} to raise or lower the rear of

the refrigerator.

Using the carpenter's level, make sure front of

refrigerator is '/4"(6 ram} or '/_bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C} clockwise until firmly

against floor_

7. Turn adjustment screws (A} counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace hinge cover(s}.

Position cover into the outer edge of the hinge.

Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Notch

Location

, Use slight pressure to pry the

cover loose.

, Continue to maintain

downward pressure to the

notched side of the cover while

swinging it ofL

, For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

, Align the toe grille mounting clips with the lower

cabinet slots.

, Push the toe grille firmly until it snaps into place.

Door and Drawer Re ova[

Some installations require door/drawer removal to

transport the refrigerator to its final location.

To avoid electricam shock which can cause

severe personam injury or death, observe the

following:

Disconnect power to refrigerator before removing

doors or drawer. Connect power only after

replacing doors or drawer.

To avoid damage to walls and flooring, protect vinyl

or other flooring with cardboard, rugs or other

protective material.

1. Unplug power cord from power source.

2. Remove toe grille and bottom hinge

cover(s}.

3. Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

4. Unscrew _" hex head screws from

top hinge to remove hinge and retain

all screws for later use.

5. Lift right side refrigerator door from

center hinge pin. Remove door

closure from center hinge pin on the

right side and retain for later use.

Disconnect wire harness on top

of left side refrigerator door top

hinge.

Release two-pin connector by

pressing junction point with a flat

blade screwdriver or fingernail.

Green ground wire remains

attached to the hinge.

Unscrew _,_"hex head screws

from top hinge to remove hinge

and retain for later use.

right

sude

/" door

closure

Lift [eft side refrigerator door, along with top hinge,

from center hinge pin.

Remove center hinge pin with a _,_,"

hex head driver and retain hinge pin

for later use.

Remove Phillips screws to remove

right and left hinges and retain all

screws for later use.

Remove both stabilizing brackets

with %" hex head driver and retain

screws for later use.

PuHeut Freezer Drawer

(select mede,s)

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the top

freezer basket.

To Unstall:

1. Pull both rails out to

full extension.

2. While supporting

door front, hook

supports into slots

located on inside of

each slide.

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before removing doors. After replacing

doors, connect power.

,All four drawer bracket supports must be in the

proper slots for the drawer to function properly.

To avoid possible injury, product, or property

damage, you will need two people to perform the

following instructions.

To Remove:

1. Pull drawer open to full

extension.

Tilt the lower basket

forward and lift to remove.

On each white drawer

bracket is a basket cradle

with two snap

attachments. To release

each cradle, unlatch the

snaps by pushing them

inward, away from the

side brackeL Lift the

cradles off of the rails.

4. Remove Phillips screw

from each of the drawer

slides (select models}.

5. Lift top of drawer front

to unhook the drawer

from the slides. Lift

door front out to

remove.

///'

3. Lower door front into final position.

4. Replace and tighten Phillips screws that were

removed from the drawer slides (select models}.

5. Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle

towards the bracket until it clicks.

Basket cradle

6,Tilt the lower basket front down and set it down

into the basket cradles.
