Kenmore 272.98300.491 Bedienungsanleitung

SEWRNG

MACHINE

CABINET

OWNER'S MANUAL

Model Number 272.98300.491 Oak

272.98301.491 White

272.98302.49_ Cherry

ASSEMBLY

PARTS LIST

IMPORTANT:

Read instructions before assembling.

98300-FC

98301-FC

98302-FC

(20) #8xl/2" Panhead Screws

(2) #6x5/8" Panhead Screws

Hardware Included (1) Right Wing (1) Left Wing

(25) Cams_ _ _

(6) #5x5/8" Flathead _l

_j-_Screws _

(1) 2 pc, Knob

(8) 5ram Hex Bolt Rubber Tab

(2) Mounting Bolts ('r(/("f I--

3-Small

1-Large

(2) Wing Nuts

(2) Zinc Flat Washers

(5) Caster Clips

(5) Caster Insert

(2) Bronze Strike Washers

(4) Drawer Backs _

"_ White Plastic

98301 only

(8) Drawer Sides

_o (2) Round Magnet

(25) Connecting Bolts (4) Metal Handle

98300

98302

(8) #8132x314"

Handle Bolts

Page 2

Allen Key

(1) Strike Plate

hanism

98300-2

98301-2

98302-2

UnderstandingHowthe"ARR0W-LOC"CamFastenerWorks.

ARROW

TOWARDS

HOLEIN

EDGE

1. Position bolt in 2. Press cam into 3. Insert bolt through

pre-drilled hole and pre-drilled hole until pre-drilled hole in

turn until tight, flush with surface, edge of panel.

4. To lock, rotate cam

until tight, using

allen key provided.

Cabinet Assembly

Step 1. Place Top, Partition and Left and Right Sides on a flat protected surface (to prevent

scratching of parts) and thread connecting bolts (25 total) into pre-drilled holes (as shown in

FIG. 1), Turn Partition over and thread in the remaining bolts as indicated below (FIG. 1A).

Right Leaf

lNOTE: !

•= Connecting Bolt

Top Assembly

Left Leaf

FIG. 1

Right Side Panel

FIG. 1A

Left Side Panel

••• • 0°

J J

Partition Partition

(viewed form right) (viewed form left)

Page 3

98300-3

98301-3

98302-3

CabinetAssemblyContinued:

Step2• InstallCams(25total)intotheholesprovidedinthecabinetpartsshownbelow,pushinga

camintoeachholeuntilflush withthe surface•Thearrowon theCamsshouldbeturned(using

aregularscrewdriverorAllenKeyProvided)to facetheholein eachedgewheretheConnecting

Boltswill enter•

Step2A•Weareproviding(1)whiteplastichookto beused,tostoreyourcustomfit sewingheadinsert,

(Sears#9801) to be mounted on the inside left side panel in Hole (A) or (B). CAUTION Do not

attach hook until you know the cutout size of your insert. Use Hole (A) for cutout 3" or less & (B)

for cutout larger than 3". NOTE:

= Cam

/Back Left Side Panel

°• ° • i •

Right Side Panel

•°

•°o

Partition

(viewed from right) Compartment

Back

Right Left

Leaf Supports

°y

Front

Shelf

Page 4

Compartment

Bottom 98300-4

98301-4

98302-4

Step 3. Attach the Magnet to the Partition by using (2) #6x5/8" Screws. Be sure to keep the magnet

Strikes (metal) lacing towards the front edge ot the Partition (as shown in FiG. 2.)

(_ /_] (2) #6x5/8" Screws

/uo !

Partition

(viewed from left)

Step 4, Next, attach the plastic Drawer Runners by using (32) #6x1" Flathead Screws (as shown in FIG. 4).

DO NOT OVER TIGHTEN.

•.)

(• • )

C • • )

FIG. 4

6x1" Flathead Screws

@/i

Drawer Runners /

( • • • ,,• )

(• • • .I

Partition

(viewed from right)

Page 5

Right Side

98300-5

98301-5

98302-5

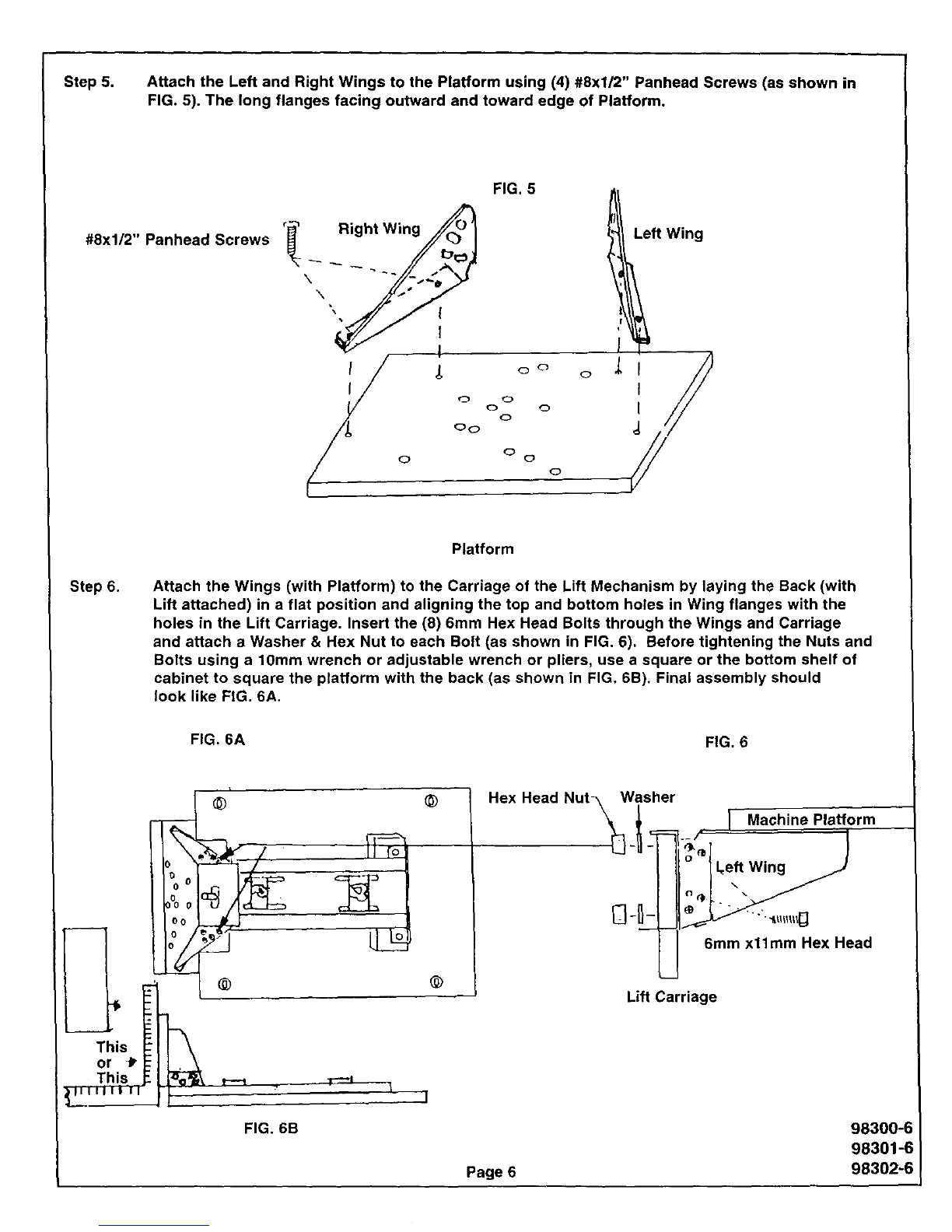

Step 5. Attach the Left and Right Wings to the Platform using (4) #8xl/2" Panhead Screws (as shown in

FIG. 5). The long flanges facing outward and toward edge of Platform.

#8x1/2" Panhead Screws

FIG. 5

o o o

Step 6.

Platform

Attach the Wings (with Platform) to the Carriage of the Lift Mechanism by laying the Back (with

Lift attached) in a flat position and aligning the top and bottom holes in Wing flanges with the

holes in the Lift Carriage. Insert the (8) 6mm Hex Head Bolts through the Wings and Carriage

and attach aWasher & Hex Nut to each Bolt (as shown in FIG. 6). Before tightening the Nuts and

Bolts using a 10mm wrench or adjustable wrench or pliers, use a square or the bottom shelf of

cabinet to square the platform with the back (as shown in FIG. 6B). Final assembly should

look like FIG. 6A.

FIG. 6A FIG. 6

This -_

or _P

This

@ @

® @

_ r-'*l I I'

FIG. 6B

.ex. a u*\Wis;er:

IMachine Platform

L,eft Wing

6mm x11mm Hex Head

Page 6

Lift Carriage

98300-6

98301-6

98302-6

Step 7. Attach the (4) plastic Trays to the Door by inserting the (16) #8xl/2" Panhead Screws into the

Door. The (3) smaller trays are mounted in the three top rows of predrilled holes, with larger

tray mounted in bottom row. Attach Magnet Strike Plate with (1) #5xl/2" Flathead Screw.

Attach (2) door hinges to Door with (6) #5xl/2" Screws (as shown in FIGS. 7 AND 7A).

Long end attaches to door.

#8x1/2" Panhead Screw

#5x1/2" Flathead Screw

Step 8.

Step 8Ao

Door

Attach (4) Support Hinges to Left and Right Supports with (8) #8x5/8" Flathead Screws; insert (2)

Round Magnets into holes in Leaf Supports (as shown in FIG. 8).

Attach Self-Sticking rubber tabs to outer edge of each leaf support.

Self-Sticking

d_ Rubber Tab

_// t_ightLeafSupport (//1

Round Magnet \] ] ,_ #8x5/8 t

I I _l FlatheadScrew _,

FIG. 8 Self-Sticking

Rubber Tab

Page 7

Left Leaf Support

Round Magnet

98300°;

98301-7

98302°7

Step 9. Place or tap Caster Clips, Inserts, (1) Locking Caster, and (1) Non-Locking Caster into Left Side (as

shown in FIG. 9 below). Attach the back to Left Side by guiding Back onto Connecting Bolts in

Left Side (as shown in FIG. 9), turn Cams to the Locked Position. Attach the Shelf and Front by

guiding each piece onto the appropriate Bolts in the side, and turn the Cams to the Locked Position.

FIG. 9

Front

Taped

Edge-_

| o .

Back

Left Side

col

I II } FIG, 9A

I il

'i CasterC,p.on-Locki°gCaste

/Caster Insert

// / Caster Chp____ L°cking Caster

_- -"_'---_Ca_t-_e_Inse.

Page 8

98300-E

98301-8

98302-8

Step 10. Place or tap Caster Clip, Insert and Non-Locking Caster into the Partition (as shown in Fig. 10. below

Align the Connecting Bolts in Partition with corresponding holes in Front, Shelf and Back.

Now, making sure the Partition is completely on the Connecting Bolts, turn Cams to Locked

Position.

FIG. 10

._Non-Locking Caster

-- -- "_Caste-_r Insert

Page 9

98300-4

98301-9

98302-9

Step11. AttachCompartmentBottomandCompartmentBackto Partitionbyguidingeachpieceonto

ConnectingBoltsin the Partition(asshownin FIG.11).TurnCamsto LockedPosition.

FIG.11 Compartment

Bottom

Taped I

Page lO

98300-1(

98301-10

98302-10
