Kensington SD4880P Bedienungsanleitung

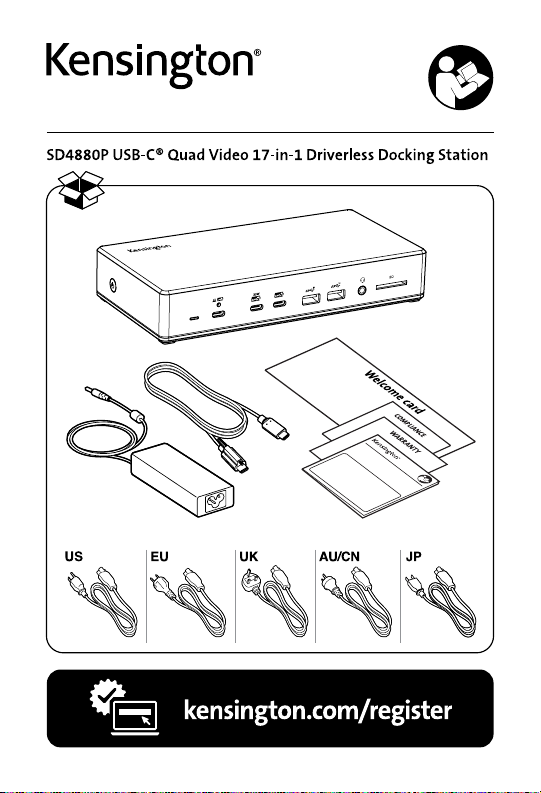

Kensington SD4880P USB-C Quad Video 17-in-1 Driverless Docking Station.

Inside the Box.

One SD4880P USB-C Quad Video 17-in-1 Driverless Dock

One USB-C 3.2 Gen2 Cable with Screw Lock

One 180W Power Supply Unit

One Power Cord

One Quick Installation Guide

One Compliance Sheet

One Warranty Card

One Welcome Card

1. Connect the power adapter to the DC 20V port on the back of the dock.

Connect the power cable to the power adapter.

Plug the power cable into a wall outlet.

2. Front of the dock from left to right:

One LED light for indicating when the host cable is securly connected.

One USB-C host port that will support up to 100W power delivery to the host laptop. This port is compatible with USB-C screw lock connectors.

One USB-C 3.2 Gen2 10Gbps (5V/3A, 9V/3A, or up to 15V/2A) port appropriate for charging smartphones and tablets.

One USB-C 3.2 Gen2 10Gbps (up to 5V/3A) port appropriate for connecting external hard drives.

Two USB-A 3.2 Gen2 10Gbps (up to 5V/0.9A) ports appropriate for connecting thumb drives and headsets.

One combo audio jack.

One SD Card Reader with support for UHS-II and SD4.0.

Back of the dock from left to right:

Four USB-A 3.2 Gen2 10Gbps (up to 5V/0.9A) ports appropriate for connecting mice, keyboards, thumbdrives, and webcams.

Two USB-C 3.2 Gen2 10Gbps (up to 5V/3A) ports appropriate for charging smartphones and connecting external hard drives.

Two DP ports to support dual monitors.

Two HDMI ports to support dual monitors.

One 2.5Gbps Ethernet port for stable high-speed internet/intranet connectivity.

One DC 20V port.

Side of the dock closest to DC20V port.

One power button to turn your dock on and off as needed.

3a. For Thunderbolt 3 or Thunderbolt 4 host, connect one end of the USB-C cable to a Thunderbolt port on the host laptop.

3b. For USB-C Alt Mode host, connect one end of the USB-C cable to a USB-C port on the host laptop.

4. Connect the other end of the USB-C host cable to the USB-C host port on the front of the dock. Twist the screw lock connector to the right to align it with the lock slot on the dock.

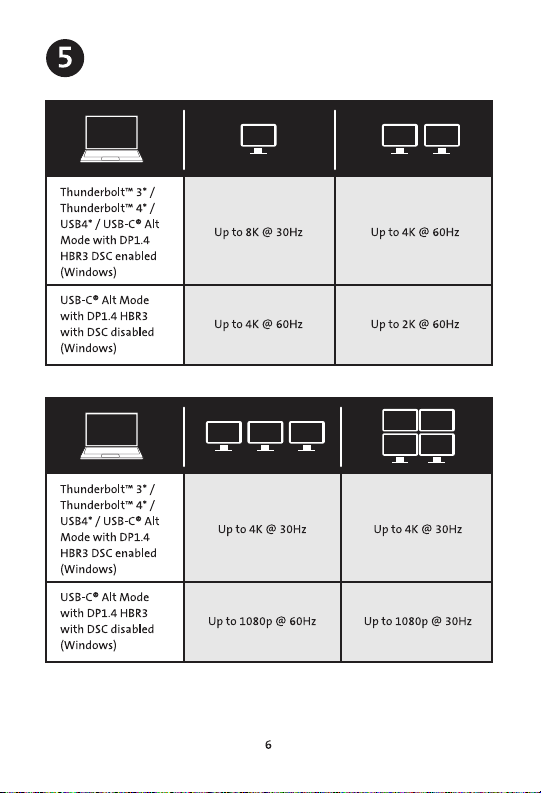

5. Video speciﬁcations.

Thunderbolt 3*, Thunderbolt 4*, USB4*, and USB-C Alt Mode with DP1.4 HBR3 enabled devices running Windows will provide up to Single 8K @ 30Hz,

up to Dual 4K @ 60Hz, up to Triple 4K @ 30Hz, or up to Quad 4K @ 30Hz.

USB-C Alt Mode with DP1.4 HBR3 with DSC disabled devices running Windows will provide up to Single 4K @ 60Hz,

up to Dual 2K @ 60Hz, up to Triple 1080p @ 60Hz, or up to Quad 1080p @ 30hz.

For high refresh rates, the following applies.

Thunderbolt 3*, Thunderbolt 4*, USB4*, and USB-C Alt Mode with DP1.4 HBR3 enabled devices running Windows will provide up to Single 1080p @ 240Hz,

up to Dual 1080p @ 240Hz, up to Triple 1080p @ 144Hz, or up to Quad 1080p @120Hz.

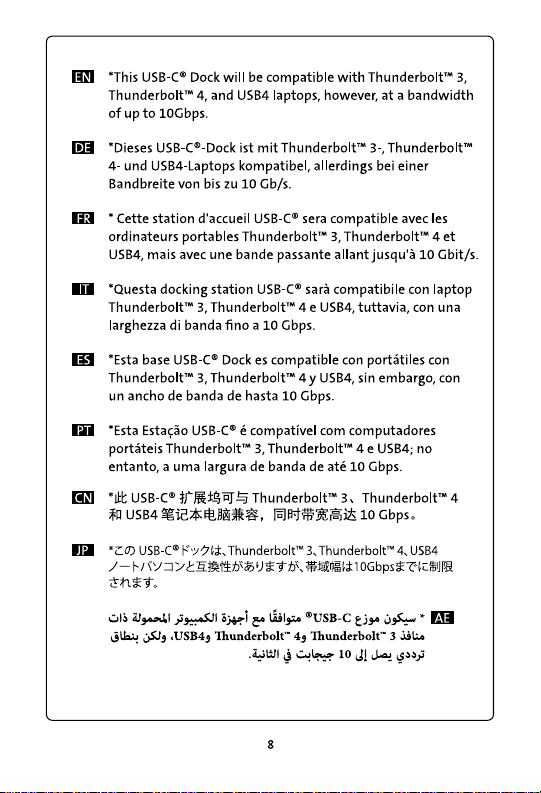

*This USB-C dock is compatible with Thunderbolt 3, Thunderbolt 4, and USB4 laptops, however, at a bandwidth of up to 10Gbps.

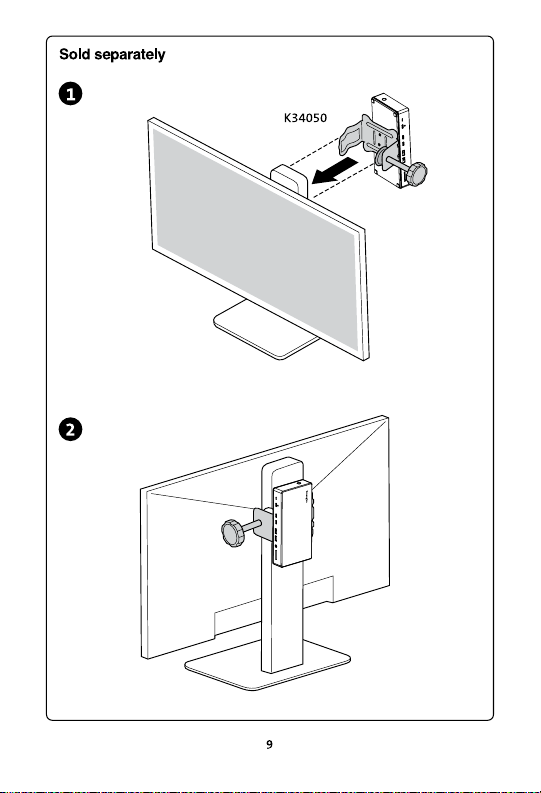

Mount docking station to the back of a monitor stand.

Sold separately: K34050 mounting bracket.

1. Attach the mounting bracket to the back of the monitor stand.

2. Attach the dock to the mounting bracket.

Secure docking station with a Kensington cable lock.

Sold separately: Recommended K65020WW MicroSaver® 2.0 Keyed Laptop Lock.

Attach the lock using the standard lock slot noted with a square shaped K icon on the side of the docking station.

Sold separately: Recommended K65021WW Slim NanoSaver® 2.0 Keyed Laptop Lock.

Attach the lock using the nano lock slot noted with a hexagon shaped K icon on the side of the docking station.

Attach the cable of the lock to any ﬁxed location such as a table leg.
