M9170A PXI Attenuator/Switch

Driver Module

Conguration Guide

Overview

This conguration guide will help you congure your

PXI attenuator/switch driver module with the expansive

portfolio of Keysight Technologies, Inc., RF and

microwave step attenuators and electromechanical

switches.

For more detailed product information and specications,

please refer to the following:

– M9170A Data Sheet (literature no. 5991-0130EN)

– M9170A Flyer (literature no. 5991-0053EN)

Key Features and Benets

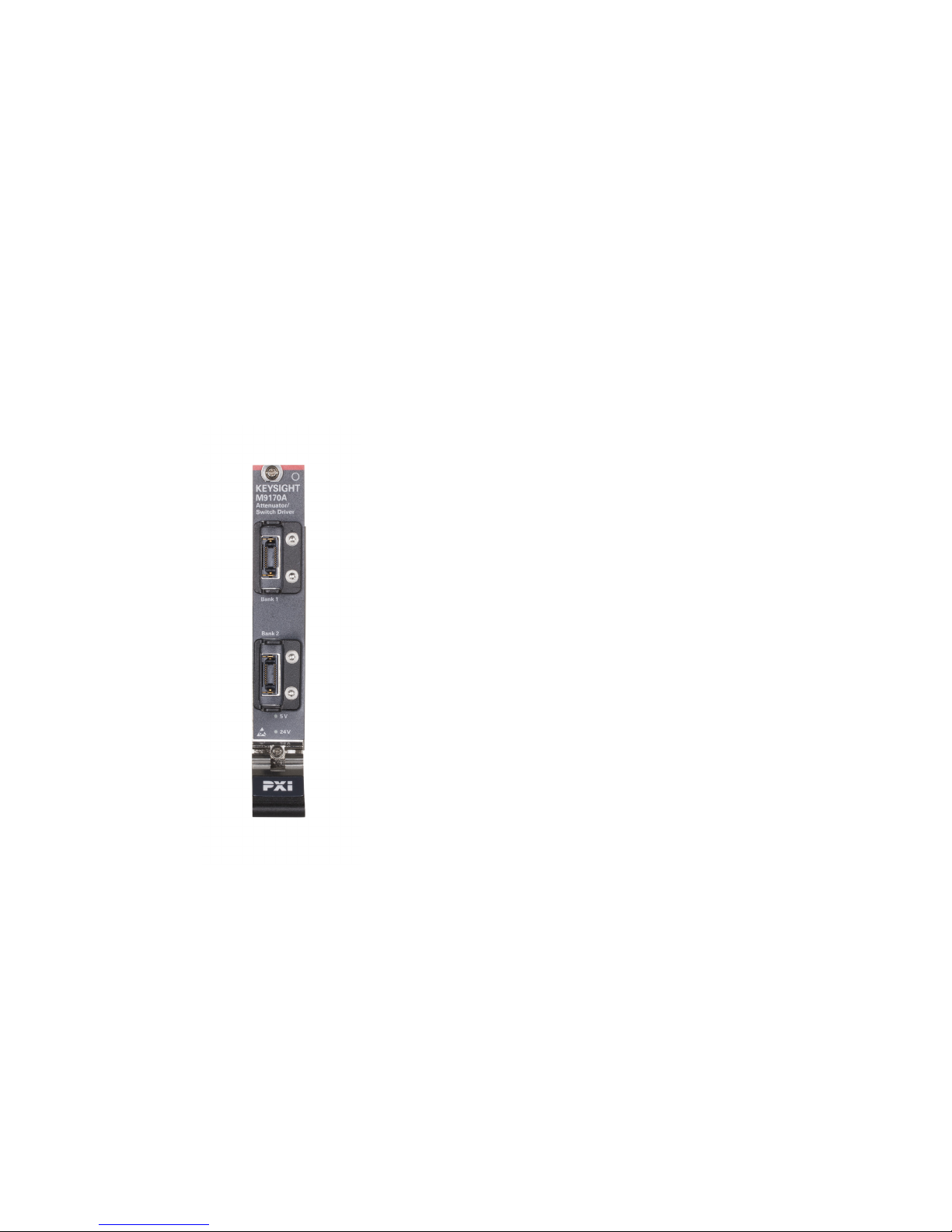

The M9170A is a one-slot PXI attenuator/switch driver

module that provides drive control for the Keysight

Technologies, Inc. RF and

microwave step attenuators

and electromechanical switches.

This cost effective

solution offers limitless topologies for creating various

congurations for signal routing and signal conditioning,

driving external switches and attenuators through its dual

20-pin header.

– Drive up to 12 external SPDT switches, or 4 external

SP4T/6T switches, or 12 transfer switches, or 2

external attenuators. Improve testing efciency while

maximizing the PXI chassis slot utilization, which

ultimately improves testing efciency.

– Dual voltage supply of 5V and 24V and dual driving

mode for pulse and continuous, ensures biasing

compatibility for most switches on the market, hence

increasing system exibility.

– Soft front panel provides a dynamic dashboard view

and control of the connected attenuators or switches.

Indicated on the front panel is the selected device

model and the subsequent switch path or attenuation

levels.

– Point-to-point interface cable options are available for

connecting driver to switching device. Intuitive and

direct conguration for all Keysight switches and

attenuators.

Specications

Drive Power Supply* M9170A

Voltage 23 ± 10%

4.5 ± 10%

Current 1.0A for 24V supply

3.85A for 5V supply

*This refers to the output of the driver module.

TTL drive is not supported

Note 1: Total current limit per bank = 2A

Note 2: Current limit per channel = 0.5A

Note 3 : Drive mode -pulsed (20 ms)

-continuous

Product congurations

This document will serve as a step-by-step guide to congure the point-to-point connection between the M9170A

with Keysight’s attenuators and electromechanical switches. Please refer to the various gures detailing the type of

customized interface cables, switch/attenuator options, and most importantly, the cross-reference tables that provide all

the necessary details (i.e. pin numbers, wires colors, etc.) to connect the varied combinations of switches or attenuators

to the M9170A module.

Cable option Part number Description

Option 001 M9170-20005 20 pin to 6x10 pin interface cable assembly

Option 002 M9170-20008 20 pin to 10 pin interface cable assembly

Option 003 M9170-20009 20 pin to 12 pin Viking interface cable assembly

Option 501 M9170-20007 20 pin to 6x9 pin D-Sub interface cable assembly

Option 601 M9170-20004 20 pin to 2x16 pin interface cable assembly

Option 201 M9170-20006 20 pin to bare wire interface cable assembly

3 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Step 1. Determine the device’s model and option (DC connector)

Example Model: 87104D (SP4T switch)

Option: 100 (solder terminal)

Step 2. Determine the M9170A’s interface cable option

Example Model: M9170

Option 201 (20 pin to bare wire interface cable assembly)

Step 3. Use the selection guide, Table 1 for switches and Table 2 for attenuators to

determine which conguration table to use for further reference.

Example Selection Guide: Table 1 (for switches)

Conguration Table: Table 5-A

Step 4. Congure your switching system using Table 5-A (page 9) as a reference

Five Simple Steps to Congure Your Switching System

Table 5-A. Conguration of M9170A (Option 201) to 87104A/B/C/D, L7104A/B/C and

L7204A/B/C SP4T (Option 100)

From M9170A (Option 201) To 87104A/B/C/D, L7104A/B/C and L7204A/B/C SP4T (Option 100)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow 1 Vcc for DUT 1

DUT 1

4Orange 15 GND for DUT 1

2Green 5 2 to C closed

3Red 7 3 to C closed

5Black/Pink 11 5 to C closed

6White 13 6 to C closed

7Black/Green 1 Vcc for DUT 2

DUT 2

10 Violet 15 GND for DUT 2

8Black/Yellow 5 2 to C closed

9Black 7 3 to C closed

12 Black/Gray 11 5 to C closed

13 Black/White 13 6 to C closed

17 Black /Violet 1 Vcc for DUT 3

DUT3

20 Brown 15 GND for DUT 3

15 Gray 5 2 to C closed

16 Black/Blue 7 3 to C closed

18 Blue 11 5 to C closed

19 Black/Red 13 6 to C closed

Table 1: Selection guide for switches

Switch

family

Switch model number Switch

option

M9170A

002 001 003 501 601 201

Bypass

8763A, 8763B, 8763C 011/024 Table 3-B

8764A, 8764B, 8764C 011/024 Table 3-C

N1811TL 202 Table 12-G

201 Table 12-H

N1812UL 202 Table 12-E

201 Table 12-F

SPDT

8762A, 8762B, 8762C, 8762F 011/024 Table 3-A

8765A, 8765B, 8765C, 8765D, 8765F 305/324 Table 4

N1810UL 202 Table 12-A

201 Table 12-B

N1810TL 202 Table 12-C

201 Table 12-D

SP3T 8766K 060 Table 9

SP4T

87104A, 87104B, 87104C, 87104D 100 Table 5-A

161 Table 5-B

87204A, 87204B, 87204C 100 Table 6

L7104A, L7104B, L7104C 100 Table 5-A

161 Table 5-B

L7204A, L7204B, L7204C 100 Table 5-A

161 Table 5-B

8767K 060 Table 9

8767M No Option Table 10

SP5T 8768K 060 Table 9

8768M No Option Table 10

SP6T

87106A, 87106B, 87106C, 87106D 100 Table 7-A

161 Table 7-B

87206A, 87206B, 87206C 100 Table 8

L7106A, L7106B, L7106C 100 Table 7-A

161 Table 7-B

L7206A, L7206B, L7206C 100 Table 7-A

161 Table 7-B

Matrix 87406B 100 Table 7-A

161 Table7-B

87606B 100 Table 9

Transfer

87222C, 87222D, 87222E 100 Table 11-A

161 Table 11-B

L7222C 100 Table 11-A

161 Table 11-B

4 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Table 1: Selection guide for switches

Switch

family

Switch model number Switch

option

M9170A

002 001 003 501 601 201

Bypass

8763A, 8763B, 8763C 011/024 Table 3-B

8764A, 8764B, 8764C 011/024 Table 3-C

N1811TL 202 Table 12-G

201 Table 12-H

N1812UL 202 Table 12-E

201 Table 12-F

SPDT

8762A, 8762B, 8762C, 8762F 011/024 Table 3-A

8765A, 8765B, 8765C, 8765D,

8765F

305/324 Table 4

N1810UL 202 Table 12-A

201 Table 12-B

N1810TL 202 Table 12-C

201 Table 12-D

SP3T 8766K 060 Table 9

SP4T

87104A, 87104B, 87104C, 87104D 100 Table 5-A

161 Table 5-B

87204A, 87204B, 87204C 100 Table 6

L7104A, L7104B, L7104C 100 Table 5-A

161 Table 5-B

L7204A, L7204B, L7204C 100 Table 5-A

161 Table 5-B

8767K 060 Table 9

8767M No Option Table 10

SP5T 8768K 060 Table 9

8768M No Option Table 10

SP6T

87106A, 87106B, 87106C, 87106D 100 Table 7-A

161 Table 7-B

87206A, 87206B, 87206C 100 Table 8

L7106A, L7106B, L7106C 100 Table 7-A

161 Table 7-B

L7206A, L7206B, L7206C 100 Table 7-A

161 Table 7-B

Matrix 87406B 100 Table 7-A

161 Table 7-B

87606B 100 Table 8

Transfer

87222C, 87222D, 87222E 100 Table 11-A

161 Table 11-B

L7222C 100 Table 11-A

161 Table 11-B

Step 5. System ready for operation.

5 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Table 1-A. Switch option descriptions

Option 011 5 Vdc

Option 024 24 Vdc

Option 201 D-submini 9 pin (f)

Option 202 Solder Lug

Option 305 5 Vdc with solder terminals

Option 324 24 Vdc with solder terminals

Option 060 Viking cable connector

Option 100 Solder terminals

Option 161 Ribbon receptacle

Table 2. Selection guide for attenuators

Attenuator model number Connector type M9170A

002 003

8494G, 8494H

12 pin Viking connector (Option 060)

Table 13

8495G, 8495H Table 13

8496G, 8496H Table 13

8495K Table 13

8497K Table 13

84904K, 84904L, 84904M

10 pin DIP connector

Table 14

84905M Table 14

84906K, 84906L Table 14

84907K, 84907L Table 14

84908M Table 14

6 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Table 3-A. Conguration of M9170A (Option 201) to 8762A/B/C/F SPDT (Option 011/024)

From M9170A (Option 201) To 8762A/B/C/F SPDT (Option 011/024)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow C VCC DUT 1

DUT 12 Green 1 1 to C closed, 2 terminated

3 Red 2 2 to C closed, 1 terminated

1Yellow C VCC DUT 2

DUT 25 Black/Pink 1 1 to C closed, 2 terminated

6White 2 2 to C closed, 1 terminated

7Black/Green C VCC DUT 3

DUT 38 Black/Yellow 1 1 to C closed, 2 terminated

9Black 2 2 to C closed, 1 terminated

11 Pink C VCC DUT 4

DUT 412 Black/Gray 1 1 to C closed, 2 terminated

13 Black/White 2 2 to C closed, 1 terminated

11 Pink C VCC DUT 5

DUT 515 Gray 1 1 to C closed, 2 terminated

16 Black/Blue 2 2 to C closed, 1 terminated

17 Black/Violet C VCC DUT 6

DUT 618 Blue 1 1 to C closed, 2 terminated

19 Black/Red 2 2 to C closed, 1 terminated

Table 3-B. Conguration of M9170A (Option 201) to 8763A/B/C bypass (Option 011/024)

From M9170A (Option 201) To 8763A/B/C bypass (Option 011/024)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow C VCC DUT 1

DUT 1

2 Green 1 1 to 2 closed, 3 to 4 closed

3 Red 2 1 terminated, 2 to 3 closed, 4 open

1Yellow C VCC DUT 2

DUT 2

5Black/Pink 1 1 to 2 closed, 3 to 4 closed

6White 2 1 terminated, 2 to 3 closed, 4 open

7Black/Green C VCC DUT 3

DUT 3

8Black/Yellow 1 1 to 2 closed, 3 to 4 closed

9Black 2 1 terminated, 2 to 3 closed, 4 open

11 Pink C VCC DUT 4

DUT 4

12 Black/Gray 1 1 to 2 closed, 3 to 4 closed

13 Black/White 2 1 terminated, 2 to 3 closed, 4 open

11 Pink C VCC DUT 5

DUT 5

15 Gray 1 1 to 2 closed, 3 to 4 closed

16 Black/Blue 2 1 terminated, 2 to 3 closed, 4 open

17 Black/Violet C VCC DUT 6

DUT 6

18 Blue 1 1 to 2 closed, 3 to 4 closed

19 Black/Red 2 1 terminated, 2 to 3 closed, 4 open

Conguration information for switches

7 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Table 4. Conguration of M9170A (Option 201) to 8765A/B/C/F SPDT (Option 305/324)

From M9170A (Option 201) To 8765A/B/C/F SPDT (Option 305/324)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow 2 and 3 VCC DUT 1

DUT 12 Green 1 2 to C closed, 1 open

3Red 4 1 to C closed, 2 open

1Yellow 2 and 3 VCC DUT 2

DUT 25 Black/Pink 1 2 to C closed, 1 open

6 White 4 1 to C closed, 2 open

7Black/Green 2 and 3 VCC DUT 3

DUT 38 Black/Yellow 1 2 to C closed, 1 open

9Black 4 1 to C closed, 2 open

11 Pink 2 and 3 VCC DUT 4

DUT 412 Black/Gray 1 2 to C closed, 1 open

13 Black/White 4 1 to C closed, 2 open

11 Pink 2 and 3 VCC DUT 5

DUT 515 Gray 1 2 to C closed, 1 open

16 Black/Blue 4 1 to C closed, 2 open

17 Black/Violet 2 and 3 VCC DUT 6

DUT 618 Blue 1 2 to C closed, 1 open

19 Black/Red 4 1 to C closed, 2 open

Table 3-C. Conguration of M9170 (Option 201) to 8764A/B/C bypass (Option 011/024)

From M9170A (Option 201) To 8764A/B/C bypass (Option 011/024)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow C VCC DUT 1

DUT 12 Green 1 1 open, 2 to 3 closed, 4 to 5 closed

3Red 2 1 to 2 closed, 3 to 4 closed, 5 open

1Yellow C VCC DUT 2

DUT 25 Black/Pink 1 1 open, 2 to 3 closed, 4 to 5 closed

6 White 2 1 to 2 closed, 3 to 4 closed, 5 open

7Black/Green C VCC DUT 3

DUT 38 Black/Yellow 1 1 open, 2 to 3 closed, 4 to 5 closed

9Black 2 1 to 2 closed, 3 to 4 closed, 5 open

11 Pink C VCC DUT 4

DUT 412 Black/Gray 1 1 open, 2 to 3 closed, 4 to 5 closed

13 Black/White 2 1 to 2 closed, 3 to 4 closed, 5 open

11 Pink C VCC DUT 5

DUT 515 Gray 1 1 open, 2 to 3 closed, 4 to 5 closed

16 Black/Blue 2 1 to 2 closed, 3 to 4 closed, 5 open

17 Black/Violet C VCC DUT 6

DUT 618 Blue 1 1 open, 2 to 3 closed, 4 to 5 closed

19 Black/Red 2 1 to 2 closed, 3 to 4 closed, 5 open

8 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Table 5-B. Conguration of M9170A (Option 601) to 87104A/B/C/D, L7104A/B/C and

L7204A/B/C SP4T (Option 161)

From M9170A (Option 601) To 87104A/B/C/D, L7104A/B/C and L7204A/B/C SP4T (Option 161)

Interface cable

20 PIN 16-Pin number RF path Device under test (DUT)

1 1 Vcc for DUT 1

DUT 1

10 15 GND for DUT 1

3 5 2 to C closed

5 7 3 to C closed

811 5 to C closed

913 6 to C closed

11 1 Vcc for DUT 1

DUT 2

20 15 GND for DUT 1

13 5 2 to C closed

15 7 3 to C closed

18 11 5 to C closed

19 13 6 to C closed

Table 5-A. Conguration of M9170A (Option 201) to 87104A/B/C/D, L7104A/B/C and

L7204A/B/C SP4T (Option 100)

From M9170A (Option 201) To 87104A/B/C/D, L7104A/B/C and L7204A/B/C SP4T (Option 100)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow 1 Vcc for DUT 1

DUT 1

4Orange 15 GND for DUT 1

2Green 5 2 to C closed

3Red 7 3 to C closed

5Black/Pink 11 5 to C closed

6 White 13 6 to C closed

7Black/Green 1 Vcc for DUT 2

DUT 2

10 Violet 15 GND for DUT 2

8Black/Yellow 5 2 to C closed

9Black 7 3 to C closed

12 Black/Gray 11 5 to C closed

13 Black/White 13 6 to C closed

17 Black /Violet 1 Vcc for DUT 3

DUT 3

20 Brown 15 GND for DUT 3

15 Gray 5 2 to C closed

16 Black/Blue 7 3 to C closed

18 Blue 11 5 to C closed

19 Black/Red 13 6 to C closed

9 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Table 6. Conguration of M9170A (Option 201) to 87204A/B/C SP4T (Option 100)

From M9170A (Option 201) To 87204A/B/C SP4T (Option 100)

Interface cable

20 PIN Bare wire cable Solder terminal number RF path Device under test (DUT)

1Yellow 1 Vcc for DUT 1

DUT 1

4Orange 15 GND for DUT 1

2 Green 5 2 to C closed

3Red 6 2 to C open

5Black/Pink 7 3 to C closed

6 White 8 3 to C open

8Black/Yellow 11 5 to C closed

9Black 12 5 to C open

12 Black/Gray 13 6 to C closed

13 Black/White 14 6 to C open

10 | Keysight | M9170A PXI Attenuator/Switch Driver Module - Conguration Guide

Andere Handbücher für M9170A

Inhaltsverzeichnis

Andere Keysight Technologies Steuereinheit Handbücher

Keysight Technologies

Keysight Technologies 85091D Bedienungsanleitung

Keysight Technologies

Keysight Technologies M8000 Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies VXI bus 75000 C Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies E8257DS Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies J7211A Service-Handbuch

Keysight Technologies

Keysight Technologies M9101A Betriebsanleitung

Keysight Technologies

Keysight Technologies 81940A Bedienungsanleitung

Keysight Technologies

Keysight Technologies M9195A PXIe Benutzerhandbuch

Keysight Technologies

Keysight Technologies 34931A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 81650A Bedienungsanleitung

Keysight Technologies

Keysight Technologies M9195A PXIe Benutzerhandbuch

Keysight Technologies

Keysight Technologies M8192A Bedienungsanleitung

Keysight Technologies

Keysight Technologies M9168C Bedienungsanleitung

Keysight Technologies

Keysight Technologies U9422A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 34941A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 75000 C Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies J7204A Service-Handbuch

Keysight Technologies

Keysight Technologies U5532C Bedienungsanleitung

Keysight Technologies

Keysight Technologies J7201A Service-Handbuch

Keysight Technologies

Keysight Technologies 81618A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 11713D Service-Handbuch

Keysight Technologies

Keysight Technologies 34952A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 81625B Bedienungsanleitung

Keysight Technologies

Keysight Technologies 81663A Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
