Keysight Technologies U3020AD01 Handbuch

Notice: This document contains references to Agilent.

Please note that Agilent’s Test and Measurement business

has become Keysight Technologies. For more information,

go to www.keysight.com.

Keysight Technologies

U3020AD01



User’s and Service Guide

Notices

2011-2014

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent from

Keysight Technologies, Inc. as

governed by United States and

international copyright laws.

Manual Part Number

U3020-90004

Print Date

October 2014

Supersede August 2012

Published in USA

Keysight Technologies Inc.

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Where to Find the Latest

Information

Documentation isupdated

periodically.Forthelatestinformation

about these products, including

instrument software upgrades,

application information, and product

information, browse to the following

URL, search for the name of your

product:

http://www.keysight.com/find



Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance

with the terms of such license.



Restricted Rights Legend

If software is for use in the

performance of a U.S. Government

prime contract or subcontract,

Software is delivered and licensed as

“Commercial computersoftware” as

defined in DFAR 252.227-7014 (June

1995), or as a “commercial item” as

defined in FAR 2.101(a) or as

“Restricted computer software” as

definedinFAR52.227-19(June1987)

oranyequivalentagencyregulationor

contract clause. Use, duplication or

disclosure of Software is subject to

Keysight Technologies’ standard

commercial license terms, and

non-DOD Departments and Agencies

oftheU.S.Governmentwillreceiveno

greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2)

(June 1987). U.S. Government users

will receive no greater than Limited

Rights as defined in FAR 52.227-14

(June 1987) or DFAR 252.227-7015

(b)(2)(November1995), asapplicable

in any technical data.



Warranty

THE MATERIAL CONTAINED IN THIS

DOCUMENT IS PROVIDED “AS IS,” AND IS

SUBJECT TO BEING CHANGED, WITHOUT

NOTICE, IN FUTURE EDITIONS. FURTHER,

TO THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, KEYSIGHT

DISCLAIMS ALL WARRANTIES, EITHER

EXPRESS OR IMPLIED WITH REGARD TO

THIS MANUAL AND ANY INFORMATION

CONTAINED HEREIN, INCLUDING BUT

NOT LIMITED TO THE IMPLIED

WARRANTIESOFMERCHANTABILITYAND

FITNESS FOR A PARTICULAR PURPOSE.

KEYSIGHT SHALL NOT BE LIABLE FOR

ERRORS OR FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE FURNISHING,

USE, OR PERFORMANCE OF THIS

DOCUMENT OR ANY INFORMATION

CONTAINED HEREIN. SHOULD KEYSIGHT

AND THE USER HAVE ASEPARATE

WRITTEN AGREEMENT WITH WARRANTY

TERMSCOVERING THEMATERIALINTHIS

DOCUMENTTHATCONFLICTWITH THESE

TERMS, THE WARRANTY TERMS IN THE

SEPARATE AGREEMENT WILL CONTROL.



Safety Notices

CAUTION

ACAUTIONnoticedenotesahazard.It

calls attention to an operating

procedure,practice,or the likethat, if

notcorrectlyperformedoradheredto,

couldresult in damagetotheproduct

or loss of important data. Do not

proceed beyond a CAUTION notice

untiltheindicatedconditionsarefully

understood and met.

WARNING

A WARNING notice denotes ahazard.

It calls attention to an operating

procedure,practice,or the likethat, if

notcorrectlyperformedoradheredto,

could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

Table of Contents

Contents-1

U3020AD01

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Verifying the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Network Analyzer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

General Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Environmental Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Equipment Heating and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Required Conditions for Accuracy Enhanced Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Dimensions and Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Maximum Power Levels and Performance Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front and Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Adding Instruments to the Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuring the LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Locating the Instrument. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Configuring the GPIB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adding Instruments to the GPIB Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing the GPIB Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Controlling the Test Set and Making Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Making Measurements and Functional Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Functional Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Equipment Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Service Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting the Controller Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Replaceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrostatic Discharge Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Safety and Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Safety Earth Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Before Applying Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connector Care and Cleaning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Instrument Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Battery Collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Electrical Safety Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

EMI and EMC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Keysight Support, Services, and Assistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Service and Support Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contacting Keysight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Shipping Your Product to Keysight for Service or Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents-2

Table of Contents

User’s and Service Guide U3020-90004 1

U3020AD01

2User’s and Service Guide U3020-90004

U3020AD01 Introduction

Introduction

This document describes how to use the Keysight U3020AD01 Dynamic Accuracy Test Set with

a Keysight N5247A PNA-X Network Analyzer.

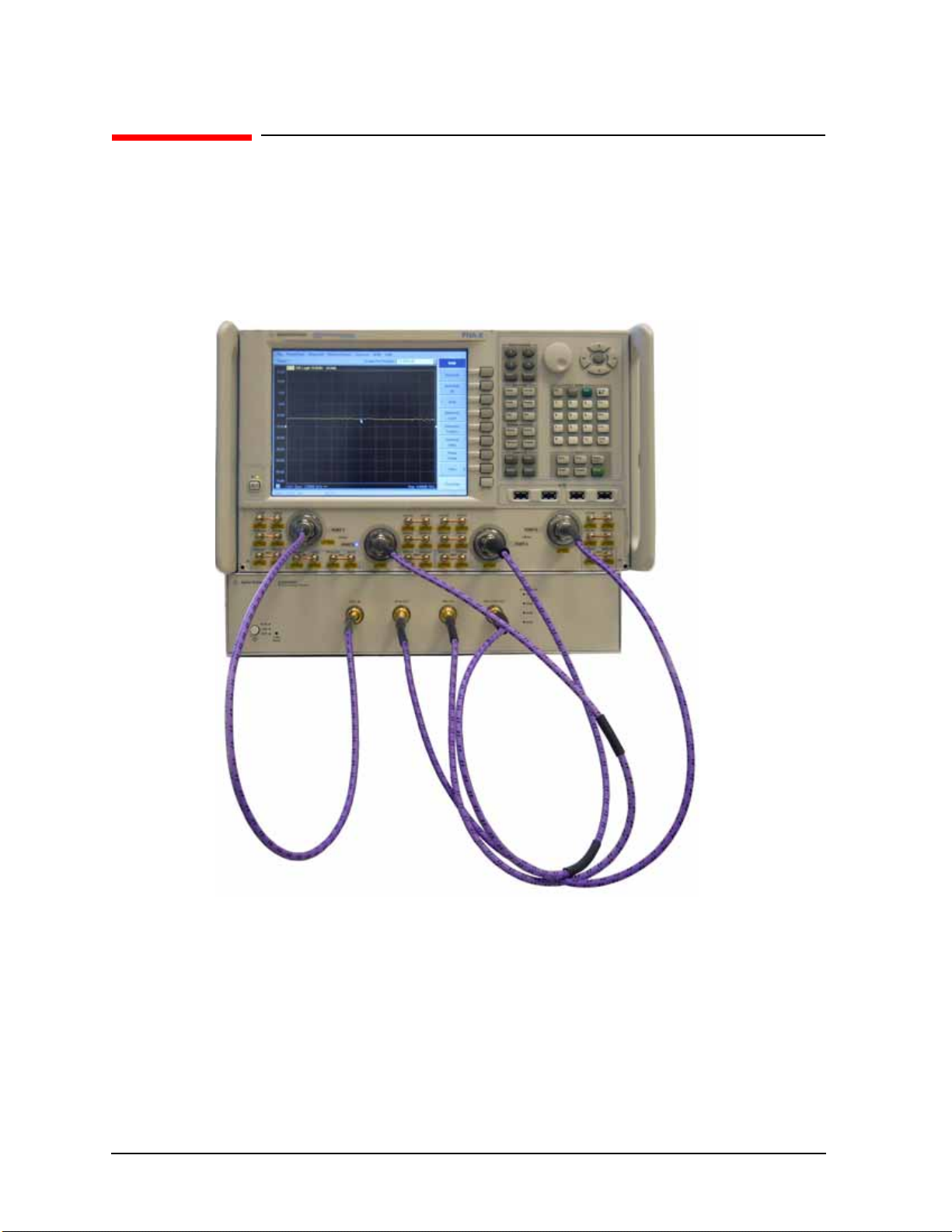

Figure 1 N5247A with the U3020AD01

User’s and Service Guide U3020-90004 3

U3020AD01 Description

Description

The Keysight U3020AD01 Dynamic Accuracy Test Set is designed for use with the PNA-X

Network Analyzers and based on the L4490A RF Switch Platform.

The U3020AD01 is used to characterize the PNA-X power linearity (dynamic accuracy)

designed for maximum measurement accuracy over a 110 dB dynamic range. The signal is

controlled via internal attenuators.

The U3020AD01 can only be controlled using an external GPIB controller or LAN.

When using Keysight IO Libraries "Connection Expert Utility," the interface identifies the Test

Set as "U3020A" without D01. D01 will be listed on the rear panel serial tag.

Verifying the Shipment

To verify the contents shipped with your product, refer to the “Box Content List” included with

the shipment.

Inspect the shipping container. If the container or packing material is damaged, it should be

kept until the contents of the shipment have been checked mechanically and electrically. If

there is physical damage refer to “Contacting Keysight” on page 34. Keep the damaged

shipping materials (if any) for inspection by the carrier and an Keysight Technologies

representative.

Network Analyzer Requirements

• The N5247A PNA-X Network Analyzer (10 MHz to 67 GHz)

More PNA-X information is available on the following websites:

• Documentation - http://www.keysight.com/find/pna

• Network Analyzer Firmware - http://na.support.keysight.com/pna/firmware

4User’s and Service Guide U3020-90004

U3020AD01 General Performance

General Performance

The Test Set is used to characterize the power linearity of the PNA-X. Actual performance of the

system is based on the your PNA-X and options that are used with the Test Set. It is not

specified as an overall system performance. A functional certificate is supplied for the

U3020AD01.

There are no internal adjustment in the U3020AD01, therefore an annual calibration is not

required.

CAUTION This product has an autoranging line voltage input. Be sure the supply voltage is

within the specified range.

Power Requirements

Verify that the required ac power is available at all necessary locations before installing the Test

Set to the PNA-X.

• 100-240 V (50/60 Hz)

• The instruments can operate with mains supply voltage fluctuations up to ± 10% of the

nominal voltage.

• Air conditioning equipment (or other motor–operated equipment) should not be placed on

the same ac line that powers the Test Set.

•Table 1 contains the maximum wattage for the Test Set. This table can be use to determine

the electrical and cooling requirements.

Table 1 Power Requirements

Instrument Maximum

Wattage

U3020AD01 50

User’s and Service Guide U3020-90004 5

U3020AD01 General Performance

Environmental Requirements

Refer to the PNA-X standard documentation for environmental requirements.

Environmental Tests

The U3020AD01 complies with all applicable safety and regulatory requirements for the

intended location of use.

• Operating Environment (Indoor Use)

• Operating Ambient: Temperature 0 to 40 °C

• Operating Altitude: 0 to 2000 meters (~ 6,562 feet)

• The instrument can safely operate in a relative humidity of 80% for temperatures to

31 degrees C, decreasing linearly to 50% relative humidity at 40 degrees C.

Equipment Heating and Cooling

If necessary, install air conditioning and heating to maintain the ambient temperature within the

appropriate range. Air conditioning capacity must be consistent with the rating listed in the

PNA standard documentation.

Required Conditions for Accuracy Enhanced Measurement

Accuracy–enhanced (error–corrected) measurements require the ambient temperature of the

PNA-X and Test Set to be maintained within ± 1 °C of the ambient temperature at calibration.

Dimensions and Space Requirements

Standard installation of the U3020AD01 and PNA includes configuration and installation on a

customer provided lab bench or table top of adequate size and strength.

Table 2 System Dimensions

Item Weight

Required Bench Top Dimension:

Clearance above the bench 8.9 cm (3.5 in)

Width 42.5 cm (16.73 in)

Depth 58 cm (22.83 in)

Weight 9 kg (19.84 lb)

6User’s and Service Guide U3020-90004

U3020AD01 General Performance

Maximum Power Levels and Performance Characteristics

NOTE Refer to your PNA-X standard documentation specifications to determine the

maximum input power levels for the PNA-X access and test ports, or to optimize

the power levels in the receivers.

NOTE Damage and maximum levels are not necessarily the optimum level.

Table 3 Power Levels

RF Input/Output Power Damage Levels:

SRC 1 IN +30 dBm

SRC 2 IN +30 dBm

SRC 2 CPLD OUT +30 dBm

RCVR OUT +30 dBm

Table 4 Performance Characteristics

Parameter Typical

Operating Frequency 1 GHz to 4 GHz

Isolation: (1.8 GHz to 2.2 GHz)

RCVR OUT to SRC 1 IN 

RCVR OUT to SRC 2 IN < -45 dB

SRC 1 IN to SRC 2 IN < -70 dB

RCVR OUT to CPLD OUT < -80 dB

Transmission: Nominal

CPLD OUT to SRC 2 IN

(1 GHz to 4 GHz) 

-14 dB < trans < -18 dB

SRC 2 IN to RCVR OUT 

(1.8 GHz to 2.2 GHz)

(3.5 GHz to 4 GHz)



-3 dB < trans < -9 dB

< -38 dB

SRC 1 IN to RCVR OUT

(1.8 GHz to 2.2 GHz) 

(3.5 GHz to 4 GHz)



-3 dB < trans < -9 dB

< -34 dB

Match: (all ports) Typical

1.8 GHz to 2.2 GHz < -12 dB

Andere Handbücher für U3020AD01

Inhaltsverzeichnis

Andere Keysight Technologies Prüfgeräte Handbücher

Keysight Technologies

Keysight Technologies N1091 CA Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies 85033E Fehlerbehebungshandbuch

Keysight Technologies

Keysight Technologies RF PA/FEM Benutzerhandbuch

Keysight Technologies

Keysight Technologies 85032B Handbuch

Keysight Technologies

Keysight Technologies Z Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies 81960A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 8490D Service-Handbuch

Keysight Technologies

Keysight Technologies N4917CPCA Bedienungsanleitung

Keysight Technologies

Keysight Technologies U1610/20A Bedienungsanleitung

Keysight Technologies

Keysight Technologies Infiniium 90000A Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies 85051B Handbuch

Keysight Technologies

Keysight Technologies S8780A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 16034E Bedienungsanleitung

Keysight Technologies

Keysight Technologies Infiniium MXR Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies U3022AM06 Handbuch

Keysight Technologies

Keysight Technologies PD1500A Kurzanleitung

Keysight Technologies

Keysight Technologies N5222-60124 Installations- und Betriebshandbuch

Keysight Technologies

Keysight Technologies X Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies DP001 A Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 1000 X Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 2000 X Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies U2802A Bedienungsanleitung

Keysight Technologies

Keysight Technologies U3020AS16 Handbuch

Keysight Technologies

Keysight Technologies 8960 Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
