Assemble units as described herein only. To do otherwise

may result in instability. All screws, nuts and bolts must be

tightened securely and must be checked periodically after

assembly. Failure to assemble properly, or to secure parts

may result in assembly failure and personal injury.

Repair & Replacement Instructions

Matrix® Chair

Back Replacement - Chairs Manufactured Before July 5, 2005

February 2019

Tools Required

• Flat-Head Screwdriver

• Lubricant (Dish Soap)

• #32 Drill Bit if using

#12.0695.PLAS, #6-19 x 7/8”

Plastite self-tapping screws

• #2 Phillips Driver Bit

• Cordless Drill/Screwdriver

Matrix Back Removal &

Replacement

1. Place the Matrix chair upside down

with the seat portion resting on a

sturdy surface (table) (Figure 1).

2. Remove the existing Matrix back

by unscrewing the two attachment

screws located along the bottom

edge of the back (Figure 1).

3. Once screws are removed, pull

the Matrix back free from the back

support rods (Figure 2).

Note: If replacement Matrix back

has spring clips pre-installed in the

two holes located at the bottom of the

back, follow step 4 to remove spring

clips. If clips are not pre-installed in

the two holes located at the bottom of

the back, skip to page 2, step 6.

4. If spring clips must be removed,

place the Matrix back on a hard,

sturdy surface (table). The square

openings on the back should be

facing up as illustrated in Figure 3 &

Detail A.

5. Using a flat-head screwdriver, press

down on each spring clip raised

catch located inside the square

openings of the Matrix back and

pry the clips from the two holes at

the bottom of the back (Figure 3 &

Detail A).

Figure 1

attachment

screw

Matrix

back

Figure 2

back

support

rod

back

support

rod

Matrix

back

Figure

Matrix

back

Detail A

flat-head

screwdriver

spring clip

raised catch

snapped into

the square hole

spring clip

(removed)

Matrix

back flat-head

screwdriver

Assemble units as described herein only. To do otherwise

may result in instability. All screws, nuts and bolts must be

tightened securely and must be checked periodically after

assembly. Failure to assemble properly, or to secure parts

may result in assembly failure and personal injury.

1330 Bellevue Street • P.O. Box 8100 • Green Bay, WI 54308-8100 • Tel 1-800-424-2432 • www.ki.com

Matrix®Chair - Back Replacement - Chairs Manufactured Before July 5, 2005

Repair & Replacement Instructions

Matrix Back Removal &

Replacement (cont.)

Note: Applying a small amount of

dish soap as lubricant to the two

frame back support rods prior to

Matrix back assembly, will allow the

plastic to slide easier.

6. Place the chair frame upright on the

floor, flex the Matrix back to help

align the holes in the back with the

back support rods, then slide the new

Matrix back onto the back support

rods until the bottom of the back

rests firmly against the wire frame

(Figure 4).

Note: Drilling the holes at the

correct angle & depth into the Matrix

back is critical. Angle the drill so the

hole goes directly down the center of

the plastic web. Drilling too close to

the front or back surface will result

in unwanted holes, or white stress

marks will appear during or after

the screws are inserted. KI does

not cover damage resulting from

incorrect assembly.

7. Place the Matrix chair upside down

with the seat portion resting on a

sturdy surface (table). Verify you

are using the correct screw

(12.0695.PLAS) for a #32 pilot

hole. With the Matrix back held

firmly against the wire frame,

drill one pilot hole at each side,

approximately 1/2” deep in the Matrix

back using the existing frame holes

as your guide. Make sure the pilot

holes do not break through the front

or rear surface of the back (Figure 5).

Note: Be careful not to strip the

threads in the Matrix back when

inserting the #6-19 x 7/8” Plastite

self-tapping screws.

Figure

Matrix

back

support

rod

back

suppor

rod

Figure 5

cordless

drill

#32

drill bit

Matrix

back

#6-19 x /”

Plastite

self-tapping

screw

8. Insert two #6-19 x 7/8” Plastite

self-tapping screws through the

holes in the frame and into the pilot

holes in the Matrix back, making

sure the screws do not break through

the front or rear surface of the back

and that there are no visible stress

marks associated with inserting the

screws (Figure 5).

Andere KI Inneneinrichtung Handbücher

KI Altus Task Seating Montageanleitung

KI Serenade Bedienungsanleitung

KI Hiatus Sleeper Bench Bedienungsanleitung

KI Piretti Torsion Montageanleitung

KI Jubilee Lounge Seating Leitfaden

KI 700 Series Bedienungsanleitung

KI Design Itoki DD Bedienungsanleitung

KI CrossRoads Metal Media Shelving Single Face Bedienungsanleitung

KI KI 700 Series Bedienungsanleitung

KI Trek Bedienungsanleitung

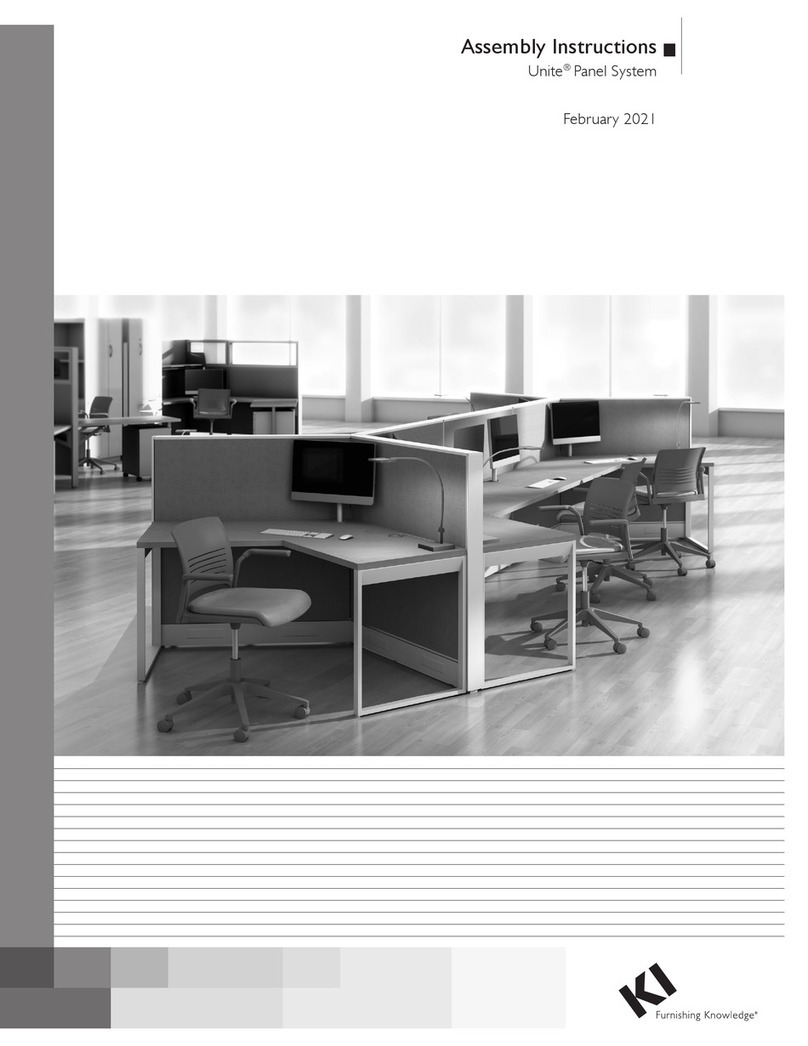

KI Unite System Bedienungsanleitung

KI Lancaster Auditorium Seating Montageanleitung

KI Soltice Metal Bedienungsanleitung

KI System 3000 Countertop Bedienungsanleitung

KI CrossRoads Newspaper Display Unit Bedienungsanleitung

KI Enlite ENRC Series Bedienungsanleitung

KI Aristotle Casegoods Conference Table Bedienungsanleitung

KI WorkUp CR Bedienungsanleitung

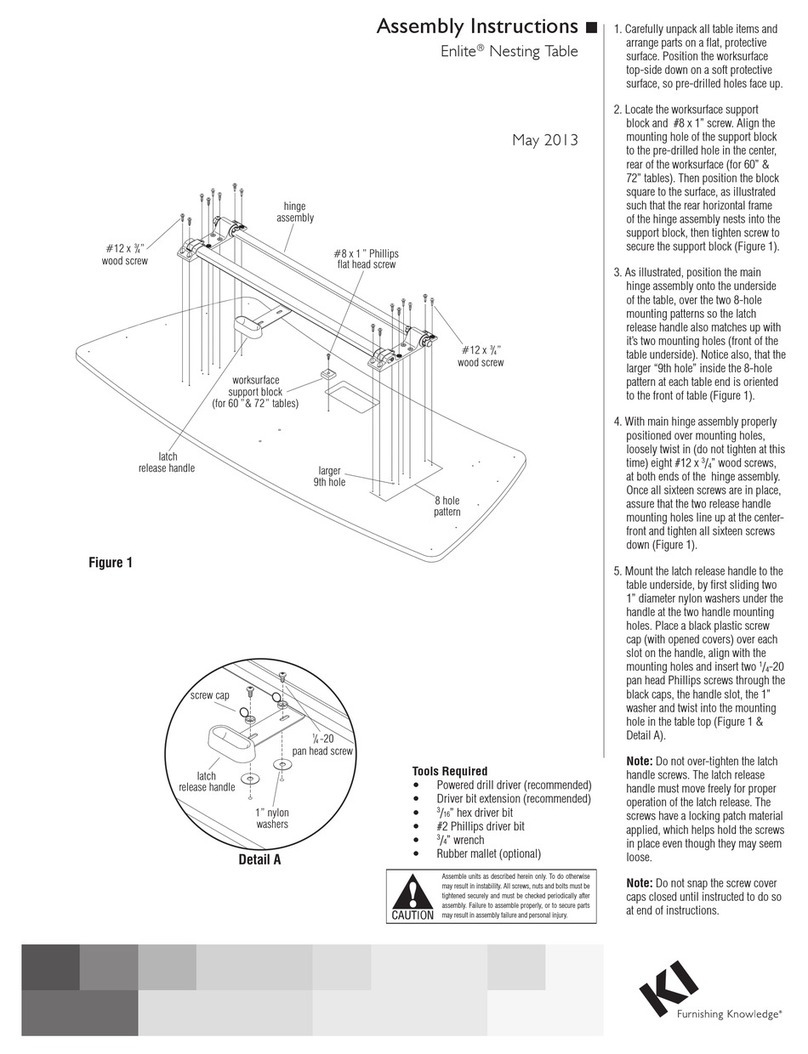

KI Enlite Nesting Table Bedienungsanleitung
