KI9800 Light Source Training Manual

Revision: 2

Date: Nov 2017

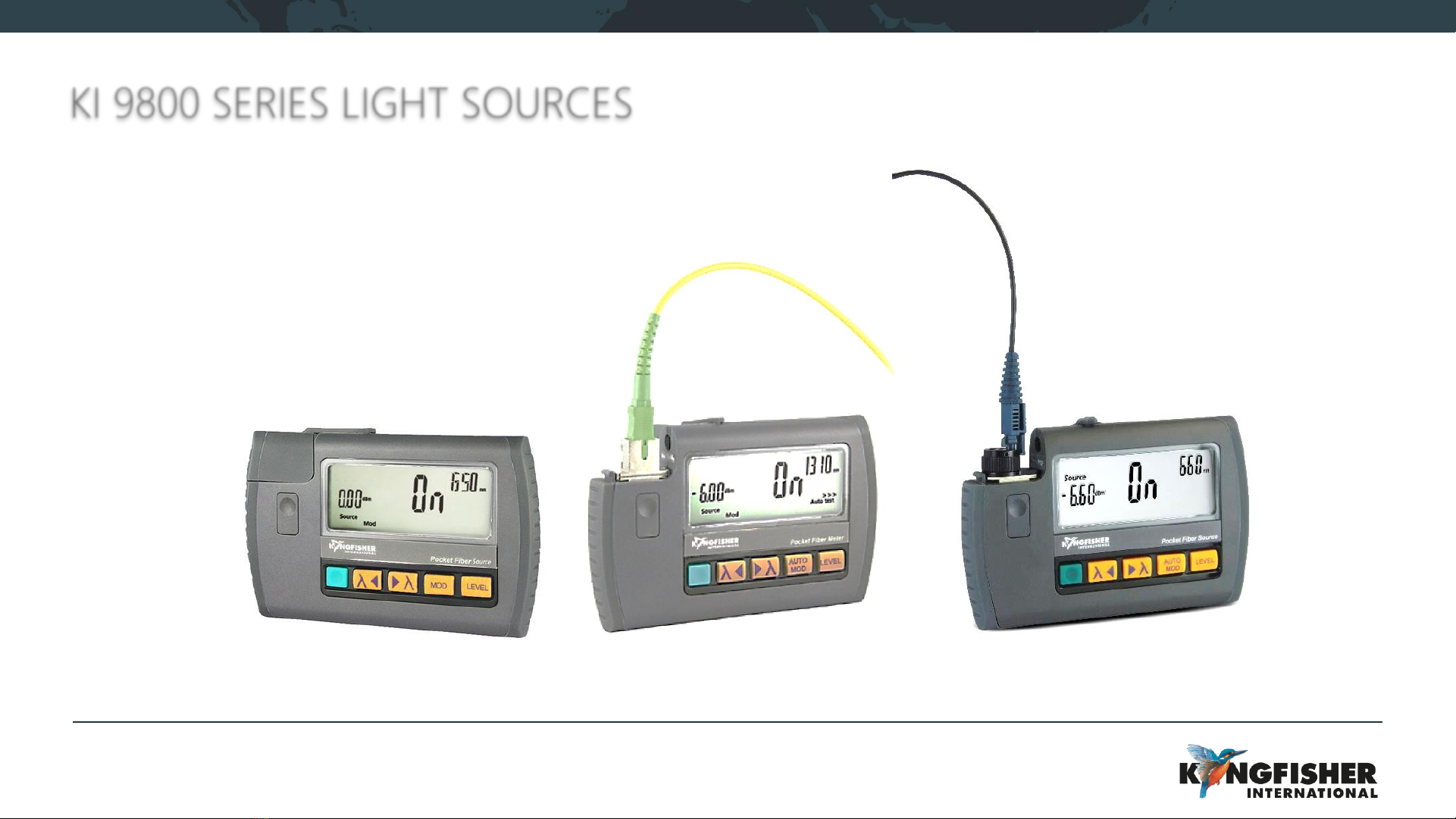

KI 9800 SERIES LIGHT SOURCES

Table of Content (TOC)
TYPICAL APPLICATIONS
GENERAL FEATURES
MODELS
INSTRUMENT OVERVIEW AND KEYPAD LAYOUT
GETTING STARTED
1. Install Batteries
2. Turn Instrument On / Off
3. Select / Determine Test Cord Configuration
4. Install / Uninstall Adaptor on Instrument
5. Cleanliness
6. Instrument Operation
6.1. CW (Continuous Wave) Mode
6.2. Test tone / Multifiber ID Mode
6.3. Tamperlock Mode
6.4. Output Power Adjust
6.5. Autotest Mode
6.6. Firmware Check
INSTRUMENT CARE

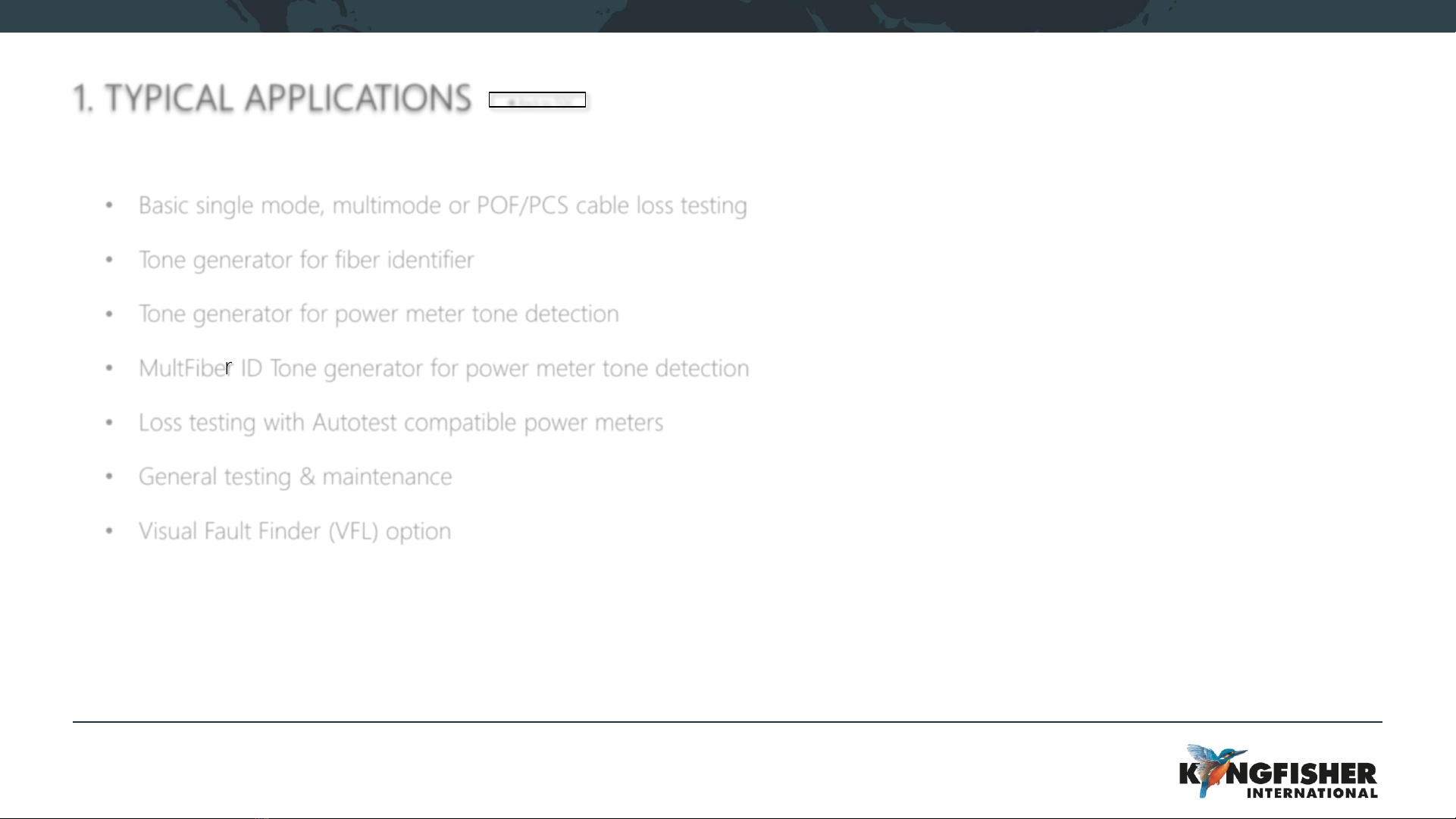

1. TYPICAL APPLICATIONS

•Basic single mode, multimode or POF/PCS cable loss testing

•Tone generator for fiber identifier

•Tone generator for power meter tone detection

•MultFiber ID Tone generator for power meter tone detection

•Loss testing with Autotest compatible power meters

•General testing & maintenance

•Visual Fault Finder (VFL) option

◄Back to TOC

•Entry level skill with Tamperlock

•Excellent optical power stability

•Excellent re-connection repeatability

•Up to 3 wavelengths

•Test tone & Multi-fibre ID generator

•Autotest compatible with KI2000 / KI7000 meters

•Interchangeable connectors

•Shirt-pocket size, with spring clip

•Battery life: up to 40 hours

•Eye-safe long distance VFL up to 10 Km

•Ruggedized, water & dust resistant

•Captive Dust Cap

•Encircled Flux compliant LED sources

•Large sunlight readable display

•3-year warranty & calibration cycle

•Made in Australia

2. GENERAL FEATURES ◄Back to TOC

3. MODELS

There are four model ranges:

•KI982x - Single mode

•KI981x –Multimode *

•KI980x - Specialty POF & Visible

•KI984x –Specialty VCSEL *

See Kingfisher website for full list of available models

*MM sources are EF compliant at 50 um working PC & APC connector versions

◄Back to TOC

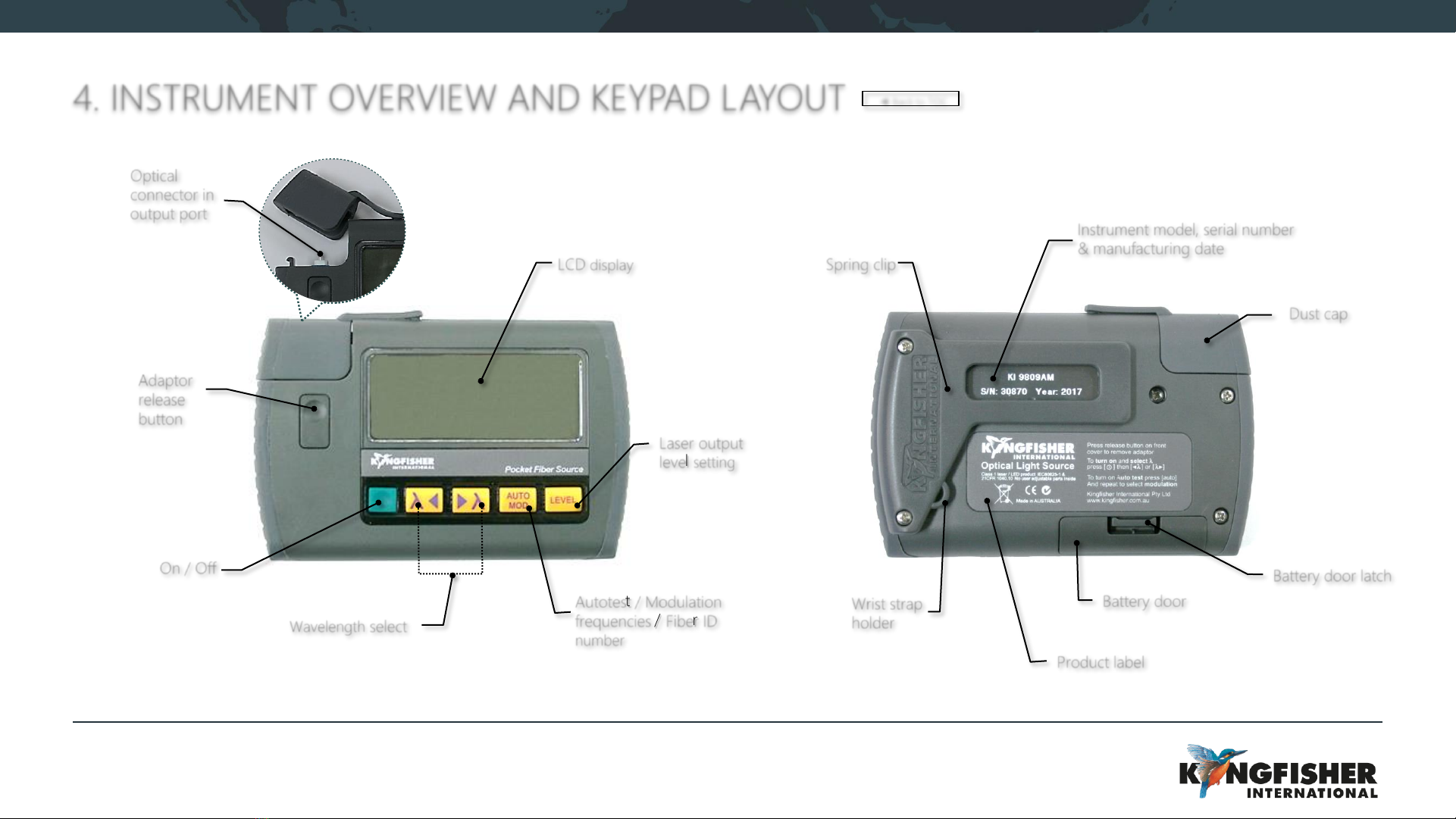

4. INSTRUMENT OVERVIEW AND KEYPAD LAYOUT

Adaptor

release

button

LCD display

Dust cap

On / Off

Laser output

level setting

Autotest / Modulation

frequencies / Fiber ID

number

Battery door

Wrist strap

holder

Spring clip

Wavelength select

Product label

Instrument model, serial number

& manufacturing date

◄Back to TOC

Battery door latch

Optical

connector in

output port

5.1. Install Batteries

5.2. Turn Instrument On / Off

5.3. Select / Determine Test Cord Configuration

5.4. Install / Uninstall Adaptor On Instrument

5.5. Cleanliness

5.6. Instrument Operation

5. GETTING STARTED ◄Back to TOC

To install batteries:

• Pinch latch and lift battery door

• Insert 2 ‘AAA’ cells

• Replace battery door

Battery life:

Laser/LED source: 40/35 hours in Autotest, typical using Alkaline batteries. 25 hours typical in CW mode.

Low Battery Display:

The symbol, is displayed when batteries are low.

Warning!

Do not use lithium batteries, or other batteries with a nominal voltage greater than 1.8 V to avoid instrument damage.

5.1. Install Batteries ◄to GETTING STARTED ◄Back to TOC

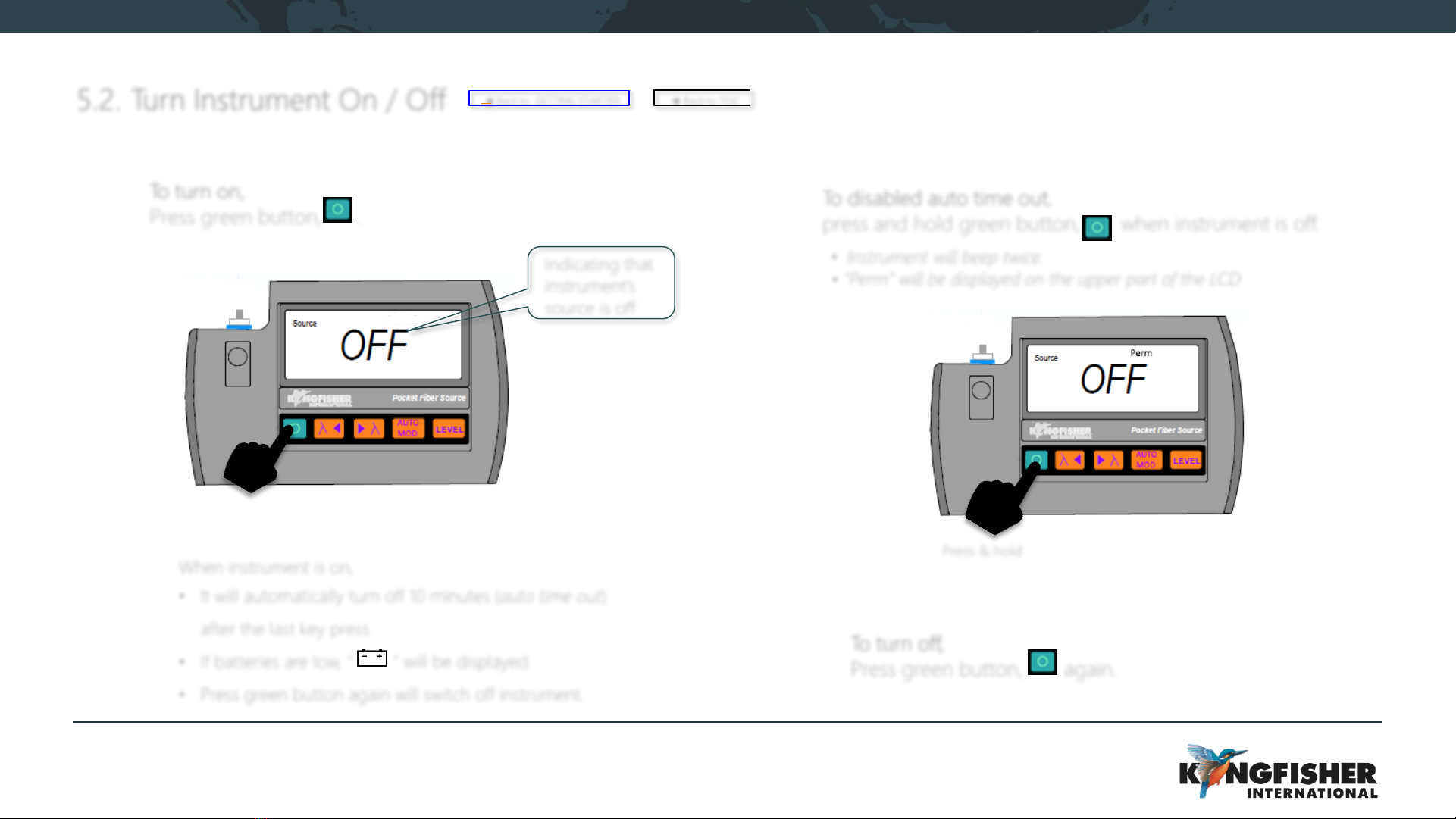

5.2. Turn Instrument On / Off

To turn on,

Press green button, .

When instrument is on,

•It will automatically turn off 10 minutes (auto time out)

after the last key press.

•If batteries are low, “ “ will be displayed.

•Press green button again will switch off instrument.

To disabled auto time out,

press and hold green button, when instrument is off.

•Instrument will beep twice.

• “Perm” will be displayed on the upper part of the LCD

Press & hold

◄Back to GETTING STARTED

Indicating that

instrument’s

source is off

To turn off,

Press green button, again.

◄Back to TOC
