Congratulations,and welcome to the fabulous world of KIOTI DK65S ownership,where serious work is made fun

again!

This versatile tractor is a culmination of the entire tractor and diesel knowledge gained by the DAE DONG

INDUSTRIAL CO.,LTD over the years since 1947 and has been designed with the finest materials and under

rigid quality control standards set forth by the KIOTI ENGINEERING DEPARTMENT.

Knowledge of tractor operation is essential for many years of dependable service and reliability.to help new

owners familiarize themselves with the KIOTI DK65S, it is the policy of KIOTI tractor to provide an owners

manual which includes helpful information about tractor safety,operation and maintenance. If the information

you seek is not found in this manual, your KIOTI tractor dealer will be happy to help you.please feel free to

contact DAE DONG -USA,INC. with your questions/concerns. Throughout this manual you will see text in bold

type, preceded by the worlds DANGER, WARNING, CAUTION or IMPORTANT.

Such text has the following significance.

Signs Description

DANGER

WARNING

CAUTION

IMPORTANT

This mark indicates hazardous situation which, if not observed, may result in death or

fatal injury.

This mark should be indicated for most dangerous situations only.

This mark indicates potentially hazardous situation which, if not observed, may result in

minor or moderate injury. And this mark can be used as a warning against unsafe activities.

This mark indicates emphasis on notable characteristics in working procedures or infor-

mation on working procedures and technology for convenient use.

This mark indicates potentially hazardous situation which, if not observed, may result in

death or moderate injury.

FOREWORD

Abbreviations

4WD

API

ASAE

ASTM

fpm

Hi-Lo

HST

m/s

P.T.O

RH/LH

ROPS

m-1(rpm)

S-1(r/s)

SAE

SMV

Definitions

Four Wheel Drive

American Petroleum Institute

American Society of Agricultural Engineers, USA

American Society of Testing and Materials, USA

Feet Per Minute

High Speed-Low Speed

Hydrostatic Transmission

Meters Per Second

Power Take Off

Right-hand and Left-hand sides are determined by

facing in the direction of forward travel

Roll-Over Protective Structures

Revolutions Per Minute

Revolutions Per Second

Society of Automotive Engineers, USA

Slow Moving Vehicle

ABBREVIATION LIST

Various universal symbols have been used on the instruments and controls of your KIOTI tractor. Below is a list of the universal

symbols and their meanings.

UNIVERSAL SYMBOLS

Safety Alert Symbol

Fuel-Level

Engine Coolant-Temperature

Parking Brake

Battery Charging Condition

Engine Oil-Pressure

Turn Signal

Power Take-Off Clutch Control-

Off Position

Power Take-Off Clutch Control-

ON Position

Differential Lock

Position Control-Lowered

Position

Hazard Warning Lights

Headlight-Low Beam

Headlight-High Beam

Four-Wheel Drive-On

Fast

Slow

High Range

Middle Range

Low Range

Neutral Position

Coolant

Preheat

1. SAFETY PRECAUTIONS ...................................................

2. SERVICING THE TRACTOR..............................................

3. SPECIFICATIONS ...............................................................

4. DESCRIPTION OF OPERATING SYSTEM......................

5. OPERATING.........................................................................

6. MAINTENANCE ...................................................................

7. LONG-TERM STORAGE ....................................................

8. TROUBLESHOOTING ........................................................

9. INDEX....................................................................................

CONTENTS

BEFORE OPERATING THE TRACTOR

OPERATING THE TRACTOR

DRIVING THE TRACTOR

PARKING THE TRACTOR

OPERATING THE P.T.O

USING 3-POINT HITCH

SERVICING THE TRACTOR

TRACTOR SAFETY LABELS

1SAFETY PRECAUTIONS

1-2 DK65S

A careful operator is the best operator.

Most accidents can be avoided by observ-

ing certain precautions. To help prevent

accidents,use these safety precautions

and pay attention to the job at hand. If

you can prevent an accident in advance,

your time will have been well spent.

BEFORE OPERATING THE

TRACTOR

6. When getting on and off the tractor,

handholds and step plates should al-

ways be used. This will help to pre-

vent accidental slips trips and falls.

7. Be sure to scrape off mud or soil from

your shoes before mounting the tractor.

8. Watch where you are going at all times

so that you are able to avoid obstacles

that can cause injury or damage to

your tractor.

9. When starting the tractor make sure

your path is clear of people to avoid ac-

cidents caused by sudden movements.

10.Before making reverse movements

with your tractor, you should always

check to see that the path is clear.

1. It is recommended that you read and

understand this entire manual before

operation of your new tractor. Failure

to do so could result in accidents or

injury.

2. Only persons who are properly trained

should be allowed to operate the

tractor.

3. Read and follow all warning labels and

decals affixed to the tractor.

4. Replace any missing or damaged de-

cals as soon as it is practical. A list of

decals is shown on page1-14~16.

5. Keep safety decals clean from dirt and

debris.

C71O102A

C71O101A

SAFETY PRECAUTIONS 1-3

11. Never operate this tractor or any other

agricultural equipment while under the

influence of alcohol, drugs or while

fatigued.

12.While working in cooperation with

other tractors always communicate

your intentions.

13.Do not start your tractor by shorting

across the starter.

16.All persons using the tractor should

have knowledge of its proper opera-

tion and should read this manual

carefully.

17.Never get off the tractor without

setingthe parking brake,lowering the

implement to the ground and shutting

of thetractor.

18.No alterations should be made to your

KIOTI tractor without first consulting

your KIOTI dealer.

14.Never start the engine while standing

on the ground.

15.Only the operator should ride on the

tractor unless a passenger seat is

installed. Keep bystanders away from

the tractor while in operation.

C71O104AC71O103A C71O105B

1-4 DK65S

A ROPS should never be modified by

welding, grinding or cutting, as this can

weaken the ROPS structure. If any com-

ponents of the ROPS unit is damaged, it

must be replaced.

If the ROPS unit is removed or loosened

for any reason, the parts should be fitted

back to their original positions and all bolts

should be properly torqued.

NOTE

Always use seat belt when the tractor

is equipped with a ROPS. Never use

the seat belt when tractor is not

equipped with a ROPS.

(ROPS: Roll-Over Protective Structures)

21.Extra caution should be taken when

driving tractors with narrow tread

widths. For added stability you should

adjust your rear wheel tread width, see

page 5-23.

19.Before starting your tractor you

should depress the clutch, and make

sure that all shift levers are in the

neutral position.

20.For your safety ROPS with a seat belt

is recommended for most applications.

C71O106A C71O107A

(1) Max. tread width (2) Rear wheels

SAFETY PRECAUTIONS 1-5

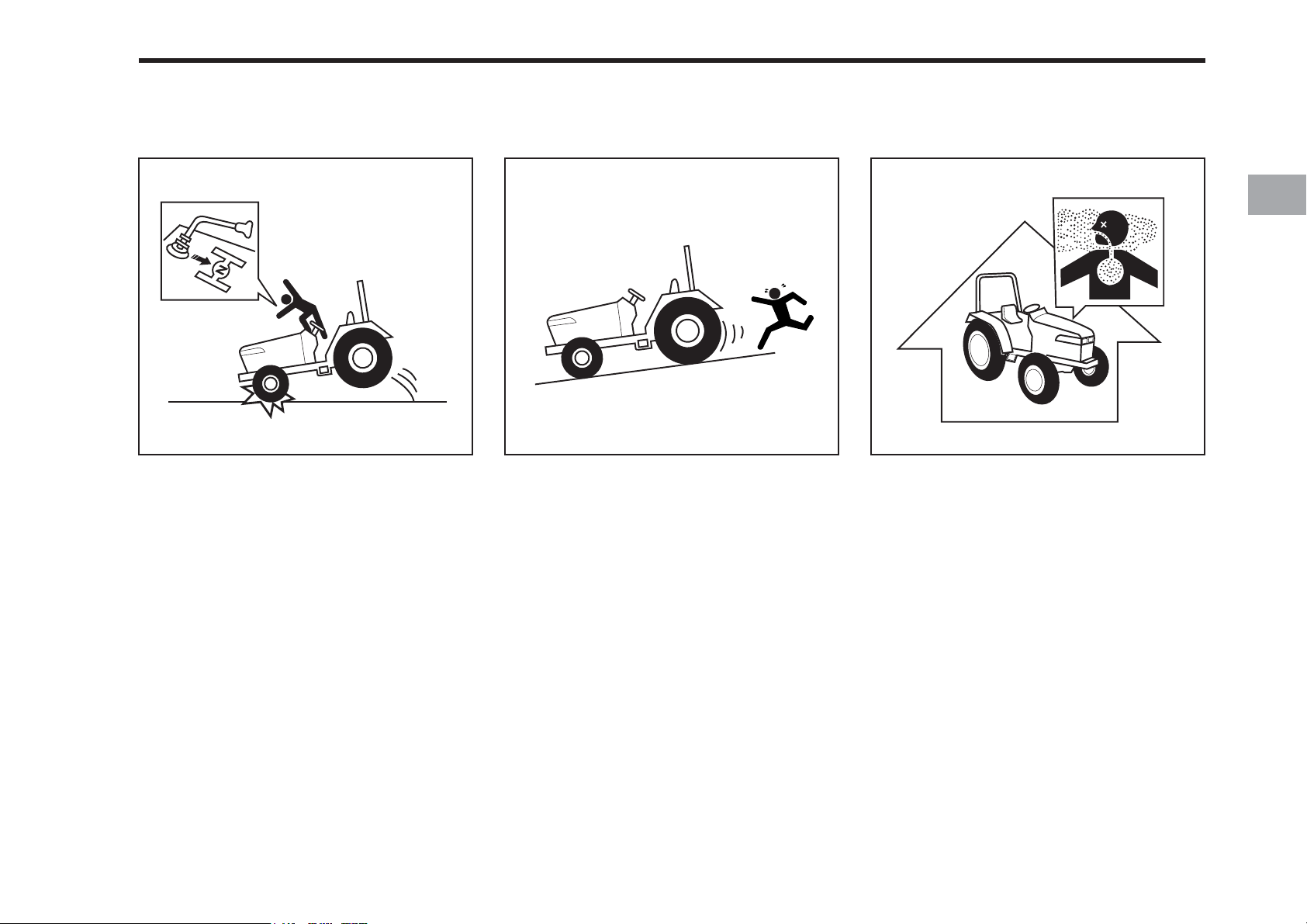

1. Avoid accidental contact with gear shift

levers while the engine is running. Un-

expected tractor movements can result

in bodily injury.

2. Do not park your tractor on a steep

incline, and remember to shut off the

engine and P.T.O before dismounting

the tractor.

OPERATING THE TRACTOR

3. Do not operate your tractor in an en-

closed building without the proper

ventilation. Exhaust fumes can cause

serious injury or death.

C71O109AC71O108A C71O110A
