1

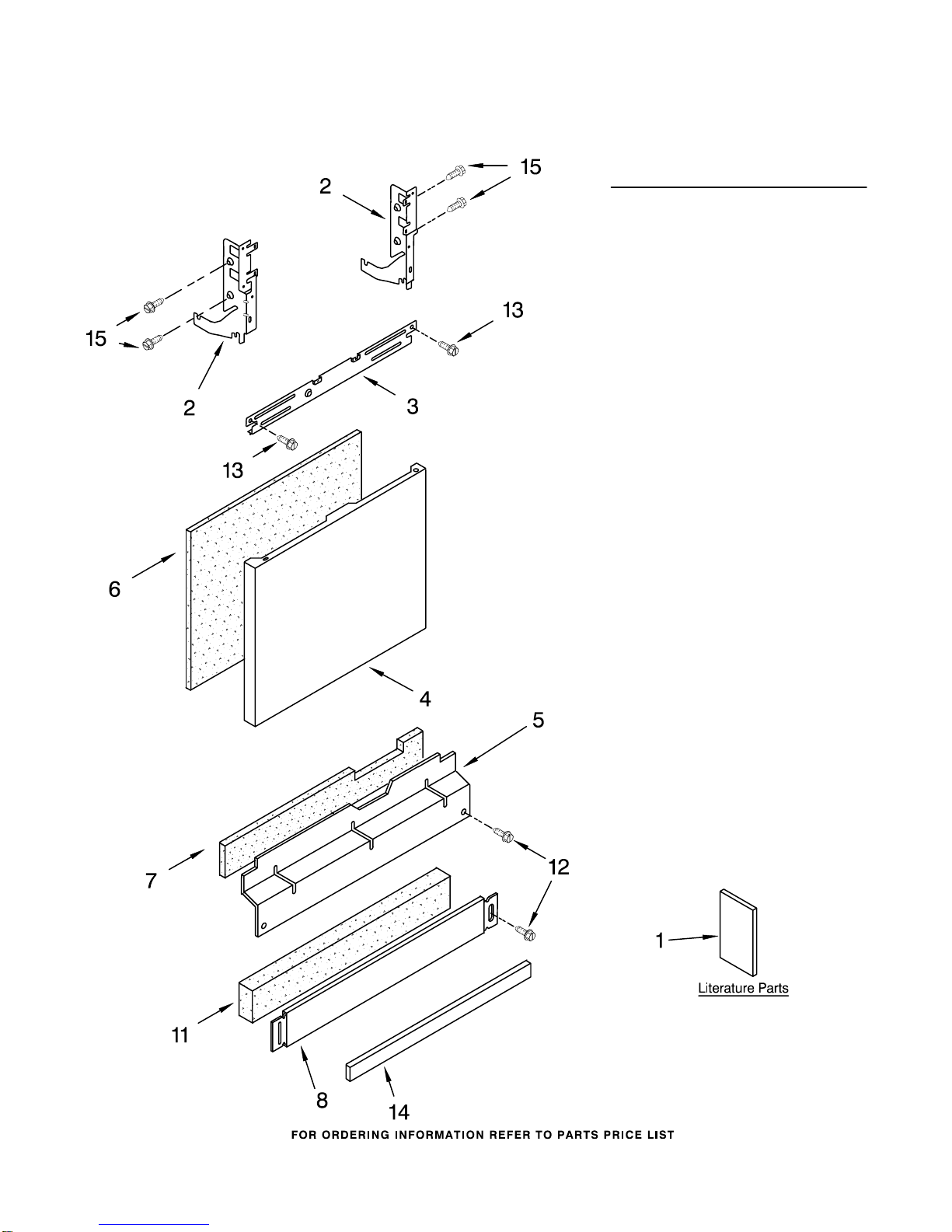

DOOR AND PANEL PARTS UNDERCOUNTER
DISHWASHER
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8524479
Instructions,
Installation
LIT8269911
Energy Guide
LIT8269904
Guide, Use & Care
Tech Sheet
LIT8269519
English
LIT8269520
French
2 Arm, Hinge
8269012 Left
8269011 Right
3 8268983 Stiffener,
Door
4 Panel Front
8269841 Black
8269842 White
8269843 Almond
8269844 Biscuit
8270064 Stainless
5 Access Panel
(Includes Item 7)
8269007 Black
8269008 White
8269010 Almond
8269009 Biscuit
6 8268580 Insulation, Door
7 8268584 Insulation,
Access Panel
8 Toe Panel
(Includes Item 11)
8269003 Black
8269004 White
8269006 Almond
8269005 Biscuit
11 8268581 Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
3400865 Biscuit/Almond
13 304392 Screw
14 9744140 Seal, Toe Panel
15 3400071 Screw (2)
01−05 Litho in U.S.A. (kdr) Part No. 8193521 Rev. B
CONTROL PANEL PARTS
28193521
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Console Asm.
includes Active
Overlay & Insert
8269136 Black
8269138 White
8269139 Almond
8269140 Biscuit
4 8268540 Spring, Handle
5 8524471 Actuator, Latch
6 8269213 Fuse, Thermal
Electronic
7 8269206 Display, Dual
Digit
8 3369051 Screw (6)
9 Handle, Latch
8269117 Black
8269167 White
8269169 Almond
8269168 Biscuit
10 8524476 Bolt, Latch
11 8528172 Control,
Electronic
12 8269209 Switch, Door
14 8268547 Shield
15 3400409 Screw
DOOR AND LATCH PARTS
3
8193521
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8269108 Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8269266 Inlet, Air
5 8269251 Vent Assembly
(Also Order
6 8269259 Gasket, Vent
7 8269260 Deflector, Vent
(Also Order
Item 6)
8 8269996 Dispenser,
Assembly
(Also Order
Item 11)
9 8269258 Seal, Front
10 8269190 Dispenser,
Wiring Harness
11 8269189 Sensor, Rinse Aid
12 8269191 Wiring Harness
Main
13 8281154 Screw (6)
14 8269143 Seal,
Console/door
15 8269743 Bracket,
Dispenser
16 8268541 Shield,
Dispenser
17 8268933 Seal, Splash
Guard
4
LOWER WASHARM AND STRAINER PARTS
8193521
Illus. Part
No. No. DESCRIPTION
1 8268300 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
HEATER PARTS
5
8193521
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8194200 Heater Element
Assembly
(Also Includes
Item 2 and
Electronic
Control)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
5 3400931 Retainer, Spring
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
68193521
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268889 Control, Overfil
Assembly
2 8269242 Hose, Inlet
3 8269240 Water Inlet
Assembly
(Includes
Items 4 & 5)
4 8269241 Gasket
5 8269268 Bezel, Inlet
6 301958 Clamp, Hose
7 8268572 Fill Valve
Assembly
8 3400014 Screw
9 3378128 Washer
11 8268909 Switch, Overfill
Control
12 8268891 Standpipe,
Overfill
13 4161670 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
TUB AND FRAME PARTS
8193521 7
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
TUB AND FRAME PARTS
8193521
8
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8269105 Tub Assembly
(Also Order
Item 2)
2 8268395 Seal, Sump
3 8268888 Door Seal
4 8270119 Plug Tub (2)
5 8269112 Drain Loop
With Check Valve
7 8269110 Seal, Cabinet
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw (2)
13 3400924 Retainer, Push−in
14 3370389 Screw (2)
15 8268977 Wheel Leg
16 3374849 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
20 3400892 Screw
21 8268991 Cover, Terminal
Box
24 8270022 Link, Door
Balance
25 8268587 Insulator, Sound
26 304666 Retainer, Push (2)
27 8269016 Clip, Grounding
28 8268585 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 661566 Thermostat
31 8269111 Strike, Latch
32 9741232 Screw
46 8268477 Switch, Pressure
48 356138 Clamp, Hose (1)

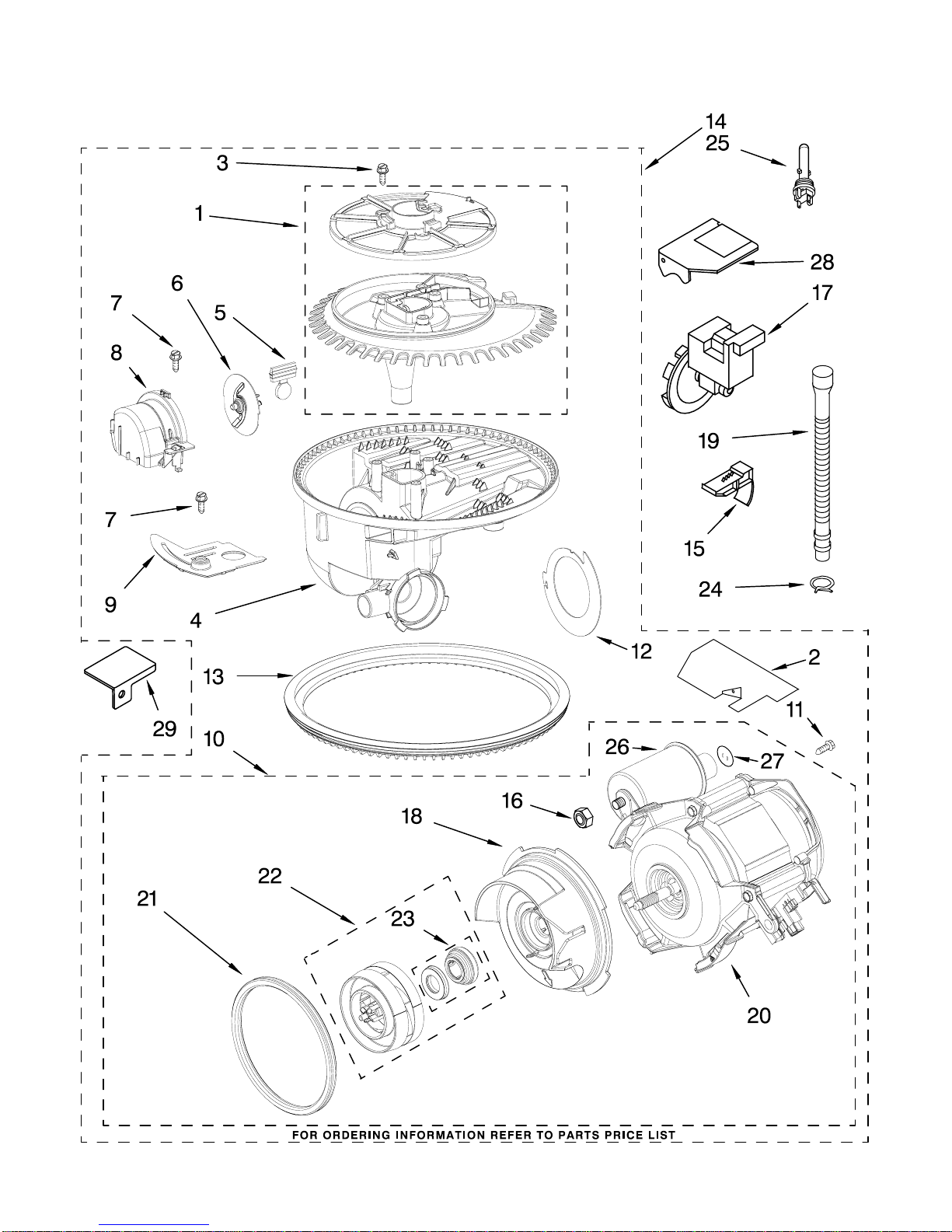

PUMP AND MOTOR PARTS
9
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
8193521
PUMP AND MOTOR PARTS
8193521
10
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268429 Accumulator Assy
2 8268529 Shield, Motor
3 3400069 Screw
4 8268382 Sump
5 8268389 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8268390 Protector, Inlet
9 8268427 Protector, Foreign
10 8268407 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
13 8268395 Seal, Sump
14 8268422 Sump & Motor
Assembly
15 8268432 Tab, Sump
16 3400921 Nut
17 8268411 Pump, Drain
18 8268405 Volute, Back
(Also Order
Item 23)
19 8269144 Hose, Drain
20 8268408 Motor And
Capacitor
21 8268397 Seal, Volute
22 8268398 Impeller Kit
23 8268403 Face Seal Assembly
24 356138 Clamp, Hose
25 8269208 Thermister
26 8269507 Capacitor
27 8269512 Shield, Capacitor
28 8269449 Shield, Drain
Pump
29 8269501 Shield, Pressure
Switch
