KitchenAid 5KFP0922 Montageanleitung

9-Cup Food Processor 5KFP0922

INSTRUCTIONS

9 }_" _ _JH_ _)L5KFP0922

9-_ -T---_ _ g Xq]2,]5KFP0922

,}÷ aa_,t

FOR THE WAY IT'S MADE.

Welcome to the world of KitchenAid.

We're committed to helping you

create a lifetime of delicious meals for

family and friends. To help ensure the

longevity and performance of your

appliance, keep this guide handy.

It will empower you with the best way

to use and care for your product. Your

satisfaction is our # I goal.

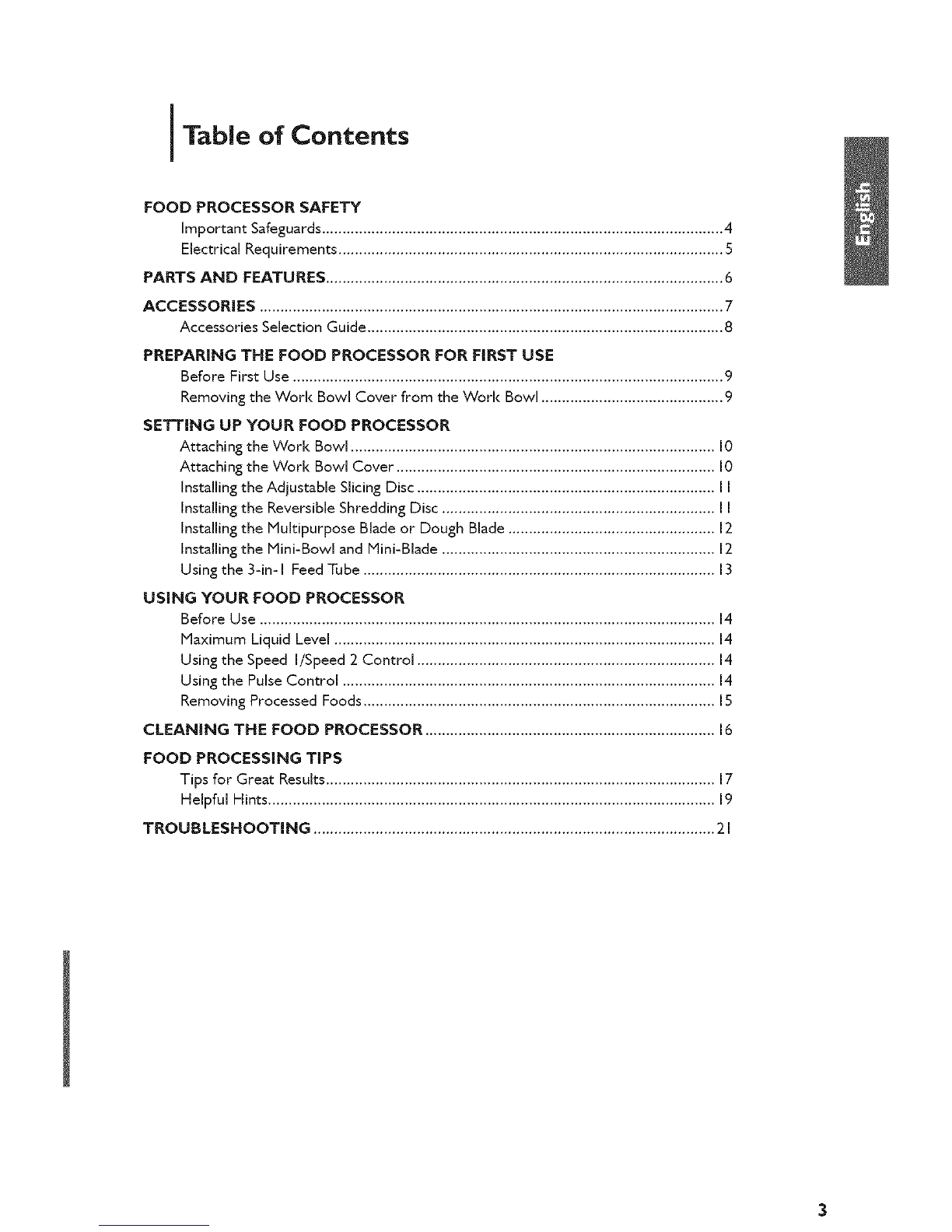

I Table of Contents

FOOD PROCESSOR SAFETY

Important Safeguards ................................................................................................. 4

Electrical Requirements ............................................................................................. 5

PARTS AND FEATURES ................................................................................................ 6

ACCESSORIES ................................................................................................................ 7

Accessories Selection Guide ...................................................................................... 8

PREPARING THE FOOD PROCESSOR FOR FIRST USE

Before First Use ........................................................................................................ 9

Removing the Work Bowl Cover from the Work Bowl ............................................ 9

SETTING UP YOUR FOOD PROCESSOR

Attaching the Work Bowl ........................................................................................ I0

Attaching the Work Bowl Cover ............................................................................. I0

Installing the Adiustable Slicing Disc ........................................................................ I I

Installing the Reversible Shredding Disc .................................................................. I I

Installing the Multipurpose Blade or Dough Blade .................................................. 12

Installing the Mini-Bowl and Mini-Blade .................................................................. 12

Using the 3-in- I Feed Tube ..................................................................................... 13

USING YOUR FOOD PROCESSOR

Before Use .............................................................................................................. 14

Maximum Liquid Level ............................................................................................ 14

Using the Speed I/Speed 2 Control ........................................................................ 14

Using the Pulse Control .......................................................................................... 14

Removing Processed Foods ..................................................................................... 15

CLEANING THE FOOD PROCESSOR ...................................................................... 16

FOOD PROCESSING TIPS

Tips for Great Results .............................................................................................. 17

Helpful Hints ............................................................................................................ 19

TROUBLESHOOTING .................................................................................................21

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you

and others.

All safety messages will follow the safety alert symbol and either

the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured

if you don't immediately follow

instructions,

You can be killed or seriously injured

if you don't follow instructions,

All safety messages will tell you what the potential hazard is, tell you how to

reduce the chance of injury, and tell you what can happen if the instructions are

not followed.

IH PORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

I. Read all instructions.

2. To protect against risk of electrical shock, do not put Food Processor in water

or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from the outlet when not in use, before putting on or taking off parts,

and before cleaning.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug, or after the appliance

malfunctions, or isdropped or damaged in any manner. Return appliance to the

nearest Authorized Service Facility for examination, repair, or electrical or mechanical

adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause fire,

electric shock, or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

I0. Keep hands and utensils away from moving blades or discs while processing food

to reduce the risk of severe injury to persons or damage to the Food Processor.

A scraper may be used but must be used only when the Food Processor is

not running.

I Io Blades are sharp. Handle carefully.

12. To reduce the risk of injury, never place cutting blade or discs on base without first

putting bowl properly in place.

13. Be certain cover issecurely locked in place before operating appliance.

14. Never feed food by hand. Always use the food pusher.

SAVE THESE INSTRUCTIONS

IH PORTANT SAFEGUARDS

15. Do not attempt to defeat the cover interlock mechanism.

16. This product is designed for household use only.

17. To disconnect, turn any control to "OFF," then remove plug from wall outlet.

18. This appliance is not intended for use by persons (including children) with reduced

physical, sensory, or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety.

19. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices, and other working environments

-farm houses

-by clients in hotels, motels, and other residential type environments

-bed and breakfast type environments.

SAVE THESE INSTRUCTIONS

Electrical Requirements

Volts: :2:20-:240V.A.C.

Hertz: 50/60 Hertz

_e Slicing

Disc Thin to Thick

lShredding

Adapter

Work Bowl

Cover with

3=in= I Feed

Tube

2.0 L(9-Cup)

Work Bowl

Reversible

(2 mm and 4 ram)

Shredding Disc

3-Piece

Food Pusher

750 ml (3-Cup)

Hini-Bowl and Hini-Blade

Multipurpose

Stainless Steel

Blade

Dough Blade

Heavy-Duty

Base

Important parts and accessories included with your new Food Processor are highlighted

below. Refer to the following pages for additional details on accessories included with your

Food Processor as well as optional accessories you can order.

Adjustable Slicing Control

KitchenAid's adjustable slicing disc allows you

to manually adjust slicing thickness from thin

to thick.

Speed I/Speed 2/Pulse Control

Two speedsandPulse provide precise

control to give great results with most

anyfood.

Work Bowl Cover with 3-in- IFeed Tube

(KFPLg0FT)

One of the industry's largest, the 3-in-I feed

tube accommodates large items such as

tomatoes, cucumbers, and potatoes with

a minimum of sectioning or slicing.

Included Accessories

3-Piece Food Pusher (KFPgOFTP)

Three pushers are nested inside of each

other. Remove the medium pusher from the

large pusher to reveal a medium-size feed

tube for continuous processing.

For continuous processing of smaller items

(like herbs, nuts, single carrots, and celery),

remove the narrow pusher and use the

narrow feed tube.

A small hole in the bottom of the narrow

pusher makes it easy to drizzle oil into

ingredients - just fill with the desired

amount of oil or other liquid ingredient.

Heavy-Duty Base

The heavy, slip-resistant base helps

provide improved stability and reduced

vibration during tough food processing jobs.

750 ml (3-cup) Hini-Bowl and

Hini-Blade (KFPg0BH)

Mini-bowl and stainless steel mini-blade are

perfect for small chopping and mixing jobs.

2.0 L(9-Cup) Work Bowl (KFPg0WBOB)

The durable, large work bowl provides

capacity for large jobs.

Adjustable Slicing Disc (KFPg0ESL)

Disc is adjustable from approximately

I mm (%6 inch) to 6 mm (_/4inch) for

slicing most foods.

Reversible Shredding Disc (KFPg0RD)

Shredding disc is reversible to allow coarse

or finely shredded cheese or vegetables.

Drive Adapter

The drive adapter is used to connect the

slicing/shredding disc to the power shaft

on the base.

Huitipurpose Blade (KFPg0BL)

Versatile blade chops, minces, blends, mixes,

and emulsifies in a matter of seconds.

Dough Blade (KFPg0DB)

The dough blade is specially designed

for mixing and kneading yeast dough.

_ Cheese Multipurpose Blade

Chocolate

Chop Fruit

Fresh herbs

j_ Nuts

: : : Tofu OR

"" " Vegetables Mini-bowl and

Mince Puree Mini Blade

Pasta Sauce

_] Pesto +

Salsa

Mix Sauces

Fruit (soft) Adjustable Slicing Disc

Potatoes

_ Tomatoes

z_ = Vegetables (soft)

Slice Slice __ Ch ....

Thin Thick _ ......... _=_ _........ Chocolate

......................... Fruit (hard)

Vegetables (hard)

__ Potatoes Reversible Shredding Disc

a._,*Ua _.,,_: ......................... VegetableSCabbage(soft) _

Shred Shred Cheese

Medium Fine Chocolate

Fruit (hard)

Vegetables (hard)

(_ Batter Dough Blade

Sweet dough __

Yeast dough

Knead

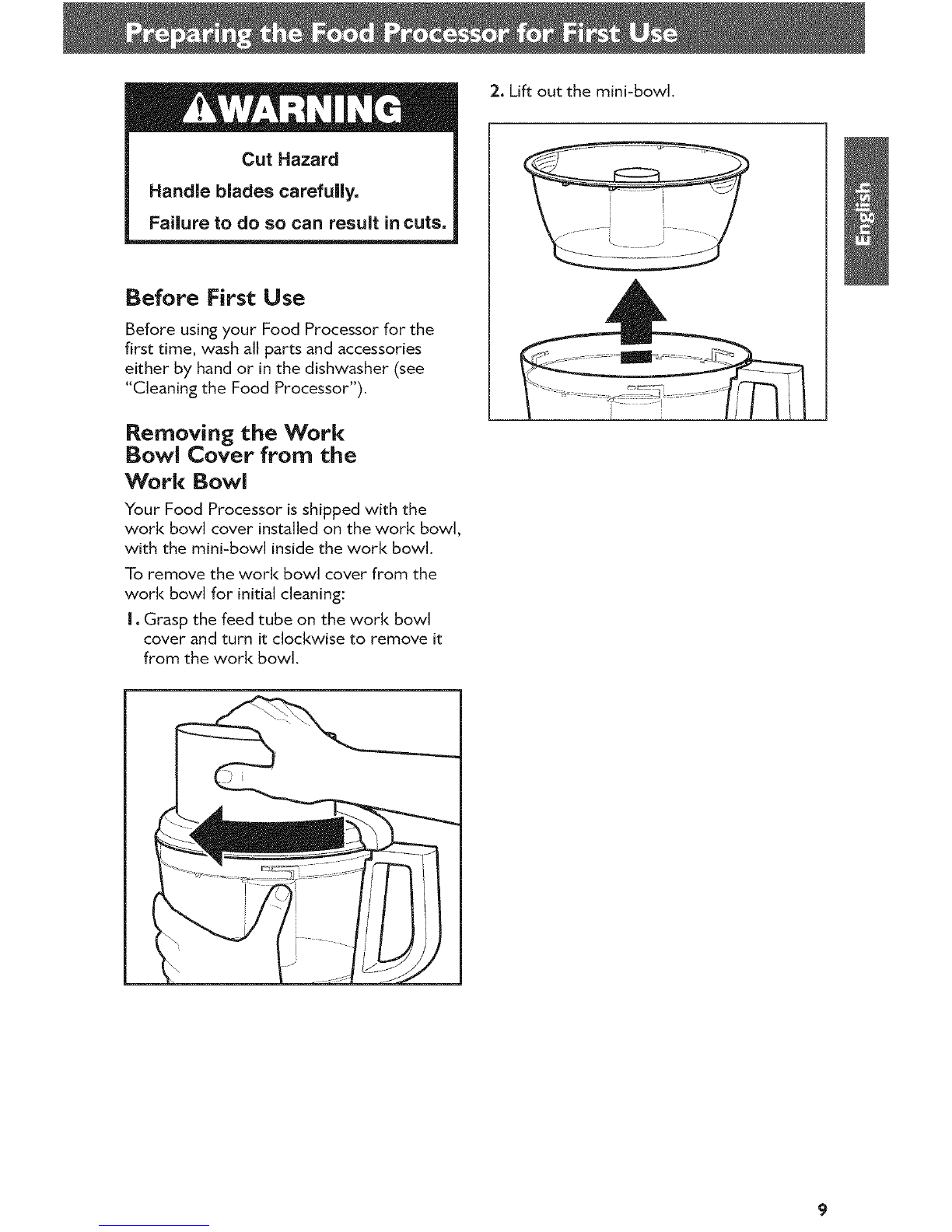

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

Before First Use

Before using your Food Processor for the

first time, wash all parts and accessories

either by hand or in the dishwasher (see

"Cleaning the Food Processor").

Removing the Work

Bowl Cover from the

Work Bowl

Your Food Processor is shipped with the

work bowl cover installed on the work bowl,

with the mini-bowl inside the work bowl.

To remove the work bowl cover from the

work bowl for initial cleaning:

I. Grasp the feed tube on the work bowl

cover and turn it clockwise to remove it

from the work bowl.

2. Lift out the mini-bowl.

Attaching the Work Bowl

I. Place the Food Processor on a dry,

level countertop with the controls

facing forward. Do not plug in the Food

Processor until it is completely assembled.

2. Place the work bowl on the base, aligning

the raised portion with the indentation on

the base. The center hole should fit over

the power shaft.

3. Grasp the work bowl handle and turn

the bowl counterclockwise to lock it

on the base.

Attaching the Work

Bowl Cover

I. Place the work bowl cover on the work

bowl with the feed tube just to the left

of the work bowl handle. Grasp the feed

tube and turn the cover to the right until

it locks into place.

2. Fit the food pusher into the 3-in- I

feed tube. See "Using the 3-in- I Feed

Tube" for details on working with

different sized foods.

NOTE: Your Food Processor wilt not

°perate unless the work bowl and work

bow! coyer are properly locked on the

base, and the large pusher is inserted to

the maximum fill line on the feed tube

(approximately halfway down).

4. Select the accessory you would like to use

and install it according to the instructions

on the following pages.

NOTE: Be sure to install the desired

accessory before attaching the work

bowl Cover.

NOTE: Be sure to install the desired

accessory before attaching the work

bowl cover.

Inhaltsverzeichnis

Andere KitchenAid Küchenmaschine Handbücher

KitchenAid

KitchenAid 5KFP0933 Bedienungsanleitung

KitchenAid

KitchenAid 5KFP1319 Series Bedienungsanleitung

KitchenAid

KitchenAid KFP1133OB Bedienungsanleitung

KitchenAid

KitchenAid KFC3511 Bedienungsanleitung

KitchenAid

KitchenAid KFP1317 Bedienungsanleitung

KitchenAid

KitchenAid 5KFC3516 Bedienungsanleitung

KitchenAid

KitchenAid Chef's Chopper KFC3100 Kurzanleitung

KitchenAid

KitchenAid KFP0718BM Bedienungsanleitung

KitchenAid

KitchenAid KFP1433A Bedienungsanleitung

KitchenAid

KitchenAid KFP750AQ - Food Processor, Martha Stewart Kurzanleitung

KitchenAid

KitchenAid 5KFP0919 Bedienungsanleitung

KitchenAid

KitchenAid KFPW760QER - 700 Watt Ultra Wide Mouth Food... Bedienungsanleitung

KitchenAid

KitchenAid KFP1355 Bedienungsanleitung

KitchenAid

KitchenAid 5KFC3511DWH0 Bedienungsanleitung

KitchenAid

KitchenAid KJA03 Bedienungsanleitung

KitchenAid

KitchenAid KFP715BW0 Bedienungsanleitung

KitchenAid

KitchenAid Chef's Chopper KFC3100 Bedienungsanleitung

KitchenAid

KitchenAid 5KFP0719 Bedienungsanleitung

KitchenAid

KitchenAid KFP1333 Betriebsanleitung

KitchenAid

KitchenAid 5KFP0925 Bedienungsanleitung

KitchenAid

KitchenAid 5KFP0921E Bedienungsanleitung

KitchenAid

KitchenAid KFPW760 Bedienungsanleitung

KitchenAid

KitchenAid 5KFP1644 Bedienungsanleitung

KitchenAid

KitchenAid 4KFPM770 Kurzanleitung

Beliebte Küchenmaschine Handbücher anderer Marken

INNOLIVING

INNOLIVING INN-727 Bedienungsanleitung

Berkel

Berkel C32 Bedienungsanleitung

Beko

Beko CHP5554W Bedienungsanleitung

QUIGG

QUIGG KM 2017Wi.20 Bedienungsanleitung

Lakeland

Lakeland PRESS AND CHOP 31557 Bedienungsanleitung

Bosch

Bosch MMR08 GB Series Bedienungsanleitung

HOFFEN

HOFFEN Chef Express T9532 Bedienungsanleitung

Garland

Garland 852 ZG Bedienungsanleitung

Robot Coupe

Robot Coupe CL50 Gourmet Bedienungsanleitung

SAPIRHOME

SAPIRHOME SP-1111-K Bedienungsanleitung

Moulinex

Moulinex DJ3051 Bedienungsanleitung

Bosch

Bosch MUM5 Bedienungsanleitung

cecotec

cecotec Mambo Touch Bedienungsanleitung

Black & Decker

Black & Decker hc 300 Montageanleitung

Gorenje

Gorenje SBR 1000 DV Bedienungsanleitung

Arzum

Arzum AR 1128 Bedienungsanleitung

Saturn

Saturn ST-FP0069 Bedienungsanleitung

Vitek

Vitek VT-1641 W Bedienungsanleitung
