KitchenAid KHTU105L Gebrauchsanweisung

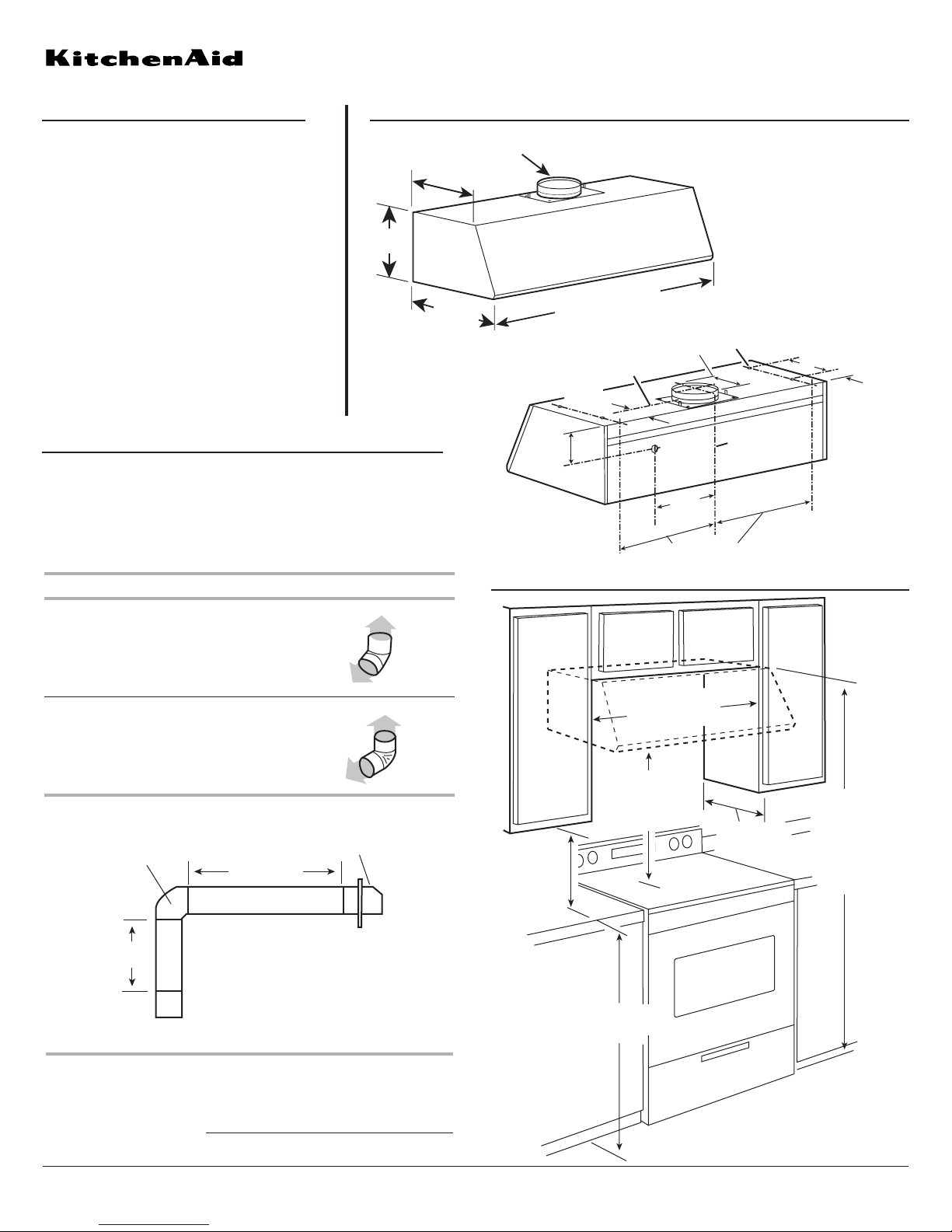

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

VENTING REQUIREMENTS

KHTU105L

KHTU105R

KHTU165R

Electrical: 120-volt, 60-Hz, AC-only, 15-amp.

electrical supply. Use copper wire only. A time-

delay fuse or circuit breaker and separate circuit is

recommended.

30" and 36" Canopy Range Hood

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 9760927 Rev. A

07-19-05

14 ⁷⁄₈"

(37.8 cm)

5 ⁷⁄₈" (14.9 cm) diam.

exhaust collar

10 ⁵⁄₁₆"

(26.2 cm)

19 ¹⁄₂"

(49.5 cm)

29 ⁷⁄₈" (75.9 cm) - 30" (76.2 cm) model

35 ⁷⁄₈" (91.1 cm) - 36" (91.4 cm) model

mountingscrews

locations (4)

centerline

of hood

1³⁄₈ "

(3.5 cm)

13 ¹⁄₂" (34.3 cm) - 30" (76.2 cm) model

16 ¹⁄₂" (41.9 cm) - 36" (91.4 cm) model

8¹⁄₁₆"

(20.5 cm)

5⁷⁄₈"

(14.9 cm)

diam.

10 ⁹⁄₁₆"

(26.8 cm)

⁷⁄₈"

(2.2 mm)

centerline of

exhaust collar

(10.2 cm)

30" (76.2 cm) or

36" (91.4 cm) min.

cabinet openingwidth

24" (61 cm) min.

30" (76.2 cm)

suggested max.

bottom of hood to

cookingsurface

18" (45.7 cm)

min. clearance

upper cabinet

to countertop

36" (91.4 cm)

base cabinet

height

13" (33 cm)

cabinet depth

70 ⁵⁄₁₆"

(178.6 cm)

min.

76 ⁵⁄₁₆"

(193.8 cm)

max.

to bottom of

cabinet frame

CABINET OPENING DIMENSIONS

Example vent system

Vent piece 6" (15.2 cm) round

45° elbow 2.5 ft (0.8 m)

90° elbow 5.0 ft (1.5 m)

Maximum length = 35 ft (10.7 m)

1-90° elbow = 5 ft (1.5 m)

8 ft (2.4 m) straight = 8 ft (2.4 m)

1 - wall cap = 0 ft (0 m)

System length = 13 ft (3.9 m)

90˚ elbow

2 ft

(0.6 m)

6 ft (1.8 m)

wall cap

This range hood is factory set for vented installations. Vent system can

terminate through either the roof or wall. A 6" (15.2 cm) round vent

system must be used. The vent system length should not exceed

35 ft (10.7 m).

To calculate the length of the system you need, add the equivalent feet

(meters) for each vent piece used in the system.
