KOBE CH-20 Series Fehlerbehebungshandbuch

KOBE Brand Range Hood

Model No.

CH-20 Series

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATING INSTRUCTIONS................................................................................................... 8

MAINTENANCE......................................................................................................................... 9

SPECIFICATIONS ....................................................................................................................10

MEASUREMENTS & DIAGRAMS.............................................................................................11

PARTS LIST ..............................................................................................................................12

TROUBLE SHOOTING .............................................................................................................15

DISCLAIMER............................................................................................................................16

WARRANTY .............................................................................................................................17

PRODUCT REGISTRATION.....................................................................................................19

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NO TE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instructions Manual

{D} 6” Round Exhaust Plate

{E} 3-1/4” x 10” Exhaust Plate

{F} 3-1/4” x 10” Vent Cover

{G} Top Vent Cover

{H} Oil Containers (Rectangular)

{I} Oil Containers (Round)

{A} {B} {C}

{D} {E} {F}

{G} {H} {I}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27"to 30")

D = Height of Hood

E = Height of the Cabinet

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from the

hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to

perform more efficiently.

- Try to avoid as many transitions, elbows, and long

run as possible. This may reduce the

performance of the hood.

- Temporarily wire the hood to test for proper

operation before installing.

- Peel protective film off the hood (if any).

- For installing under the cabinet with recessed

bottom, attach 4-inch wide wood filler strips (not

included) on each side. Refer to Figure 2.

- Measure and create access opening for electrical

wires under the cabinet.

- Using reference on Page 11 to measure and

create access opening for electrical wires and

exhaust under the cabinet.

- Using reference on Page 11 to position the

mounting screws (not included) underneath the

cabinet.

Vent option installation

1. Choose the require vent option.

NOTE: If the hood is to be installed as ductless

application, please do not remove any duct

knockout located at the top or the back of the

hood.

2. For 6” Round vent installation only:

-Attached the 6” exhaust plate using 13 screws

(provided). Refer to Figure 3.

3. For Top 3-1/4” x 10” vent installation only:

-Align and secure the top vent cover and 3-1/4”

x 10” Exhuast plate using 13 screws

(provided). Refer to Figure 4.

4. For Rear 3-1/4” x 10” vent installation only:

- Align and secure the top vent cover and 3-1/4”

x 10” vent cover using 13 screws (provided).

Refer to Figure 5.

- Remove the duct knockout located at the back

of the hood.

- Attached the 3-1/4” x 10” exhaust plate at the

back of the hood using 6 screws (provided).

Figure 1

Figure 2

Figure 3

Figure 4

Hood Installation

CAUTION: If required to move the cooking range to

install the hood, turn off the power on an electric range

at the main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

5. Unscrew the three screws on the bottom casing.

Remove the bottom casing if necessary; arrange

the electrical wires to run through the 1” diameter

hole on the top or the rear of the hood.

6. Using references on Table 1 and measurements

on page 11 center the hood in place beneath the

cabinet and flush with the front of the cabinet.

7. Draw electrical wires through cabinet access

opening.

8. Align screws with the mounting holes on top of the

range hood, and push toward the wall to secure

the unit in place. Refer to Figure 7.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE

HOOD MUST BE PROPERLY GROUNDED. MAKE

SURE THIS IS DONE BY SPECIALIZED

ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

9. Connect the electrical wires.

- Connect three wires (black, white and green)

to house wires and cap with wire connectors.

Connect according to color: black to black,

white to white, and green to green.

Ductwork Installation

10. Use steel pipe to connect the plastic exhaust on

the hood to the ductwork above. Use duct tape to

make all joints secure and air tight.

Figure 5

Figure 6

Figure 7

Install Accessories

11. Place the oil container (round) into keyhole under

each safety screen. Turn clock-wise until firmly in

place.

12. Slide oil container (oval) into plastic slot behind

each safety screen.

Final Installation

13. Turn power ON in control panel. Check all lights

and fan operation.

14. Make sure to leave this manual for the

homeowner.

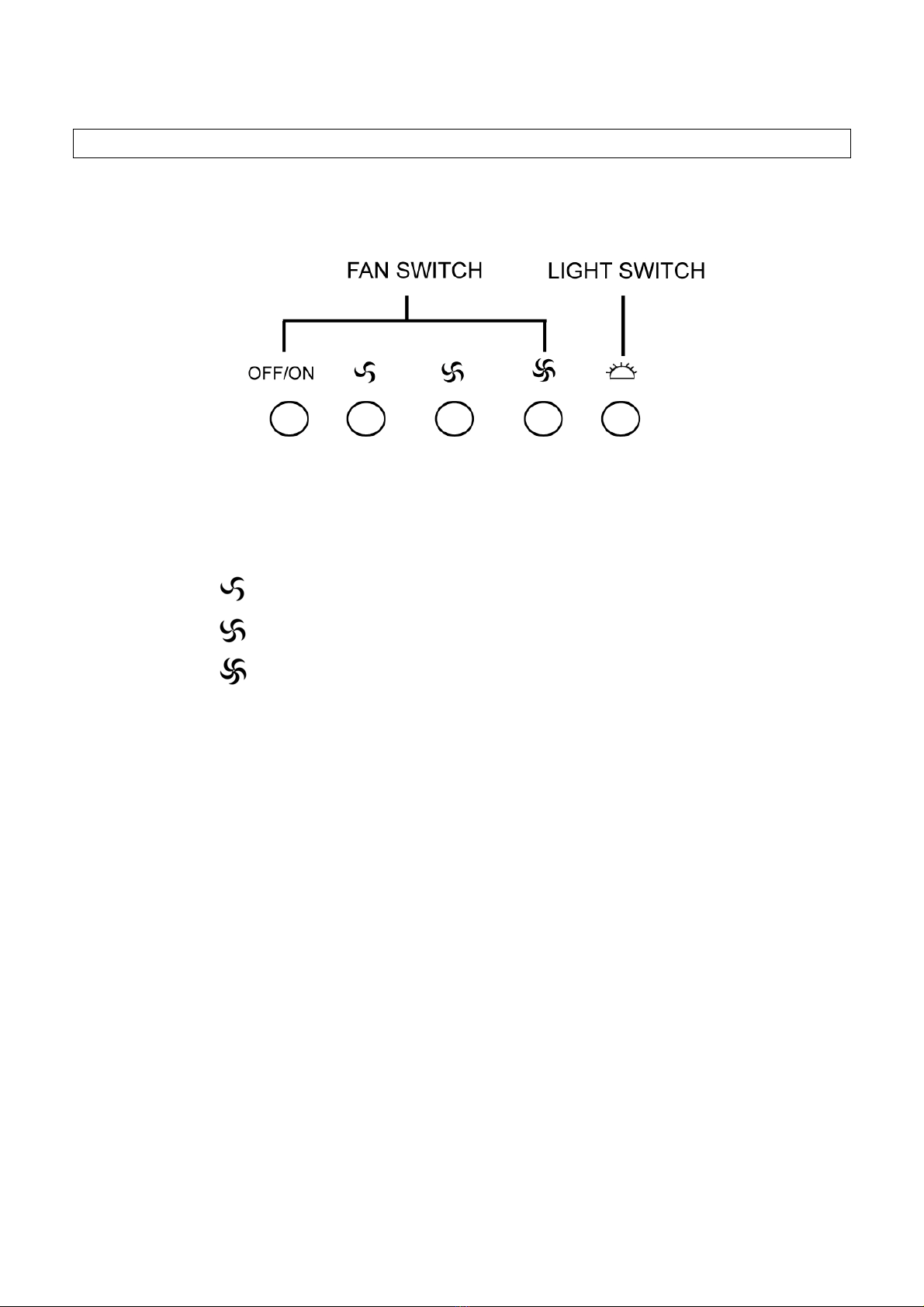

OPERATING INSTRUCTIONS

To operate the fan function

•Press button to choose from speed.

o= Low speed

o= Medium speed

o= High speed

•Press “OFF/ON” to turn fan off.

To operate the light function

•Press the Light Control to turn lights on and off.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE IN2730SF Fehlerbehebungshandbuch

KOBE

KOBE Brillia CHX2730SQF Bedienungsanleitung

KOBE

KOBE RA9236SQ Fehlerbehebungshandbuch

KOBE

KOBE CXX8130QF-GBK-1 Bedienungsanleitung

KOBE

KOBE INX29 SQBF-500-2 Series Fehlerbehebungshandbuch

KOBE

KOBE CH2730SQ3 Series Fehlerbehebungshandbuch

KOBE

KOBE RA9230SQB-1 Gebrauchs- und Pflegehandbuch

KOBE

KOBE RA2830SB Fehlerbehebungshandbuch

KOBE

KOBE IS2236SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CH2230SQB Fehlerbehebungshandbuch

KOBE

KOBE CX1830GS-8 Fehlerbehebungshandbuch

KOBE

KOBE IS2236SQF Fehlerbehebungshandbuch

KOBE

KOBE CHX36 SQB-29 Series Fehlerbehebungshandbuch

KOBE

KOBE CH8036SQ Fehlerbehebungshandbuch

KOBE

KOBE INX2730SQB-700-2 Fehlerbehebungshandbuch

KOBE

KOBE OVS-CHX9130SQB-40 Fehlerbehebungshandbuch

KOBE

KOBE Brillia CHX7930SQB-WM-1 Bedienungs- und Wartungshandbuch

KOBE

KOBE INX2830SQB-700-1 Fehlerbehebungshandbuch

KOBE

KOBE CH2730SQB Fehlerbehebungshandbuch

KOBE

KOBE CH27 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE RA92 Series Fehlerbehebungshandbuch

KOBE

KOBE PREMIUM IN26 Series Fehlerbehebungshandbuch

KOBE

KOBE CH00 SQB-1 Bedienungsanleitung

KOBE

KOBE IS2336SQB-DC16-1 Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
