KOBE Brand Range Hood

Model No.

CHX8136SF

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS......................................................................... 1

COMPONENTS OF PACKAGE....................................................................................... 3

INSTALLATION ............................................................................................................... 4

OPERATING INSTRUCTIONS........................................................................................ 8

MAINTENANCE .............................................................................................................. 9

SPECIFICATIONS......................................................................................................... 10

MEASUREMENTS & DIAGRAMS................................................................................. 11

PARTS LIST .................................................................................................................. 12

CIRCUIT DIAGRAM ...................................................................................................... 14

TROUBLE SHOOTING ................................................................................................. 15

DISCLAIMER ................................................................................................................ 16

WARRANTY.................................................................................................................. 17

PRODUCT REGISTRATION ......................................................................................... 19

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if

unit is damaged due to misuse, poor installation, improper use,

mistreatment, negligence or any other circumstances beyond the

control of EPC Trading Inc.

- EPC Trading Inc. will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether

caused directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

•Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

•Always turn hood ON when cooking.

•Use high settings on cooking range ONLY when necessary.

•Do not leave cooking range unattended when cooking.

•Always use cookware and utensils appropriate for the type and amount of food prepared.

•Use this unit only in the manner intended by the manufacturer.

•Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

•Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or

death. Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to

Local, State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

{A} Brillia Range Hood – 1

{B} Warranty Registration Card – 1

{C} Instructions Manual – 1

{D} Duct Cover Mounting Bracket – 1

{E} Hood Mounting Bracket – 2

{F} Aluminum Filters – 2

{G} Mounting Template – 1

{H} 7” Round Duct Adapter – 1

{I} Screw package – 1

{A}

{B} {C}

{D} {E}

{F}

{G} {H}

{I}

-FOR MORE INFORMATION, PLEASE CONTACT BRILLIA BY KOBE AT (626) 775-6388.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before installation

To calculate the length of the installation, please refer to Table 1. (All calculation is measure in

inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING

ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

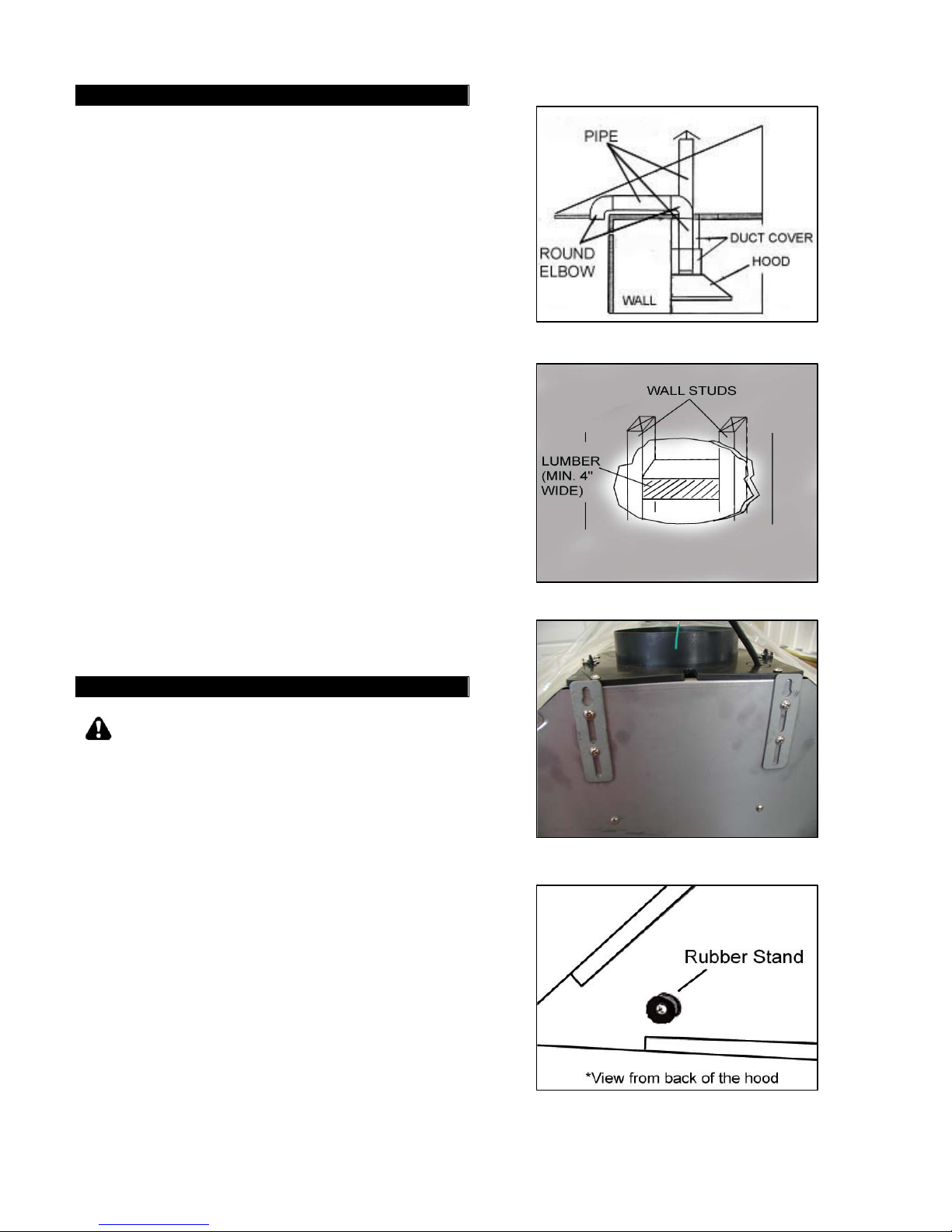

- Decide the location of venting pipe from the

hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood

to perform more efficiently.

- Try to avoid as many transitions, elbows, and

long run as possible. This may reduce the

performance of the hood.

- Use duct tape to seal the joints between pipe

sections.

- Temporarily wire the hood to test for proper

operation before installing.

- If necessary, prepare back wall frame with

cross framing lumber for secure installation.

Using references on Table 1 and the

measurements on page 13, decide the level of

the lumber. Refer to Figure 2.

- Peel protective film off the duct cover and the

hood (if any).

- Loosen hood-mounting brackets at the back of

the hood, adjust brackets and tighten screws as

shown in Figure 3.

- If necessary to remove the rubber stand on the

back of the hood, unscrew and discard. Refer

to Figure 4.

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the power on

an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Using references on Table 1 and

measurements on page 13, mark the leveling

point for hood-mounting bracket on the wall.

If necessary, use installation template

(provided).

2. Secure two mounting screws (not provided)

on the wall leaving 1/8” away from the wall.

Refer to Figure 5.

3. Align hood-mounting bracket to the mounting

screws on the wall and hook hood into place.

4. Secure and tighten the mounting screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Figure 1

Figure 2

Figure 3

Figure 4

Ductwork Installation

5. Use 6” round steel pipe (not provided) to

connect the plastic exhaust on the hood to

the ductwork above. Use duct tape to make

all joints secure and air tight. Refer to Figure

6. For 7” round ductwork, attach the 7” round

duct adapter (provided) to the 6” round

plastic exhaust on the hood. Refer to Figure

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE

HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY A

SPECIALIZED ELECTRICIAN IN ACCORDANCE

WITH ALL APPLICABLE NATIONAL AND

LOCAL ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER OFF

AT SERVICE PANEL AND LOCK SERVICE

PANEL TO PREVENT POWER FROM BEING

SWITCHED ON ACCIDENTALLY.

7. Connect three wires (black, white and green)

to house wires and cap with wire connectors.

Connect according to color: black to black,

white to white, and green to green.

8. Test the operation of the hood before moving

on to the next step. Make sure power is

supplied to the hood.

Figure 5

Figure 6

Figure 7

7” Round

Adapter

6” Round

Plastic Exhaust

Duct Cover Installation

NOTE: BE CAREFUL WHEN USING

ELECTRICAL SCREWDRIVER, DAMAGE TO

THE HOOD MAY OCCUR.

9. Using reference Efrom Table 1 and

measurements on page 13, mark the leveling

point for duct cover bracket.

10. Secure the duct cover bracket to the wall

with two screws (not provided). Make sure

all screws are tightened. NOTE: Inner duct

cover will cover the duct cover bracket.

11. Adjust the duct cover length and secure with

two (4x8 mm) screws (provided) as shown in

Figure 8.

12. Remove the two (4x14 mm) screws

(provided) on the duct cover position plate.

13. Slide the entire duct cover onto the hood.

Refer to Figure 9.

14. Place the edge of the inner duct cover

behind the duct cover bracket on the wall.

15. Secure the outer duct cover to the duct cover

position plate with two (4x14 mm) screws

(provided).

Install Accessories

16. Place aluminum filters underneath the hood.

Final Assembly

17. Turn power ON in control panel. Check all

lights and fan operation.

18. Make sure to leave this manual for the

homeowner.

Figure 8

Figure 9

OPERATING INSTRUCTIONS

Figure 11

Light Off

Light Control

Light On

To operate the fan function

Slide switch to in the Speed Control panel for low speed.

Slide switch to in the Speed Control panel for medium speed.

Slide switch to in the Speed Control panel for high speed.

Slide switch to in the Speed Control panel to turn off the fan.

To operate the light function

Slide switch to in the Light Control Panel to turn light on.

Slide switch to in the Light Control Panel to turn light off.

High Speed

Fan Off

Low Speed

Medium Speed

Speed Control

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE RA3830SQ Fehlerbehebungshandbuch

KOBE

KOBE IN26 30SQB-650-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CH22 Series Fehlerbehebungshandbuch

KOBE

KOBE IN2636SQB-700 Fehlerbehebungshandbuch

KOBE

KOBE CH00 Series Fehlerbehebungshandbuch

KOBE

KOBE CH7730SQ Fehlerbehebungshandbuch

KOBE

KOBE OVS-CHX8130SQB-40 Montage- und Bedienungsanleitung

KOBE

KOBE INX2730SQB-700-2 Fehlerbehebungshandbuch

KOBE

KOBE CH2230SQ Fehlerbehebungshandbuch

KOBE

KOBE CXX8130QF-GBK-1 Fehlerbehebungshandbuch

KOBE

KOBE Brillia INX27 SQB-700-2 Series Fehlerbehebungshandbuch

KOBE

KOBE IN2636SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IN28 SQP Series Fehlerbehebungshandbuch

KOBE

KOBE CX-183 Fehlerbehebungshandbuch

KOBE

KOBE INX2830SQH-700-1 Fehlerbehebungshandbuch

KOBE

KOBE ISX2136SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IN26 SQB-1100-5A Series Fehlerbehebungshandbuch

KOBE

KOBE CHX9136SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE RAX9530SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CH0030SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IN2636SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE BRILLIA INX26 Series Fehlerbehebungshandbuch

KOBE

KOBE INX29 SQBF-500-2 Series Fehlerbehebungshandbuch

KOBE

KOBE CH-20 Series Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
