MJ400066H1

Digital flow indicator

DPM-3

Instruction Manual

MJ400066H1

- 1 -

Read this page before proceeding!

Pictures: In this Instruction Manual and on products, various pictures are shown for correct using

of the products and for preventing harm to people including you and damage to

properties. Their meanings are as follows.

DANGER

Ignoring this indication or wrong handling may lead to an

imminent danger such as death or serious injury.

WARNING

Ignoring this indication or wrong handling may result in death or

serious injury.

CAUTION

Ignoring this indication or wrong handling may cause injury to

people or property damage only.

⚫Installation

Although there is no restriction in particular on the installing position, the installation place should

be free from dust and moisture so as to prevent insulation failure due to dewing. Due attention

should be paid to the installation environment such as improving ventilation by installing a cooling

fan if temperature rise is expected due to apparatuses around the product. Avoid the installation

at a place subject to continuous vibration because there is the possibility of contact failure

of cable connections.

CAUTION

Never install the product at a humid or moist place. It is dangerous

because electric shock will be caused.

Do not install it at a place where ambient temperature is very high.

Internal circuits may be damaged due to high temperature.

Installation at a place subject to constant vibration may result in contact

failure of cable connections.

MJ400066H1

- 2 -

Failure

If any failure of this unit is suspected, it must be checked at a safe place such as check terminals of

the connected apparatuses instead of checking the output voltage, etc. with the connector pins of

this apparatus, to prevent short-circuit, etc.

In case of failure, contact our company.

DANGER

Never disassemble the product. Touching the interior is very dangerous

because there is the possibility of electrical shock.

MJ400066H1

- 3 -

Contents

1. Outline....................................................................................- 4 -

2. Standard Specifications..........................................................- 4 -

3. Block Diagram........................................................................- 4 -

4. Pin Assignment.......................................................................- 4 -

5. DPM-3 Scaling Change/Adjusting Method..............................- 5 -

6. Dimensional Outline Drawing .................................................- 6 -

7. Product Warranty.......................................................................-6-

MJ400066H1

- 4 -

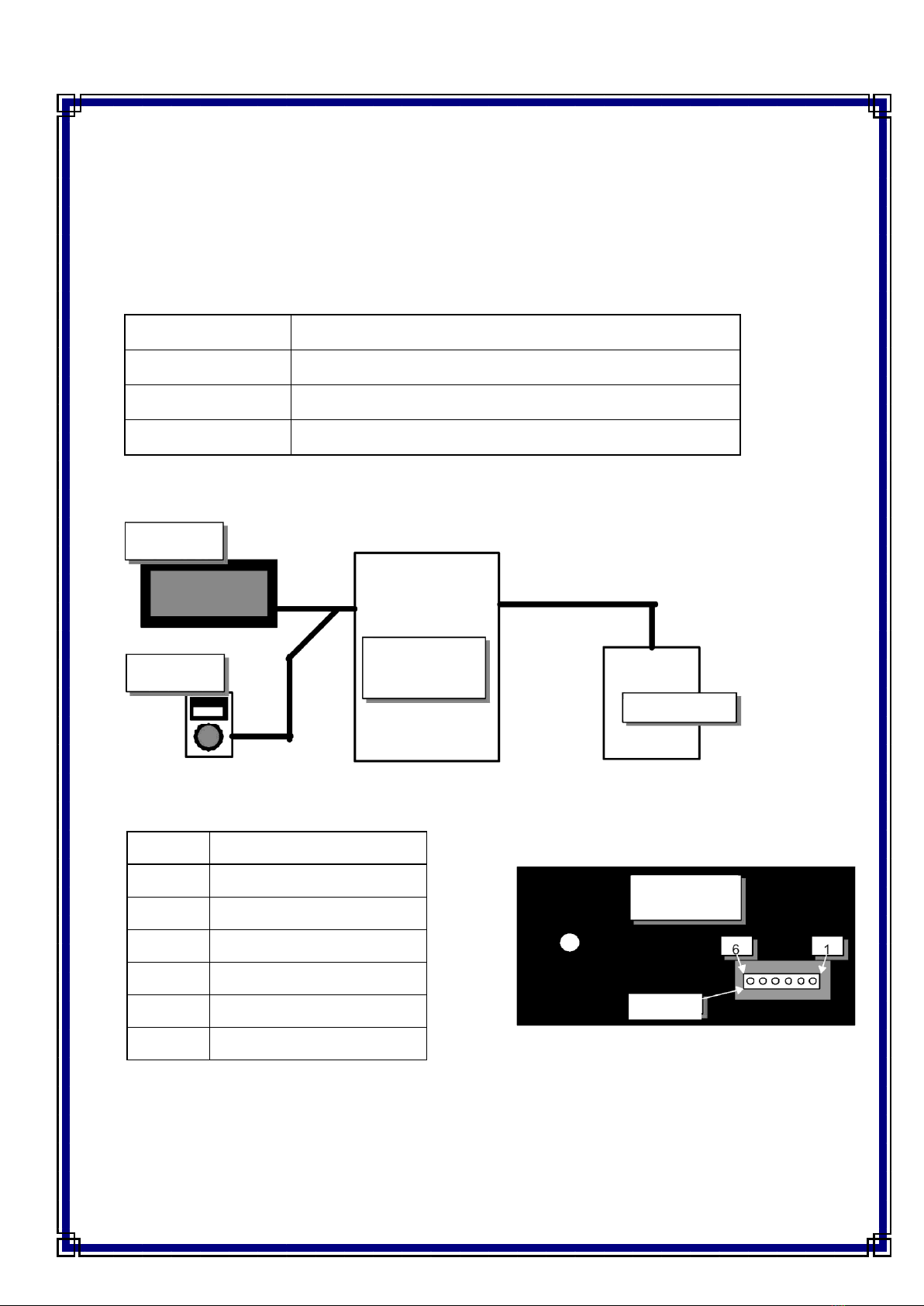

1. Outline

Digital flow indicator DPM-3 is a flow indicator for mass-flow controller/mass-flow meter.

The flow rate is indicated in 31/2 figure direct-reading (standard) or 1000 full-scale.

2. Standard Specifications

Item

Specification

Indication

7-segment LED, 31/2 figure direct-reading

Power supply

+5VDC

Installation

Panel mount

3. Block Diagram

Indicator

DPM-3

Setter

CK-1A

Power

PSK-FB

PSK-2TFX

MFC / MFM

4. Pin Assignment

Pin No.

Signal name

DPM-3

Back

Connector

MFC signal input

Signal input COM

Output signal

Output COM

Power supply +5VDC

Power supply COM

MJ400066H1

- 5 -

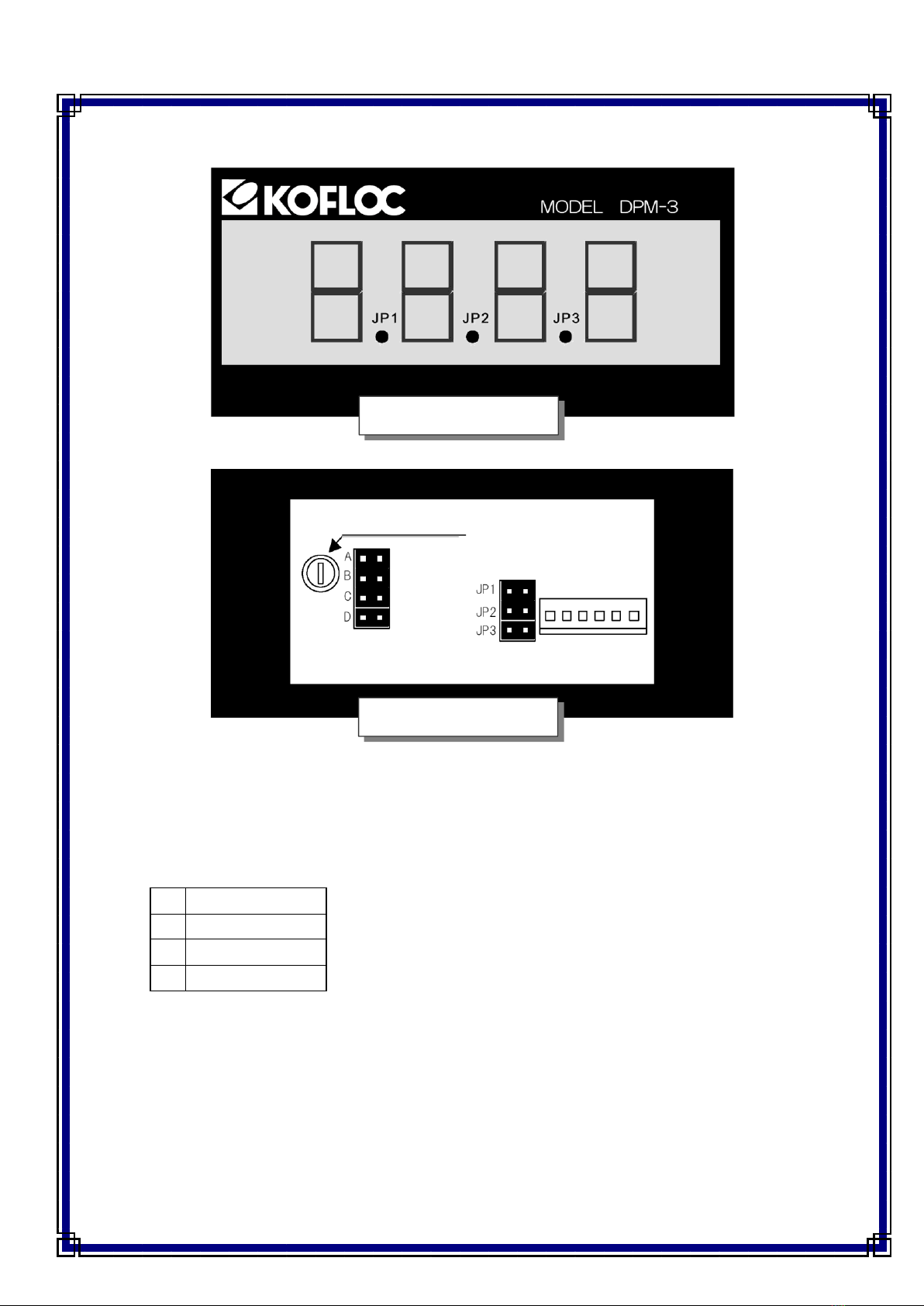

5. DPM-3 Scaling Change/Adjusting Method

Fig. 1 DPM-3 Surface

Fig. 2 DPM-3 Back

Adjusting volume

Connector

Remove the back cover and you will see the board as shown in Fig. 2.

Full-scale change

The full scale is changed with the jumper pins (A, B, C, D), (JP1, JP2, JP3).

Jumper of indicated value to be set of jumper pins (A,

B, C, D) (for the indicated value, see the left table).

After setting (A, B, C, D), the decimal point is set with

(JP1, JP2, JP3) (see Fig. 1) to complete the full-scale

change.

* When the setting is changed, the full-scale value

may be deviated, and in such a case, the full-scale

adjustment should be made.

Full-scale adjustment

If the full scale is deviated, adjust it by turning the adjusting volume on the left side of Fig. 2.

MJ400066H1

- 6 -

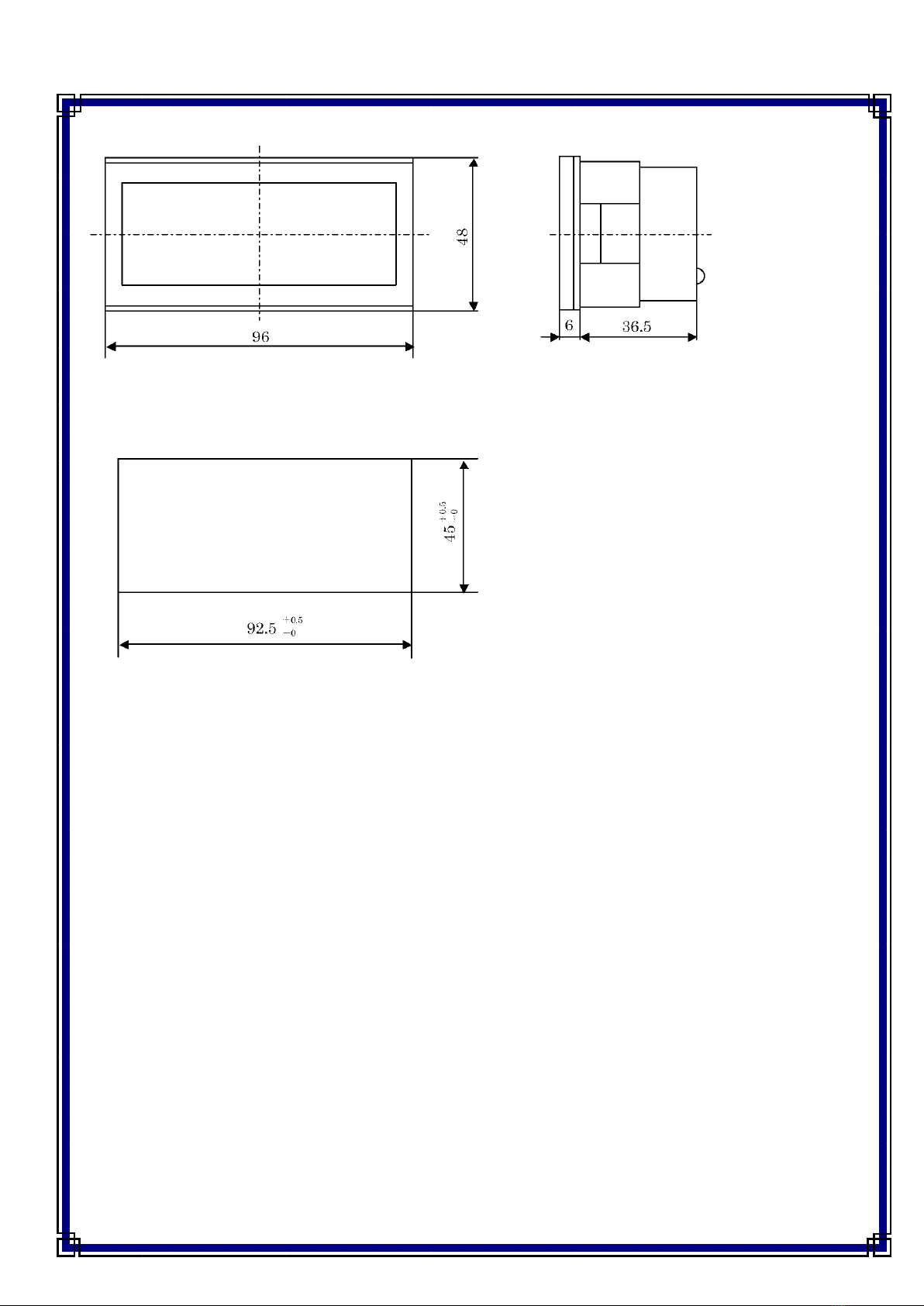

6. Dimensional Outline Drawing

Panel cut

7. Product warranty

1. The contents of warranty

①Warranty period

The warrant period shall be one year after the shipment.

②Warranty range

If a malfunction of the product you purchased occurs because of our responsible reasons, offer of

substitute or it will be charge-free repaired in our factory. But if a malfunction of the machine occurs due

to the following reasons, even within the warrant period, it becomes the outside for a warranty.

(a) Malfunctions due to erroneous applications, repairs or remodeling.

(Including the case in which the manufacturing specification differs from the application conditions.)

(b) Malfunctions due to the falling after the purchase.

riots or wars.

(d) Malfunctions caused by mixing-in of foreign matters out of the piping.

(e) Malfunctions caused by the peculiar problems due to combinations with other built in equipment.

In addition, a warranty here means the warranty of the product simple substance of our company. So the

damage induced by failure of the products of our company shall be eliminated from the object of

warranty.

MJ400066H1

- 7 -

URL：http://www.kofloc.co.jp
