QUICK START GUIDE

40” FULL HD LED TV

SERIES 7 GF7400

(KALED40GF7400GA)

COMPONENTS

A Kogan 40” FULL

HD LED TV

B Remote control

C Stand (x2)

D M4 x 15mm screw (x4)

E AAA battery (x2)

F Quick-start guide

G Warranty card

C D

NOT INCLUDED

Phillips head screwdriver, antenna cable, broadband internet connection.

QUICK START GUIDE

40” FULL HD LED TV

SERIES 7 GF7400

(KALED40GF7400GA)

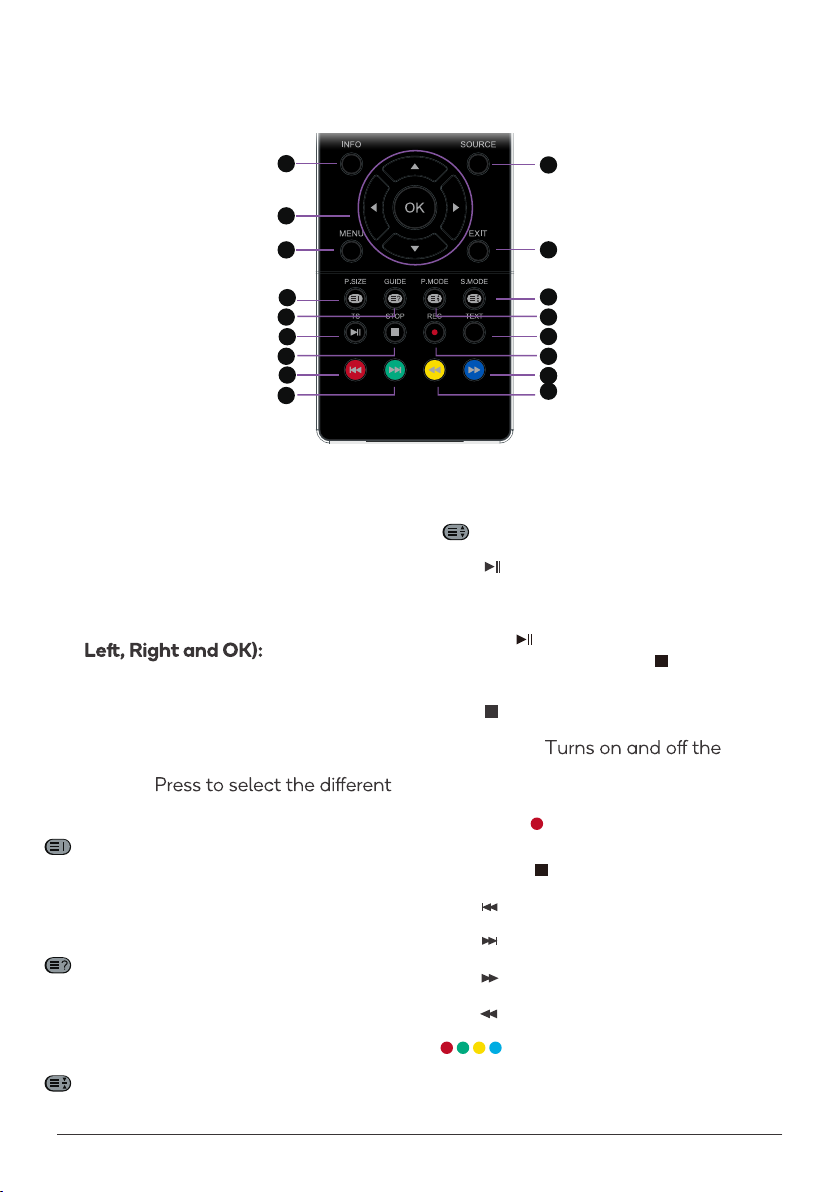

REMOTE CONTROL OVERVIEW

1. POWER: Turn on the TV/Standby.

9. MUTE: Mute or restore the sound.

6. NUMBER KEYS: Change the

channel directly.

3. SLEEP:

4. SUB: Select subtitle of media video

ﬁle.(needs the support of disk or ﬁle

12. REPEAT: Repeat mode.

10. VOL: Increase and decrease volume.

11. CH: Next and Previous channel.

5. FAV: Show the list of favourite

channels.

: Return to the previous

channel tuned.

2. AUDIO: Switch the audio channel

when DVD or multimedia playing.

I/II:In the TV condition, press this

button to select the stereo mode.

7. DTV/RADIO: In DTV mode, press

DTV/RADIO button to enter DTV

or RADIO mode.

16. MENU: Display menu page.

17. EXIT: Exit the Menu.

18. P.SIZE:

picture size.

15. NAVIGATION KEYS (Up, Down,

To move in the

menus and conﬁrm settings.

: Displays the main index in

Teletext mode.

19. GUIDE: Show the Electronic

Program Guide.

: Reveals hidden information such as

the answers to a quiz in TELETEXT

mode.

20. S.MODE: Setting audio options.

Freeze a multi-page changing on

Teletext mode.

21. P.MODE:

Output image mode selection.

Displays the top, buttom or all of page.

: Next ﬁle or chapter.27.

: Previous ﬁle or chapter.26.

29. : Fast rewind playback.

28. : Fast forward playback.

24. TEXT:

Teletext function.

23. : Stop playback.

: Play/Pause.22.

TS: In DTV mode, press TS button

to start the delay function, press

the button to start playing delay

program, press the button to

terminate the delay functions.

25. REC/ : In DTV mode , press

REC button to start recording,

press button to stop recording.

Press the appropriate colour to

direct access functions in

TELETEXT or EPG OSD mode.

14. SOURCE: Press to change

signal source.

13. INFO: Show information about

the current program.

BEFORE YOU GET STARTED

Spread cushioning ﬂat to lay the TV on. This willhelp to prevent damage.

1. Stand assembly

a. Attach stand to base of TV.

b. Insert two 15mm screws and use Phillips head screwdriver

(not supplied) to tighten.

c. Repeat these steps for second stand.

2. Remote control assembly

a. Open the battery compartment cover on the backside.

b. Insert two 1.5V AAAsize batteries, making sure to match the polarity

markings (+ / -) of the batteries with the diagram inside

the compartment.

c. Replace battery compartment cover.

2a 2b 2c

ASSEMBLY AND INSTALLATION

HDMI 4LAN

4. Turning TV on

Plug the power cord into a suitable power outlet, then press the

POWER () button on the remote control, making sure to aim it at the

sensorat the front of the TV. Alternatively, you can press the power

button on the lower side of the backpanelon the TV.

3. Connect to antenna

a. Connect anantenna cable (not supplied) via the ‘ANT’ input port at

the back of the TV.

b. Ensure the antenna cable is also connected to a working antenna,

eithervia an antenna wallsocket in yourhome,ordirectly.

TURNING TV OFF

Press the POWER ( ) button on the remote control to enter standby mode.

To power down the TV completely, unplug the power cord from the power

outlet.

Do not leave your set in standby mode for long periods of time. If you will

not use the TV for a long time,it is recommended to unplug the set from

both the power outlet andaerial.

Antenna

wall socket

Antenna cable

(not supplied)

HDMI 3 HDMI 2 HDMI 1

(ARC) ANT USB 2.0

(5V / 500mA)

AUDIO OUT

DIGITAL

AUDIO OUT

R -AUDIO- L VIDEO

When turning the TV on for the ﬁrst time, the Setup Wizard screen will

appear. Use the ▲, ▼and OK buttons to navigate the following options.

SETTINGS

Select Language

Press / button to select the language to be used for menus

and message.

Select Country

Select Energy Mode

Press ▼/ ▲button to highlight country menu.

Press / button to select the country you want to.

Press / button to select the Energy mode.

Select Input Source

Press SOURCE button to display the

input source list, Press ▼/ ▲or

SOURCE button to select the input

source you want to, Press OK button

to enter the input source, Press EXIT

button to quit.

Auto Tuning

Poor picture and sound quality

Try a di erent channel

Adjust the antenna

Check all connections

No picture or sound in TV status

Try another channel

Press the TV/AV button

Make sure TV is plugged in

Check the antenna connection

No sound or sound is too low at

maximum volume

Check the volume settings on any

external speakers connected to your

television

Adjust the TV volume accordingly

Check another channel or input

Check that MUTE hasn’t been

turned on

No colour, wrong colour or tints

Make sure the program itself is

broadcast in colour

Select the picture menu, then adjust

the colour and tint submenus

Picture rolls vertically

Check all connections

Blurred or snowy picture, distorted

sound

Check direction, location and

connections to your antenna

Issues may be caused by the use of

an indoor antenna (poor signal)

Remote control malfunctions

Replace remote control batteries

Check battery terminals

Remote is out of range, move closer

to TV

Remove any obstructions between

remote and IR sensor of TV

Make sure the power cord to your TV

is plugged in and turned on

Image is not centred on the screen

Adjust the horizontal and vertical

position

“No Signal” on HDMI source

Test the device with a di erent HDMI

cable

Plug the device into another HDMI

port

Try a di erent device connected to

the same cable and port

Perform a factory reset on your TV

For our full TV troubleshooting guide

and extended User Manual for this

TV, head online to help.kogan.com

BASIC TROUBLESHOOTING
