Kogan KAPPTMWTCGA Bedienungsanleitung

PULSE+ BODY TEMPERATURE

THERMOMETER SMART WATCH

KAPPTMWTCGA, KAPPTMWTCRA, KAPPTMWTCBA & KAPPTMWTCPA

Thank you for buying this Kogan product. Please read all safety instructions before using

your smart watch.

The contents of this guide are accurate at the date of printing. Any future changes to

functions, design, watch firmware or app software cannot be reflected in this guide. For the

most recent version of this guide, please head online to kogan.com

WARNING:

•Contact your physician before beginning any exercise regime, especially if

you have any blood disease or circulation disorder. The measurement

results of this product are for reference only and are not intended for any

medical use or basis.

•If you are wearing a pacemaker or other implanted electronic devices,

please consult your doctor before using the heart rate monitoring strap.

•The watch’s optical heart rate sensor glows green and flashes. If you

suffer from epilepsy or are sensitive to blinking light sources, please

consult your physician if you can wear this smartwatch.

•The device tracks your daily activities through sensors. This data is

intended to tell you about your daily activities, such as steps, sleep,

distance, heart rate and calories, but may not be completely accurate.

•The device, accessories, heart rate sensors and other relevant data are

designed for entertainment and fitness, not for medical purposes.

They are not applicable to the diagnosis, monitoring, treatment or

prevention of any diseases or symptoms. The heart rate data is for

reference only. The manufacturer is not responsible for any consequences

caused by any data deviation.

SAFETY & WARNINGS

•The watch should be charging for at least 2 hours before use.

1. Power on: When the watch is in the off state, press and hold the touch screen for

three seconds to turn it on. The home screen of the watch will be displayed after

booting.

2. Touch screen operation: From the home screen, swipe to the right to the menu

screen, then tap the function icon to enter the corresponding sub-menu.

3. Screen brightness:When the watch is in the state of interest screen, you can

touch the screen brightness option. If the turn button is turned on in the app, the

user can also achieve the bright screen by turning the wrist.

4. Shutdown: Click the Setting icon, click System - Shut down, click to shut down.

OPERATION

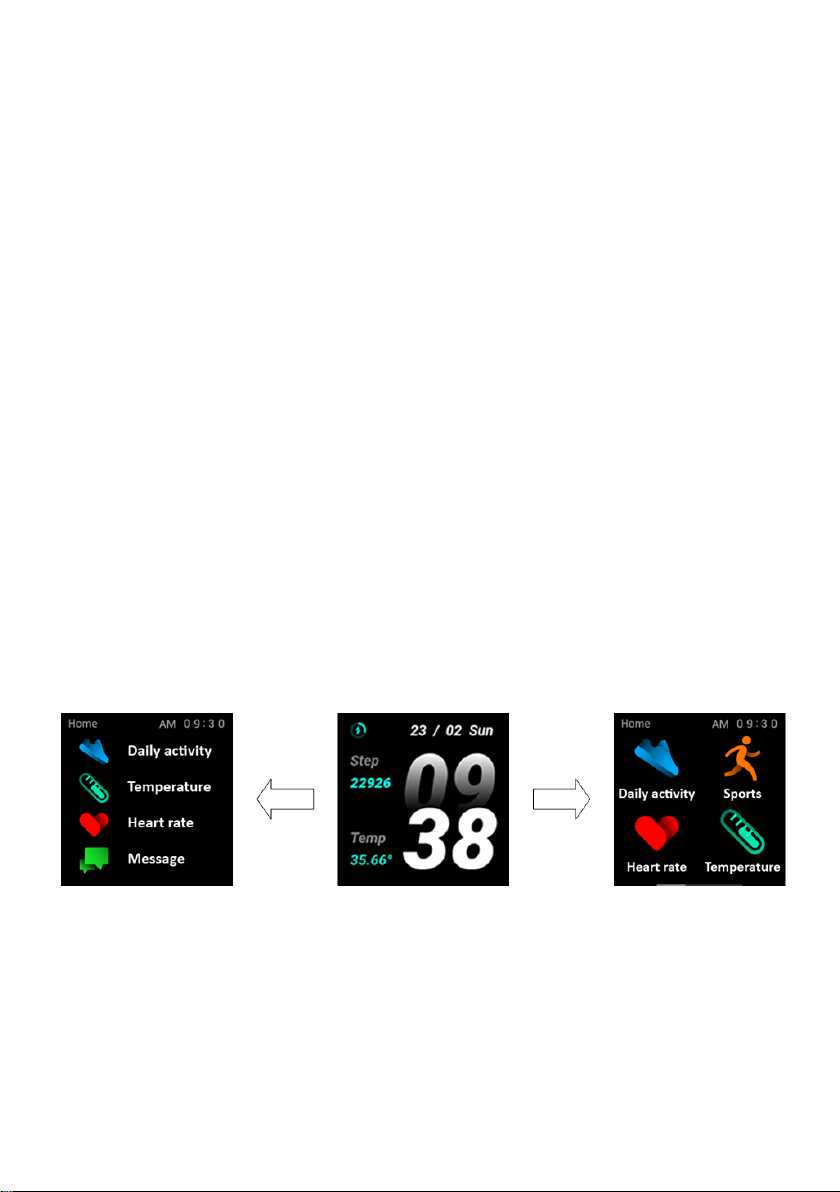

Home page navigation

Long press the main interface to

enter the home page thumbnail. You

can view it left and right, click touch

to switch the home page.

Slide to the right: Display function

list. Swipe up and down to navigate

the list, and tap a function to select.

•Daily activity

•Temperature

•Heart rate

•Message

•Sports

•Sleep

•Weather

•Music

•Relax

•Timer

•Find phone

•Settings

Sliding down:

•Date

•Bluetooth

•Timer

•Brightness

•Settings

•Do Not Disturb mode

Slide up:

•Storage information

•Heart Rate Monitoring

•Daily activity

Slide to the left:

•Static icon list.

Click to enter the

corresponding function,

right stroke to return to the

previous level.

Clock Display

Setting method

Power on. When the watch in clock mode, please long press middle screen and set different

clock interfaces if you like.

Setting up phone app

Download and install the "HitFit Pro" App from App Store (Apple) or Google Play Store

(Android).

Connecting Android:

Open HitFit Pro. Select the model watch, then click “Device” from the menu. The Device

Connection screen will scan for available Bluetooth connections. Select the watch from the

list. Click OK, then Pair to bind watch as below.

Connecting iOS:

Open “HitFit Pro” app, “Add device” on “Me” screen to search Bluetooth devices nearby, find

watch name DW-019GT_T and pair it in app. Once DW-019GT_T connected, it will be shown

in the phone's Bluetooth menu screen as below pictures.

Now the Bluetooth menu interface displays DW-019GT_T connected successfully as below

picture shows.

Synchronising data

Once paired with the app, press " " to sync data. Your watch data will be shown on the

app accordingly.

Basic functions

Daily activity

Function introduction: The watch will display the user's total number of steps on the day,

walking distance, calories burned on the same day and the data will be cleared at 0 o'clock

(midnight) every day.

Operation instructions: The main interface slides left and right and clicks the motion data to

switch to the step counter interface. After no operation for 3 seconds, the screen is

automatically turned off.

Sports

In sports mode: the single-point function icon allows you to enter sports modes such as

walking, running, riding, climbing and basketball.

Note:

Do not close the Bluetooth notification when you are clearing apps by background or

closing background application software. It will affect the sync function between watch

and phone if stopped.

Heart rate

Function introduction: The watch will measure the user's heart rate under the heart rate

measurement interface. After the test is completed, the vibration will display the result. After

no operation, the screen will automatically go out.

Operating instructions: To the left on the main interface and click the heart rate static icon to

switch to the heart rate measurement interface. Once the interface is entered, the

measurement will start. During the measurement, the interface value will be zero. After the

measurement is completed, the value will be displayed. If the result cannot be detected, it

will always be displayed. The display value is zero until standby.

Temperature

Function introduction: The watch will measure the user's temperature under the

temperature measurement interface. After the test is completed, the vibration will display

the result. After no operation, the screen will automatically go out.

Operating instructions: Slide to the left on the main interface and click the temperature

static icon to switch to the temperature measurement interface. Once the interface is

entered, the measurement will start. The left data is for Body surface temperature, it is

changed in real time. The right data is for Body temperature, measuring 60s to complete the

measurement. During the measurement, the interface value will be shown “--.-”. After the

measurement is completed, the value will be displayed.

During testing body temperature, environment temperature requires within 18-30°C.

Sleep

Function introduction: The watch will display the user's sleep time the night before. (Sleep

measurement time 21:30 - 12:00 next day)

Operation instructions: Slide the main interface left and right, click sleep to switch to the

sleep interface, you can view the sleep time of the previous day.

Weather

After connected with HitFit Pro, the watch will show local weather.

Message

When connected to Bluetooth, notifications from your phone will be sent to your watch. (You

need to open the push switch in the app in advance)

Music

After connected with the Bluetooth, you can manipulate Mobile to play music and adjust

the volume, voice will come out from mobile phone.

Timer

Swipe left on the main page and click the stop icon static icon to switch to the stopwatch

interface. Click to start timing. During the timing, you can pause/start switching with a

single touch. Slide the stopwatch function to the right of the stopwatch interface and return

to the static function page.
