KIDS’ SMARTWATCH

KASMRWTCPKB, KASMRWTCBLB

Misuse of batteries can lead to them bursting, causing a ﬁre or chemical burns. Please read

the below precautions:

•Do not disassemble.

•Do not crush and do not expose the battery to any shock or force such as

hammering, dropping or stepping on it.

•Do not short circuit.

•Do not expose to high temperatures or place near a heat source. Do not leave in

direct sunlight for any length of time.

•Do not dispose of in ﬁre.

•Do not handle damaged or leaking battery. Keep the battery out of the reach of

children. Keep the battery dry.

•If you ever notice any signs of damage, cease use, and contact Kogan support.

•If you ﬁnd the time between charges is considerably shortened with no change in

usage, the battery could be nearing the end of its life.

•Dispose of the item at a suitable waste station, as the battery cannot be added to

normal waste.

•Keep the rubber cover of the micro USB port closed lightly while it is not in use in

order to prevent dust or water from getting into the micro USB port.

•Keep the watch clean by wiping it with a slightly damp cloth.

•Keep the watch out of direct sunlight and away from any direct heat source.

•Do not drop the watch on a hard surface and do no expose it to moisture or

immerse it in water.

•Keep the lens clean. If the pictures taken are blurry, it could be because there is

dust or dirt on the lens. You can clean the lens by:

oBlowing on the lens.

oGently wiping the lens with a dry cloth.

•Charging should only be completed by an adult.

SAFETY AND WARNINGS

Introduction

This smart watch is a great wearable gadget for children! In addition to showing the time,

you can also take photos, shoot videos, record your voice and play games!

When the watch’s switch is oﬀ, it will not be possible to charge the watch or use any of the

activities. Please note, it is not necessary to turn off the power switch during daily use.

The watch may come with a small amount of charge, but we recommend a full charge

before use. A full charge will take about 3 hours.

Components

What’s in the box

•x1 Smart Watch

•x1 Micro USB cable

•x1 User Guide

OVERVIEW

Upward-facing

camera

To r c h

Home button

USB port

Forward-facing

camera

Getting Started

Long press the Home button on the right side of the device to turn the Smart Watch on.

Charging the Battery

Connect the Smart watch to a computer with the included micro USB cable to charge the

battery.

Lift up the rubber cover of the Micro USB port on the side of your watch. Insert the micro

USB cable (small end) into the Micro USB port on the watch. Insert the larger end of the

micro USB cable into a spare USB port on the computer.

Once the connection is successful, you will see the battery charging symbol displayed on

the watch screen for one second, and then the data transfer symbol. The battery will

continuously charge whilst connected, but you can open PC to ﬁnd folder smart watch to

transfer data at the same time.

Monitor the watch regularly throughout the charging process.

When the battery is fully charged. A full battery symbol displays on the screen.

Disconnect the watch from the computer.

Note: It will take approximately 3 hours to fully charge the battery. The actual charging time

depends on the power supply, the remaining charge and the ambient temperature of the

charging environment. The optimum ambient temperature is 0° C - 40° C (32° F - 104° F).

If your watch needs longer than 3 hours to fully charge, please try charging from a diﬀerent

USB power source.

Battery Life

The time the battery lasts between charges depends on usage. Like other electronic

devices, more frequent usage will mean the battery will drain more quickly. Some activities

will be more demanding on the battery, such as taking photos and videos. The expected

battery life is shown below. This is based on the assumption that the screen is turned oﬀ

when not in use.

Condition Battery Time

Low Usage 2 weeks

Typical Usage 2-3 days

Heavy Usage 1 day

OPERATION

How to Operate Your Watch

Make sure the power switch is in the on position and the battery is charged before use.

Press the home button to wake the watch up. Press home for 3 seconds to wake up the

watch from standby.

When the clock is displayed on screen, press the home button to go to the home menu.

If the battery level is too low and cannot keep the clock running, you will need to enter the

time and date again after recharging.

When the battery level is low, only the clock display function is available. We recommend

recharging the battery as soon as possible before further use.

Automatic Screen Off

To preserve battery life, the screen will automatically shut oﬀ after a short period of time

when in clock mode.

The auto screen oﬀ time can be set in Settings / Advanced / Auto Screen Oﬀ. Please refer

to the Settings section in this manual.

In other activities, it will return to clock mode automatically if there is no input for 1 minute.

When in camera mode, it will auto exit after 3 minutes. When in slideshow, the auto exit

time is 15 minutes.

If you have a timer running, it will return to the timer screen instead of returning to watch

mode. The watch will not shut oﬀ automatically when the timer is running.

Clock Display

When the home button is pressed, the clock will be displayed.

Tap the center of the screen to switch the clock face between analog and digital.

Swipe left or right on the screen to see more clock faces.

Press the home button to display the home menu for selecting other activities.

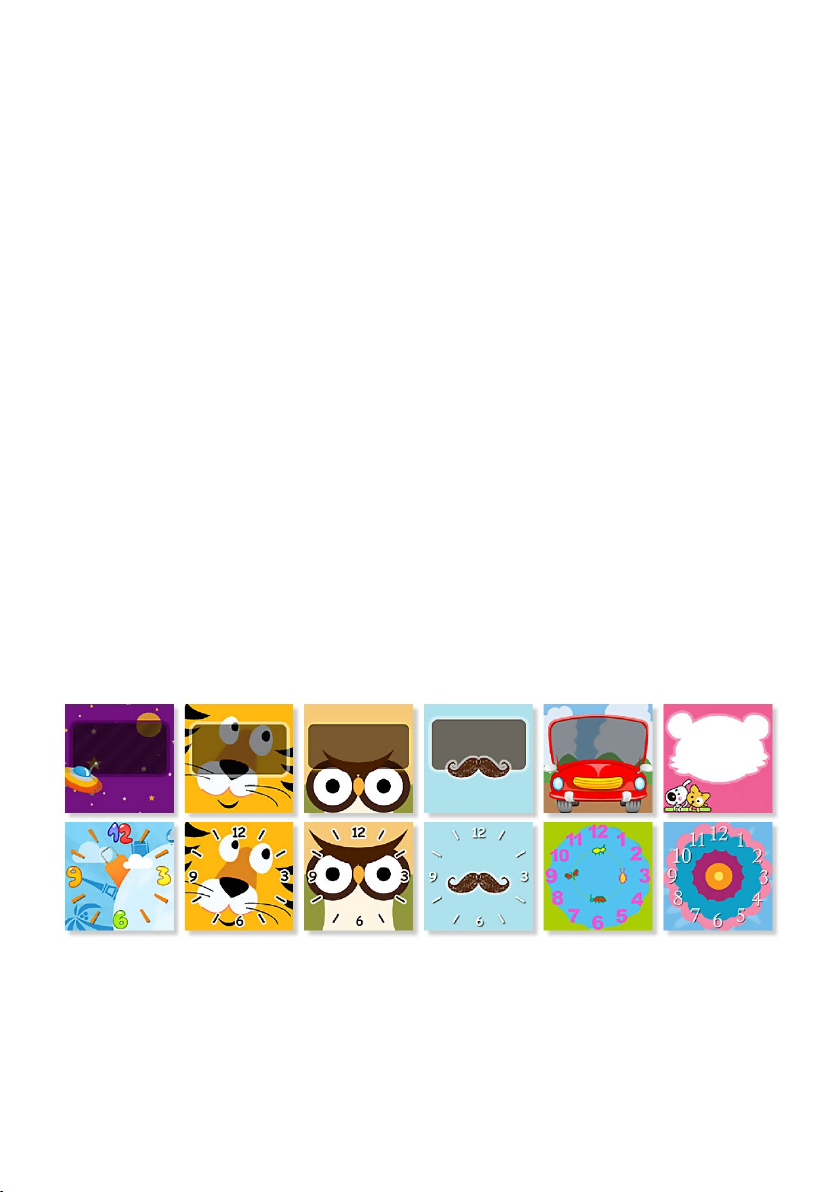

Some of the available clockfaces, both digital and analog style.

Home Menu

Press the home button to display the home menu, the following functions are available:

•Camera

•Video

•Photo Gallery

•Video Gallery

•Voice Recorder

•Pedometer

•Music Player

•Games

o2048

oBasketball Shoot Master

oBee War

oPinball Hit

oUltimate Racing

•Time Teacher

•Alarm

•Timer

•Stopwatch

•To r c h

•Calculator

•Calendar

•Settings

Tap the icon to enter the activity.

Swipe left or right to scroll through the menu pages.

To change the menu layout to large icons, go to Settings > Menu Layout.

Camera

Press the camera button on the screen to take a photo.

Tap the Photo Gallery button to view photos. The latest file will be shown first. Tap the

arrow icons or swipe the screen to see the previous or next photo. To delete a file, tap the

icon on screen and follow the prompts.

To swap between the two cameras (upwards-facing and front facing), tap the button.

Video

Press the video button on the screen to begin video recording. Press the same button

again to end video. The video will automatically save when completed.

Tap the Video Gallery button to view videos. The latest file will be shown first. Tap the

arrow icons or swipe the screen to see the previous or next video. To delete a file, tap the

icon on screen and follow the prompts.

To swap between the two cameras (upwards-facing and front facing), tap the button.

Voice Recorder

Tap to start voice recording.

Tap to save the recording.

Tap to play the last recording.

Use the arrows to select previous or next recording.

Music Player

To upload music to the watch, use the Micro USB cable to connect your watch to a

computer/laptop. Copy any MP3 music files to the watch folder “My Music”. After transfer is

complete, safely eject the watch from your computer and unplug the USB cable.

To play music you have transferred to the watch, select the Music Player icon from the

main menu, then press play to begin playing a file.

Play Volume Up Next

Pause Volume Down Back

Pedometer

Use the pedometer to count your steps! Follow the onscreen prompts to start or reset the

pedometer. When started, the count will be updated every 30 seconds.

Games

There are 5 built-in games on the smart watch. Swipe the screen to see the game icons,

then tap one to play.

2048

Swipe up, down, left or right to slide the tiles across the board. All tiles will slide in the

swiped direction if space is available, and one new tile will appear with every swipe.

When two tiles of the same number are swiped into each other, they will combine as

one tile with the combined value (two 2s become 4; two 4s become 8; two 8s become

16, etc). The aim of the game is to create a tile at the value of 2048! But be careful, as if

no more space is available on the board, it’s game over.

Basketball Shoot Master

Press the basketball to shoot, but to get it in the hoop you’ll need to time it right!

Bee War

Tap the screen left or right to move the fighter to shoot. Purple enemies are strong, and

require two shots to beat. Score as many points as you can, but be careful, as you only

have 3 lives.

Pinball Hit Bricks

Destroy all bricks to progress to the next level. White bricks give a special 3-ball bonus,

and blue bricks require two hits to destroy. Score as many points as you can!

Ultimate Racing

Hold the car to move left and right to switch lanes. The car in front is dropping coins,

and the more you collect, the higher your score will be. If you crash, it’s game over.

Time Teacher

The time teacher is a friendly Panda who can say the time for you.

Tap the Hour or Min (minutes) icon to select the time you want the panda to say.

Tap to increase by an hour / minute. Tap to decrease by an hour / minute. Tap the

clock or the panda to tell the time.

Alarm

Select the alarm option from the main menu. Here you can set an alarm.

Tap the clock icon to change the alarm time. Tap icon to toggle the alarm on or oﬀ.

To change the alarm time, select the hour and minute by swiping up or down on the hours,

minutes or AM/PM.

Tap the arrow icons to display the alarm tone selection menu. There are 5 built-in alarm

styles. Swipe left or right to preview the diﬀerent tones and animations.

Tap to conﬁrm the selection.

Once you’ve chosen your alarm, tap the icon to conﬁrm.

Note: If the battery level is too low, the alarm will need to be set again.

Timer

Set a countdown timer here.

Tap the play icon to start the timer.

While the timer is running, tap to pause the countdown, then tap again to resume.

Tap to stop the countdown and reset the timer.

Stopwatch

Tap the play icon to start the stopwatch.

While the stopwatch is running, tap to pause the timer, tap again to resume.

Tap to stop the timer and reset the stopwatch to zero.

Torch

Swipe on the menu and tap the red button of the torch to toggle on/off.

The torch will remain on during other activities until you return to the torch menu to turn it

off.

Caution: Be careful when using the torch. Do not point the light directly at people or

animals, as it may cause eye damage. Torches are not toys, and must be used with care.

Calculator

Use the calculator app for basic mathematical calculations. Don’t use this to cheat on tests,

though, or you’ll never learn how to work out the answers yourself.

Calendar

Use the calendar to view the date. If the date shown is incorrect, please go to the Settings

menu to reset the date and time information.

Settings

In settings, swipe left or right on the screen to scroll through diﬀerent setting submenus.

Here you can adjust the following items:

•Volume

•Brightness

•Date

•Time

•Parental Controls

•Advanced Settings:

oStorage location

oOn-screen display language

oFactory reset

Parental Controls

Set time-limits for how long games can be played per day.

To use, go to the Settings menu and open the Parental Control submenu.

Tap and hold on the screen for three seconds. Next, you will be asked to identify a colour on

the screen and tap three times to confirm. Once this has been completed, you will gain

access to the parental controls.

Select between a daily limit of 15, 30, 60 or 90 minutes, or no limit. You can also choose to

disable the games completely. Tap the icon to confirm the selection.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kogan Betrachten Handbücher

Kogan

Kogan KAWTC8GSPYB Bedienungsanleitung

Kogan

Kogan M3 Bedienungsanleitung

Kogan

Kogan ACTIVE+ MINI Bedienungsanleitung

Kogan

Kogan KAPPTMWTCGA Bedienungsanleitung

Kogan

Kogan ACTIVE PRO GPS ALWAYS-ON DISPLAY SMART WATCH Bedienungsanleitung

Kogan

Kogan AURA Bedienungsanleitung

Kogan

Kogan KAWTC8GSPYA Bedienungsanleitung

Kogan

Kogan ACTIVE+ LITE SMART WATCH Bedienungsanleitung

Kogan

Kogan KALXBNDBLKA Bedienungsanleitung

Kogan

Kogan KAACFTWATCA Bedienungsanleitung

Kogan

Kogan KAM1ALEDWCA Bedienungsanleitung

Kogan

Kogan PULSE+ LITE SMART WATCH Bedienungsanleitung

Kogan

Kogan KAKID4GWTBA Bedienungsanleitung

Kogan

Kogan ACTIVE+ II Bedienungsanleitung

Kogan

Kogan KAWTC8GBLKA Bedienungsanleitung

Kogan

Kogan LTWTCU1SMTA Bedienungsanleitung

Kogan

Kogan KAWTCSSBLU Bedienungsanleitung

Kogan

Kogan PULSE 3 SMART WATCH Bedienungsanleitung

Kogan

Kogan HYBRID+ Bedienungsanleitung

Kogan

Kogan PLAY 2 KIDS KAKIDSMWTBA Bedienungsanleitung

Kogan

Kogan KAGPSWACHSA Bedienungsanleitung

Kogan

Kogan KAWTCSLCASA Bedienungsanleitung

Kogan

Kogan Lego Bedienungsanleitung

Kogan

Kogan KASMRWTCBLB Bedienungsanleitung

Beliebte Betrachten Handbücher anderer Marken

Pandora

Pandora WATCH2 Bedienungsanleitung

Casio

Casio QW-4343 Bedienungsanleitung

Suunto

Suunto X6 Bedienungsanleitung

Seiko

Seiko N830 Bedienungsanleitung

MotionX

MotionX 365 Bedienungsanleitung

Garmin

Garmin VENU SQ 2 Bedienungsanleitung

QCY

QCY Watch GTC Bedienungsanleitung

Canyon

Canyon Cindy CNE-KW41WP Bedienungsanleitung

Esq

Esq Watches Installationsanleitung

Crane

Crane AA5-CDSM-3A Bedienungsanleitung

Timex

Timex W-214 Bedienungsanleitung

DETOMASO

DETOMASO MATERA Bedienungsanleitung

Geemarc

Geemarc Watch N Shake Bedienungsanleitung

LORUS

LORUS W590 Bedienungsanleitung

STENLILLE

STENLILLE Actío Bedienungsanleitung

Casio

Casio 5594 Bedienungsanleitung

Sinn

Sinn HUNTER'S WATCH 3. Edition Bedienungsanleitung

Slazenger

Slazenger SLZ800 Bedienungsanleitung
