KOKEN LM-101D Bedienungsanleitung

Umbilical Cord Kit

LM-101D

Instruction Manual

Thank you for purchasing the Umbilical Cord Kit.

Please read this instruction manual carefully to ensure correct use of the product,

and store it in a safe place for easy access.

KOKEN CO., LTD.

1-4-14 Koraku, Bunkyo-ku, Tokyo 112-0004 JAPAN

URL:http://www.kokenmpc.co.jp

E-mail:[email protected]

Handling and Safety Precautions

These precautions should be strictly observed in order to ensure safe,

long-term use of the product.

The following precautions should be observed particularly strictly:

1. The model is made with a special material to simulate the texture of human skin. We recommend

that it be handled carefully, in the same manner as an actual person. The model may become

damaged by pulling at it with excessive force or if it suffers a strong impact, for example if

dropped.

2. The material of the umbilical cord contained in this Umbilical Cord Kit has a distinct odor. This

odor is not harmful to the human body and does not indicate poor quality. The distinct odor

fades with time. There may also be a smell of baby powder remaining on the product, as baby

powder is applied to the model during the manufacturing process.

3. Wear disposable gloves when practicing with the model.

4. Apply a moderate amount of lubricant (glycerin) to the fetal model and placenta model before

use.

5. Please do not use oily lubricant (baby oil, olive oil etc.), alcohol lubricant, and lubricant containing

organic solvent. These may cause breakage of the model.

6. In caring for the model, do not use rubbing alcohol, thinners, or benzin or other organic solvents

on the model, as doing so may cause damage.

7. Do not use oil-based inks, pencil, chalk, or paints on the model, as they may cause permanent

staining.

8. Placing objects directly on top of the model or placing it on uneven surfaces may change the

shape of the model.

9. If the surface becomes sticky or after washing the model following use, apply baby powder all

over the model to reduce friction.

10. The umbilical cord contained in this Umbilical Cord Kit may lose its shape after a long time.

Check the shape of the model about 3 years after purchase. If it is deformed to the extent that

correct functioning is a󱐯ected, consider replacing it.

11. Air bubbles or impressions in the umbilical cord contained in this Umbilical Cord Kit that may

remain from the manufacturing process do not affect the strength of the material, as the

material used is strongly tear-resistant.

Handling and Safety Precautions

These precautions should be strictly observed in order to ensure safe,

long-term use of the product.

Caring for the model after use

1. This model is washable. After washing, wipe o󱐯 all the remaining water with a soft, dry gauze or

cloth. After wiping o󱐯 the water, pat baby powder all over the model. Wipe o󱐯 all the remaining

water to prevent the metal parts in the umbilical cord connector from rusting. If the metal parts

become rusted to the extent that their functioning is affected, consider replacing the model.

(Do not clean the model with rubbing alcohol, thinners, benzene or other organic solvents.)

2. Storing the umbilical cord contained in this Umbilical Cord Kit for an extended time in a high-

or low-temperature environment may cause its shape to change. Exposure to direct sunlight or

ultraviolet rays may also alter its shape or color. Store the model at a temperature of 0-50°C, in a

place where it will not be exposed to direct sunlight or ultraviolet rays.

3. Oil may leak from the umbilical cord contained in this Umbilical Cord Kit. When storing it, wrap

the umbilical cord in paper towel, gauze or another cloth, and place it in the re-sealable plastic

bag that comes with the kit.

1. The contents of this instruction manual are subject to change without notice.

2. This instruction manual may not be reproduced in part or in its entirety without permission.

3. Please contact the manufacturer in the event that any errors or omissions are found in the contents of

this instruction manual.

4. This product should be used only as described in this instruction manual. In particular, the product

should not be used in any way that contravenes the precautions noted in the instruction manual.

Table of Contents

1. Outline and Features

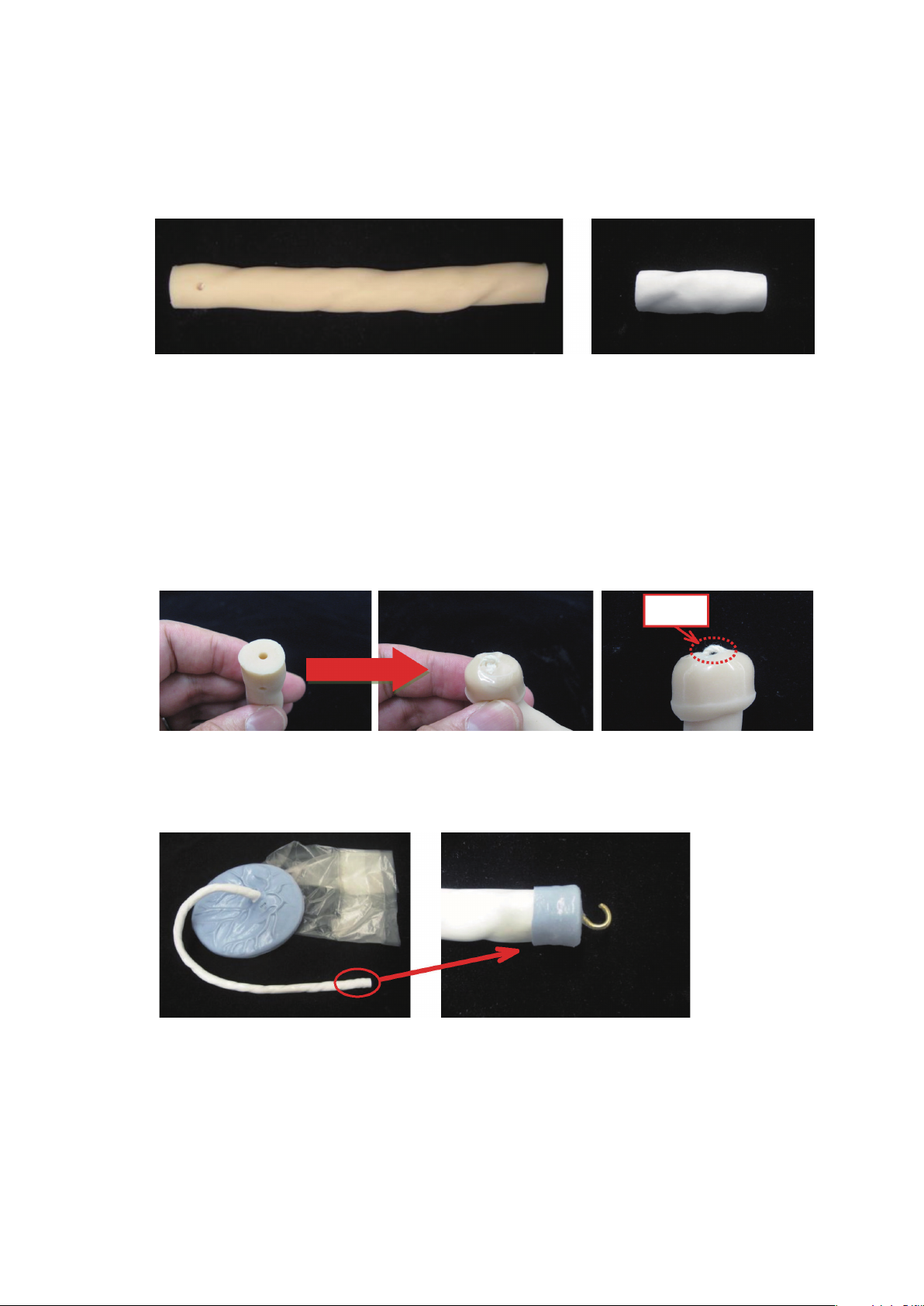

2. Components and Conguration

3. Attaching the fetal and placenta models

3-1. Attaching the fetal model (LM-0633) and placenta model (LM-0634)

3-2. Attaching the fetal model (LM-114A) and placenta model (LM-114B)

3-3. Attaching the fetal model (LM-114A) and placenta model (LM-0634)

3-4. Attaching the fetal model (LM-0633) and placenta model (LM-114B)

4. Model Conguration Chart

5. Specications

1. Outline and Features

Outline

This umbilical cord model can be used to practice actual tying and cutting. It can be attached to

Koken’s fetal model and placenta model to practice performing delivery without stopping the

sequence of steps from delivery of the fetus to delivery of the placenta. It therefore enables practice

that retains the tension that would be felt during actual delivery.

Features

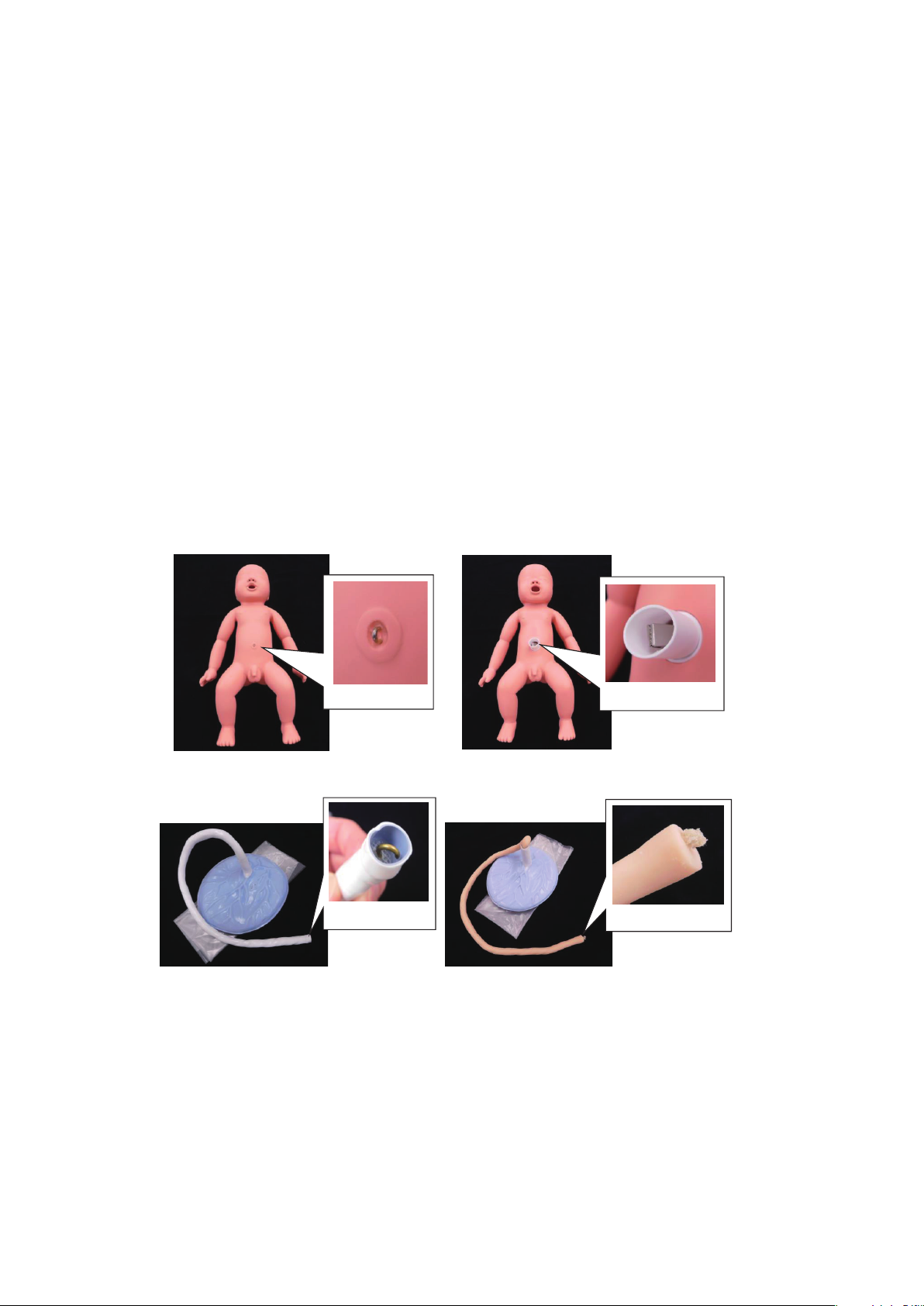

1. This model can be attached to the fetal model (LM-0633, LM-114A) and placenta model

(LM-0634, LM-114B) to practice the entire sequence of steps from delivering the fetus to

tying and cutting the umbilical cord and delivering the placenta.

2. The umbilical cord contained in this Umbilical Cord Kit has a tear-resistant texture that slides

away from scissors when being cut. (There are no arteries or veins in the umbilical cord.)

3. The new material used is soft and tear-resistant, and enables trainees to practice tying an

umbilical cord with an umbilical cord clamp.

4. A single umbilical cord contained in this Umbilical Cord Kit can be used multiple times to

practice tying and cutting.

- 4 -

１１，，概概要要とと特特長長

《《概概要要》》

実際に結紮、切断することができる臍帯です。当社の胎児モデル、胎盤モデルに接続し、娩出

させることで、胎児娩出から胎盤娩出までの一連の流れを止めることなく、現場の緊張感を保

った演習ができます。

《《特特長長》》

1. 当社の胎児モデル（LM-0633、LM-114A）と胎盤モデル（LM-0634、LM-114B）に接続でき、

胎児娩出、臍帯結紮、臍帯切断、胎盤娩出までの一連の流れを演習できます。

○胎児モデル

LM-0633 LM-114A

○胎盤モデル

LM-0634LM-114B

2. 臍帯結紮切断パーツ用臍帯の切断時は、臍帯がハサミから逃げる切りにくい感触で演習で

きます。（臍帯内に、動脈、静脈はありません。）

3. 柔らかく、切れにくい新素材は、実際に臍帯クリップで結紮して演習できます。

4. 臍帯結紮切断パーツ用臍帯は、1本で複数回の結紮、切断ができます。

臍クリップ

臍リング

先端フック

先端玉留め

Fetal model

Placenta model

Umbilical ring

Tip hook

Umbilical clip

Tip French knot

2. Components and Conguration

3. Attaching the fetal and placenta models

3-1 Attaching the fetal model (LM-0633) and placenta model (LM-0634)

1) Take the umbilical cord contained in this Umbilical Cord Kit and roll down the end that has a

hole in it until a string loop appears.

2) Roll down the end of the umbilical cord attached to the placenta model until a hook appears

on the end.

Umbilical cord Umbilical cord connector

String loop

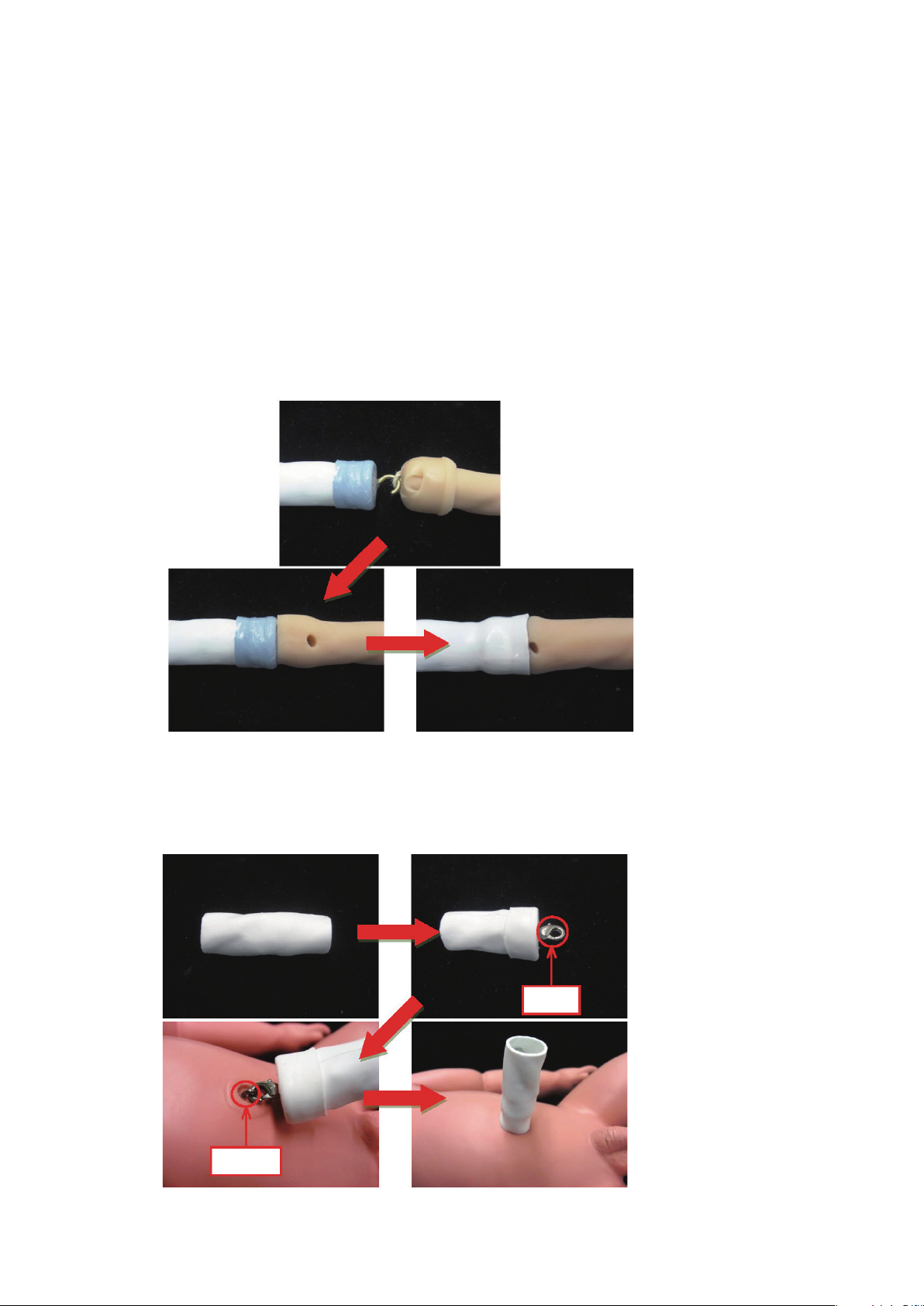

3) Place the hook of the placenta model on the string loop of the umbilical cord contained in

this Umbilical Cord Kit. Unfold the edges of the ends that were rolled down so that the end

of the umbilical cord of the placenta model covers the end of the umbilical cord contained in

this Umbilical Cord Kit.

* If the end of the umbilical cord contained in this Umbilical Cord Kit is not covered by the end

of the umbilical cord of the placenta model, they will come apart during delivery.

* Make sure the parts are not lubricated when attaching them together. It will be difficult

to slide the umbilical cord of the placenta model over the umbilical cord contained in this

Umbilical Cord Kit if they are lubricated during this step.

4) Roll down the end of the umbilical cord connector with a hook attached until the hook is

visible, then attach the hook to the umbilical ring on the fetal model. After attaching the

hook, unfold the end.

Hook

Umbilical ring

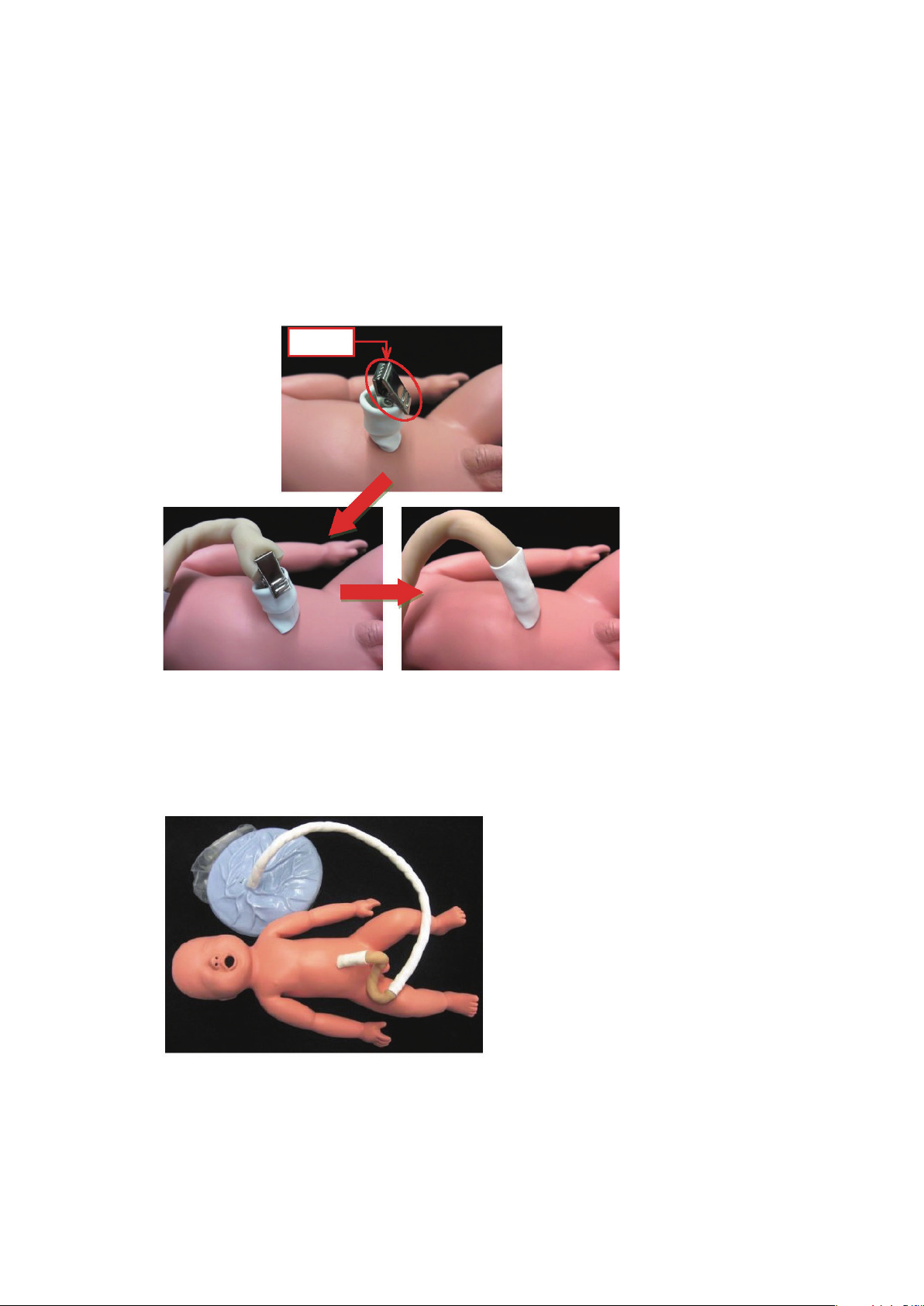

5) Roll down the end of the umbilical cord connector with a clip until the clip is visible, then

clamp it onto the umbilical cord contained in this Umbilical Cord Kit. After clamping them

together, unfold the end of the umbilical cord connector and onto the umbilical cord

contained in this Umbilical Cord Kit.

* If the end of the umbilical cord contained in this Umbilical Cord Kit is not covered by the

umbilical cord connector, they may come apart.

6) Assembly is now complete. To re-attach the umbilical cord contained in this Umbilical Cord

Kit after it is cut o󱐯, start the procedure again from step 5.

* Apply adequate glycerin to the fetal model and placenta model as well as to the inside of the

vulva when practicing delivery.

Clip

3-2 Attaching the fetal model (LM-114A) and placenta model (LM-114B)

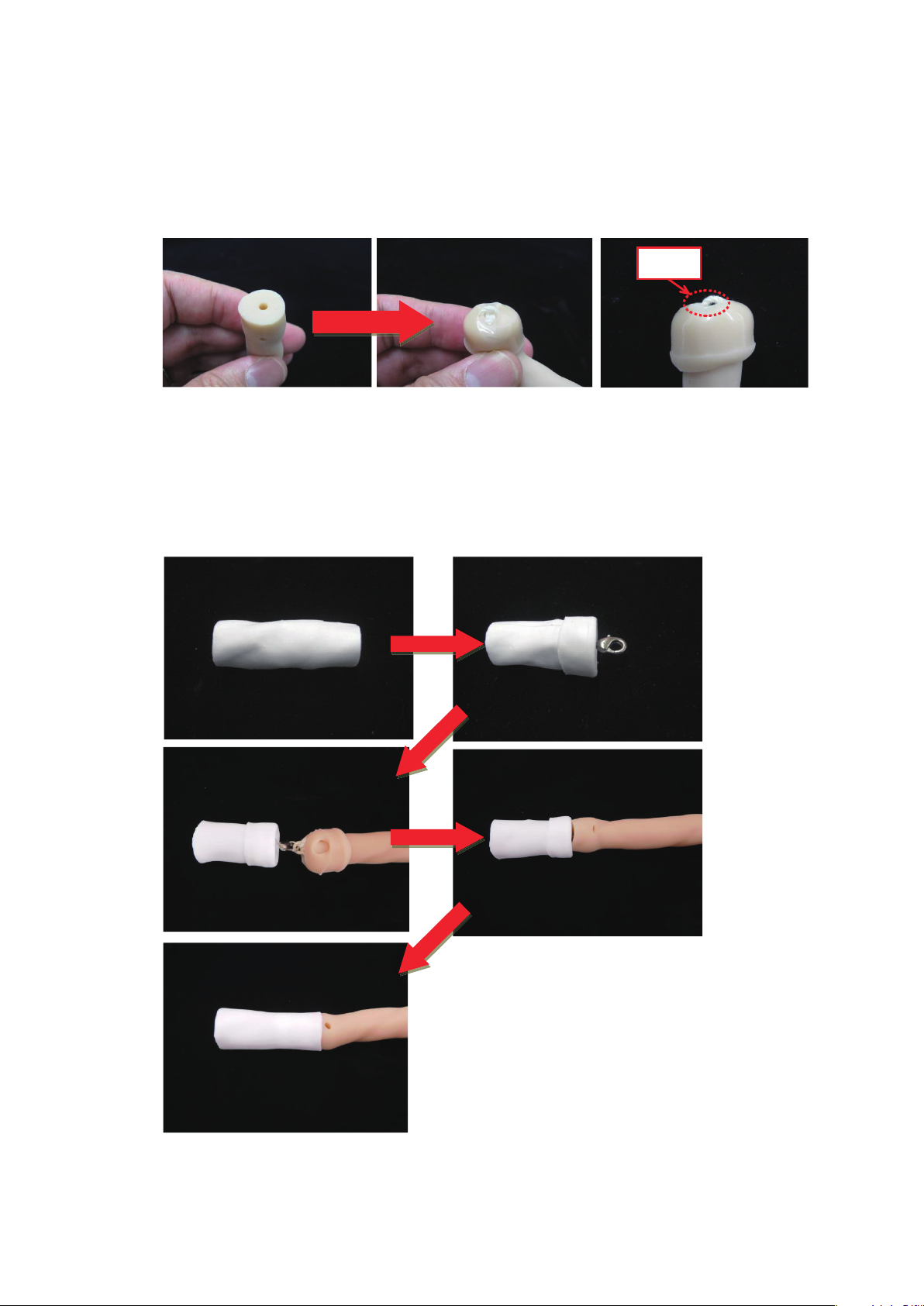

1) Take the umbilical cord contained in this Umbilical Cord Kit and roll back the end that has a

hole in it until a string loop appears.

2) Roll back the end of the umbilical cord connector with a hook attached until the hook is

visible, and then attach the hook to the umbilical ring of the umbilical cord contained in this

Umbilical Cord Kit. After attaching the hook, unroll the edge of the end that was rolled back

so it covers the end of the umbilical cord contained in this kit.

-8 -

３３－－２２胎胎児児モモデデルル（（LLMM--1111４４AA））とと胎胎盤盤モモデデルル（（LLMM--1111４４BB））にに取取りり付付けけるる場場合合

1) 臍帯結紮切断パーツ用臍帯の穴が開いている端を捲ってください。紐輪が出てきます。

2) 臍帯接続部品のフック側を捲り、フックが見える状態にしてから、臍帯結紮切断パーツ用臍帯の

紐輪にフックを取り付けてください。その後、捲った部分を元に戻して臍帯結紮切断パーツ用臍帯

に被せてください。

紐輪

String loop

-8 -

３３－－２２胎胎児児モモデデルル（（LLMM--1111４４AA））とと胎胎盤盤モモデデルル（（LLMM--1111４４BB））にに取取りり付付けけるる場場合合

1) 臍帯結紮切断パーツ用臍帯の穴が開いている端を捲ってください。紐輪が出てきます。

2) 臍帯接続部品のフック側を捲り、フックが見える状態にしてから、臍帯結紮切断パーツ用臍帯の

紐輪にフックを取り付けてください。その後、捲った部分を元に戻して臍帯結紮切断パーツ用臍帯

に被せてください。

紐輪

3) Roll back the end of the umbilical cord connector with a clip until the clip is visible, then

clamp it onto the French knot on the placenta model's umbilical cord. After clamping them

together, unroll the end of the umbilical cord connector that was rolled back so it covers the

end of the umbilical cord.

4) Remove the umbilical cover from the fetal model, and then thread the outer part of the

umbilical cord contained in this Umbilical Cord Kit through it.

5) Clamp the umbilical cord contained in this Umbilical Cord Kit in place using the clip attached

to the fetal model.

* Make sure the parts are not lubricated when attaching them together. If the parts are

lubricated with glycerin, etc. during this step, the umbilical cord contained in this Umbilical

Cord Kit will become slippery and come o󱐯 .

-9 -

3) 臍帯接続部品のクリップ側を捲り、クリップが見える状態にしてから胎盤モデルの臍帯玉留め

部分を挟んでください。その後、臍帯に臍帯接続部品の捲った部分を被せてください。

4) 胎児モデルから臍カバーを外し、臍帯結紮切断パーツ用臍帯に通します。

5) 胎児モデルのクリップで臍帯結紮切断パーツ用臍帯を挟みます。

※※ググリリセセリリンンななどどのの潤潤滑滑剤剤ががつついいてていいるる状状態態でで取取りり付付けけ作作業業をを行行ううとと、、臍臍帯帯結結紮紮切切断断パパーーツツ用用臍臍帯帯

がが滑滑っってて取取れれややすすくくななるるののでで、、潤潤滑滑剤剤ななどどががつついいてていいなないい状状態態でで取取りり付付けけ作作業業をを行行っっててくくだだささいい。。

-9 -

3) 臍帯接続部品のクリップ側を捲り、クリップが見える状態にしてから胎盤モデルの臍帯玉留め

部分を挟んでください。その後、臍帯に臍帯接続部品の捲った部分を被せてください。

4) 胎児モデルから臍カバーを外し、臍帯結紮切断パーツ用臍帯に通します。

5) 胎児モデルのクリップで臍帯結紮切断パーツ用臍帯を挟みます。

-9 -

3) 臍帯接続部品のクリップ側を捲り、クリップが見える状態にしてから胎盤モデルの臍帯玉留め

部分を挟んでください。その後、臍帯に臍帯接続部品の捲った部分を被せてください。

4) 胎児モデルから臍カバーを外し、臍帯結紮切断パーツ用臍帯に通します。

5) 胎児モデルのクリップで臍帯結紮切断パーツ用臍帯を挟みます。
