KONICA®MINOLTA MAGICOLOR 4600 SERIES

EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact [email protected]

www.uninetimaging.com

KONICA MINOLTA MAGICOLOR 4600 SERIES TONER CARTRIDGE

KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact [email protected]

www.uninetimaging.com

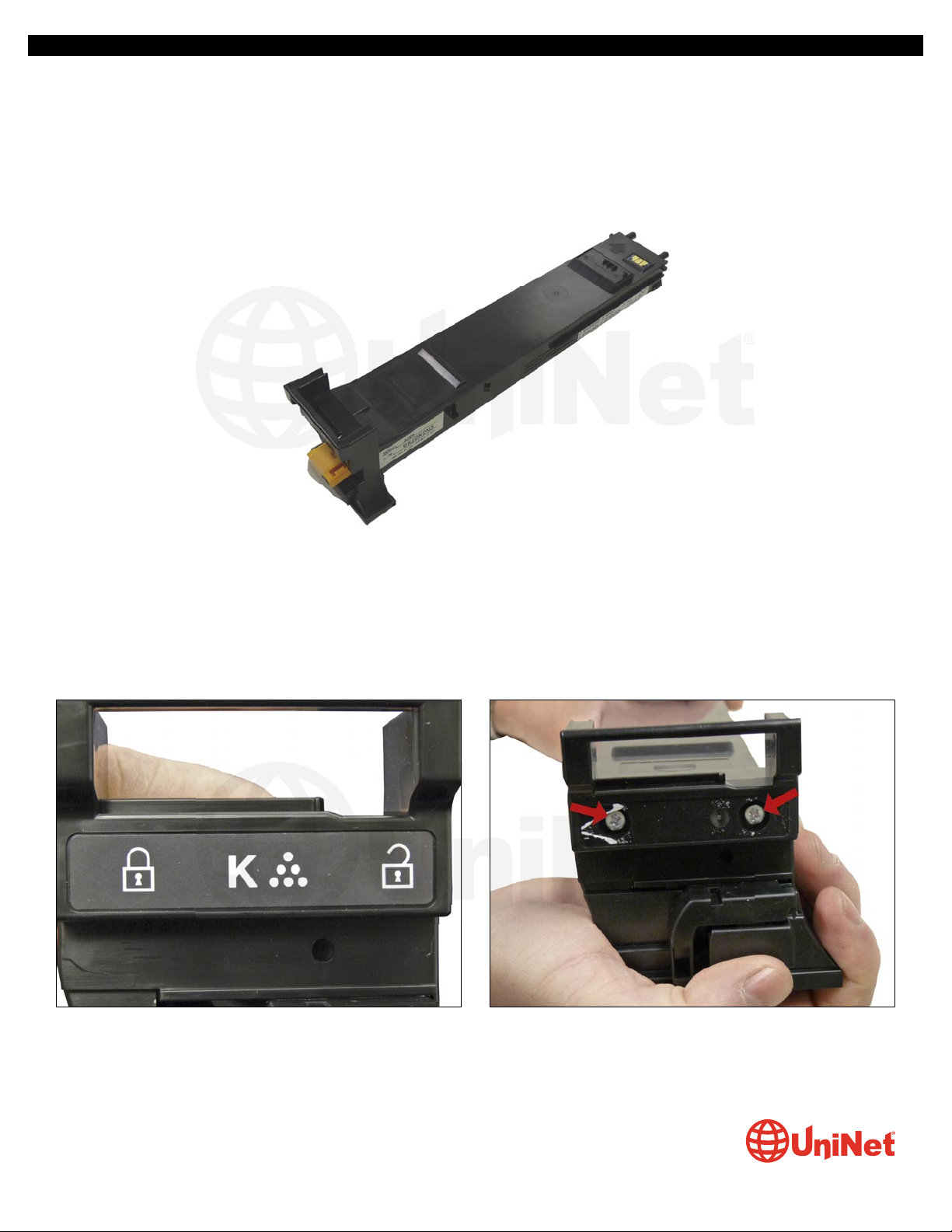

The Konica Minolta Magicolor 4600 Series cartridges are rated for 8,000 pages. The OEM numbers are A0DK132 Black,

A0DK432 Cyan, A0DK332 Magenta, and A0DK232 Yellow. There is a chip that must be replaced every cycle.

1. Peel the label off the end cap. 2. Remove the two screws.

REMANUFACTURING THE KONICA MINOLTA MAGICOLOR

4600 SERIES TONER CARTRIDGES

By Mike Josiah and the Technical Staff at UniNet

KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact [email protected]

www.uninetimaging.com

3. Slide the port cover over and remove the third screw.

Remove the end cap.

4. Remove the fill plug and clean out any remaining toner.

This fill plug is very soft. Be careful not to put a hole in it.

5. When a seal is available, install it now. 6. Turn the cartridge so the port opening is facing up and fill

the cartridge with dedicated MC 4600 color toner. Replace the

fill plug.

KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact [email protected]

www.uninetimaging.com

7. Install the end cap on the cartridge.

If a seal was installed, thread it through the slot. Set the port drive gear as shown and make sure it meshes properly.

8. Install the three screws and install the label. 9. Remove the screw on the chip. Replace the chip.

KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact [email protected]

www.uninetimaging.com

10. If a seal tab is available, install it on the seal and insert it

into the cartridge as shown.
