Koso 10032749 Bedienungsanleitung

Adapter plate for switch

3-3

Wiring installation instructions

wh000axg1a

Bar-end cap X2

G type switch X1

M3 nut X1

Heated grip X2

Velcro X1

M3XP0.5X25L screw X1

Connecting wire X1

G l u e X1

Specifications

2-1

PRESS THE

BUTTON

ONCE

FLASH LIGHT ON

PRESS THE

BUTTON 3

SECONDS

Thrust the heated grip into

the handlebar.

If the heating grip and the

handlebar are under

tighten; then apply the

super glue (Accessory 9)

to strengthen the

tightness to ensure there

will be no twisting during

riding.

To install, please do not use the

tool to knock on or twist to thrust

in the heating grip for thus doing

will break or damage the wire

inside the handlebar.

To install the side cap onto

the heating grip, please

insert the top cap into the

top groove and then follow

to push it downward into the

bottom groove.

3-2

Installation instruction

Installation steps

G switch (Accessory 2)

Velcro (Accessory 4)

Adapter plate for switch (Accessory 5)

M3XP0.5X25L screw (Accessory 6)

M3 nut (Accessory 7)

0.2 Nm (2 kgf.cm)

3-1

Practical installation instruction

Please proceed as follows

Please use an appropriate

tool to remove the original

handlebar.

Please apply a cleaning

agent and wipe back and

forth to clean away the

residual glue from the

handlebar.

Need to keep cetrain clearace

●Voltage

●Switch size

DC 12 V

W38.2 X L38.2 X H16.5 mm

●Effective temperature range JIS D 0203

●Fuse type 4A (ASP)

●Heating stage 1st stage (low) ~ 5th stage (high)

●Switch weight (with wire) About 88 g

Level 1 Temperature Curve

Level 2 Temperature Curve

Level 3 Temperature Curve

Level 4 Temperature Curve

Level 5 Temperature Curve

Heated grip testing data

2-2

5. 4.

34.8 mm

38.2 mm

16.5 mm

100

120

510 15 20 25 30

Design and specifications are subject to change without notice!

Please contact your local distributor if the items received are not the same as the one listed above.

Accessories

For installation, please follow the steps described in manual. Any damage caused by wrong installation shall be imputed to the users.

●

Don't break or modify the wire. To avoid the short circuit, please don't pull the wire when installing.

●

Do not disassemble or change any parts excluding the manual description.

●

The interior examination or maintenance should be executed by our professionals.

●

　ATTENTION!

●Thank you for purchasing the KOSO heated grips. Before installing, please read the instruction carefully and keep it for future reference.

To install the heating grip onto

the throttle sleeve in right side,

please note that throttle must be

maintained a safe clearance

plus a suitable surplus of wiring;

also they shall be tested by

rotating to and fro for avoiding

interference.

You could get the installation details from the information behind the mark.

Some processes must be followed to avoid the affection caused by wrong installation.

Some processes must be followed to avoid damages to yourself or the public.

Some processes must be followed to avoid the damage to the vehicle.

If any information dealt with in the manual remains unclear seek professional assistance.

◎MARK MEANING:

Figure 1 Figure 4

Figure 5Figure 2

Figure 3

Black / Ground wire connect to the vehicle

body or the engine (It must be a good ground)

Red / Positive wire connecting

to the key on switch (DC 12 V)

G type switch (Accessory 2)

Heated grip (Accessory 1)

Connecting wire (Accessor y 3)

The testing environment is under 26 Degrees Celsius, with working voltage of 13.5 V.

(Minute)

(℃)

INSTRUCTION

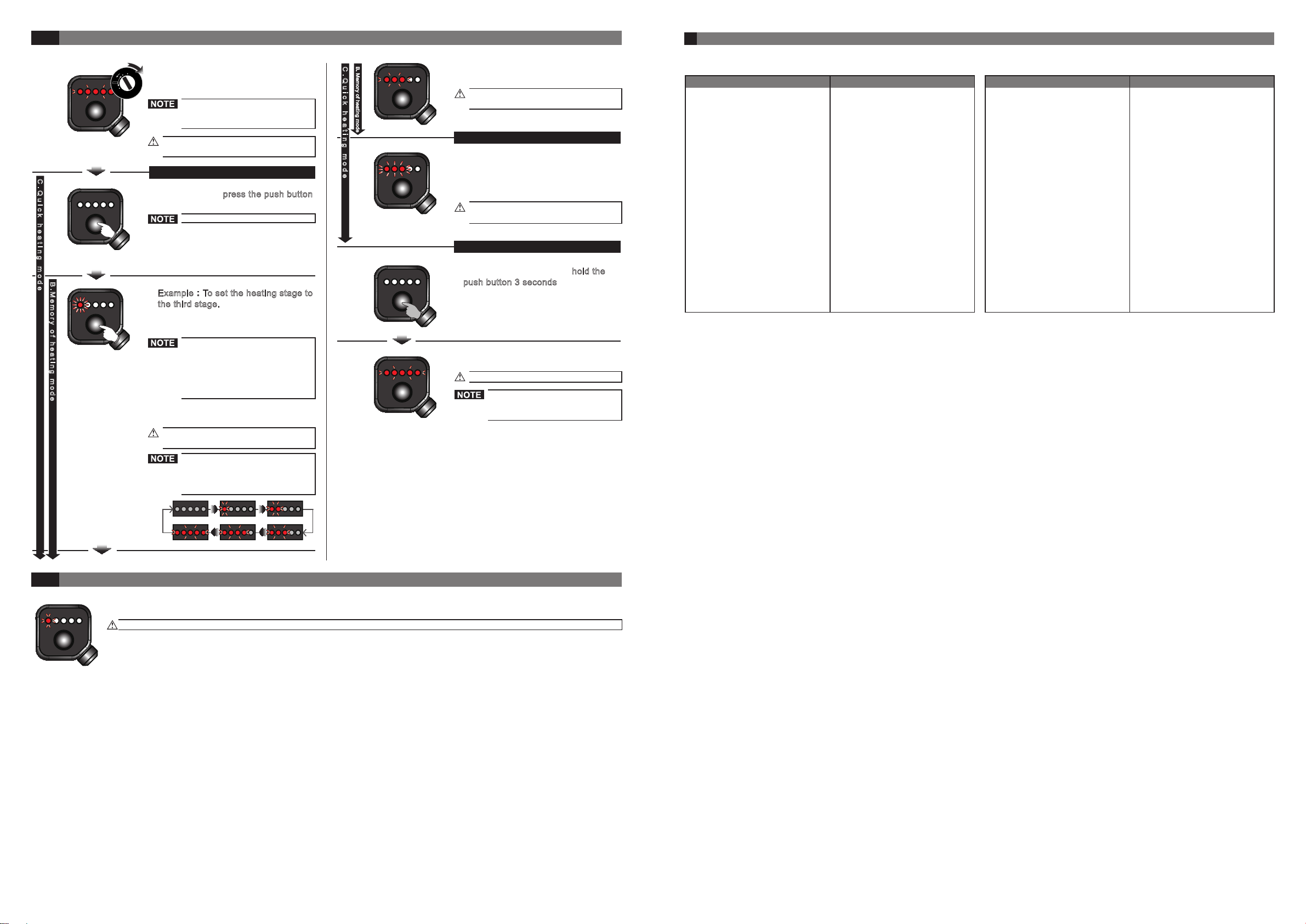

●Ex：Set the heating stage from 1st

stage to 3rd stage.

Specifications

4-1

Standby mode, press and hold the

push button 3 seconds to enter into

the quick heating mode.

●

Quick heating mode.

●

Low-voltage mode Description

4-2

At this moment, LED flashes.

●

The heating system will be turned off automatically when the voltage is lower than 11.5 V.

●

Standby mode will be enabled when the voltage over 11.5 V is restored.

Trouble shooting

※If still can't solve the problems according to the step above, please contact with distributors or us.

The following situation do not indicate malfunction of the meter. Pleasecheck the following before taking it in for repair.

Trouble

LED indication does not activate.

●

Power supply cable

It might causing by the setting

is not proper set up.

→ Please make sure and

double check if setting is under

the idle mode.

It might be the battery is

running out.

→ Please check your battery

voltage as soon as possible.

It might be causing by no

power supply.

→Please check if power

harness and fuse broken or

disconnected.

→Please check if positive pole

and negative pole is well

connected.

It might be causing by

improper setup.

→Please check if all function

setup is properly proceeded.

Please referring to 4-1

Specification and check with

each step.

disconnected.

→Please check if power supply

cable is broken or disconnect-

ed.

→Please check if positive and

negative poles are properly

connected.

●

Check item Trouble

When turn the key on, the

headed grip is not heating up.

Check item

At this moment, the LED lights will

flash once from left to right.

At this moment, the LED lights will

flash once from left to right.

At this moment, the LED lights will

flash once from left to right.

●

wh000axg1a

●Memory of heating mode.

At this moment, the LED indicators

are on.

At this moment, LED flashes.

●Ex：The last heating stage in memory

before turning off the switch is the 3rd

stage.

B. Memory of heating mode

C. Memory of heating mode

C.Quick heating mode

B. Memory of heating mode

PUSH

OPEN

LOCK

OFF ON

●Example：To set the heating stage to

the third stage.

●

●Press the push button to select the

desired set value.

●Ex：The current heating stage is set

to the 1st stage.

A. Heating stage setup

Standby mode, press the push button

once to enter into the heating mode.

●

C.Quick heating mode

B.Memory of heating mode

Turn the key on to enter the stand by

mode.

This stage is for self-check

without enabling the heating

function.

The default set is off.

The switch is characterized with

memory function；and 3

seconds after setting the

number of stage, the set

number of stage will be

memorized automatically. If the temperature is felt

enough, press the push button

once to stop the quick heating.

Setting range: Off → 1st stage

(low temperature) → 2nd stage

→ 3rd stage → 4th stage → 5th

stage (high temperature)
