USER MANUAL

MODEL:

UTBUS-2xl

Under the Table Connection Bus

P/N: 2900-300455 Rev 3 www.kramerAV.com

UTBUS-2xl – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Glossary 2

2.3 Recycling Kramer Products 3

3Overview 4

4Defining the UTBUS-2xl Enclosure 5

4.1 Power Socket Options 6

4.2 Power Cord Options 7

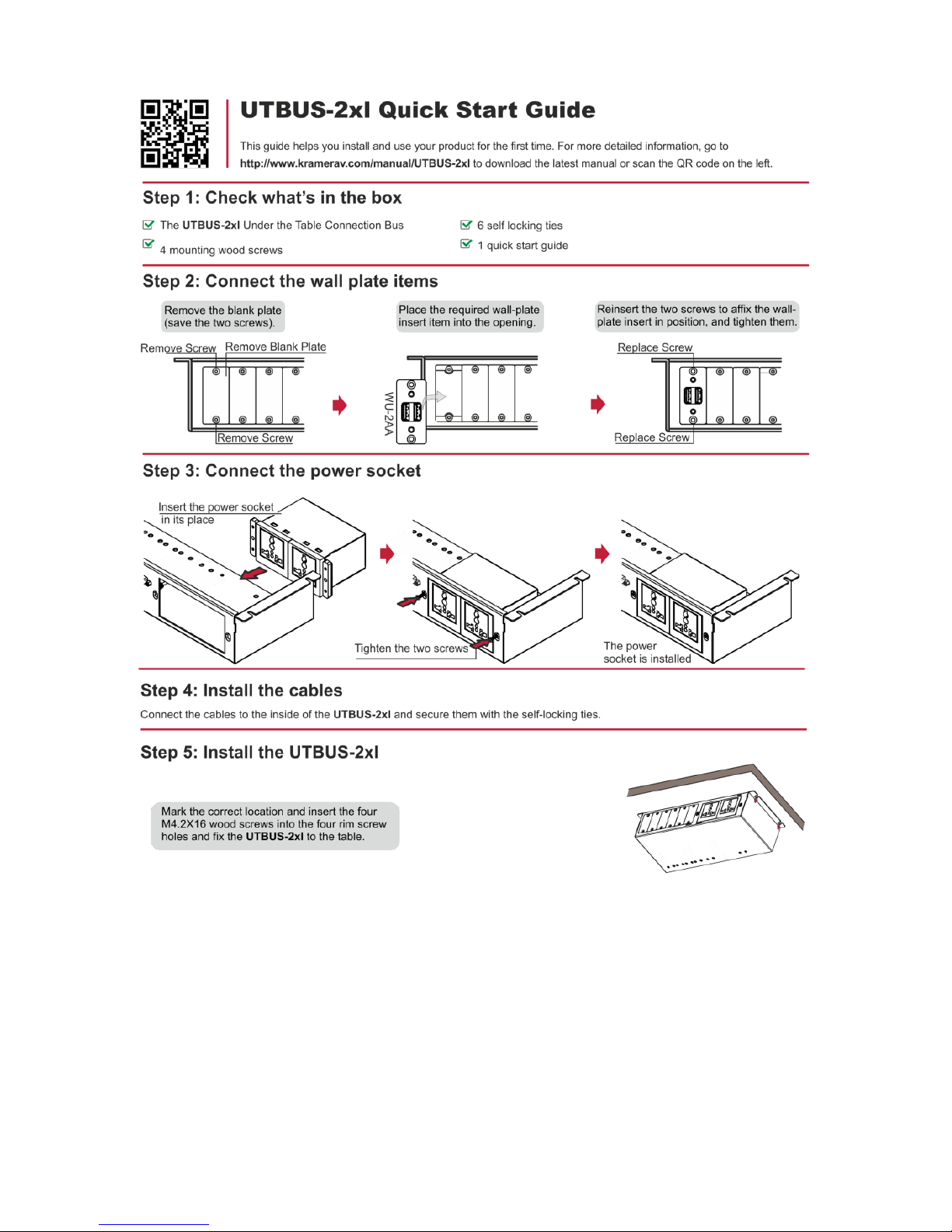

5Installing the UTBUS-2xl 8

5.1 Installing the Required Wall Plate Inserts 8

5.2 Installing the Cables 9

5.3 Installing the Power Socket 9

5.4 Securing the UTBUS-2xl Enclosure to the Table 10

6Technical Specifications of the Assembled UTBUS-2xl 11

Figures

Figure 1: UTBUS-2xl Under a Table 4

Figure 2: UTBUS-2xl Under the Table Connection Bus 5

Figure 3: Installing the Power Socket 9

Figure 4: Securing the UTBUS-2xl Under the Table 10

UTBUS-2xl - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters;

GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13:

Audio; and GROUP 14: Collaboration.

Thank you for purchasing the Kramer UTBUS-2xl,which is ideal for boardrooms,

conference and training rooms!

UTBUS-2xl - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to www.kramerav.com/downloads/UTBUS-2XL to check for up-to-date

user manuals, application programs, and to check if firmware upgrades are

available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer UTBUS-2xl away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

There are no operator serviceable parts inside the unit.

2.2 Glossary

Universal socket

The Universal socket fits almost all power cords, worldwide

Insert

The insert is fitted in the inner frame. Go to our Web site to check for a

variety of single and dual sized inserts

UTBUS-2xl - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at www.kramerav.com/support/recycling/.

UTBUS-2xl - Overview

3 Overview

The UTBUS-2xl is a furniture-mounted connection bus that is easily installed

underneath a wooden table or podium top. The unit is sturdy, cost-effective, and

easy to install.

The UTBUS-2xl:

Is modular in design, letting you install up to six wall plate inserts, according

to your requirements

Has a dual power socket opening that is suitable for any of the following

power sockets: for the USA, Germany (the Europlug), Belgium-France, Italy,

Australia, Israel, Switzerland, UK, South Africa or “Universal” for use

anywhere (see compatibility restrictions in Section 6)

Order the power sockets separately from Kramer Electronics

Figure 1: UTBUS-2xlUnder a Table

UTBUS-2xl - Defining the UTBUS-2xl Enclosure

4 Defining the UTBUS-2xl Enclosure

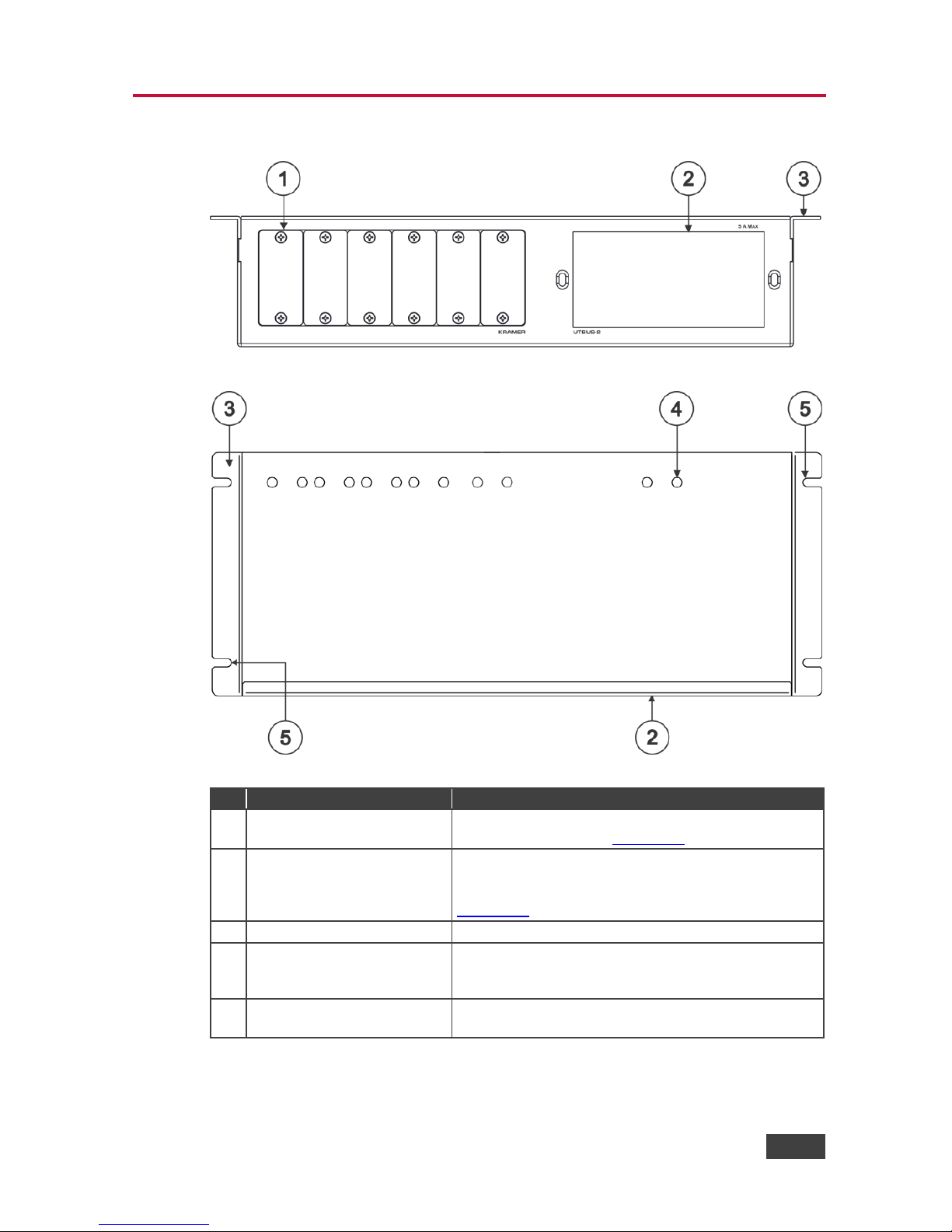

Figure 2: UTBUS-2xl Under the Table Connection Bus

Feature

Function

Blank Plates

Six blank covers that can be replaced with wall plate

inserts as required (see Section 5.1)

Power Socket Opening

Suitable for international power requirements (Suitable

for international power requirements (available with

different types of power sockets, ordered separately, see

Section 4.1)

Outer Rim

For mounting under the table

Tie Holes (12)

Insert self-locking ties through the holes to fix the pass-

through cables to the inside walls of the

UTBUS-2xl

Rim Screw Holes (4)

For fixing the UTBUS-2xl under the table (including two

open screw holes)

UTBUS-2xl - Defining the UTBUS-2xl Enclosure

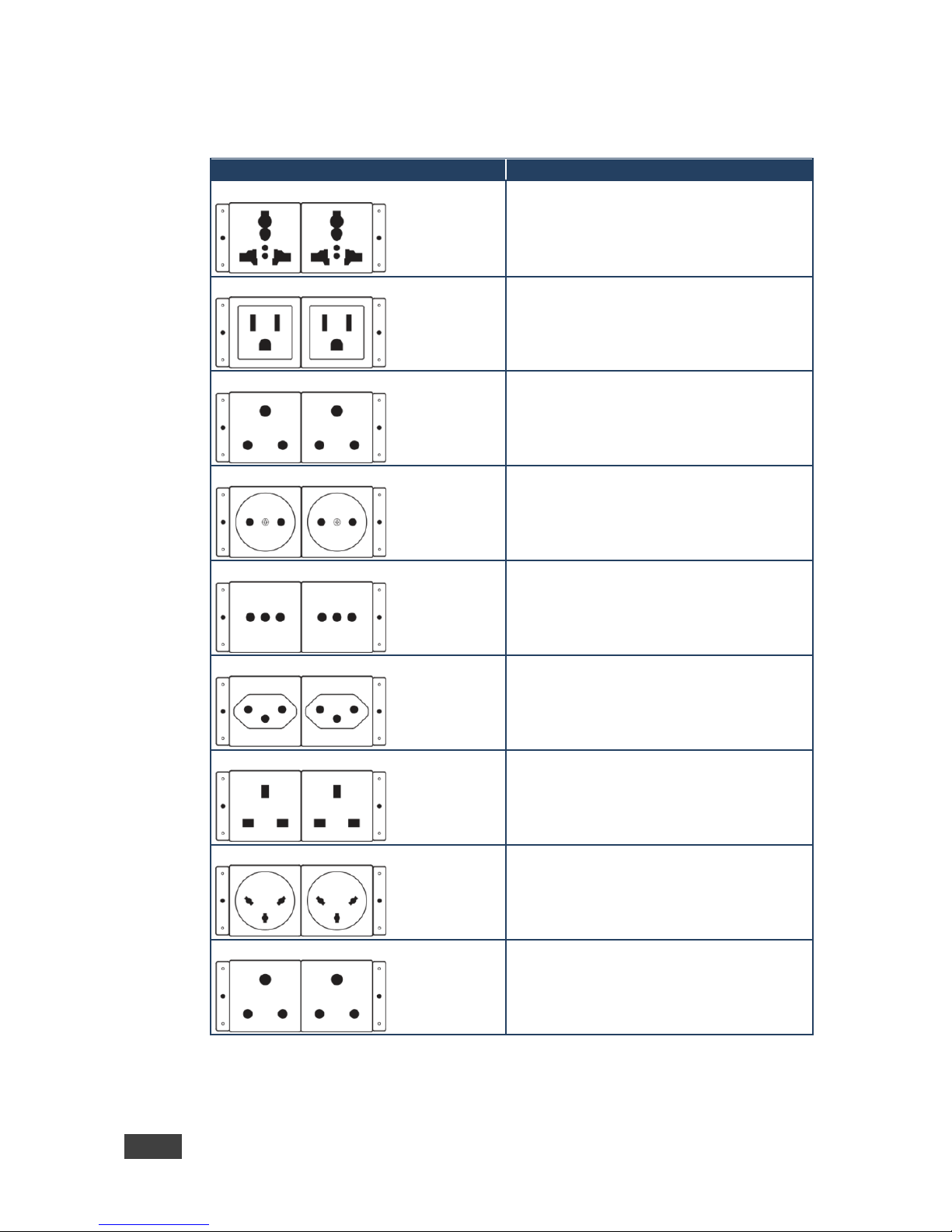

4.1 Power Socket Options

UTBUS-2xl supports installing the following power socket assemblies.

Socket Type

Power Specs

Universal:

TS-2U (80-001899)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

USA:

TS-2US (80-001999)

100-125V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

Belgium and France:

TS-2FR (80-002299)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

Germany and EU:

TS-2DE (80-002199)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

Italy

TS-2IT (80-002399)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

Switzerland

TS-2CH (80-000026)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

TS-2UK (91-000023)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

Israel:

TS-2IL (80-002699)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

South Africa:

TS-2ZA (80-002599)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

UTBUS-2xl - Defining the UTBUS-2xl Enclosure

Socket Type

Power Specs

Australia:

TS-2AU (80-002499)

100-240V AC, 50/60Hz, 5A

Maximum 5A/2.5A per power outlet

4.2 Power Cord Options

You can order any of the following power cords to use with a modular TBUS:

Power Cord Type

Description

P/N

6ft/110V (North America)

C-AC/US (110V)

91-000099

6ft/125V (Japan)

C-AC/JP (125V)

91-000699

6ft/220V (Europe)

C-AC/EU (220V)

91-000199

6ft/220V (Israel)

C-AC/IL (220V)

91-000999

6ft/250V (UK)

C-AC/UK (250V)

91-000299

6ft/250V (India)

C-AC/IN (250V)

91-001099

6ft/250V/10A (China)

C-AC/CN (250V)

91-001199

6ft/250V/10A (South Africa)

C-AC/ZA (250V)

91-001299
