USER MANUAL

Wall Plate Models:

SV-301

SV-302

SV-303

SV-304

SV-305

Contents

Introduction 1

Getting Started 1

Overview 2

Defining the Wall Plates (for the United States) 3

4.1

SV-301 and SV-302 (for the United States) 3

4.2

SV-303, SV-304, and SV-305 (for the United States) 4

Defining the Wall Plates (for Europe) 6

5.1

SV-301 and SV-302 (for Europe) 6

5.2

SV-303, SV-304, and SV-305 (for Europe) 7

Wiring the Rear Panel Connectors 9

6.1

Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 9

6.2

Wiring the CAT 5 LINE IN / LINE OUT Terminal Block Connectors 10

Summary of Recommended Cables 11

Tables

Table 1: Defining the SV-301 and SV-302 (for the U.S.) 3

Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.) 4

Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.) 5

Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame 5

Table 5: Defining the SV-301 (for England and Europe) 6

Table 6: Defining the SV-302 (for England and Europe) 6

Table 7: Defining the SV-303 (for England and Europe) 7

Table 8: Defining the SV-304 (for Europe) 7

Table 9: Defining the SV-305 (for Europe) 8

Table 10: CAT 5 PINOUT (for the USA) 9

Table 11: Terminal Block Connector PINOUT (for Europe) 10

Table 12: Cables for use with the SV-301/SV-302/SV-303/SV-304/SV-305 11

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models

now appear in 11 groups

that are clearly defined by function.

Congratulations on purchasing your Kramer SV-301, SV-302, SV-303, SV-304,

and/or SV-305 wall plate device. Each is designed to work as an integral part of

Kramer’s A/V SummitView™ Standard Kit and the SummitView™ Essentials

Kit or as a standalone product controlled via a room controller—RC-63DL,

RC-62P,RC-62L,RC-63AL,RC-63AP, or RC-63DP

—in a multimedia

classroom or conference room.

The packageincludes:

One of the following items: SV-301, SV-302, SV-303, SV-304, or SV-305

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original boxes and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

, as recommended in

section 7

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan

Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and

Rack Adapters; GROUP 11: Sierra Products

2 Download the user manual at: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

This user manual describes the:

SV-301 and SV-302—provided as the default wall plate devices with the

SummitView™ Standard Kit and the SummitView™ Essentials Kit and

described in that user manual, as well as in sections 4.1 (the U.S. version)

and 5.1 (the European version)

SV-303, SV-304 and SV-305 in sections 4.2 (the U.S. version) and 5.2 (the

European version)

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position your

Kramer Wall Plate away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 For example: model number AD2512C, part number 2535-000251

Defining the Wall Plates (for the United States)

4 Defining the Wall Plates (for the United States)

Section 4.1 defines the SV-301 and SV-302, and section 4.2 defines the

SV-303, SV-304 and SV-305.

4.1 SV-301 and SV-302 (for the United States)

Table 1 defines the front and rear views of the SV-301 and SV-302:

Table 1: Defining the SV-301 and SV-302 (for the U.S.)

SV-301: 2 RJ-45 CAT5

Connectors

SV-302 1 RJ-45 CAT5

Connector

# Feature Function

1 ON LED Lights in RED when

receiving power (when no

signal is detected); lights in

GREEN when receiving a

signal

2 COMPUTER

IN 15-pin HD

Connector

Connect to the computer

graphics source

3 AUDIO IN

3.5mm Mini

Plug

Connects to the audio

source

# Feature Function

1 L AUDIO

IN RCA

Connector

Connect to the left analog

audio source

2 ON LED Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

3 R AUDIO

IN RCA

Connector

Connect to the right analog

audio source

4 VIDEO IN

RCA

Connector

Connect to the composite video

source

5 IR OUT

3.5mm

Mini Plug

Connect to a machine via an IR

Emitter

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (for the United States)

4.2 SV-303, SV-304, and SV-305 (for the United States)

Table 2 and Table 3 define the front and rear views of the SV-303, SV-304 and

SV-305, respectively:

Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.)

SV-303: SV-304: SV-305:

Feature Function

1 L AUDIO

IN RCA

Connector

Connect to the

left analog

audio source

2 ON LED Lights in RED

when receiving

power (when

no signal is

detected); lights

in GREEN

when receiving

a signal

3 R AUDIO

IN RCA

Connector

Connect to the

right analog

audio source

4 s-VIDEO IN

Connector

Connect to the

s-Video source

5 IR OUT

3.5mm

Mini Plug

Connect to a

machine via

an IR Emitter

Feature Function

1 Y

2 PB

COMPONENT

VIDEO IN RCA

Connector

Connect to

the

component

video

source

4 ON LED Lights in

RED when

receiving

power (when

no signal is

detected);

lights in

GREEN

when

receiving a

signal

5 S/PDIF IN

RCA

Connector

Connect to

the digital

audio

source

6 IR OUT

3.5mm Mini

Plug

Connect to

a machine

via an IR

Emitter

Feature Function

1 Y

2 PB

COMPONENT

VIDEO IN RCA

Connectors

Connect to

the

component

video

source

4 ON LED Lights in RED

when receiving

power (when no

signal is

detected); lights

in GREEN when

receiving a

signal

5 R AUDIO

IN RCA

Connector

Connect to the

right analog

audio source

6 L AUDIO

IN RCA

Connector

Connect to the

left analog audio

source

7 IR OUT

3.5mm

Mini Plug

Connect to a

machine via an

IR Emitter

Defining the Wall Plates (for the United States)

Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.)

SV-303: SV-304 and SV-305:

1 RJ-45 CAT5 Connector 2 RJ-45 CAT5 Connectors

Table 4 defines the SV-305, as an example, in its plastic frame:

Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame

1 Each model that is designed specifically for the US market fits inside a plastic frame

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (for Europe)

5 Defining the Wall Plates (for Europe)

Section 5.1 defines the SV-301 and SV-302, and section 5.2 defines the

SV-303, SV-304 and SV-305.

5.1 SV-301 and SV-302 (for Europe)

The SV-301 and SV-302 are 1 Gang wall plate inserts. The SV-301 has two

terminal block connectors at the rear and the SV-302 has one.

Table 5: Defining the SV-301 (for England and Europe)

Feature Function

1 ON LED Lights in RED when

receiving power (when no

signal is detected); lights

in GREEN when receiving

a signal

2 COMPUTER IN

15-pin HD

Connector

Connect to the computer

graphics source

3 AUDIO IN 3.5mm

Mini Plug

Connects to the audio

source

Table 6: Defining the SV-302 (for England and Europe)

Feature Function

1 ON LED Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

2 L AUDIO IN

RCA Connector

Connect to the left analog

audio source

3 R AUDIO IN

RCA Connector

Connect to the right analog

audio source

4 VIDEO IN RCA

Connector

Connect to the composite video

source

5 IR OUT 3.5mm

Mini Plug

Connect to a machine via an

IR Emitter

1 When mounting in Belgium and Germany, use the standard WP Adapter

Defining the Wall Plates (for Europe)

5.2 SV-303, SV-304, and SV-305 (for Europe)

The SV-303 is a 1 Gang wall plate insert with one RJ-45 CAT5 connector at

the rear. The SV-304 and SV-305 are 2 Gang wall plate inserts with two RJ-45

CAT 5 connectors at the rear (available in a single version for Europe).

Table 7: Defining the SV-303 (for England and Europe)

Feature Function

1 ON LED Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

2 L AUDIO IN

RCA Connector

Connect to the left analog

audio source

3 R AUDIO IN

RCA Connector

Connect to the right analog

audio source

4 s-VIDEO IN 4p

Connector

Connect to the s-Video source

5 IR OUT 3.5mm

Mini Plug

Connector

Connect to a machine via an

IR Emitter

Table 8: Defining the SV-304 (for Europe)

Feature Function

1 ON LED Lights in RED when receiving power (when no signal

is detected); lights in GREEN when receiving a signal

2 Y

3 PB

COMPONENT VIDEO

IN RCA Connectors

Connect to the component video source

5 S/PDIF IN RCA Connector Connect to the digital audio source

6 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter

1 When mounting in Belgium and Germany, use the standard WP Adapter

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (for Europe)

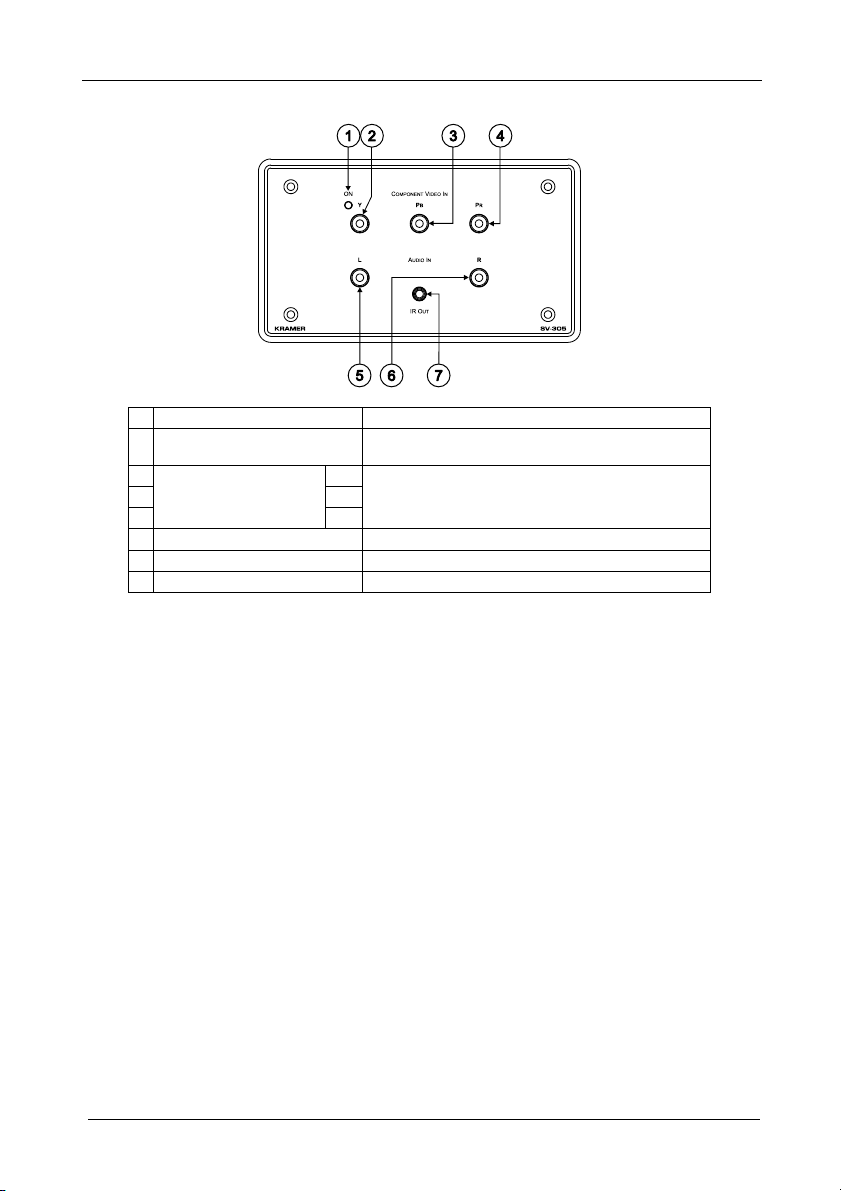

Table 9: Defining the SV-305 (for Europe)

Feature Function

1 ON LED Lights in RED when receiving power (when no signal

is detected); lights in GREEN when receiving a signal

2 Y

3 PB

COMPONENT VIDEO IN

RCA Connectors

Connect to the component video source

5 L AUDIO IN RCA Connector Connect to the left analog audio source

6 R AUDIO IN RCA Connector Connect to the right analog audio source

7 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kramer Kabel und Steckverbinder Handbücher

Kramer

Kramer VM-10H2 Bedienungsanleitung

Kramer

Kramer C-FODM/FODM-33 Bedienungsanleitung

Kramer

Kramer WP-220 Bedienungsanleitung

Kramer

Kramer WSP-1 Bedienungsanleitung

Kramer

Kramer MODULAR TBUS-1A Bedienungsanleitung

Kramer

Kramer KRT-3 Bedienungsanleitung

Kramer

Kramer RTBUS-27xl Bedienungsanleitung

Kramer

Kramer CLS-AOCH/xl Bedienungsanleitung

Kramer

Kramer LPE Installationshandbuch

Kramer

Kramer 676T Bedienungsanleitung

Kramer

Kramer TBUS-6 Bedienungsanleitung

Kramer

Kramer KRT-4-LAN Bedienungsanleitung

Kramer

Kramer RTBUS-28XL Bedienungsanleitung

Kramer

Kramer 612T Bedienungsanleitung

Kramer

Kramer TBUS-4 Bedienungsanleitung

Kramer

Kramer RTBUS-24 Bedienungsanleitung

Kramer

Kramer RTBUS-28XL Bedienungsanleitung

Kramer

Kramer WP-209 Bedienungsanleitung

Kramer

Kramer T6F-09 Bedienungsanleitung

Kramer

Kramer RTBUS-28XL Bedienungsanleitung

Kramer

Kramer FODPM Bedienungsanleitung

Kramer

Kramer WP-210 Bedienungsanleitung

Kramer

Kramer 6010 Bedienungsanleitung

Kramer

Kramer WP-220E Bedienungsanleitung

Beliebte Kabel und Steckverbinder Handbücher anderer Marken

Philips

Philips SWA6310 Bedienungsanleitung

StarTech.com

StarTech.com CRJ4550PK Bedienungsanleitung

Nohau

Nohau EMUL-IP2K-PC Bedienungsanleitung

Foxun

Foxun SX-SP144E-HD4K2K Bedienungsanleitung

Philips

Philips SWA3305W Bedienungsanleitung

opticis

opticis Stretch DVIM1-1P0x Bedienungsanleitung

Volkswagen

Volkswagen VAS 6558A Bedienungsanleitung

NEXIBO

NEXIBO N-13 Bedienungsanleitung

CYP

CYP PU-1H3HBTL Bedienungsanleitung

Allen-Bradley

Allen-Bradley 1784-u2dhp Bedienungsanleitung

Global Caché

Global Caché Flex Link Blaster Bedienungsanleitung

Hauppauge

Hauppauge USB-Live2 Bedienungsanleitung

Fenix

Fenix MPSV 15 Bedienungsanleitung

BEGA

BEGA 71 085 Bedienungsanleitung

Tesla

Tesla HPWC Bedienungsanleitung

GAMERON

GAMERON LUXURY TV CABLE Bedienungsanleitung

molex

molex Milli-Grid Dual row 87568 Series Bedienungsanleitung

Burndy

Burndy Continental Industries thermOweld CRE-7 Bedienungsanleitung
