Kramer 612T Bedienungsanleitung

Installation Instructions

MODELS:

612T, 612R

4K60 4:4:4 DP Tx/Rx over Extended-Reach

Multi-Mode Fiber Optic Cable

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where

updates to this user manual may befound.

We welcome your questions, comments, andfeedback.

www.KramerAV.com

info@KramerAV.com

P/N:

2900-301019

Rev:

All manuals and user guides at all-guides.com

all-guides.com

612T, 612R 4K60 4:4:4 DP Tx/Rx over Extended-Reach Multi-Mode Fiber

Optic Cable

Congratulations on purchasing your Kramer 612T and 612R Plug and Play active 4K60 4:4:4 DP

Tx/Rx over Extended-Reach Multi-Mode (MM) Fiber Optic cable. 612T and 612R extend signals of

up to 4096x2160 @60Hz, over a distance of up to 200m (656ft) without signal scaling or data

compression, providing a maximum data rate of 21.6Gbps (5.4Gbps per lane). 612T and 612R are

easily and securely connected via a 2LC fiber connector and can be powered either from the USB

connector or from the DisplayPort interface (pin #20).

Figure 1: 612T Transmitter and 612R Receiver

Safety

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

Warning:

Avoid direct eye exposure into the optic connectors when powered,

although this product is regulated strictly enough to operate under the

Laser Class 3R for eye safety.

See www.KramerAV.com for updated safety information.

Installation

To install 612T and 612R:

1. Unpack the contents of the package with care.

We recommend that you save the original box and packaging materials for possible future

shipment.

2. Turn on the power to the DisplayPort source (for example, a laptop) and acceptor (for

example, a display).

3. Power the 612T and 612R:

•Connect the micro USB connector on each device to a USB cable (supplied).

•Connect the USB cable either to the wall-mount power adapter (supplied) and to the

mains, or to a USB port.

The POWER LED lights and the STATUS LED flashes three times.

Although the transmitter and receiver can be powered via pin #20 on the

DisplayPort interface, we recommend that you use the USB power adapters

on both sides.

All manuals and user guides at all-guides.com

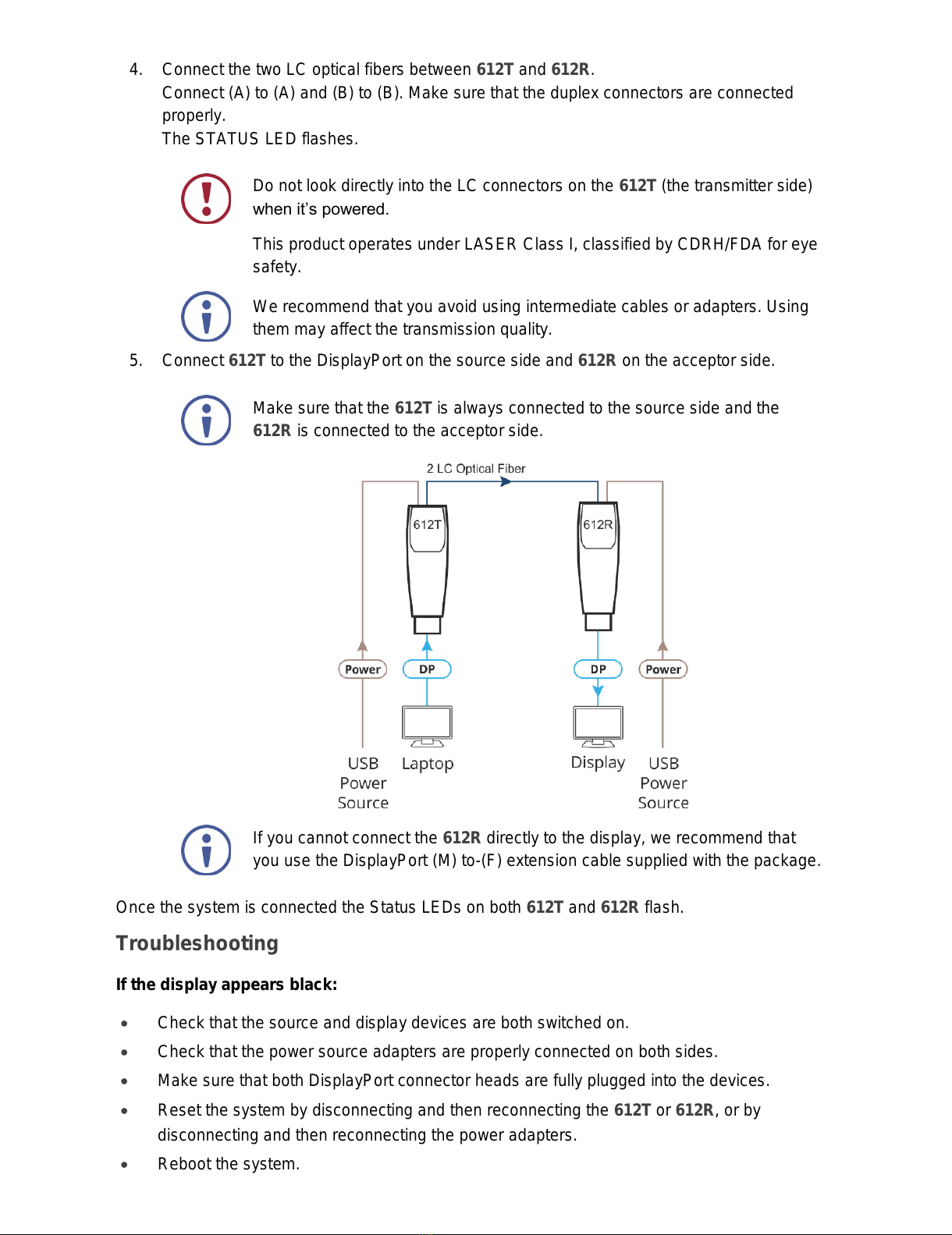

4. Connect the two LC optical fibers between 612T and 612R.

Connect (A) to (A) and (B) to (B). Make sure that the duplex connectors are connected

properly.

The STATUS LED flashes.

Do not look directly into the LC connectors on the 612T (the transmitter side)

when it’s powered.

This product operates under LASER Class I, classified by CDRH/FDA for eye

safety.

We recommend that you avoid using intermediate cables or adapters. Using

them may affect the transmission quality.

5. Connect 612T to the DisplayPort on the source side and 612R on the acceptor side.

Make sure that the 612T is always connected to the source side and the

612R is connected to the acceptor side.

If you cannot connect the 612R directly to the display, we recommend that

you use the DisplayPort (M) to-(F) extension cable supplied with the package.

Once the system is connected the Status LEDs on both 612T and 612R flash.

Troubleshooting

If the display appears black:

•Check that the source and display devices are both switched on.

•Check that the power source adapters are properly connected on both sides.

•Make sure that both DisplayPort connector heads are fully plugged into the devices.

•Reset the system by disconnecting and then reconnecting the 612T or 612R, or by

disconnecting and then reconnecting the power adapters.

•Reboot the system.

All manuals and user guides at all-guides.com

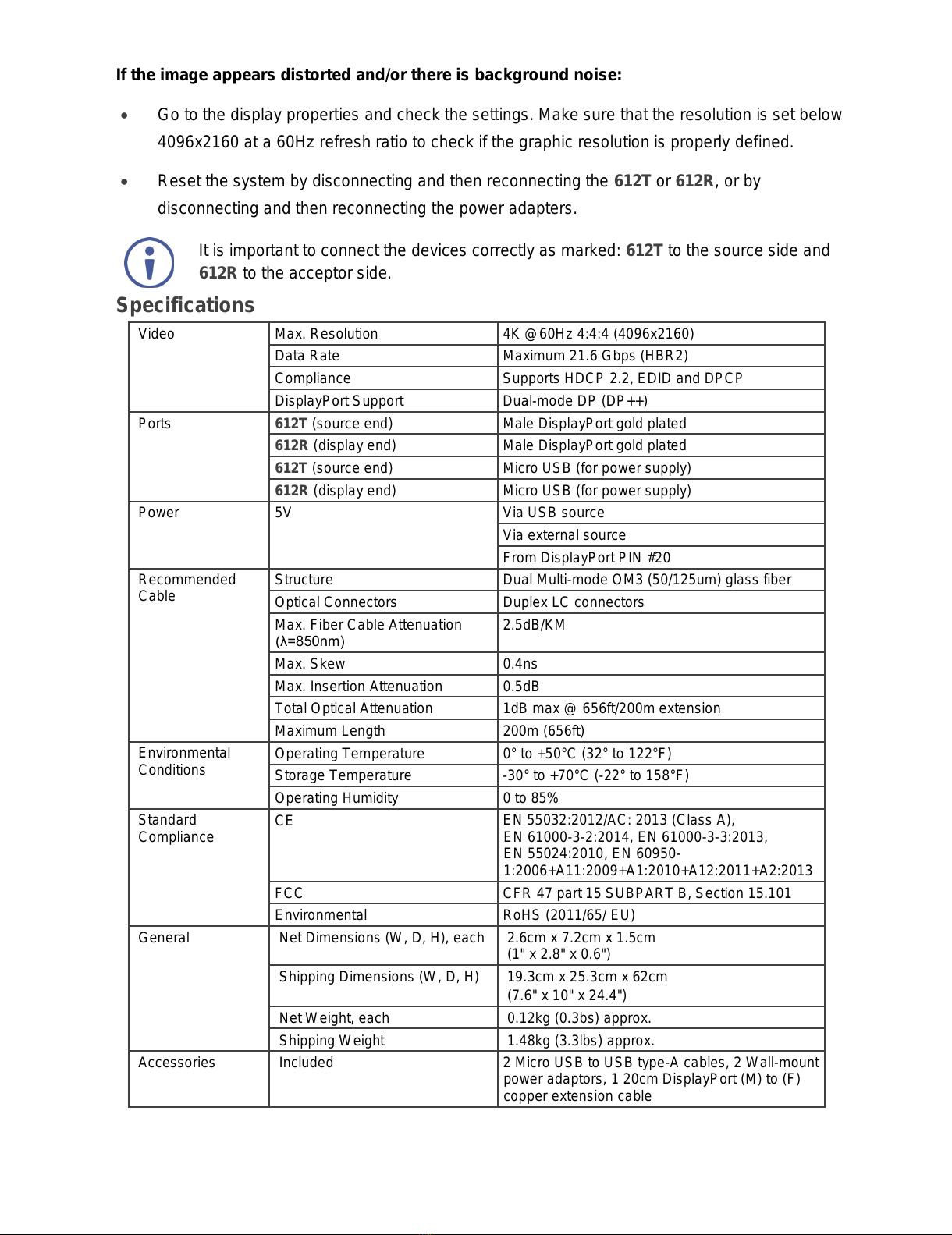

If the image appears distorted and/or there is background noise:

•Go to the display properties and check the settings. Make sure that the resolution is set below

4096x2160 at a 60Hz refresh ratio to check if the graphic resolution is properly defined.

•Reset the system by disconnecting and then reconnecting the 612T or 612R, or by

disconnecting and then reconnecting the power adapters.

It is important to connect the devices correctly as marked: 612T to the source side and

612R to the acceptor side.

Specifications

Video

Max. Resolution

4K @60Hz 4:4:4 (4096x2160)

Data Rate

Maximum 21.6 Gbps (HBR2)

Compliance

Supports HDCP 2.2, EDID and DPCP

DisplayPort Support

Dual-mode DP (DP++)

Ports

612T (source end)

Male DisplayPort gold plated

612R (display end)

Male DisplayPort gold plated

612T (source end)

Micro USB (for power supply)

612R (display end)

Micro USB (for power supply)

Power

Via USB source

Via external source

From DisplayPort PIN #20

Recommended

Cable

Structure

Dual Multi-mode OM3 (50/125um) glass fiber

Optical Connectors

Duplex LC connectors

Max. Fiber Cable Attenuation

(λ=850nm)

2.5dB/KM

Max. Skew

0.4ns

Max. Insertion Attenuation

0.5dB

Total Optical Attenuation

1dB max @ 656ft/200m extension

Maximum Length

200m (656ft)

Environmental

Conditions

Operating Temperature

0° to +50°C (32° to 122°F)

Storage Temperature

-30° to +70°C (-22° to 158°F)

Operating Humidity

0 to 85%

Standard

Compliance

EN 55032:2012/AC: 2013 (Class A),

EN 61000-3-2:2014, EN 61000-3-3:2013,

EN 55024:2010, EN 60950-

1:2006+A11:2009+A1:2010+A12:2011+A2:2013

FCC

CFR 47 part 15 SUBPART B, Section 15.101

Environmental

RoHS (2011/65/ EU)

General

Net Dimensions (W, D, H), each

2.6cm x 7.2cm x 1.5cm

(1" x 2.8" x 0.6")

Shipping Dimensions (W, D, H)

19.3cm x 25.3cm x 62cm

(7.6" x 10" x 24.4")

Net Weight, each

0.12kg (0.3bs) approx.

Shipping Weight

1.48kg (3.3lbs) approx.

Accessories

Included

2 Micro USB to USB type-A cables, 2 Wall-mount

power adaptors, 1 20cm DisplayPort (M) to (F)

copper extension cable
