Kramer VP-4x4K Bedienungsanleitung

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-4x4K

4x4 UXGA/Audio Matrix

Switcher

P/N: 2900-000386 Rev 6

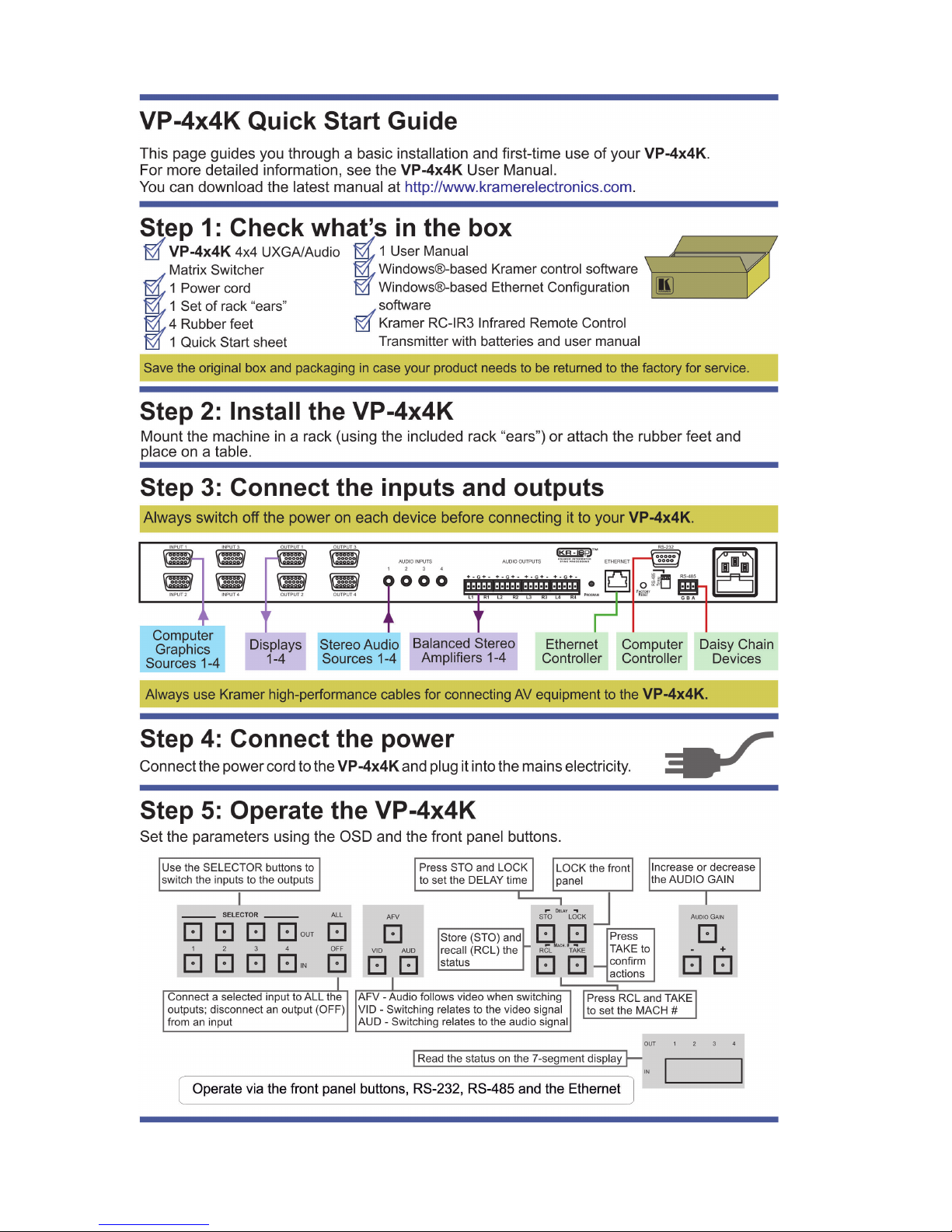

VP-4x4K – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

3Overview 3

3.1 Defining the VP-4x4K 4x4 UXGA/Audio Matrix Switcher 4

4Installing in a Rack 7

5Connecting the VP-4x4K 8

5.1 Connecting the VP-4x4K Rear Panel 8

5.2 Connecting the Balanced/Unbalanced Stereo Audio Output 10

5.3 Connecting to the VP-4x4K via RS-232 10

5.4 Cascading Machines 11

5.5 Configuring the Ethernet Port 12

5.6 DIP-switch Settings 16

6Operating Your Audio Matrix Switcher 17

6.1 Displaying Unit Characteristics 17

6.2 Adjusting the Audio Gain 18

6.3 Setting the Switching Delay Time 19

6.4 Setting the Machine Number 20

6.5 Choosing the Audio-Follow-Video or Breakaway Option 20

6.6 Switching OUT-IN Combinations 21

6.7 Confirming Settings 22

6.8 Storing/Recalling Input/Output Configurations 24

6.9 Locking the Front Panel 25

7Flash Memory Upgrade 26

8Controlling via the Embedded Web Pages 27

8.1 Connecting to the VP-4x4K via your Browser 27

8.2 The VP-4x4K Switching Matrix Page 29

8.3 Audio Gain Page 34

8.4 The CONFIGURATIONS Page 34

9Communication Parameters 36

10 Technical Specifications 37

11 Table of ASCII Codes for Serial Communication (Protocol 3000) 38

12 Hex Codes for Serial Communication (Protocol 2000) 40

13 Kramer Protocol 42

13.1 Switching Protocols 42

13.2 Kramer Protocol 3000 43

13.3 Kramer Protocol 2000 52

ii VP-4x4K - Contents

Figures

Figure 1: VP-4x4K 4x4 UXGA/Audio Matrix Switcher 4

Figure 2: Connecting the VP-4x4K 4x4 UXGA/Audio Matrix Switcher 9

Figure 3: Connecting the Balanced Stereo Audio Output 10

Figure 4: Connecting the Unbalanced Stereo Audio Output 10

Figure 5: Control Configuration via RS-232 and RS-485 12

Figure 6: Local Area Connection Properties Window 13

Figure 7: Internet Protocol (TCP/IP) Properties Window 14

Figure 8: Connect Screen 15

Figure 9: Device Properties Screen 16

Figure 10: VP-4x4K DIP-Switches 16

Figure 11: SELECTOR Buttons 24

Figure 12: Java Test Page Success Message 27

Figure 13: Entering the IP Number in the Address Bar 28

Figure 14: Loading the Embedded Web Pages 28

Figure 15: First Time Security Warning 28

Figure 16: VP-4x4K Embedded Web Page 29

Figure 17: Switching an Input to an Output 30

Figure 18: Switching an Input to an Output 31

Figure 19: Exiting Offline Warning 31

Figure 20: Selecting a preset 32

Figure 21: Save Preset Message 32

Figure 22: Load Preset Message 33

Figure 23: Recalling a Preset in the Confirm Mode 33

Figure 24: Audio Gain Page 34

Figure 25: CONFIGURATIONS Embedded Web Page 35

VP-4x4K - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix

Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and

GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer VP-4x4K 4x4 UXGA/Audio Matrix

Switcher, which is ideal for the following typical applications:

•Professional display systems requiring true 4x4 matrix operation

•Multimedia and presentation source and acceptor selection

•Remote monitoring of computer activity in schools and businesses

•Rental/staging applications

2 VP-4x4K - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Use Kramer high performance high resolution cables

Use only the power cord that is supplied with this machine

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer VP-4x4K away from moisture, excessive sunlight and

dust

VP-4x4K - Overview 3

3 Overview

The VP-4x4K is a true 4x4 matrix switcher for computer graphics (up to and exceeding

UXGA) signals and balanced stereo audio signals. The VP-4x4K lets you

simultaneously route any or all of the four inputs to any or all of the four outputs.

In addition, the VP-4x4K features:

•A video bandwidth of 400MHz that ensures transparent UXGA performance

•DC coupled inputs and outputs

•A selectable delayed switching mode (ranging from 0 to 3.5sec, in

increments of 0.5sec) for clean transitions (seamless switching) when

switching between non-genlocked sources

•Audio gain control for the inputs and the outputs

•Audio-follow-video and breakaway options

•Storing and recalling setup options

•A TAKE button for precise switch control that lets you execute multiple

switches all at once

•A LOCK button to prevent tampering with the front panel

•The ability to automatically detect connected input signals (the respective

button illuminates in green)

•Our innovative integrated sync processing; KRISP™ technology that lets you

achieve a sharp, stable image when the sync level is too low, by restoring

the sync signal waveform

Control the VP-4x4K using the front panel buttons, or remotely via:

•RS-485 or RS-232 serial commands transmitted by a touch screen system,

PC, or other serial controller

•The Kramer RC-IR3 infrared remote control transmitter

•The Ethernet

4 VP-4x4K - Overview

3.1 Defining the VP-4x4K 4x4 UXGA/Audio Matrix Switcher

This section defines the VP-4x4K.

Figure 1: VP-4x4K 4x4 UXGA/Audio Matrix Switcher

VP-4x4K - Overview 5

# Feature Function

1 POWER Switch Illuminated switch for turning the unit ON or OFF

2 IR Receiver Signals from the remote control transmitter illuminate

the LED

3 SELECTOR

Buttons

OUT Select the output to which the input is switched

IN Select the input to switch to the output

When a signal is detected, the input button illuminates

in green

The SELECTOR IN and OUT buttons also store/recall the

input/output configurations (see Section 6.8)

4 ALL Button Pressing ALL before pressing an input button

connects that input to all outputs

For example, press ALL and then Input button # 2 to

connect input # 2 to all the outputs

5 OFF Button Pressing OFF after pressing an output button

disconnects that output from the inputs. To disconnect

all the outputs, press the ALL button and then the OFF

button

6 AFV Button When illuminated, the audio channels follow the video

channels. The button is illuminated when the AFV

mode is selected

If the AUDIO differs from the VIDEO, the TAKE button will

flash, and you have to press the TAKE button to confirm

the modification

7 VID Button When illuminated, actions relate to video

The VID button is illuminated when in breakaway mode

and actions relate to video

8 AUD Button When illuminated, actions relate to audio

The AUD button is illuminated when in breakaway mode

and actions relate to audio

9 STO Button Pressing STO (STORE) followed by an output or an

input button stores the current setting

Press the STO and LOCK buttons simultaneously to set

the delay time (see Section 6.3)

For example, press STO and then the Output button # 3 to

store in Setup # 3

10 LOCK Button Disengages the front panel switches

11 RCL Button Pressing RCL (RECALL) followed by an output or an

input button displays a stored setup

12 TAKE Button Pressing TAKE toggles the mode between the

CONFIRM mode and the AT ONCE mode (user

confirmation per action is unnecessary). When in

CONFIRM mode, actions are confirmed by pressing

the TAKE key

For example, press STO and then the Output button # 3 to

store in Setup # 3

When in the CONFIRM mode, the TAKE button illuminates

13 AUDIO GAIN Button Press to adjust the audio input or output gain (see

Section 6.2)

14 - Button Press to decrease the numerical value

By pressing the + or - buttons continuously, you can speed

up their response. For step-by-step response, press and

release these buttons as many times as needed

Gain, switching delay time and machine number

6 VP-4x4K - Overview

# Feature Function

15 + Button Press to increase the numerical value

16 STATUS 7-segment

Display

Displays the selected input switched to the output

(marked above each input)

Also displays the number of IN and OUT ports, the

firmware version number, the MACHINE # and the audio

gain level. Refer to Section 6.1

17 INPUT 15-pin HD

Connectors

Connect to the video sources (from 1 to 4)

18 OUTPUT 15-pin HD

Connectors

Connect to the acceptors (from 1 to 4)

19 AUDIO INPUTS 3.5mm

Mini Plug Connectors

Connect to the unbalanced stereo audio sources (from

1 to 4)

20 AUDIO OUTPUTS

Terminal block connectors

Connect to the balanced stereo audio acceptors (from

1 to 4)

21 PROGRAM Button Not used (for technical staff use only)

22 Ethernet Connector Connects to the PC or other Serial Controller through

computer networking

23 Factory Reset Button Press to reset to the factory default definitions:

IP number −192.168.1.39

Mask – 255.255.0.0

Gateway – 0.0.0.0

UDP port – 50000

TCP port – 5000

Protocol 3000 commands

All 8 Presets deleted

All audio channels set to 0dB

Machine name – the last four digits of the machine's

serial number

DHCP disabled

Turn the POWER switch OFF and then ON again while

pressing the Factory Reset button. The unit will power up

and load its memory with the factory default definitions

24 RS-485 TERM DIP-switch DIP 1 is for RS-485 Termination, DIP 2 is not used

25 RS-485 Terminal Block

Port

Pins B (-) and A (+) are for RS-485; Pin G (Ground)

may be connected to the shield of the cable if desired

26 RS-232 9-pin D-sub

Connector

Connects to the PC or the Remote Controller

27 Power Connector with

Fuse

AC connector enabling power supply to the unit

Andere Handbücher für VP-4x4K

Inhaltsverzeichnis

Andere Kramer Matrix-Umschalter Handbücher

Kramer

Kramer 1608HD Bedienungsanleitung

Kramer

Kramer VS-808TP Bedienungsanleitung

Kramer

Kramer VP-729 Bedienungsanleitung

Kramer

Kramer VS-84HDCPxl Bedienungsanleitung

Kramer

Kramer VS-66HDMI Bedienungsanleitung

Kramer

Kramer Sierra Video 1204V5 Bedienungsanleitung

Kramer

Kramer VS-402XL Bedienungsanleitung

Kramer

Kramer SD-7308 Bedienungsanleitung

Kramer

Kramer VS-84HDCPxl Bedienungsanleitung

Kramer

Kramer VS-34FD Bedienungsanleitung

Kramer

Kramer XL 1616V Bedienungsanleitung

Kramer

Kramer Sierra Video 3216V5S Bedienungsanleitung

Kramer

Kramer VP-772 Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1204V5S Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1608V5S Bedienungsanleitung

Kramer

Kramer 3216HD Bedienungsanleitung

Kramer

Kramer 3232D Bedienungsanleitung

Kramer

Kramer XL 1208VS Bedienungsanleitung

Kramer

Kramer XL 1616V2S Bedienungsanleitung

Kramer

Kramer Sierra Video 3264V5xl Bedienungsanleitung

Kramer

Kramer VP-27 Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1208V5S Bedienungsanleitung

Kramer

Kramer 1616HD Bedienungsanleitung

Kramer

Kramer VP-8x8A Bedienungsanleitung

Beliebte Matrix-Umschalter Handbücher anderer Marken

Broadcast Tools

Broadcast Tools SS 8.2 Bedienungsanleitung

Altimium

Altimium MATF32 Bedienungsanleitung

ALFAtron

ALFAtron ALF-MUK44N Bedienungsanleitung

Monoprice

Monoprice Blackbird 15377 Bedienungsanleitung

PTN

PTN FMX12 Bedienungsanleitung

CYP

CYP nT15GX01 Bedienungsanleitung

TESmart

TESmart HMA0402A40 Bedienungsanleitung

Octava

Octava HD4XSTPMX Bedienungsanleitung

Intelix

Intelix FLX-88 Betriebsanleitung

Roland

Roland XS-1HD Bedienungsanleitung

Atlona

Atlona AT-HDMI-22M Bedienungsanleitung

Link

Link HD8X8 Bedienungsanleitung

AMX

AMX AVS-OP-2020-117 Anleitungen und Rezepte

Lindy

Lindy 38042 Bedienungsanleitung

Extron electronics

Extron electronics MTPX Plus Series Bedienungsanleitung

Key Digital

Key Digital Champion KD-16x16CS Bedienungsanleitung

Shinybow USA

Shinybow USA SB-8811 Bedienungsanleitung

Optimus

Optimus Compact Bedienungsanleitung
