USER MANUAL

Model:

VP-8x4AK

8x4 VGA / UXGA / Audio Matrix Switcher

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 1

3Overview 3

3.1 Terminology Used in this User Manual 4

3.2 DDC Support 5

3.3 Defining EDID 5

4Your VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher 5

4.1 Using the IR Transmitter 9

5Installing the VP-8x4AK in a Rack 10

6Using the VP-8x4AK 11

6.1 Connecting the VP-8x4AK Rear Panel 11

6.2 Connecting the Balanced/Unbalanced Stereo Audio Output 13

6.3 Connecting a PC or Controller to the RS-232 Port 13

6.4 Connecting a PC or Controller to the RS 485 Port 14

6.4.1 Setting the VP-8x4AK 14

6.5 Configuring the Ethernet Port 15

6.5.1 Connecting via the Ethernet 15

6.5.2 Ethernet Port Configuration 17

6.6 Control via the Ethernet Port 18

6.7 Setting the Switching Delay Time 19

6.8 Setting the Machine Number 19

6.9 Cascading Machines 19

7Operating the VP-8x4AK 21

7.1 Switching an Input to an Output 21

7.2 Understanding the 7-Segment Displays 21

7.2.1 The STATUS 7-Segment Display 21

7.2.2 The REL AUDIO LEVEL 7-Segment Display 22

7.3 Confirming Settings 22

7.3.1 Toggling between the At Once and Confirm Modes 22

7.3.2 Confirming a Switching Action 23

7.4 Storing/Recalling Input/Output Configurations 23

7.4.1 Storing an Input/Output Configuration 23

7.4.2 Recalling an Input/Output Configuration 24

7.5 Locking the Front Panel 24

7.6 Choosing the Audio-Follow-Video or Breakaway Option 24

7.6.1 Setting the Audio-Follow-Video Option 25

7.6.2 Setting the Breakaway Option 25

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

7.7 The Audio Input/Output Gain Control 25

8Flash Memory Upgrade 26

9Controlling via the Embedded Web Pages 26

9.1 Connecting to the VP-8x4AK via your Browser 27

9.2 The VP-8x4AK Switching Matrix Page 28

9.2.1 Switch an Input to an Output via the Embedded Web Pages 29

9.2.2 Operate in the Confirm Mode 30

9.2.3 Store and Recall Setups 31

9.3 Audio Gain Page 33

9.4 The Configurations Page 34

10 Technical Specifications 35

11 Communication Parameters 36

12 Table of ASCII Codes for Serial Communication (Protocol 3000) 37

13 Hex Codes for Serial Communication (Protocol 2000) 38

14 Kramer Protocol 40

14.1 Switching Protocols 40

14.1.1 Switching Protocols via the Front Panel Buttons 40

14.1.2 Switching Protocols via Protocol Commands 40

14.2 Kramer Protocol 3000 40

14.2.1 Protocol 3000 Syntax 41

14.2.2 Command Parts Details 42

14.3 Kramer Protocol 2000 48

Figures

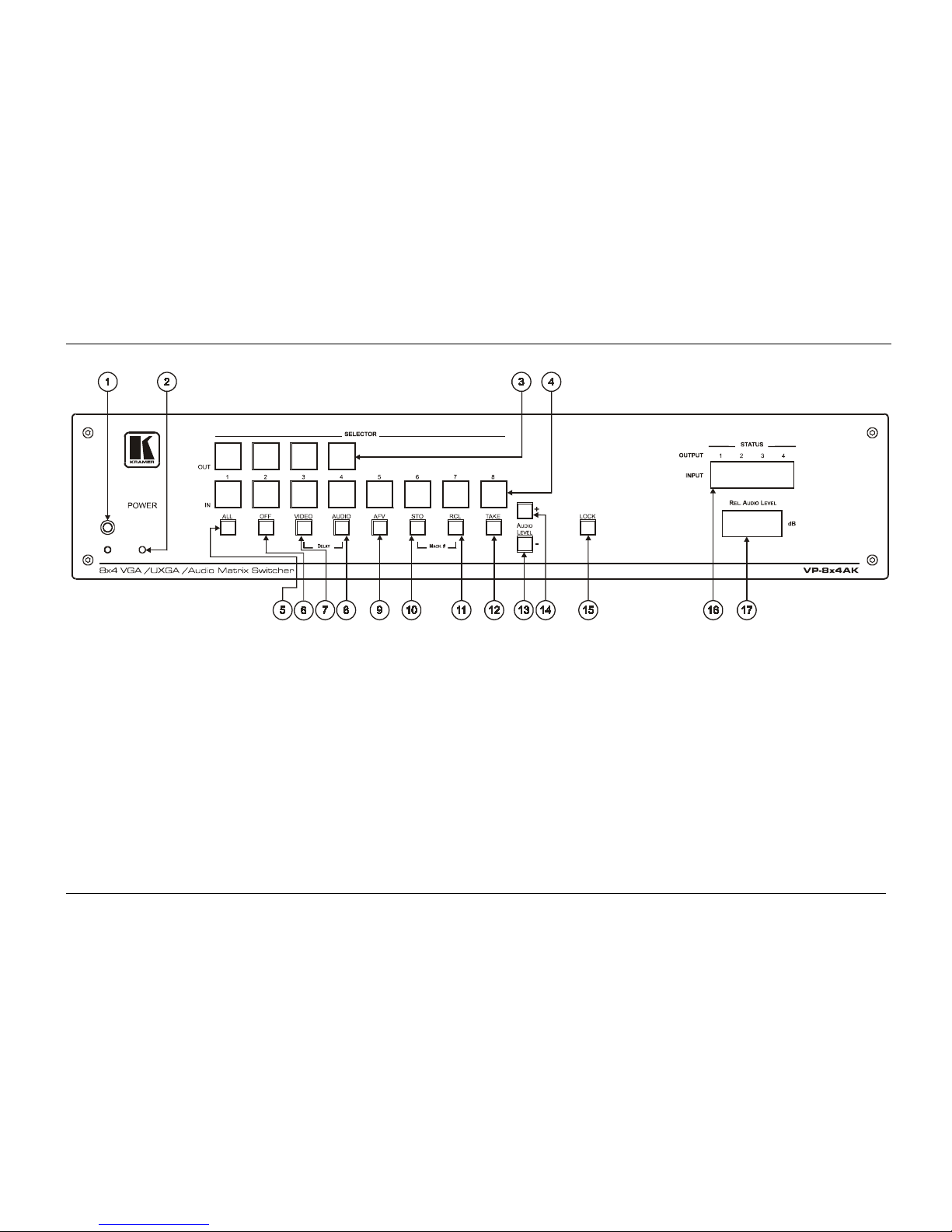

Figure 1: VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher – Front View 6

Figure 2: VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher – Rear View 8

Figure 3: Connecting the VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher 12

Figure 4: Connecting a Balanced Stereo Audio Output 13

Figure 5: Connecting an Unbalanced Stereo Audio Output 13

Figure 6: The RS-485 TERM DIP-switch 14

Figure 7: Local Area Connection Properties Window 16

Figure 8: Internet Protocol (TCP/IP) Properties Window 16

Figure 9: Connect Screen 17

Figure 10: Device Properties Screen 18

Figure 11: Control Configuration via RS-232 and RS-485 20

Figure 12: 7-segment Display during Normal Operation 21

Figure 13: REL AUDIO LEVEL 7-segment Display 22

Figure 14: Storing and Recalling using the Input/Output Buttons 23

Figure 15: Java Test Page Success Message 26

Figure 16: Entering the IP Number in the Address Bar 27

Figure 17: Loading the Embedded Web Pages 27

Figure 18: First Time Security Warning 28

Figure 19: VP-8x4AK Embedded Web Page 29

Contents

iii

Figure 20: Switching an Input to an Output 30

Figure 21: Switching an Input to an Output in the Confirm Mode 30

Figure 22: Exiting Offline Warning 31

Figure 23: Selecting a preset 31

Figure 24: Save Preset Message 32

Figure 25: Load Preset Message 32

Figure 26: Recalling a Preset in the Confirm Mode 33

Figure 27: Audio Gain 33

Figure 28: CONFIGURATIONS Embedded Web Page 34

Tables

Table 1: Terminology Used in this User Manual 4

Table 2: Front Panel VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher Features 7

Table 3: Rear Panel VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher Features 9

Table 4: Technical Specifications of the VP-8x4AK 8x4 Video Audio Matrix Switcher 35

Table 5: Communication Parameters 36

Table 6: VP-8x4AK Video Signal Codes for Protocol 3000 37

Table 7: VP-8x4AK Audio Signal Codes for Protocol 3000 37

Table 8: VP-8x4AK Audio Input Gain Codes 37

Table 9: VP-8x4AK Audio Output Gain Codes 38

Table 10: VP-8x4AK Hex Codes for Switching via RS-232/RS-485 38

Table 11: VP-8x4AK Hex Codes for Switching Audio Channels via RS-232/RS-485 38

Table 12: VP-8x4AK Hex Codes for Increasing/Decreasing the Audio Input Gain 39

Table 13: VP-8x4AK Hex Codes for Setting the Audio Input Gain 39

Table 14: VP-8x4AK Hex Codes for Increasing/Decreasing the Output Gain 39

Table 15: VP-8x4AK Hex Codes for Setting the Audio Output Gain 39

Table 16: Instruction Codes for Protocol 3000 43

Table 17: Protocol Definitions 48

Table 18: Instruction Codes for Protocol 2000 49

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models

now appear in 11 groups1

Congratulations on purchasing your VP-8x4AK 8x4 VGA / UXGA / Audio

Matrix Switcher, which is ideal for the following typical applications:

that are clearly defined by function.

•Professional display systems requiring a true 8x4 computer graphics and

audio matrix operation

•Multimedia and presentation source, and acceptor selection

The package includes the following items:

•VP-8x4AK 8x4 VGA / UXGA Matrix Switcher

•Windows®-based Kramer control software2

•Kramer RC-IR3Infrared Remote Control Transmitter (including the

required battery and a separate user manual

•Power cord3, rack “ears” and this user manual4

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high-resolution cables5

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 We recommend that you use only the power cord that is supplied with this machine

4 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-8x4AK is a high performance 8x4 computer graphics video matrix

switcher for high-resolution video and stereo audio signals. The VP-8x4AK

is HDTV compatible and lets you route any combination of inputs and

outputs.

In particular, the VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher

features:

•Kramer’s innovative integrated sync processing; Kr-isp® technology that

lets you achieve a sharp, stable image when the sync level is too low, by

restoring the sync signal waveform

•A video bandwidth of over 360MHz that ensures transparent performance

even in the most critical applications

•16 preset memory locations for quick access to common video and audio

configurations and audio gain status for each output

•Automatic detection of the connected input signals (the respective button

illuminates)

•A delayed switching mode (ranging from 0 to 3.5sec1

•DC-coupled video inputs and outputs

) for clean

transitions when switching between non-genlocked sources

•Audio-follow-video and breakaway options

•Eight stereo unbalanced stereo audio input signals on 3.5mm mini plugs

•Four balanced stereo audio output signals on 5-pin terminal block

connectors

•Audio level control buttons for adjusting the signal level of each input

and each output

•Measurement and indication of the audio level for each input and output,

in relative dB

•A TAKE button, which allows you to place multiple switches in a queue

and then activate them simultaneously with one touch of this button

•A LOCK button to prevent tampering with the front panel

•Support for DDC (Display Data Channel) communication between selected

input 1 and output 1 high-density 15-pin HD connectors on pins 12 and 15

•Control via embedded Web pages

1 In increments of 0.5sec

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

Control the VP-8x4AK using the front panel buttons, or remotely via:

•RS-485 or RS-232 serial commands (using Kramer 2000 and 3000

protocols) transmitted by a touch screen system, PC, or other serial

controller

•The Kramer infrared remote control transmitter or infrared remote

extension cable transmitter (optional)

•The ETHERNET

The VP-8x4AK is dependable, rugged, and fits into two vertical spaces (2U)

of a standard 19” professional rack.

To achieve the best performance:

•Use only good quality connection cables1

•Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VP-8x4AK

away from moisture, excessive sunlight and dust

to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables).

3.1 Terminology Used in this User Manual

Table 1defines some terms that are used in this user manual:

Table 1: Terminology Used in this User Manual

Term

Definition

802.3

The standard specification for ETHERNET that is maintained by the Institute of Electrical and

Electronics Engineers (IEEE).

Dynamic Host Configuration

Protocol (DHCP)

Allows the network administrator to distribute IP addresses from a central point and

automatically send a new IP address when an Ethernet point is plugged into a different

network location.

Gateway A network position serving as an entry to another network. On the Internet, a node or

stopping point can be either a gateway node or a host (end-point) node.

IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a

particular server or workstation) of data (HTML pages or e-mails) that is sent in packets

across the Internet. Every device connected to an IP network must have a unique IP

address. This address is used to reference the specific unit.

Local Area Network (LAN) Computers sharing a common communications line or wireless link, which often share a

server within a defined geographic area.

Media Access Control

(MAC) Address

A computer's unique hardware number (or address) in a LAN or other network. On an

Ethernet LAN, the (MAC) address is identical to the Ethernet address.

Transmission Control

Protocol/Internet Protocol

(TCP/IP)

The basic communication language or protocol of the Internet that breaks the message into

appropriately sized packets for the network, and can be used as a communications protocol

in an intranet or an extranet.

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Your VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher

3.2 DDC Support

When establishing a VGA connection between a PC or laptop and a display

device, a set of parameters known as EDID is exchanged between them,

which is carried over the DDC channel. In some PC graphic cards and

laptops, this information exchange is essential for proper VGA OUT

operation.

3.3 Defining EDID

The Extended Display Identification Data (EDID1

Note that EDID is supported between the input 1 and output 1 high-density

15-pin HD connectors on pins 12 and 15.

) is a data-structure,

provided by a display, to describe its capabilities to a graphics card (that is

connected to the display’s source). The EDID enables the PC or laptop to

“know” what kind of monitor is connected to the output. The EDID includes

the manufacturer’s name, the product type, the timing data supported by the

display, the display size, luminance data and (for digital displays only) the

pixel mapping data.

4 Your VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher

Figure 1, Figure 2, Table 2, and Table 3define the VP-8x4AK 8x4 VGA /

UXGA / Audio Matrix Switcher.

1 Defined by a standard published by the Video Electronics Standards Association (VESA)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher

Figure 1: VP-8x4AK 8x4 VGA / UXGA / Audio Matrix Switcher – Front View

Inhaltsverzeichnis

Andere Kramer Matrix-Umschalter Handbücher

Kramer

Kramer Sierra Video 4832V5xl Bedienungsanleitung

Kramer

Kramer AFM-20DSP Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1208V5S Bedienungsanleitung

Kramer

Kramer XL 1208V4S Bedienungsanleitung

Kramer

Kramer 21-70686010 Bedienungsanleitung

Kramer

Kramer VP-725DS Bedienungsanleitung

Kramer

Kramer VS-42HN Bedienungsanleitung

Kramer

Kramer 3216HDS Bedienungsanleitung

Kramer

Kramer Sierra Video 3216SXL Bedienungsanleitung

Kramer

Kramer VS-42HN Bedienungsanleitung

Kramer

Kramer VS-6YC Bedienungsanleitung

Kramer

Kramer Sierra Video 3264V5Sxl Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1608V5S Bedienungsanleitung

Kramer

Kramer Cobra MX-88 Bedienungsanleitung

Kramer

Kramer Sierra Video 1608V5S Bedienungsanleitung

Kramer

Kramer VS-808TP Bedienungsanleitung

Kramer

Kramer 3232HD Bedienungsanleitung

Kramer

Kramer VS-162V Bedienungsanleitung

Kramer

Kramer XL 1616V Bedienungsanleitung

Kramer

Kramer Sierra Video 3248V5xl Bedienungsanleitung

Kramer

Kramer VS-88DTP Bedienungsanleitung

Kramer

Kramer VP-211DS Bedienungsanleitung

Kramer

Kramer LASSEN XL 3216S Bedienungsanleitung

Kramer

Kramer VS-66HDCPxl Bedienungsanleitung

Beliebte Matrix-Umschalter Handbücher anderer Marken

Broadcast Tools

Broadcast Tools SS 8.2 Bedienungsanleitung

Altimium

Altimium MATF32 Bedienungsanleitung

ALFAtron

ALFAtron ALF-MUK44N Bedienungsanleitung

Monoprice

Monoprice Blackbird 15377 Bedienungsanleitung

PTN

PTN FMX12 Bedienungsanleitung

CYP

CYP nT15GX01 Bedienungsanleitung

TESmart

TESmart HMA0402A40 Bedienungsanleitung

Octava

Octava HD4XSTPMX Bedienungsanleitung

Intelix

Intelix FLX-88 Betriebsanleitung

Roland

Roland XS-1HD Bedienungsanleitung

Atlona

Atlona AT-HDMI-22M Bedienungsanleitung

Link

Link HD8X8 Bedienungsanleitung

AMX

AMX AVS-OP-2020-117 Anleitungen und Rezepte

Lindy

Lindy 38042 Bedienungsanleitung

Extron electronics

Extron electronics MTPX Plus Series Bedienungsanleitung

Key Digital

Key Digital Champion KD-16x16CS Bedienungsanleitung

Shinybow USA

Shinybow USA SB-8811 Bedienungsanleitung

Optimus

Optimus Compact Bedienungsanleitung
