Kramer VM-1610 Bedienungsanleitung

Kramer Electronics, Ltd.

Preliminary

USER MANUAL

Models:

VM-1610, 1:10 Balanced Audio-Stereo Distributor

VM-80A, 1:8 Audio Distributor

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 3

4Your VM-1610 and VM-80A Distribution Amplifiers 3

4.1 Your VM-1610 1:10 Balanced Audio-Stereo Distributor 3

4.2 Your VM-80A 1:8 Audio Distributor 5

5Installing the VM-1610 in a Rack 6

6Connecting the VM-1610 and VM-80A 7

6.1 Connecting the VM-1610 Distribution Amplifier 7

6.2 Connecting the VM-80A Distribution Amplifier 8

6.2.1 Changing the VM-80A Default Mode 10

7Technical Specifications 10

Figures

Figure 1: VM-1610 1:10 Balanced Audio-Stereo Distributor 4

Figure 2: VM-80A 1:8 Audio Distributor Functions 5

Figure 3: Connecting the VM-1610 in a 1:10 Configuration 8

Figure 4: Connecting the VM-80A in a 1:8 Configuration 9

Tables

Table 1: VM-1610 1:10 Balanced Audio-Stereo Distributor Functions 5

Table 2: VM-80A 1:8 Audio Distributor Functions 5

Table 3: Technical Specifications 10

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups1

Thank you for purchasing the Kramer VM-1610 1:10 Balanced Audio-

Stereo Distributor and/or the VM-80A 1:8 Audio Distributor, which are

ideal for:

that are clearly

defined by function.

•Any professional A/V system requiring high quality signal

distribution

•Recording studios and live sound reinforcement systems

•Rental and staging applications

Each package includes the following items:

•The VM-1610 and/or the VM-80A

•Power cord2

•This user manual

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 We recommend that you use only the power cord supplied with this device

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

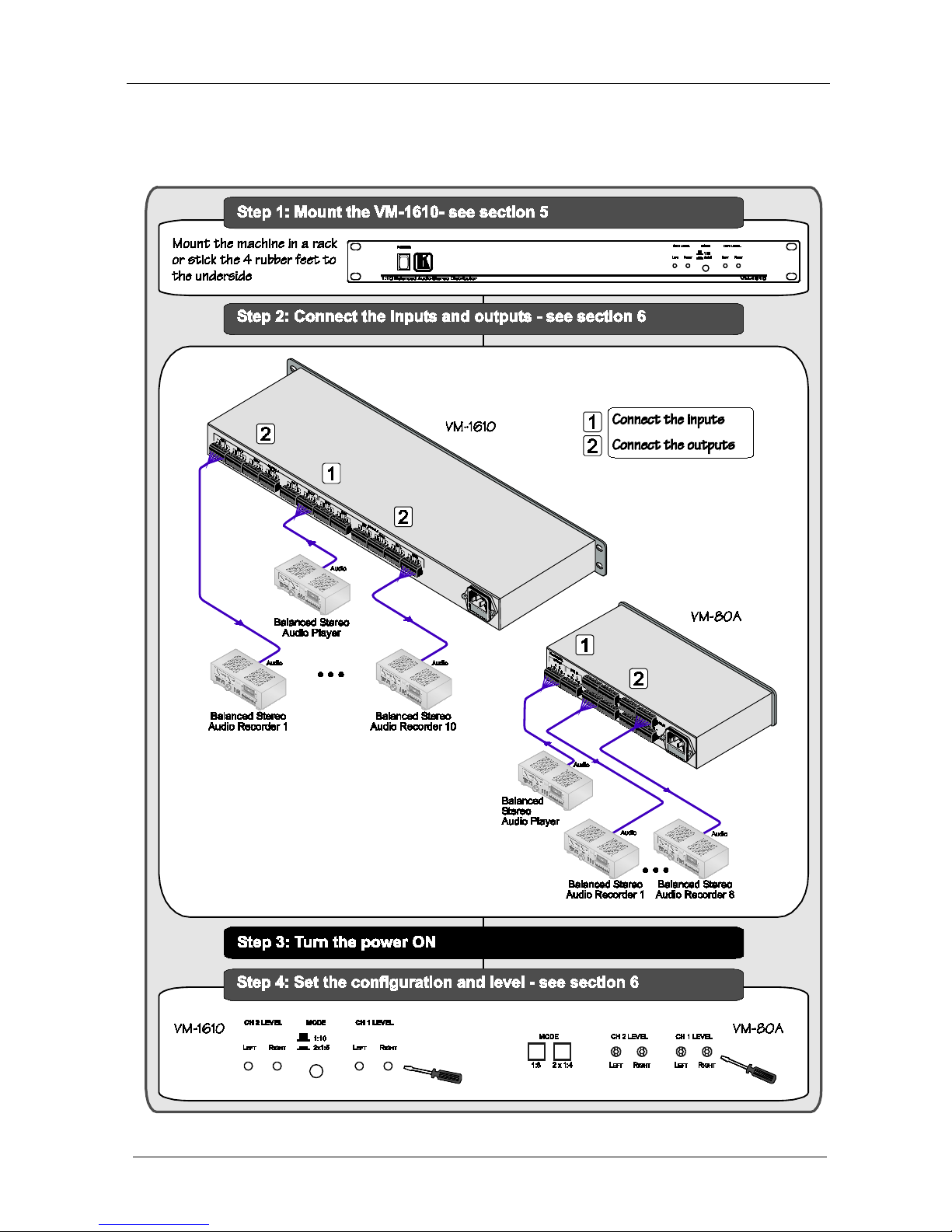

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The VM-1610 is a high-performance distribution amplifier for balanced

stereo signals. It can also be configured as one 1:10 or two 1:5 balanced

stereo audio distribution amplifiers.

The VM-1610 features:

•Grouped audio level controls

•Configuration as a 1:10 or 2x1:5 DA

•A signal to noise ratio of 92dB @1Vpp

•A standard 1U 19” rack mount size

The VM-80A is a high-performance distribution amplifier for balanced

stereo audio signals. It can be configured as one 1:8 or two 1:4 balanced

stereo audio distribution amplifiers.

The VM-80A features:

•Grouped audio level controls

•Configuration as a 1:8 or 2x1:4 DA

•A signal to noise ratio of 100dB @1Vpp

•Compact desktop size. Two units can be rack mounted side-by-

side in a 1U rack space with the optional RK-1 adapter

To achieve the best performance:

•Use only good quality connection cables1

•Avoid interference from neighboring electrical appliances that

may adversely influence signal quality and position your Kramer

products away from moisture, excessive sunlight and dust

to avoid interference,

deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables).

4 Your VM-1610 and VM-80A Distribution Amplifiers

Section 4.1 defines the VM-1610 and section 4.2 defines the VM-80A

distribution amplifiers.

4.1 Your VM-1610 1:10 Balanced Audio-Stereo Distributor

Figure 1and Table 1define the VM-1610.

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VM-1610 and VM-80A Distribution Amplifiers

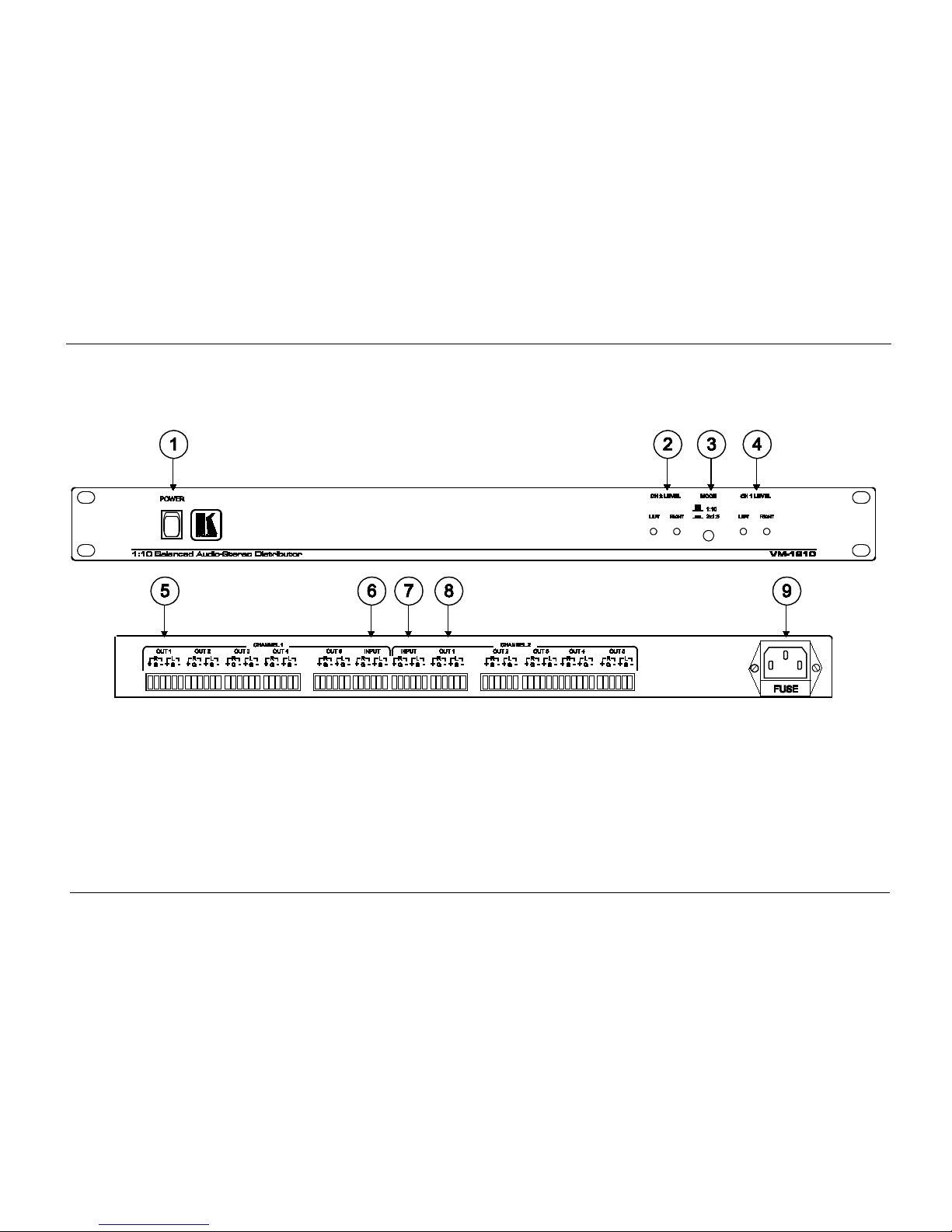

Figure 1: VM-1610 1:10 Balanced Audio-Stereo Distributor

Your VM-1610 and VM-80A Distribution Amplifiers

Table 1: VM-1610 1:10 Balanced Audio-Stereo Distributor Functions

Feature

Function

1 POWER Switch Illuminated power switch to turn the unit on and off

2 CH 2 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 2

3 MODE (1:10, 2x1:5) Button Press to choose 2x1:5 output, release to choose 1:10

output

4 CH 1 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 1

5 CHANNEL 1 OUT Terminal Blocks Connect to the channel 1 balanced stereo acceptors (1

to 5)

6 CHANNEL 1 INPUT Terminal Block Connects the a balanced stereo source 1

7 CHANNEL 2 INPUT Terminal Block Connects the a balanced stereo source 2

8 CHANNEL 2 OUT Terminal Blocks Connect to the channel 1 balanced stereo acceptors (6

to 10) or connect to the channel 2 balanced stereo

acceptors (1 to 5)

9 Power Connector with Fuse AC connector enabling power supply to the unit

4.2 Your VM-80A 1:8 Audio Distributor

Figure 2and Table 2define the VM-80A.

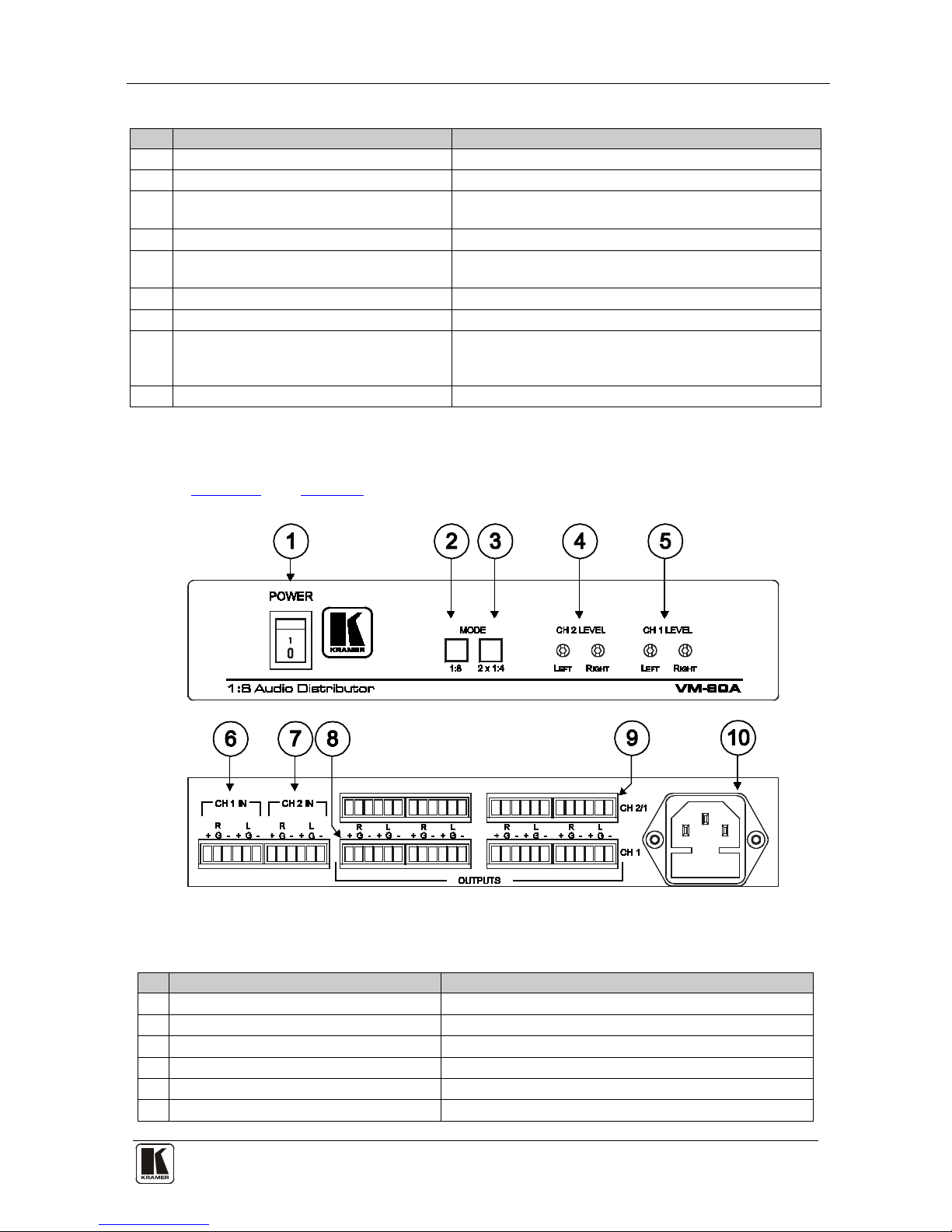

Figure 2: VM-80A 1:8 Audio Distributor Functions

Table 2: VM-80A 1:8 Audio Distributor Functions

Feature

Function

1 POWER Switch Illuminated power switch to turn the unit on and off

2 MODE 1:8 Button Press to choose the 1:8 output

3 MODE 2x1:4 Button Press to choose the 2x1:4 output

4 CH 2 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 2

5 CH 1 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 1

6 CHANNEL 1 INPUT Terminal Block Connects to the balanced stereo source 1

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Installing the VM-1610 in a Rack

Feature

Function

7 CHANNEL 2 INPUT Terminal Block Connects to the balanced stereo source 2

8 CHANNEL 1 OUT Terminal Blocks Connect to the channel 1 balanced stereo acceptors (1

to 4)

9 CHANNEL 2/1 OUT Terminal Blocks Connect to the channel 1 balanced stereo acceptors (5

to 8) or channel 2 balanced stereo acceptors (1 to 4)

10 Power Connector with Fuse AC connector enabling power supply to the unit

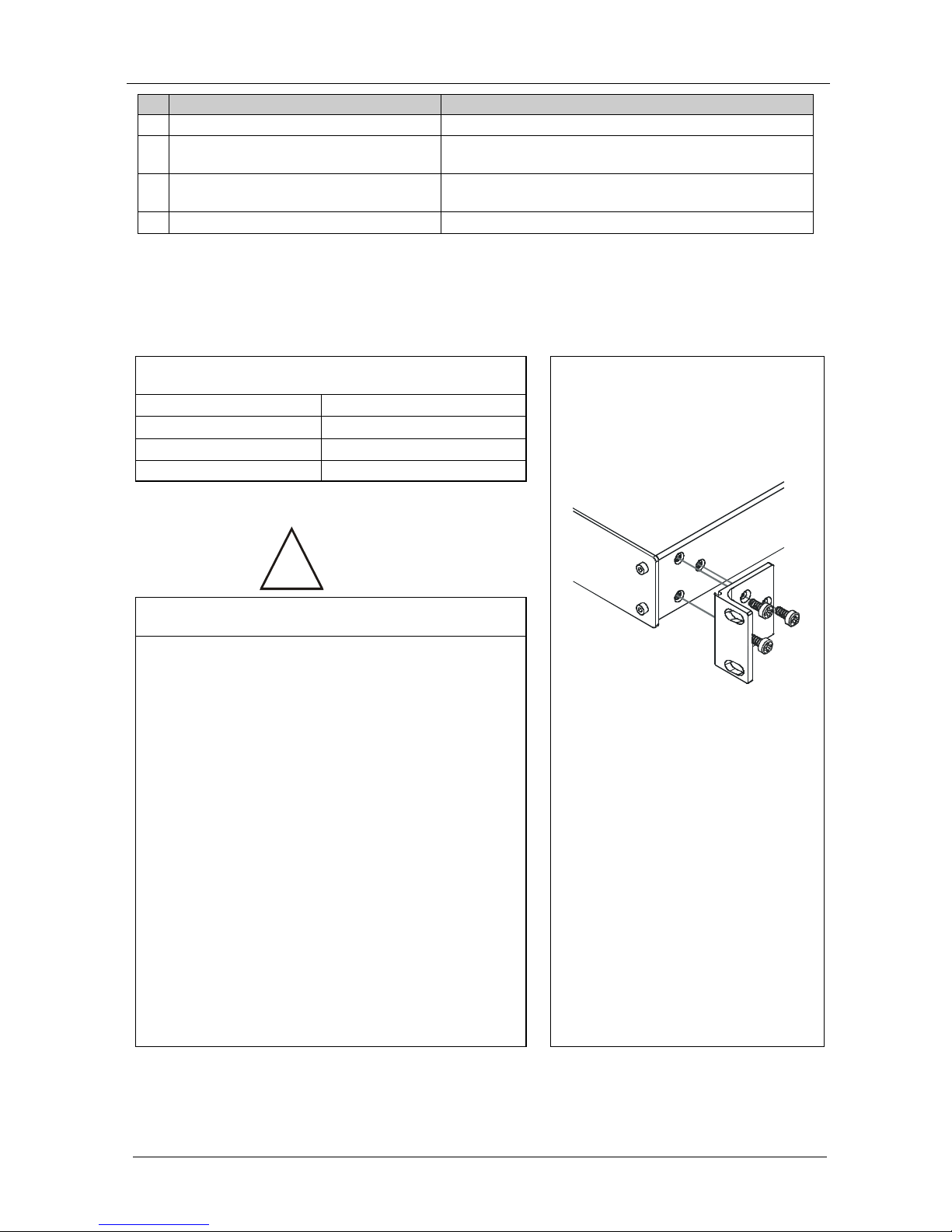

5 Installing the VM-1610 in a Rack

This section describes how to install the VM-1610 in a rack.

Before Installing in a rack How to Rack Mount

Before installing in a rack, be sure that the environment is

within the recommended range: To rack-mount a machine:

1. Attach both ear brackets to the

machine. To do so, remove the

screws from each side of the

machine (3 on each side), and

replace those screws through the

ear brackets.

2. Place the ears of the machine

against the rack rails, and insert the

proper screws (not provided)

through each of the four holes in the

rack ears.

Note that:

•In some models, the front panel

may feature built-in rack ears

•Detachable rack ears can be

removed for desktop use

•Always mount the machine in the

rack before you attach any cables

or connect the machine to the

power

•If you are using a Kramer rack

adapter kit (for a machine that is not

19"), see the Rack Adapters user

manual for installation instructions

(you can download it at:

http://www.kramerelectronics.com)

Operating temperature range +5°to +45°C (41°to 113°F)

Operating humidity range 10 to 90% RHL, non-condensing

Storage temperature range -20°to +70°C (-4°to 158°F)

Storage humidity range 5 to 95% RHL, non-condensing

CAUTION

When installing on a 19" rack, avoid hazards by taking

care that:

1. It is located within the recommended environmental

conditions, as the operating ambient temperature of a

closed or multi unit rack assembly may exceed the

room ambient temperature.

2. Once rack mounted, enough air will still flow around

the machine.

3. The machine is placed straight in the correct

horizontal position.

4. You do not overload the circuit(s). When connecting

the machine to the supply circuit, overloading the

circuits might have a detrimental effect on overcurrent

protection and supply wiring. Refer to the appropriate

nameplate ratings for information. For example, for

fuse replacement, see the value printed on the

product label.

5. The machine is earthed (grounded) in a reliable way

and is connected only to an electricity socket with

grounding. Pay particular attention to situations where

electricity is supplied indirectly (when the power cord

is not plugged directly into the socket in the wall), for

example, when using an extension cable or a power

strip, and that you use only the power cord that is

supplied with the machine.

Connecting the VM-1610 and VM-80A

6 Connecting the VM-1610 and VM-80A

Section 6.1 describes how to connect the VM-1610 and section 6.2

describes how to connect VM-80A.

6.1 Connecting the VM-1610 Distribution Amplifier

To connect the VM-1610 in a 1:10 configuration, as shown in Figure 3, do

the following1

1. Connect the input source (for example, a balanced stereo audio player) to

the Channel 1 INPUT terminal block connector.

2. Connect the OUT terminal block connectors to up to 10 acceptors (for

example, balanced stereo audio recorders).

3. Release the MODE button to the 1:10 position.

4. Switch on the VM-1610.

The audio input is distributed to the audio outputs.

Note: The Channel 2 INPUT cannot be distributed to the 10 outputs,

only the Channel 1 INPUT.

5. Adjust the right and left audio levels by turning the CH1 and CH2 LEVEL

trimmers with a small screwdriver.

To connect the VM-1610 in a 2x1:5 configuration, do the following1:

1. Connect input source 1 (for example, a balanced stereo audio player) to the

Channel 1 INPUT terminal block connector.

2. Connect input source 2 (for example, a balanced stereo audio player) to the

Channel 2 INPUT terminal block connector.

3. Connect the Channel 1 OUT terminal block connectors to up to 5 acceptors

(for example, balanced stereo audio recorders).

4. Connect the Channel 2 OUT terminal block connectors to up to 5 acceptors

(for example, balanced stereo audio recorders).

5. Press in the MODE button to the 2x1:5 position.

6. Switch on the VM-1610.

The Channel 1 audio inputs are distributed to the Channel 1 audio outputs.

The Channel 2 audio inputs are distributed to the Channel 2 audio outputs.

1 Switch OFF the power on each device before connecting it to your VM-1610. After connecting your VM-1610, switch on

its power and then switch on the power on each device

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the VM-1610 and VM-80A

7. Adjust the right and left audio levels by turning the CH1 and CH2 LEVEL

trimmers with a small screwdriver.

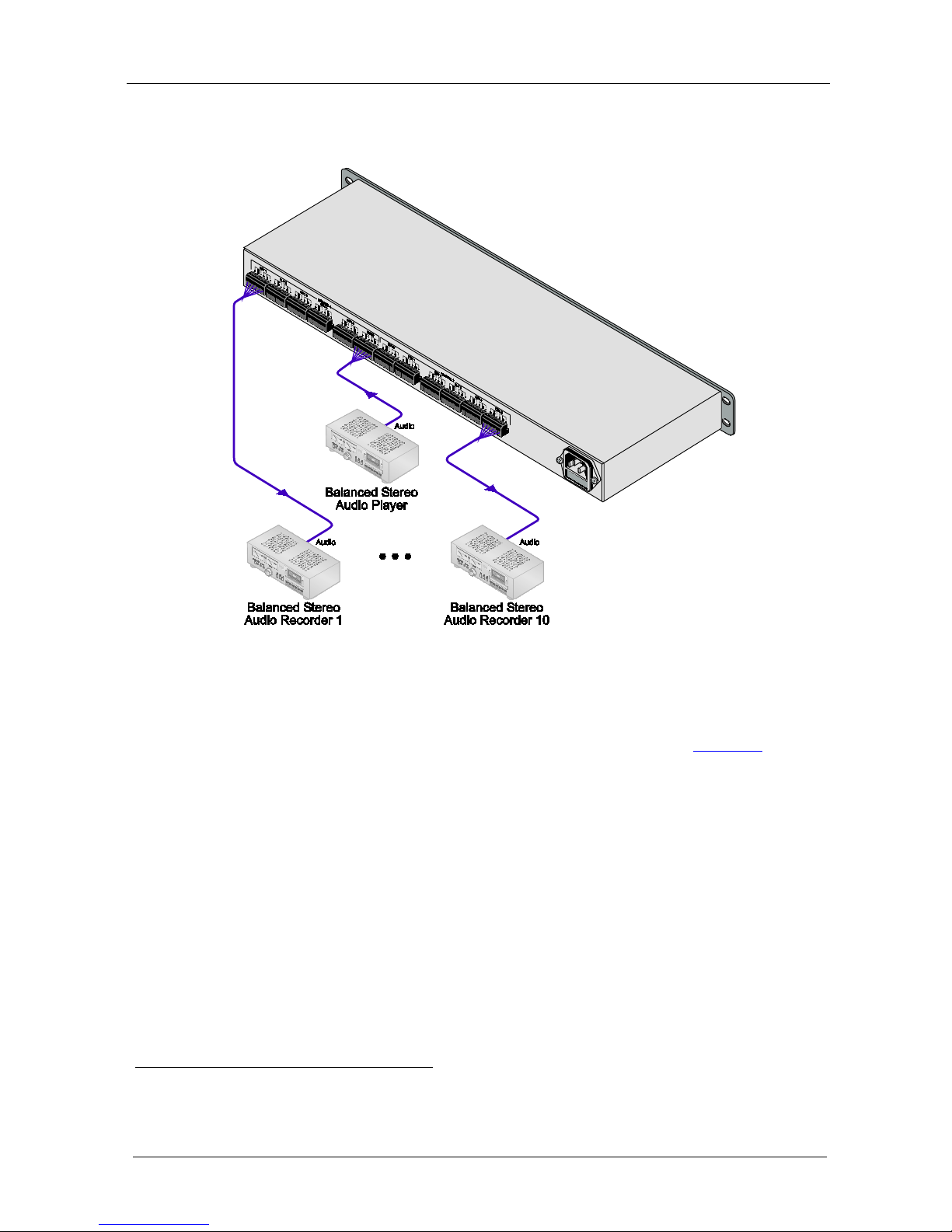

Figure 3: Connecting the VM-1610 in a 1:10 Configuration

6.2 Connecting the VM-80A Distribution Amplifier

To connect the VM-80A in a 1:8 configuration, as shown in Figure 4, do the

following1

1. Connect the input source (for example, a balanced stereo audio player) to

the CH 1 INPUT terminal block connector.

2. Connect the OUT terminal block connectors to up to 8 acceptors (for

example, balanced stereo audio recorders).

3. Press the 1:8 MODE button.

4. Switch on the VM-80A.

The audio input is distributed to the audio outputs.

Note: CH 2 INPUT cannot be distributed to all 8 outputs, only the CH

1 INPUT can.

1 Switch OFF the power on each device before connecting it to your VM-80A. After connecting your VM-80A, switch on its

power and then switch on the power on each device

Andere Handbücher für VM-1610

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kramer Medienkonverter Handbücher

Kramer

Kramer KDS-USB2 Kit Bedienungsanleitung

Kramer

Kramer FC-400 Bedienungsanleitung

Kramer

Kramer FC-331 Bedienungsanleitung

Kramer

Kramer KDS-10 Bedienungsanleitung

Kramer

Kramer VA-1DVI Bedienungsanleitung

Kramer

Kramer FC-4002 Bedienungsanleitung

Kramer

Kramer VP-419XL Bedienungsanleitung

Kramer

Kramer 401C Bedienungsanleitung

Kramer

Kramer KIT-500 Bedienungsanleitung

Kramer

Kramer VP-435 Bedienungsanleitung

Kramer

Kramer VP-740 ProScale Bedienungsanleitung

Kramer

Kramer KDS-SW2-EN7 Bedienungsanleitung

Kramer

Kramer VS-411UHD Bedienungsanleitung

Kramer

Kramer FC-113 Bedienungsanleitung

Kramer

Kramer FC-17 Bedienungsanleitung

Kramer

Kramer TP-580TD Bedienungsanleitung

Kramer

Kramer VP-2K Bedienungsanleitung

Kramer

Kramer VM-80VN Bedienungsanleitung

Kramer

Kramer KDS-EN1 Bedienungsanleitung

Kramer

Kramer VS-21DT Bedienungsanleitung

Kramer

Kramer DigiTOOLS 6410N Bedienungsanleitung

Kramer

Kramer VM-1610 Bedienungsanleitung

Kramer

Kramer FC-331 Bedienungsanleitung

Kramer

Kramer VM-4HDx1 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
