Kramer VM-4DT Bedienungsanleitung

-4DT Quick Start (P/N: 2900-300799QS REV 1)

P/N:

2900- 300799QS

Rev:

Scan for full manual

VM-4DT Quick Start Guide

This guide helps you install and use your VM-4DT for the first time.

Go to www.kramerav.com/downloads/VM-4DT to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VM-4DT

1:4 HDBT Distributor 1 Power supply (5V DC)

1 Quick start guide

4 Rubber feet

Step 2: Get to know your VM-4DT

# Feature Function

1 ON LED Lights green when the unit receives power

2 PROGRAM Mini USB Connector Use to send RS-232 commands. Connect to a PC to perform firmware upgrades (via

K-Upload) and work with the EDID Designer. K-Upload and EDID Designer can be

downloaded from our Web site at:www.kramerav.com/manual/EDID Designer

EDID SETUP Button

Press to capture the input EDID, force RGB mode or select the default EDID

4 ACTIVE INPUT LED Lights green when an HDMI signal is embedded on the HDBaseT input

HDBT LINK LEDs IN Lights green when a link is established with the HDBaseT transmitter

OUT

Lights green when a link is established with the HDBaseT receiver (from 1 to 4)

6 OUTPUTS CONNECTED LEDs Lights green when an acceptor (sink) is detected on the HDBaseT receiver connected to

the output (from 1 to 4)

7 INPUT HDBT Connector Connects to an HDBaseT source, for example

TP-580T

8 HDBT OUT Connectors Connect to an HDBaseT acceptor (from 1 to 4), for example

TP-580R

SETUP 8-way DIP-switches

Use to set IR (DIP-switches 1-4) and RS-232 (DIP-switches 5-8) command behavior

SETUP 4-way DIP-switch

For future use

11 5V DC +5V DC connector for powering the unit

Step 3: Install the VM-4DT

To mount the VM-4DT in a rack, use an RK-1 rack adapter. Alternatively, attach the rubber feet to the underside of the VM-4DT and

place it on a table.

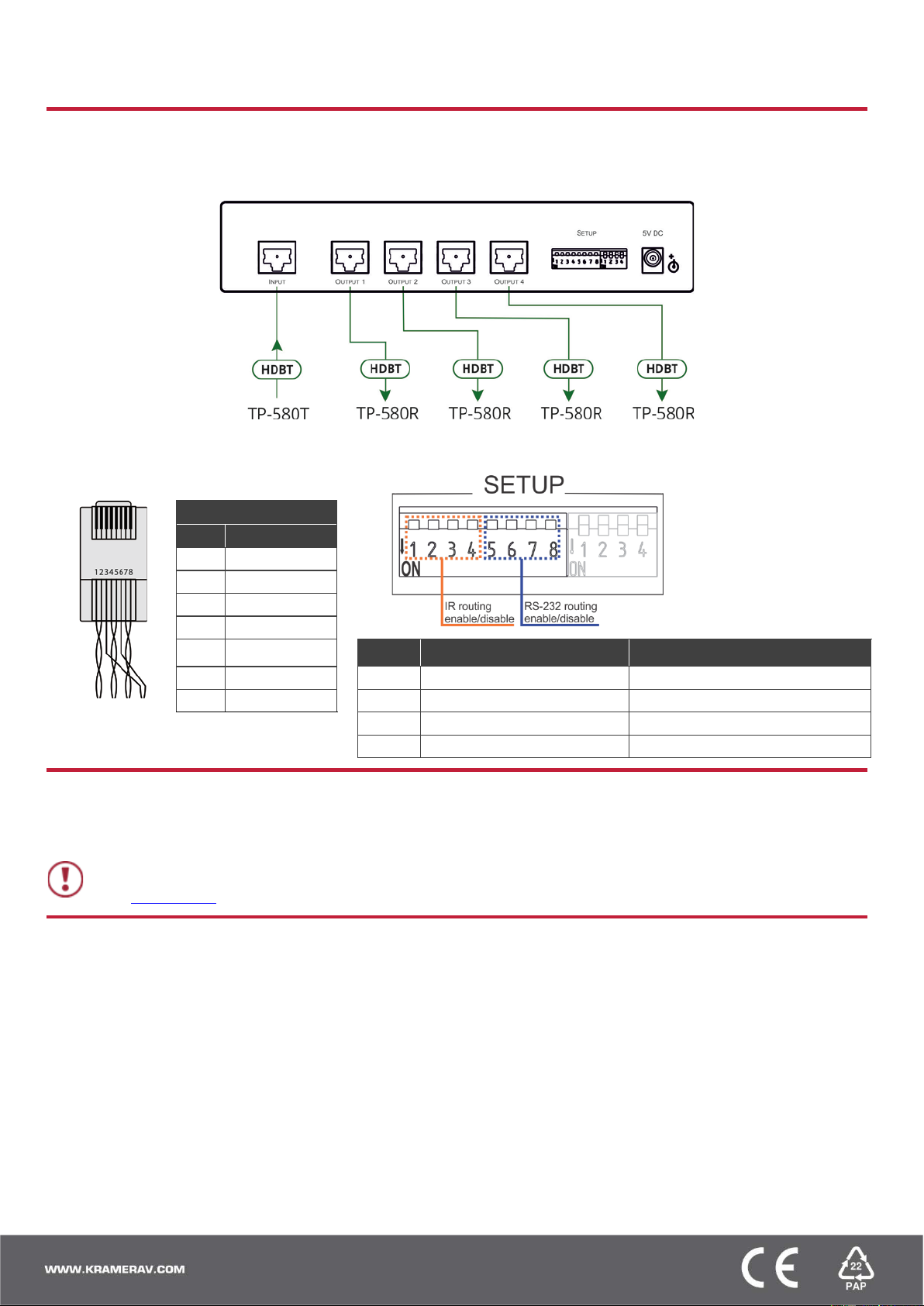

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-4DT. For best results, we recommend that you always

use Kramer high-performance cables to connect AV equipment to the VM-4DT.

RJ-45 Pinout:

DIP-Switch Setup:

For HDBaseT connectors:

Note: By default, all DIP-

switches are set to OFF (up).

PIN EIA /TIA 568B

PIN Wire Color

Orange / White

2 Orange

3 Green / White

Blue

5 Blue / White Out # IR Routing is enabled when: RS-232 Routing is enabled when:

Green

OUT 1

DIP 1 – OFF (up)

DIP 5 – OFF (up)

7 Brown / White OUT 2 DIP 2 – OFF (up) DIP 6 – OFF (up)

OUT 3

DIP 3 – OFF (up)

DIP 7 – OFF (up)

OUT 4 DIP 4 – OFF (up) DIP 8 – OFF (up)

Step 5: Connect the power

Connect the power adapter to the VM-4DT and plug the adapter into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Acquire the EDID

To acquire an EDID, press the EDID SETUP button as follows:

1. Press the EDID SETUP button once.

The OUTPUTS CONNECTED LEDs flash to indicate the current EDID used: 1, 2, 3, 4, or all if the default EDID is currently

used.

2. Press the EDID SETUP button again to enter the EDID read mode and then press repeatedely to cycle through the EDID

source options until the desired EDID source is reached: OUT 1 -> OUT 2 -> OUT 3 -> OUT 4 -> all LEDs flash (for a default

EDID).

3. Wait a few seconds for the VM-4DT to read the EDID.

When complete, all LEDs display the present output connection status.
