TP-580RA Quick Start (P/N: 2900-300863QS REV 3)

P/N:

2900- 300863QS

Rev:

Scan for full manual

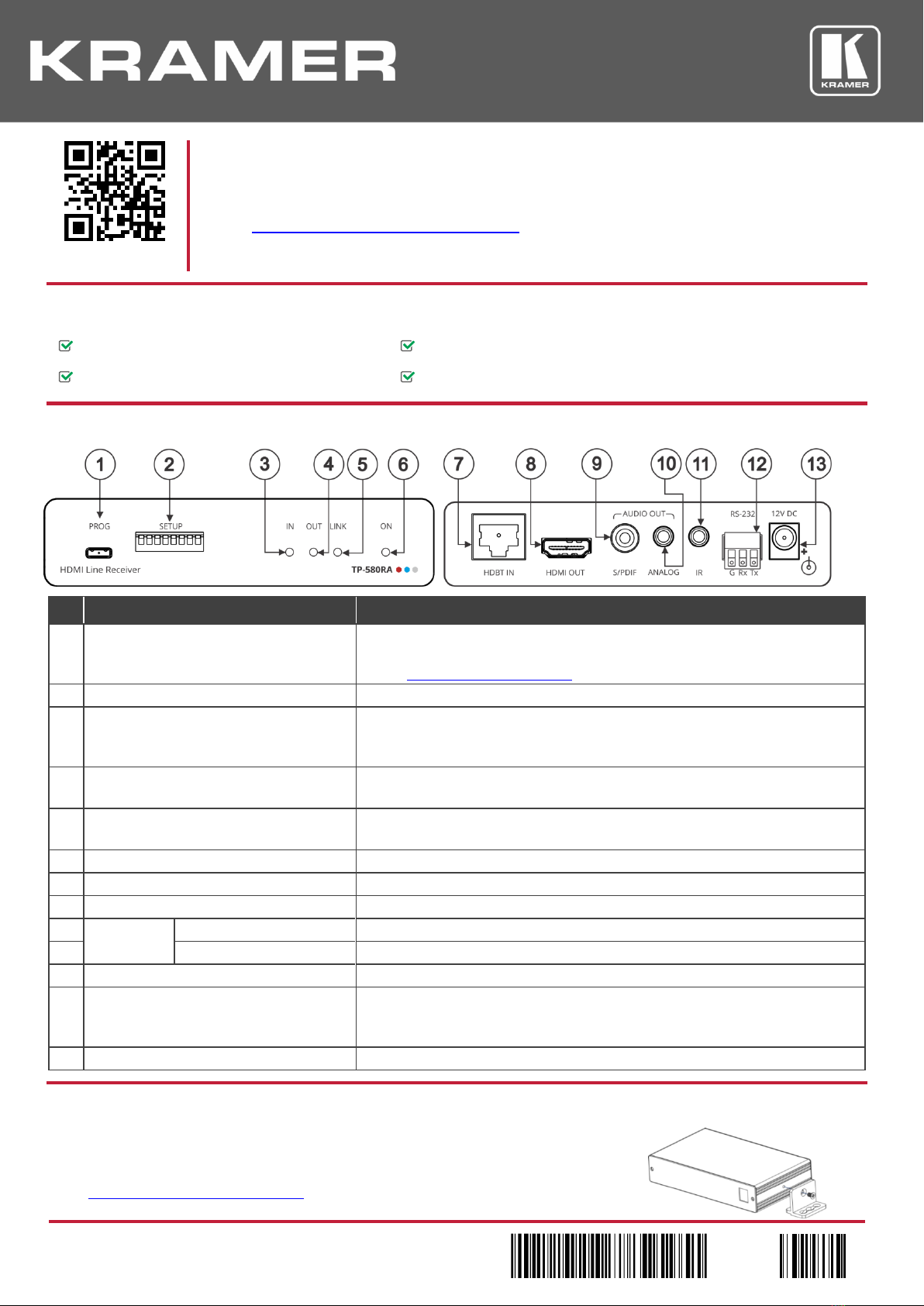

TP-580RA Quick Start Guide

This guide helps you install and use your TP-580RA for the first time.

Go to www.kramerav.com/downloads/TP-580RA to download the latest user manual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

TP-580RA HDMI Line Receiver

4 Rubber feet

1 Power adapter and cord

1 Quick start guide

Step 2: Get to know your TP-580RA

Feature

Function

PROG Micro USB Port

Connect to a PC to perform firmware upgrades (via K-Upload) and work with the

EDID Designer. K-Upload and EDID Designer can be downloaded from our Web

site at: www.kramerav.com/support.

SET UP DIP-switches

Used to setthe device behavior.

IN LED

Lights green when an activefar-end source HDMIinput signalis detected via the

HDBaseT link (an HDMI signal is detected from a source device connected to the

HDBaseT transmitter that is connected to this input).

OUT LED

Lights green when a signal is detected on the HDMI output from an active

device.

LINK LED

Lights green when a link is established between the TP-580RA and the HDBaseT

transmitter.

ON LED

Lights green when the device receives power.

HDBT IN RJ-45 Connector

Connect to the RJ-45 OUT connector on a transmitter (for example, TP-580T).

HDMI OUT Connector

Connect to an HDMI acceptor.

AUDIO OUT

S/PDIF RCA Connector

Connect to a digital stereo audio acceptor.

ANALOG 3.5mm Mini Jack

Connect to an analog unbalanced stereo audio acceptor.

IR 3.5mm Mini Jack Connector

Connect to an external infrared emitter / sensor.

RS-232 3-pin Terminal Block Connector

Connect to a controlled device (so that it can be controlled from a remote serial

controller); connect to a laptop to upgrade the firmware or to a control system to

serially control the TP-580RA.

12V DC Power Connector

12V DC connector for powering the unit.

Step 3: Install the TP-580RA

Install TP-580RA using one of the following methods:

Attach the rubber feet and place the unit on a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more information go to

www.kramerav.com/downloads/TP-580RA.

Mount the unit in a rack using an optional RK-3T rack adapter.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your TP-580RA. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the TP-580RA.

SETUP DIP-switches

A DIP-switch that is downis on, up is off (bydefault, DIP-switch 3 is set to ON and

all the other DIP-switches are set to OFF). Changes to DIP-switches 7 and 8 only

take effect after power-cycling the device. Changes to DIP-switches 1 and 3 only

take effect after unplugging and then replugging the input cable.

Function

Status

EDID lock

Off (up) –EDID parameters are passed-through.

On (down) –EDID Locked. When EDID is locked, the audio parameters are set as defined by

DIP-switch 3. In the pass-through mode, DIP-switch 3 setup is ignored.

Extracted audio

Off (up) –HDBTIN source audio is selected for extraction.

On (down) –HDMI OUT ARC sink audio is selected for extraction.

Audio pass-through

Off (up) –Passes the audio parameters.

On (down) –Limits the audio to 2-channel LPCM.

This setup is enabled after unlocking and relocking the EDID by setting DIP-switch 1 to On (EDID

locked).

HDCP operation

Off (up) –Passes HDCP.

In this state, if the sink supports HDCP, the input declares HDCP support. It will then handle HDCP on

the output and input actively. If the sink does not support HDCP then the input will declare HDCP is not

supported.

On (down) –HDCP off.

In this state, the device does not support HDCP on its input, even if HDCP is detected on the output.

Color space

Off (up) –Color space parameters are passed-through.

On (down) –Forces RGB color space.

RS-232 mode

Off (up) –RS-232 control of device; RS-232 extension mode is disabled.

On (down) –RS-232 extension mode.

HDBT FW upgrade

Off (up) –Normal operation mode.

On (down) –HDBT FW upgrade mode, device normal operation is disabled.

This setup is enabled only after DIP-switch 6 is set to On (RS-232 extension mode).

CPU FW upgrade

Off (up) –Normal operation mode.

On (down) –CPU FW upgrademode, device normal operation is disabled; DIP-switch 6 is set to Off.

Step 5: Connect the power

Connect the power adapter to the TP-580RA and plug the adapter into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics power supply that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall before installing

See www.KramerAV.com for updated safety information.
