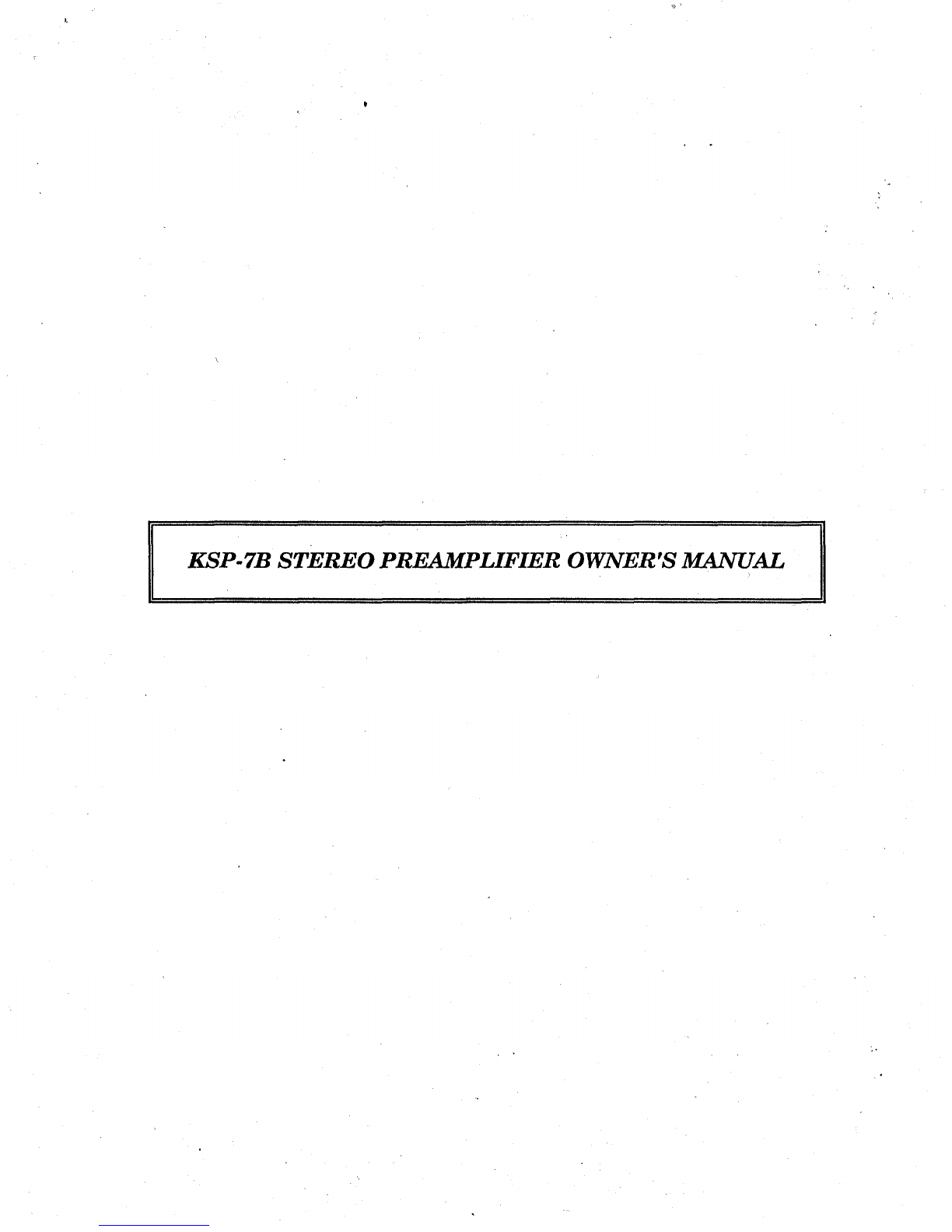

KSP-7B STEREO PREAMPLIFIER OWNER’S MANUAL

45ConnairRoad

Orange,CT06477-0533,USA

INTRODUCTION & GENERAL INFORMATION

Thank you for purchasing the KRELLKSP-7B Preamplifier. The KSP-7B is

the latest evolution of KRELL’sentry level preamplifier technology. Many

of its design concepts are similar to our more expensive preamplifiers and

are wholly unique to KRELL. Two important design features are dual-

mono operation (all active stages are powered by independent tracking

regulators) and the complete absence of any capacitors in the signal path.

The KSP-7B retains other features for which KRELLpreamplifiers have

become recognized: internally switchable loading for moving coil cartridges

and input capacity rarely found on high-end preamplifiers. All circuitry in

the KSP-7Bis of completely new design -- many aspects of which are derived

from the top-of-the-line KRS-Balanced Reference Preamplifier. The most

significant of these is the fully balanced output stage. Balanced circuitry

has long been standard for professional audio equipment and is rapidly

becoming the standard for high-end audio equipment. The sonic benefits of

balanced operation are clearly audible. A simple listening comparison

between the RCA(single-ended) and the XLR(balanced) outputs will reveal

improvements in all areas of sonic quality. The connection of the KSP-7Bin

single-ended and balanced systems is covered on page five.

Please read this manual thoroughly before using the KSP-7B. Installation

and operation are simple to understand and perform.

The KSP-7Bwill provide many years of trouble-free performance. Please be

sure to return the enclosed warranty registration card.

ABOUT THE OWNERS~ MANUAL

The KSP-7BOwner’s Manualis divided into various groups of information.

The purpose of he document as a whole is to familiarize you with the unit

and guide you through its set-up, installation and operation in a logical

progression. TheTable of Contents is as follows:

A. Unpacking

B. Phono Section Set-Up

C. Installation: 1. Cautions

2. Unit Location Guidelines and Installation

3. Connection of Inputs and Outputs

4. Turn-on of the Preamplifier

D. Operation

E. Warranty and Service Information

A. UNPACKING

Remove the KSP-7B, power supply and accessories from the shipping

container. Store all packing materials in a cool, dry place for future use.

Inspect the unit for shipping damage; if any damage is evident, contact

your dealer immediately. If the unit is in proper condition, proceed with

installation.

In addition to the preamplifier and power supply, you will find a small "L"

shaped allen driver. This is used to removethe top cover to gain access to

the phono section gain and input impedance loading adjustments.

Set-up of the phono section should be completed before installation of the

preamplifier.

B. PHONOSECTION SET-UP

Important Note: For the initial adjustment of the phono section the KSP-7B

should not be connected to its power supply. For adjustments to the phono

section input impedanceafter the initial set-up, as discussed below, please

note the following: Never adjust an_v of the.. internal switches while the

amplifier the KSP-7Bis driving is turned on.

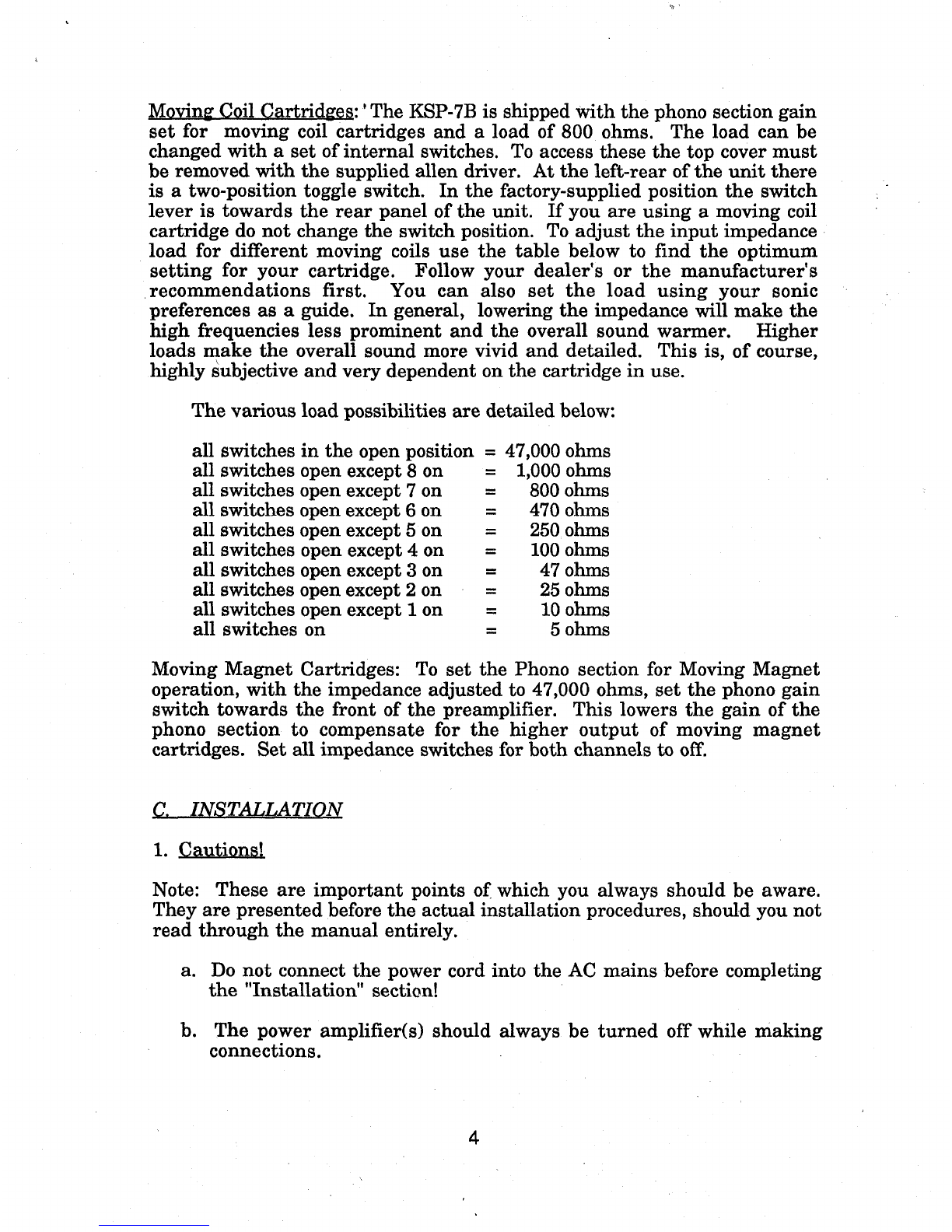

MovingCoil Cartridges:’ The KSP-7Bis shipped with the phono section gain

set for moving coil cartridges and a load of 800 ohms. The load can be

changed with a set of internal switches. To access these the top cover must

be removedwith the supplied allen driver. At the left-rear of the unit there

is a two-position toggle switch. In the factory-supplied position the switch

lever is towards the rear panel of the unit. If you are using a movingcoil

cartridge do not change the switch position. To adjust the input impedance

load for different moving coils use the table below to find the optimum

setting for your cartridge. Follow your dealer’s or the manufacturer’s

~recommendations first. You can also set the load using your sonic

preferences as a guide. In general, lowering the impedance will make the

high frequencies less prominent and the overall sound warmer. Higher

loads makethe overall sound morevivid and detailed. This is, of course,

highly ~ubjective and very dependent on the cartridge in use.

Thevarious load possibilities are detailed below:

all switches in the open position = 47,000 ohms

all switches open except 8 on = 1,000 ohms

all switches open except 7 on = 800 ohms

all switches open except 6 on = 470 ohms

all switches open except 5 on = 250 ohms

all switches open except 4 on = 100 ohms

all switches open except 3 on = 47 ohms

all switches open except 2 on = 25 ohms

all switches open except I on = 10 ohms

all switches on = 5 ohms

Moving Magnet Cartridges: To set the Phono section for Moving Magnet

operation, with the impedance adjusted to 47,000 ohms, set the phono gain

switch towards the front of the preamplifier. This lowers the gain of the

phono section to compensate for the higher output of moving magnet

cartridges. Set all impedanceswitches for both channels to off.

C. INSTALLATION

1. Cautions!

Note: These are important points of which you always should be aware.

Theyare presented before the actual installation procedures, should you not

read through the manual entirely.

a. Donot connect the power cord into the ACmains before completing

the "Installation" section!

b. The power amplifier(s) should always be turned off while making

connections.

Co Wheninstalling th’e KSP-7B,always connect the DCcable between the

preamplifier chassis and the power supply before plugging the power

supply into the ACmains.

d. AlwaysdisconnecttheAC fromthemainsbeforedisconnectingthe

DC cablefromthepreamplifier.

e. The KSP-7BSelect switch should be in the Mute position and the

volume control fully counterclockwise while making connections.

Our custom RCAconnectors are made to very exacting standards.

Connectors of lesser quality may damage them or cause poor

connections. Please check with your dealer or the factory if you have

any questions.

2. Unit Location Guidelines and Installation

The KSP-7Bis designed to be set-up with the powersupply installed at some

distance from the preamplifier chassis. This is to eliminate the possibility

of humbeing induced into the phono section. The motors in CDplayers or

tape decks can also induce huminto the phono section and, in most cases,

should be placed at least a foot awayfrom the KSP-7B.

Before proceeding with the final installation, please read and complete the

set-up of the phonosection loading. These operations involve removal of the

top cover and are mucheasier to accomplish before the unit is fully in

place. Instructions and settings are listed in Section B (Pages 2 &3).

a. Power Supply Location Guidelines

The KSP-7Bpower supply measures 7 1/4" wide, 8 1/4" deep and 2 1/2"

high. Six foot ACand DCcables are provided with the supply. Plan the

position of the supply and preamplifier within these lengths. Allow a

small amountof cable to be excess so that neither cable is pulled tight.

Contact the factory if the DCcable is too short. Anyattempt to extend it

jeopardizes the power supply and the preamplifier and will void the

unit’s warranty.

Although well-shielded, the power supply should not be placed close to

hum-sensitive components such as turntables, phono preamplifiers or

tape decks.

Allow ample air space around the supply for heat dissipation. Five

inches on top and two inches on each side is adequate. This supply and

any other should not be placed one on top of the other. They should be

placed side-to-side.

This supply does not’ require that an ACcircuit be dedicated for its use

only. It should be connectedto a 15 or 20 ampcircuit that is dedicated for

the source components and preamplifier. Donot connect this supply to

the mains with light-gauge (18 or higher) extension cords or multiple

outlet adapters. ACextension cords, outlet strips and goodquality surge

protectors that are rated for 15 ampsand are grounded are acceptable.

b. Preamplifier Location Guidelines

The KSP-7Bchassis measures 18 3/8" wide, 13 1/2" deep and 2" high.

Four inches clearance should be allowed above the top of the KSP-7B.

Only a small amount of clearance is needed on the sides. Four to six

inches clearance should be allowed at the rear of the unit to provide for

cables.

c. PowerSupply &Preamplifier Installation

i. Place the power supply in location.

ii. Place the preamplifier in location.

iii Connect the DCcable from the supply to the preamplifier.

iv. Donot plug the ACconnector into the mains at this time, but make

certain the cable length is adequate.

3. Connection of Inputs and Outputs

All source componentsshould be off at this point.

a. Connection of Inuut Sources

Follow the markings on the rear panel for proper input assignments.

Makethe connections between the source components and preamplifier

inputs at this time.

b. Connection of Record Outuuts

There is one set of Record Outputs which receive the signal from the

input chosen on the Select switch for sending to a tape deck. Makethe

connections between the Record Outputs and tape deck at this time.

c. Connection of Main 0~tputs

There are two sets of Main Outputs: one set single-ended using RCA

connectors; one set balanced using XLRconnectors. They are wired in

parallel and can be connected and operated simultaneously. There is no

degradation to either output if both are connected, whether one or both

are in operation at the same time. You may even choose to drive two

independent systems from your KSP-7B.

i. For use with an~plifiers with single-ended (unbalanced) inputs:

connect the RCAMain Outputs to the amplifier inputs. This constitutes

the conventional hook-up for a single-ended unbalanced system.

ii. For use with amplifiers with balanced inputs: connect the XLRMain

Outputs to the amplifier inputs. The pin assignments are as follows: 1 =

ground, 2 = non-inverted output, 3 = inverted output.

Makethe connections between the Main Outputs and amplifier(s) and/or

crossovers at this time.

4. Turn-on of the Preamplifier

a. Initial Tam-on

All source components should be off at this point. The Select switch

should be set to the Muteposition and the volumecontrol should be fully

counterclockwise. The amplifier(s) should be off.

Connect the power supply to the ACmains at this point. The LEDson

the power supply and KSP:7Bshould nowbe illuminated.

b. Future Use

The KSP-7Bis designed to be "on" at all times. In other words, it is not

intended to be switched on and off on a routine basis. The only times it is

recommended to turn the unit off is when your system will be left

unattended for a long period of time, such as during a vacation or a

business trip. In these cases all other equipment should be turned off,

and the KSP-7B power supply should be disconnected from the AC

mains. Whenyou return, reconnect the power supply to the ACmains

before turning on other equipment.

This procedure should also be followed if you reorganize your system

and need to change wiring of the supply to the preamplifier.

D. OPERATION

Use the Select switch to choose between the various source (playback)

components for listening. Be sure to lower the volume control when

switching amongcomponents, as large differences in level between sources

can cause damage to other components.

There is a Mute position that should be used when source components are

being turned on and off and at the completion of each listening session.

Note: Componentsthat are not being listened to should be turned off or

have their volume turned down. For instance, a tuner should be turned off

or have its volumeloweredwhile it is not being listened to.

Use the ~ switch to choose between the output of the ~ switch or the

playblack from a tape deck for monitoring. This can be done when a

recording is being made, such as with a three-head tape deck, or during

playback only.

Usethe Gain toggle switch to adjust the overall gain of the line section to

compensatefor different system efficiencies.

Theamountof gain for the two settings of the Gain switch are as follows:

HI: 12 dB

LOW: 6 dB

Use the Phase toggle switch to reverse the absolute phase of the Main

Outputs. The switch is functional for both the single-ended and balanced

outputs.

Manyrecordings have had their overall phase reversed during the various

processing stages. Whenthe absolute phase and phase relationship

between channels is correct, there are improved transients and dynamic

detail.

5. Balance

Use the Balance control to adjust the level between the two channels if

necessary. The Balance control is really a balance attenuator. Whenthe

control is turned clockwise, the left channel is reduced in level in four

single decibel steps; a fifth position, Off, fully clockwise, turns the left

channel off.

6. Volume CQntrol

Use the Volumecontrol to adjust the listening level. It should always be

fully counterclockwise when the system is not in use or when changing

records or sources.

The KSP-7Bhas a limited warranty of five years from the date of purchase.

Please return the completed warranty card immediately after successful

installation and operation are completed.

The warranty for KRELLproducts is valid in the country to which they

were originally shipped and at the factory. If you think there are problems

with your unit, please contact your dealer or the factory immediately.

Should your unit need to be repaired, contact the factory or your dealer

(distributor) for a return authorization. Freight to the factory or dealer

(distributor) is your responsibility. Return freight to you will be paid by the

factory or distributor.

Inhaltsverzeichnis

Andere Krell Industries Verstärker Handbücher

Krell Industries

Krell Industries EVOLUTION 222 Kurzanleitung

Krell Industries

Krell Industries PHANTOM Bedienungsanleitung

Krell Industries

Krell Industries Power Amplifiers MDA-300/500 Kurzanleitung

Krell Industries

Krell Industries 300 Bedienungsanleitung

Krell Industries

Krell Industries Five-Channel Power Amplifier KAV-1500 Bedienungsanleitung

Krell Industries

Krell Industries EVOLUTION TWO MONAURAL PREAMPLIFIER Kurzanleitung

Krell Industries

Krell Industries S-1500 Bedienungsanleitung

Krell Industries

Krell Industries Showcase 5 Bedienungsanleitung

Krell Industries

Krell Industries K-300i Kurzanleitung

Krell Industries

Krell Industries FBI Kurzanleitung

Krell Industries

Krell Industries KCT Bedienungsanleitung

Krell Industries

Krell Industries Evolution 202 Kurzanleitung

Krell Industries

Krell Industries PAM-3 Bedienungsanleitung

Krell Industries

Krell Industries Audio + Video Standard Surround... Kurzanleitung

Krell Industries

Krell Industries Evolution 402 Bedienungsanleitung

Krell Industries

Krell Industries Power Amplifier KSA 150 / 250 Bedienungsanleitung

Krell Industries

Krell Industries 700cx Bedienungsanleitung

Krell Industries

Krell Industries Phantom III Bedienungsanleitung

Krell Industries

Krell Industries Evolution Two Bedienungsanleitung

Krell Industries

Krell Industries Preamplifier PAM-5 Bedienungsanleitung

Krell Industries

Krell Industries Illusion II Bedienungsanleitung

Krell Industries

Krell Industries Power Amplifier KST100 Kurzanleitung

Krell Industries

Krell Industries Amplifier KAV-250a Kurzanleitung

Krell Industries

Krell Industries Evolution 600 Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung
