KFC-200
10/100BASE-TX to 100BASE-FX
Media Converters
Installation Guide
DOC.110530
-1-
-2-
(C) 2011 KTI Networks Inc. All rights reserved. No part of this documentation may be reproduced in any form
or by any means or used to make any directive work (such as translation or transformation) without permission
from KTI Networks Inc.
KTI Networks Inc. reserves the right to revise this documentation and to make changes in content from time to
time without obligation on the part of KTI Networks Inc. to provide notification of such revision or change.
For more information, contact:
United States KTI Networks Inc.
P.O. BOX 631008
Houston, Texas 77263-1008
Phone: 713-2663891
Fax: 713-2663893
URL: http://www.ktinet.com/
International Fax: 886-2-26983873
URL: http://www.ktinet.com.tw/
The information contained in this document is subject to change without prior notice.
Copyright (C) All Rights Reserved.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including the interference that may cause undesired operation.
CE NOTICE
Marking by the symbol indicates compliance of this equipment to the EMC directive of the European
Community. Such marking is indicative that this equipment meets or exceeds the following technical
standards:
EMC Class B
EN55022:2006/A1:2007
EN61000-3-2:2006
EN61000-3-3:1995/A1:2001/A2:2005 Class B
EN55024:1998/A1:2001/A2:2003
IEC 61000-4-2:2001
IEC 61000-4-3:2002/A1:2002
IEC 61000-4-4:2004
IEC 61000-4-5:2001
IEC 61000-4-6:2003
IEC 61000-4-8:2001
IEC 61000-4-11:2001
-3-
-4-
Table of Contents
1. Introduction......................................................................................................................................................5
1.1 Features.................................................................................................................................5
1.2 Product Panels....................................................................................................................... 6
1.3 Specifications.........................................................................................................................7
2. Installation........................................................................................................................................................8
2.1 Unpacking..............................................................................................................................8
2.2 Safety Cautions...................................................................................................................... 8
2.3 Mounting the Device ..............................................................................................................9
2.4 Applying Power with Power Adapter.................................................................................... 12
3. Making LAN Connections.............................................................................................................................12
3.1 Making UTP Connections ....................................................................................................12
3.2 Making FX Port Connection.................................................................................................13
3.3 LED Indication...................................................................................................................... 15
1. Introduction
The 10/100BASE-TX to 100BASE-FX media converter series provides a media conversion allowing
high-speed integration of fiber optic and twisted-pair segments. With 10BASE-T and 100BASE-TX support,
the converters provide seamless translation between Ethernet and Fast Ethernet networks. A complete set of
LEDs allows for quick status verification.

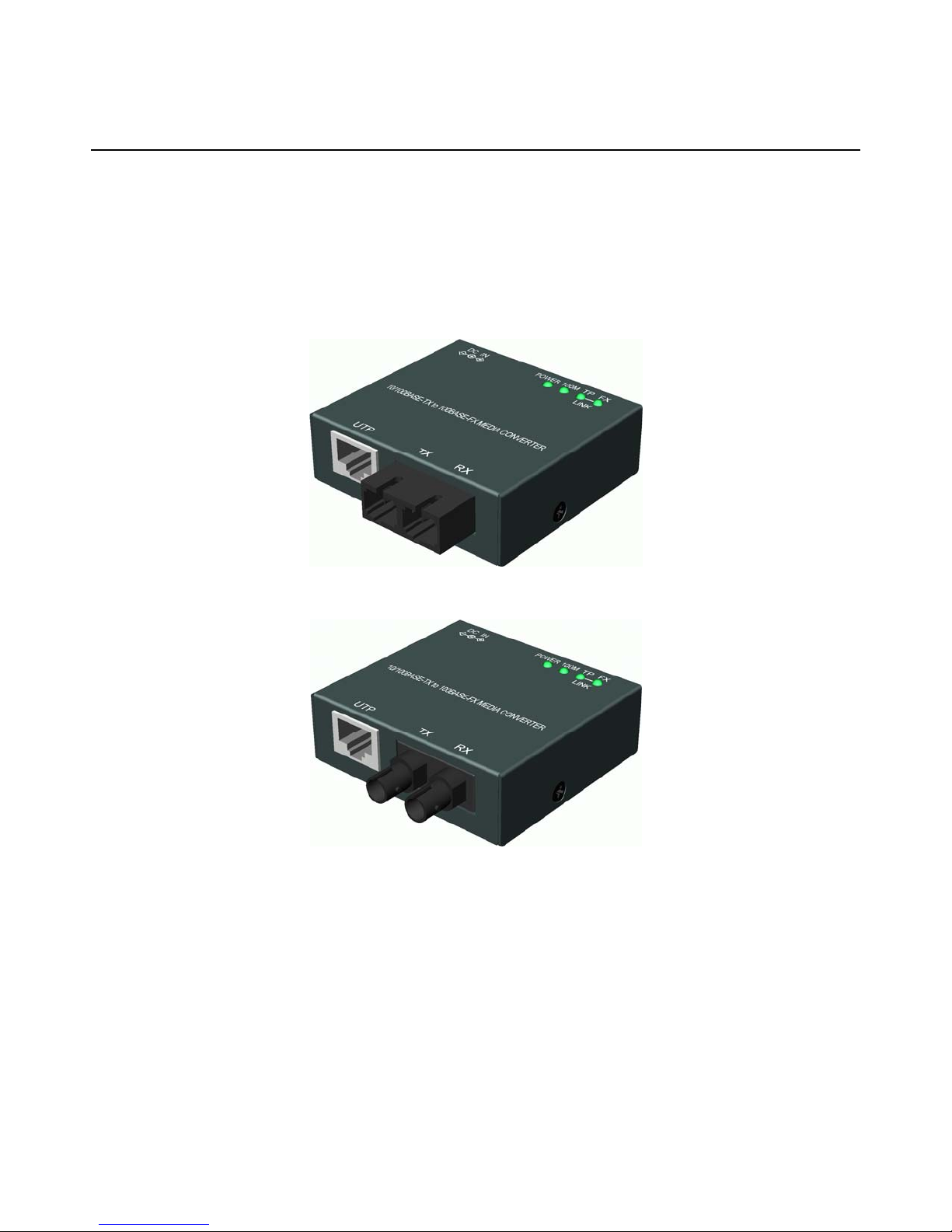

Media Converter with duplex SC Connector
Media Converter with duplex ST Connector
1.1 Features
zSupport full wire speed conversion for 10/100Mbps speed and media types
zSupport auto-negotiation 10/100Mbps or forced mode on the copper port
zAuto MDI/MDI-X crossover function on the copper port
zTransparent conversion to 802.1Q VLAN tagged packets
zProvides Far End Fault function on FX (fiber) port
zLow power consumption
zSupports DIN rail mounting and wall mounting
-5-

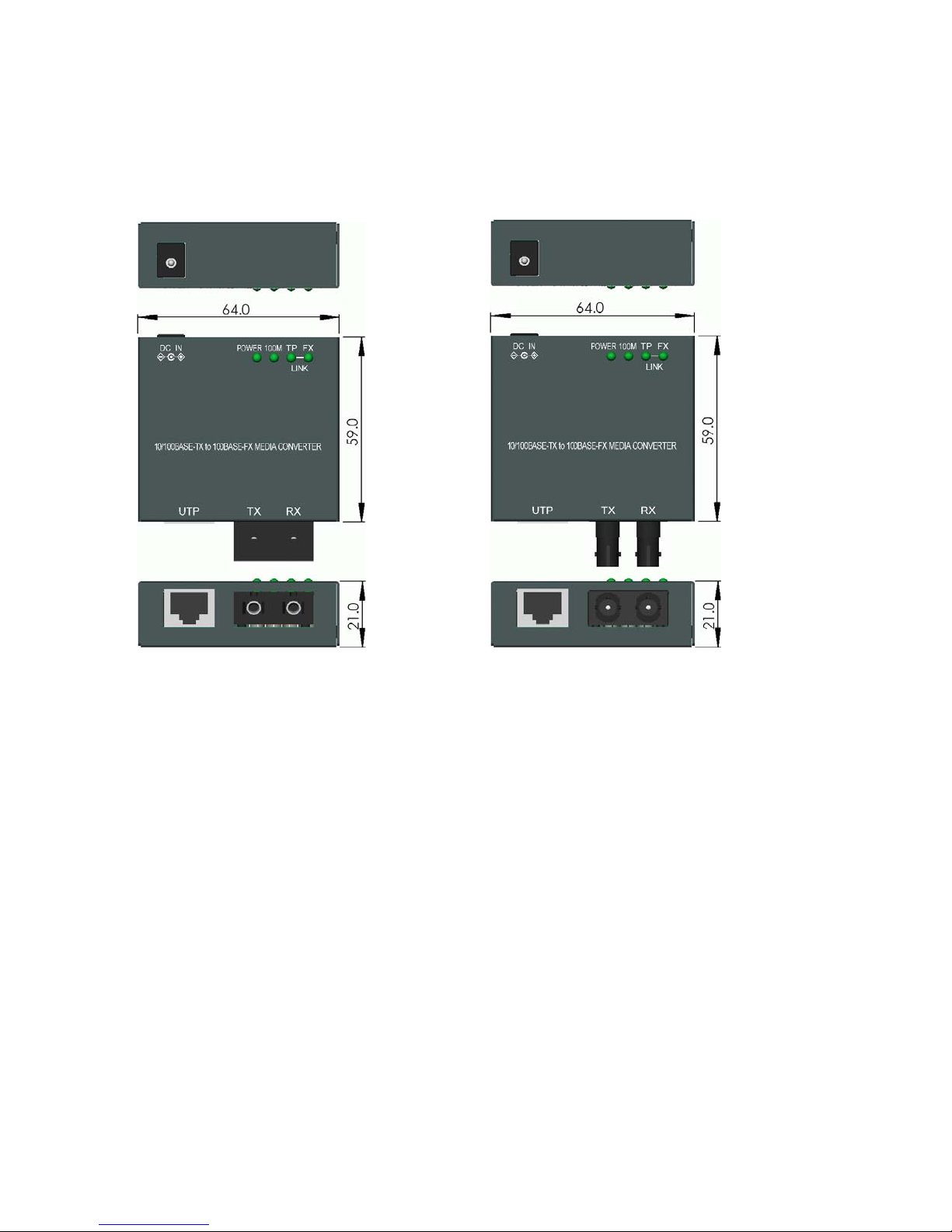

1.2 Product Panels
The following figure illustrates the panels of the media converters:
Media Converter with duplex SC connector Media Converter with duplex ST connector
-6-
-7-
1.3 Specifications
TP Port IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Shielded RJ-45 jacks with Auto MDI/MDI-X detection
Auto-negotiation for speed and duplex auto detection
Speed for 10Mbps or 100Mbps
Full-duplex or half-duplex support
FX Port IEEE 802.3u 100BASE-FX compliant
Forced 100Mbps, Full duplex
Far end fault Function
Options: Duplex SC for MMF, Duplex ST for MMF,
Duplex SC for SMF, BiDi SC for SMF
Cables 10/100BASE-TX: Cat. 5 UTP cable,
100BASE-FX: MMF - 62.5/125μm, 50/125μm, SMF - 9 /125μm
LEDs Power status, TP speed, TP Link/Activity, FX Link/Activity
Packet Size Up to 1536 bytes
Environment Operating Temperature: 0oC ~ 40oC
Storage Temperature: -30oC ~ 80oC
Relative Humidity: 5% ~ 95% non-condensing
Dimension 64 x 59 x 21 mm (WxDxH)
Mounting Support Desktop, Wall mounting
Optional: DIN-Rail, Panel
Power Input +3.3VDC via external power adapter
Power Consumption 1.8W max. @+3.3V
-8-
2. Installation
2.1 Unpacking
The product package contains:
zThe media converter unit
zOne AC power adapter
zOne product CD-ROM
2.2 Safety Cautions
To reduce the risk of bodily injury, electrical shock, fire and damage to the product, observe the following
precautions.
zDo not service any product except as explained in your system documentation.
zOpening or removing covers may expose you to electrical shock.
zOnly a trained service technician should service components inside these compartments.
zIf any of the following conditions occur, unplug the product from the electrical outlet and replace the part
or contact your trained service provider:
- The power cable, extension cable, or plug is damaged.
- An object has fallen into the product.
- The product has been exposed to water.
- The product has been dropped or damaged.
- The product does not operate correctly when you follow the operating instructions.
zDo not push any objects into the openings of your system. Doing so can cause fire or electric shock by
shorting out interior components.
zOperate the product only from the type of external power source indicated on the electrical ratings label. If
you are not sure of the type of power source required, consult your service provider or local power
company.
2.3 Mounting the Device
Desktop Mounting
The media converter can be mounted on a desktop or shelf. Make sure that there is proper heat dissipation from
and adequate ventilation around the device. Do not place heavy objects on the device.

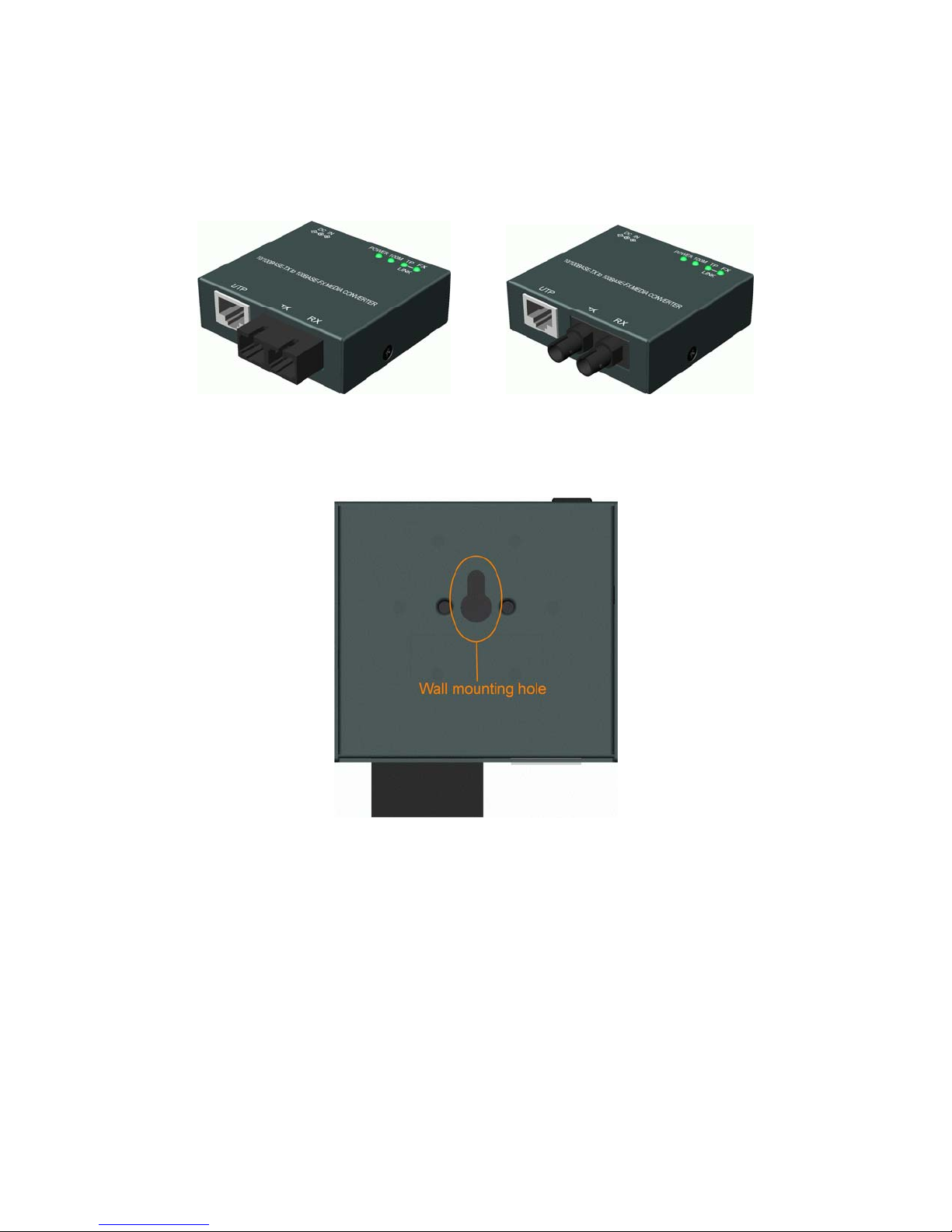

Wall Mounting
To mount the device on a wall, one wall mounting hole is provided on the bottom of the device. Hang the
device on the wall reliably. The following figure illustrates example of a device bottom face:
-9-

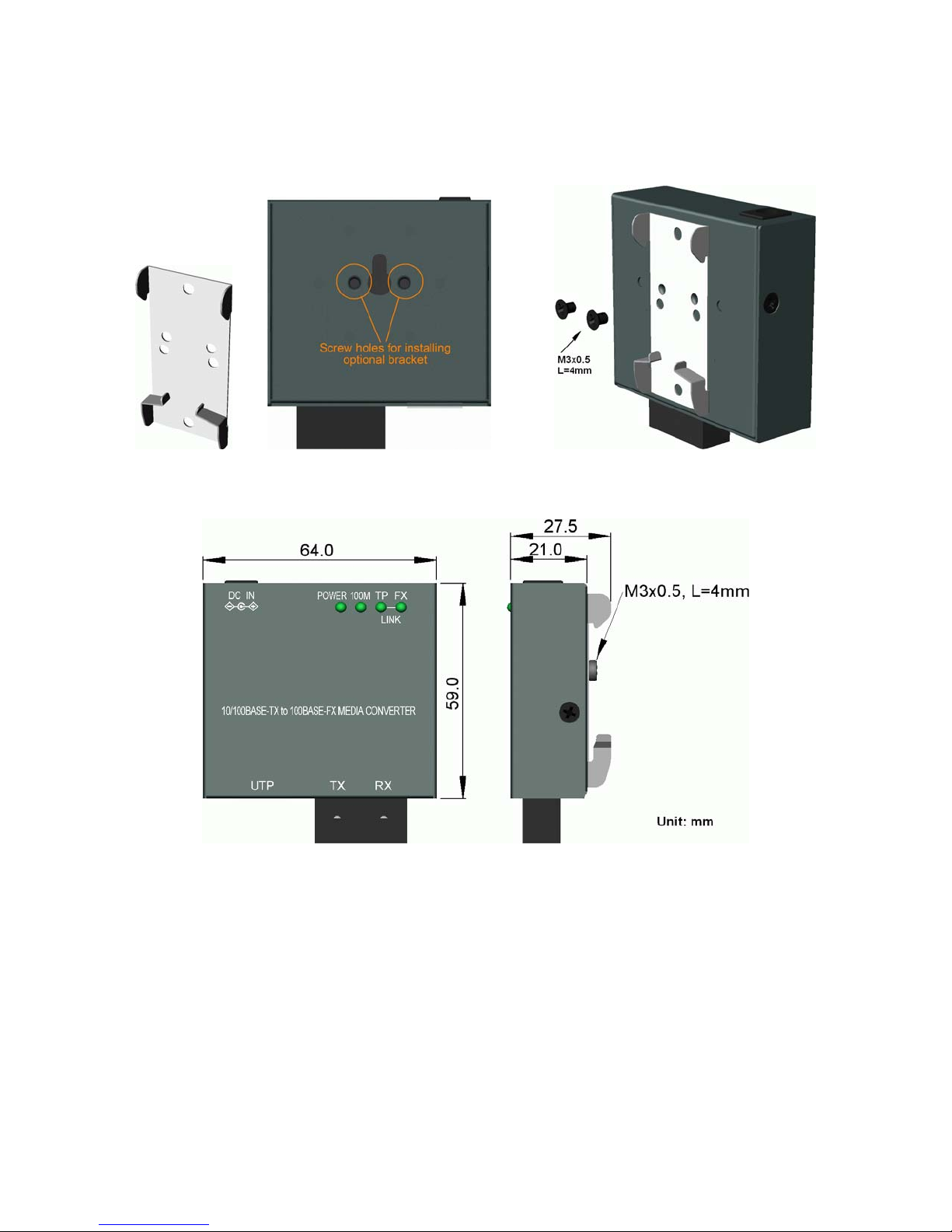

Optional Din-Rail Mounting
To mount the media converter on a Din-Rail, one optional Din-Rail mounting bracket is required. Screw the
bracket onto the bottom of the device with M3x0.5 screws as follows:
Dimension with installed bracket
