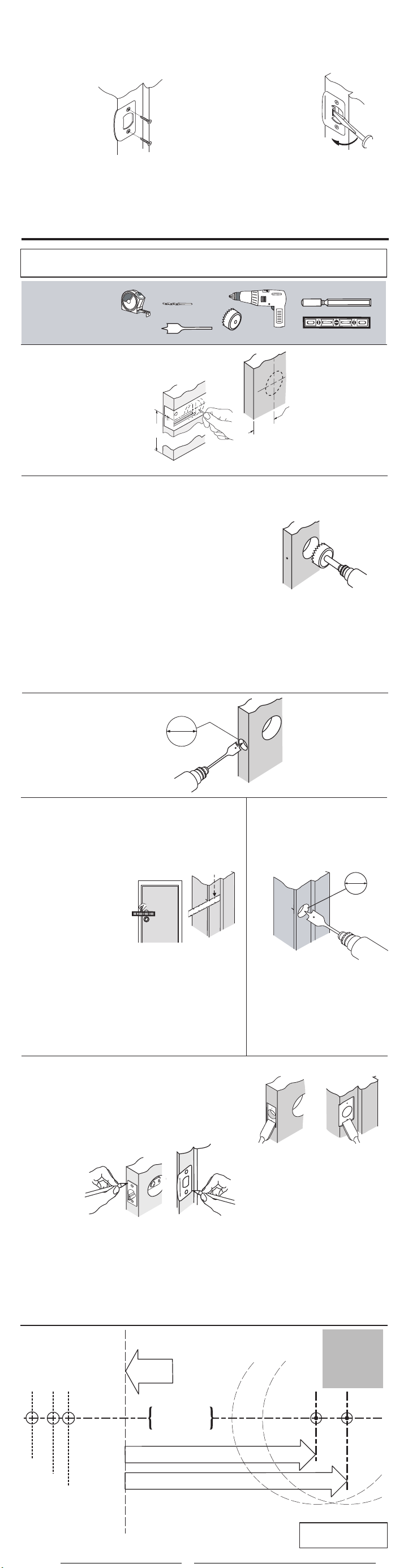

Kwikset 44594/01 Bedienungsanleitung

REMOVE LEVER AND COVER FROM LEVER ASSEMBLY

PREPARE LATCH AND INSTALL

If backset of door measured 2-3/4" (70mm), adjust latch as follows: Grasp the spring pin and

move it to the 2-3/4" slot.

Make sure that slant of latch bolt

faces in the direction that the door

closes.

OPTIONS

MEASURE

Keep handy for emergency unlocking.

2-3/8" (60mm)

2-3/4" (70mm)

Switch lever on exterior assembly as follows.

1. Insert wrench into set screw hole and loosen set screw.

2. Remove lever, replace with other lever and retighten set screw.

INSTALL EXTERIOR & INTERIOR ASSEMBLIES

Push latch to insert lever.

Snap on cover.

Tighten set screw to secure lever.

Install lever.

Continued

TRASH

FOR LEFT HAND DOORS - ONLY

IMPORTANT INSTALLATION INSTRUCTIONS

Required tools

LEVER - PRIVACY & PASSAGE

WITH 6-WAY LATCH

44594 / 01 CP

Connect assemblies by installing the mounting screws.

Push up on assembly until screws are level, before

fully tightening.

Do not use harsh chemicals or

solvents to clean your lock.

Mechanical lock

Use a damp cloth to wipe away

any excess dirt or debris.

Electronic lock

Use a damp cloth on the lock’s

exterior to wipe away any excess

dirt or debris. Use a dry cloth to

clean interior components.

FACE

• EDGE

DOOR DRILLING

4 5

2-3/8" 60mm

2-3/4" 70mm

2-1/4" (57mm)

1-3/4" (44mm)

1-3/8" (35mm)

Select desired backset

25mm

(25mm)

25 mm

(25mm)

2-3/8" (60mm)

2-3/4" (70mm)

BACKSET

Using a 2-1/8" (54mm) diameter hole saw, drill from one side until the point of drill

just breaks through, then complete hole from the other side to prevent splintering.

Drill hole 5/8" (16mm) deep.

Chisel out area until face plate sits flush and drill 3/32" (2mm)

diameter pilot holes for screws. Repeat for strike plate.

BACKSET

Centerline

FOLD OVER

•

TEMPLATE

Drill Hole in Door Face

Drill Hole in Door Edge

Mark Hole for Strike Plate Drill Strike Hole

Face and Strike Plate Cutouts

Mark Holes on Door

Privacy & Passage Lever

44594 / 01

38"

(965mm)

Extend mark across jamb to door stop. Locate center

of strike hole by measuring back from door stop,

1/2 the thickness of door.

25mm

3/32"

(2mm)

Required tools:

Align latch face plate on door edge and draw outline.

Repeat for strike plate on door jamb.

INSTALL STRIKE

Adjust tang as needed.
