Kwikset 62822/01 Bedienungsanleitung

23/8" (60 mm)

23/4" (70 mm)

Backset

Centerline

13/8" (35 mm)

13/4" (44 mm)

21/4" (57 mm)

Face of the doorEdge of the door

Fold

Doble

Installation Guide

If drilling a new door, use

the supplied template and

the complete door drilling

instructions.

Parts in the boxRequired tools

Additional tools

(if needed)

Latch Passage Knobs

Screws

Strike Privacy

Knobs

Emergency Unlock tool

(privacy locks only)

Not required for all applications

23/8" (60 mm)

23/4" (70 mm)

21/8"

54 mm

25 mm

Drilling TemplateTemplate is only needed if a new hole must be drilled in the door.

Hold the latch in front of the door hole, with

the latch face lush against the door edge.

If the latch holes are centered in the door hole,

no adjustment is required. Proceed to step 4.

If the latch holes are NOT centered, adjust

latch. See “Latch Adjustment” (step 3C).

Latch Adjustment (only if needed)

Move the pin to extend the latch.

wood block

not centered

centered

*Passage knobs only: Call

Kwikset to order a service kit

for 21/4" (57 mm) thick doors.

13/8"–13/4"*

35 mm–44 mm*

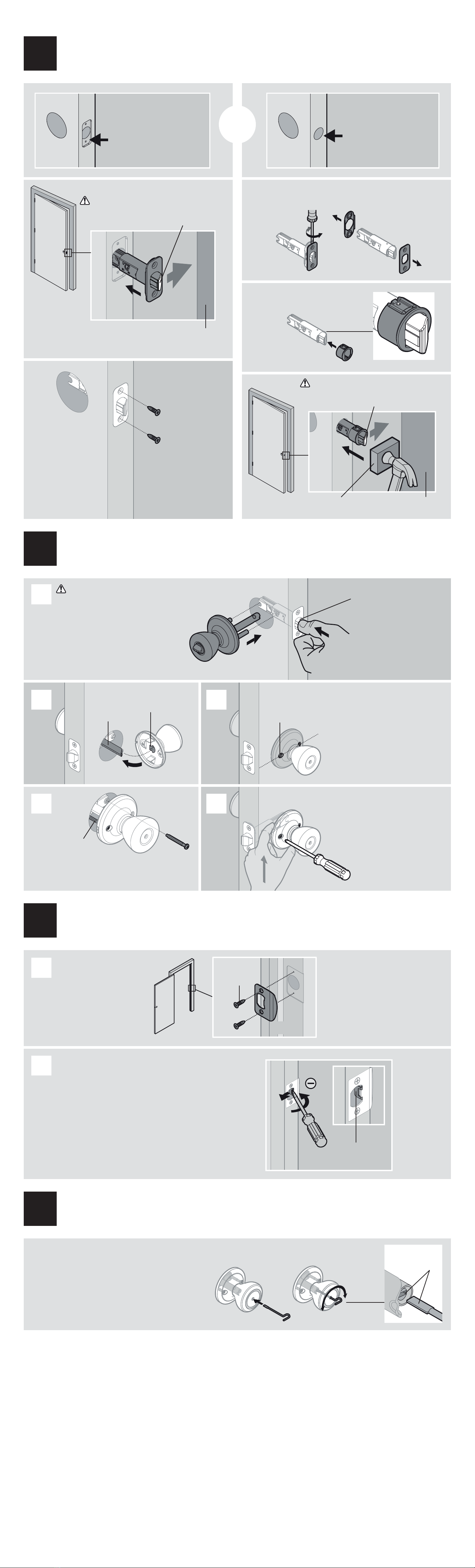

Prepare door and check dimensions

Locate latch

Instructions continue on reverse

Note: Knobs will not be

installed until step 5.

Adjust the backset of the latch (if needed)

62822 / 01

Do not use harsh chemicals or

solvents to clean your lock.

Mechanical lock

Use a damp cloth to wipe away

any excess dirt or debris.

Electronic lock

Use a damp cloth on the lock’s exterior to wipe away

any excess dirt or debris. Use a dry cloth to clean

interior components.

Door edge NOT

chiseled

Door edge chiseled

align

Push up on knob while tightening screws

to keep latch horizontal and centered.

tab

Align round edges.

Tip: Pull knob

slightly away

from door to see

where screws insert.

Ensure holes are horizontal.

Press latch bolt

to install knob.

Close door and test latch operation. If latch is

loose in the strike, adjust strike tab so it grips

the latch bolt better when the door is closed.

C (2x)

Save the bedroom/bathroom emergency

unlock tool (G) for future use.

IMPORTANT: If installing a passage

lock on an entry door, make sure

the knob with the screw holes is

on the interior side of the door.

slant of latch bolt faces door frame

door frame

C (2x)

(2x)

wood block

slant of latch bolt faces door frame

door frame

Remove plates

Install drive-in collar

F / K

E / J

B C

Install latch

Install knobs

Install strike on door frame

Privacy locks only
